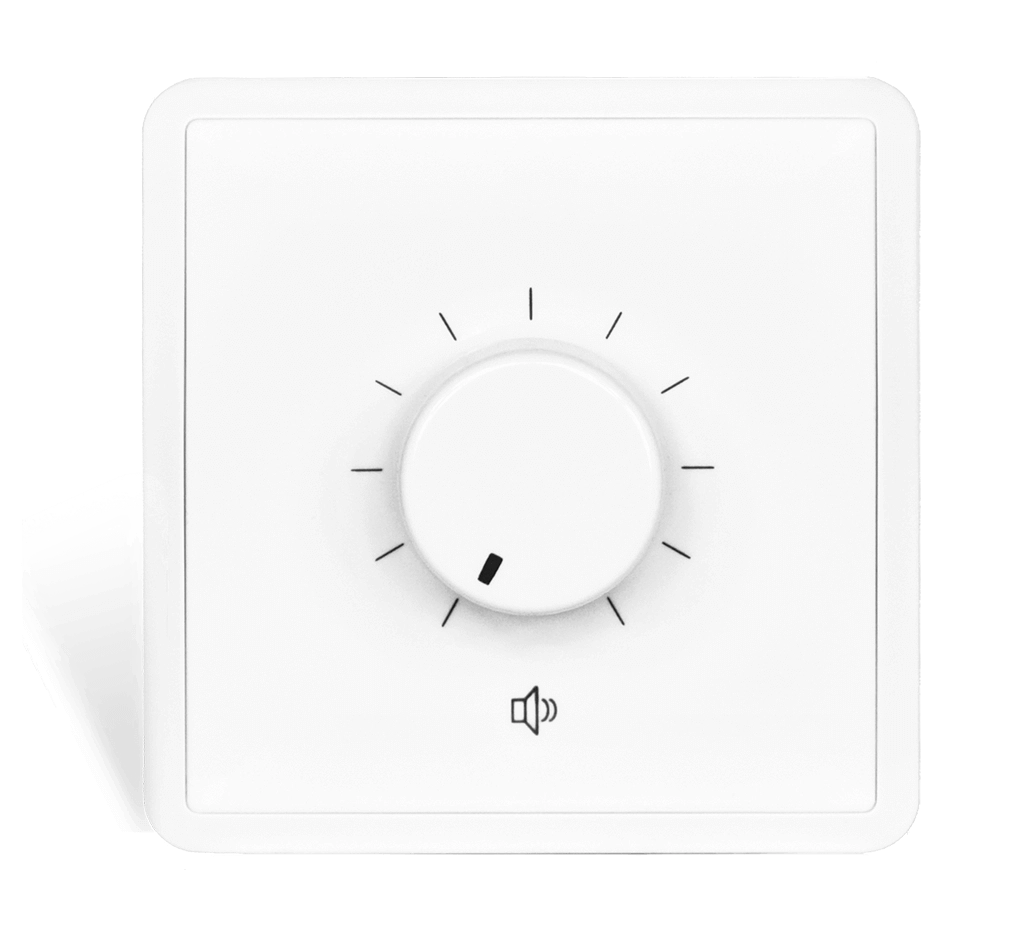

Audac VC3022 100V 20W Volume Controller

The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy ABS, making them suitable for big projects in industrial environments as well as standard home interiors. An integrated 24 Volt relay allows bypassing of the volume controller in priority situations, making sure the message is always clearly heard at maximum volume. Connections are made using screw terminal blocks, and flush and surface mount boxes (WB3102) are separately available.

Technical specifications
Available models
VC3022/W 100v wall volume controller
System specifications
Peak power handling 40 W
Program power handling 20 W
Max. operation Voltage 100 V
Attenuation 11 x 3 dB
Priority relay 24 V / 25 mA
Product Features
Dimensions 80 x 80 x 50 mm (W x H x D)
Built-in depth 46 mm
Weight 0.100 kg
Construction ABS
Colours White
Accessories Optional WB3102/FS Flush mount wall box
WB3102/SW Surface mount wall box
