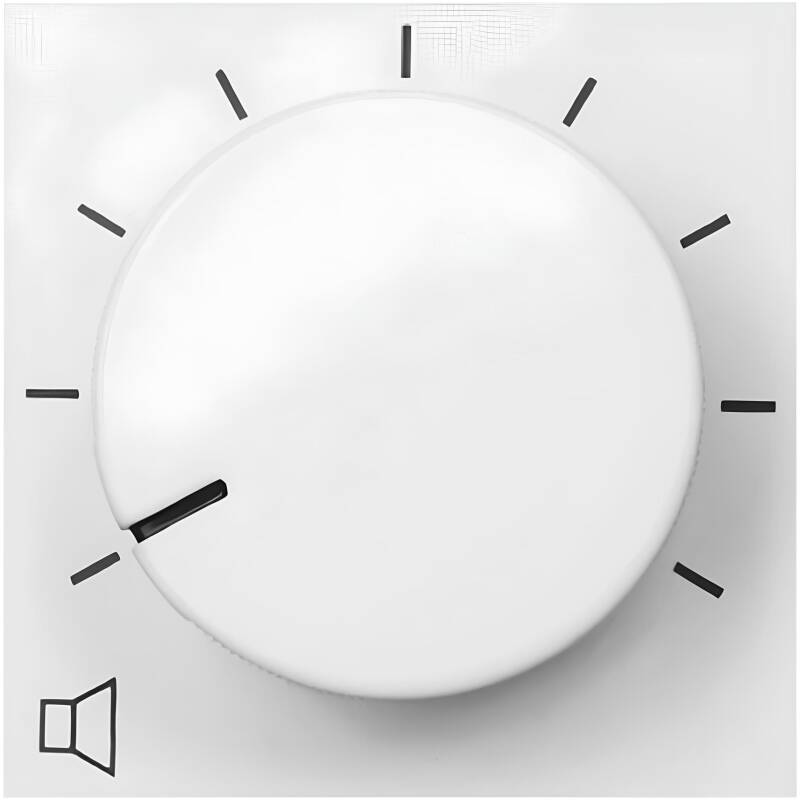

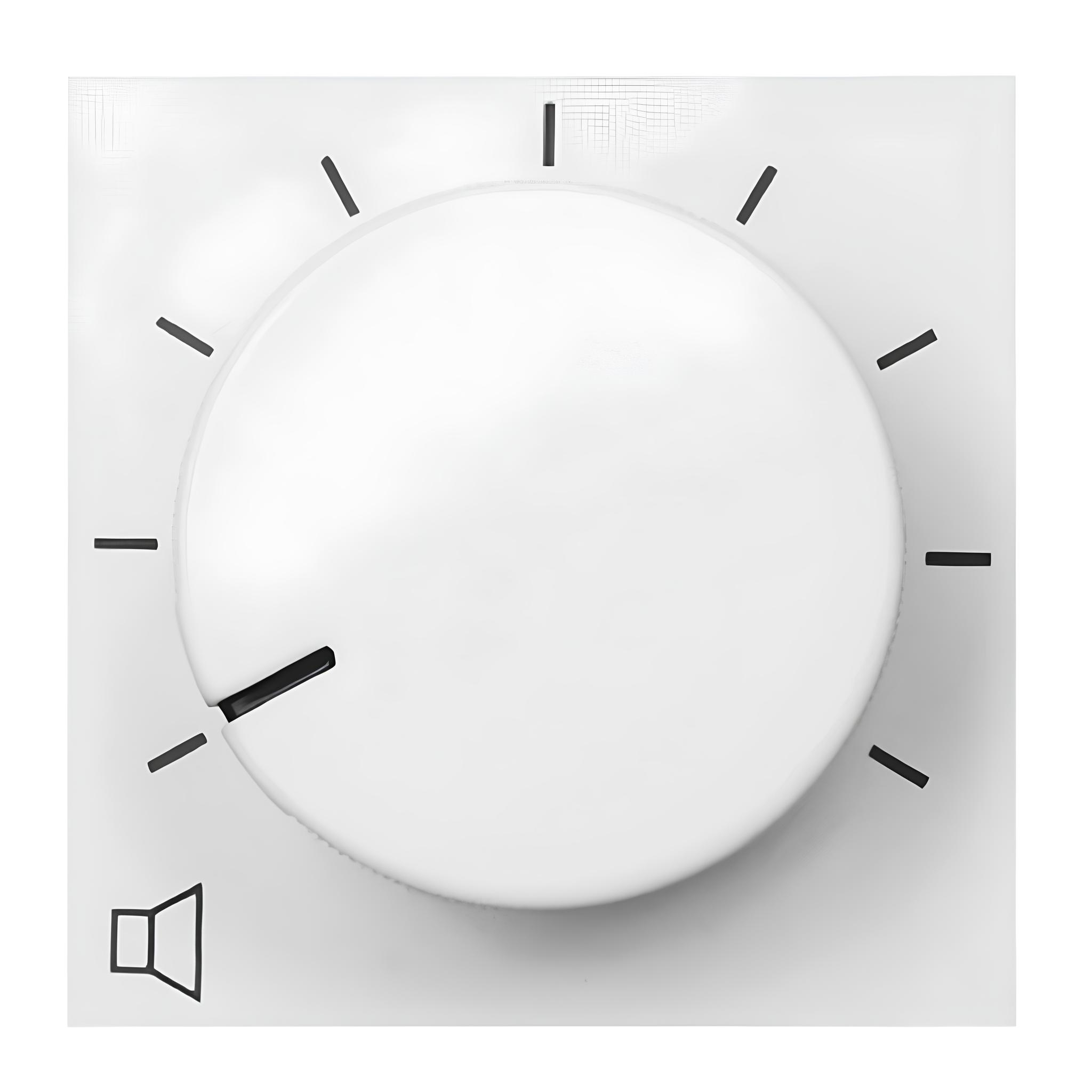

Audac VC3036 White 100V Volume Controller

The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.

Technical specifications
Available models
VC3036/B Black version
VC3036/W White version
System specifications
Peak power handling 72 W
Program power handling 36 W
Continuous power (AES) 36 W
Max. operation Voltage 100 V
Attenuation 9 x 3 dB
Relay 24 V / 25 mA
Product Features
Dimensions 45 x 45 x 60 mm (W x H x D)
Weight 0.150 kg
Construction ABS
Mounting 45 x 45 mm
Colours Black (RAL9005) (VC3036/B)
White (RAL9010) (VC3036/W)
Accessories Optional CP45CF1 Cover frame
CP45CF2 Cover frame
