Audac VC3102 100V 100W Volume Controller

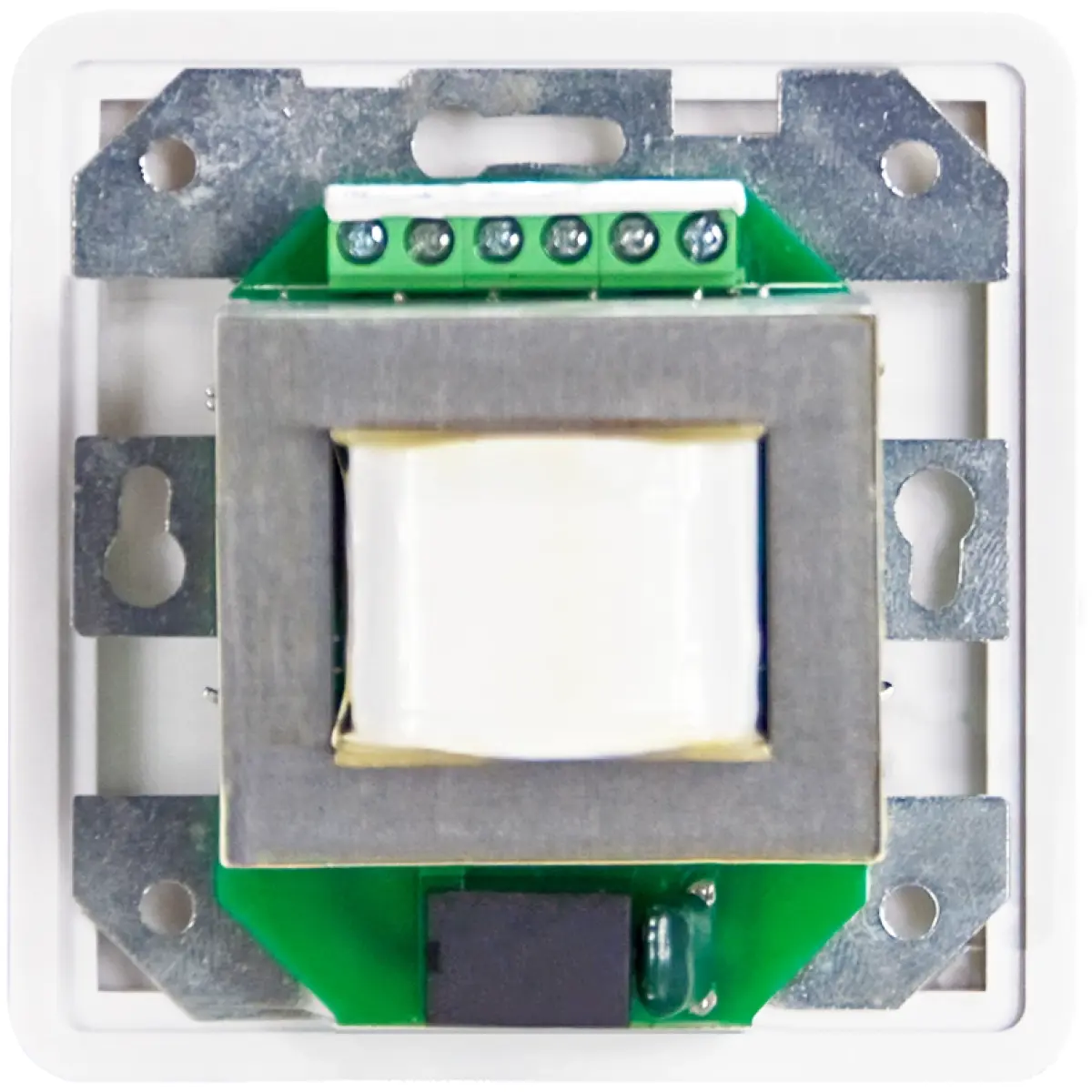

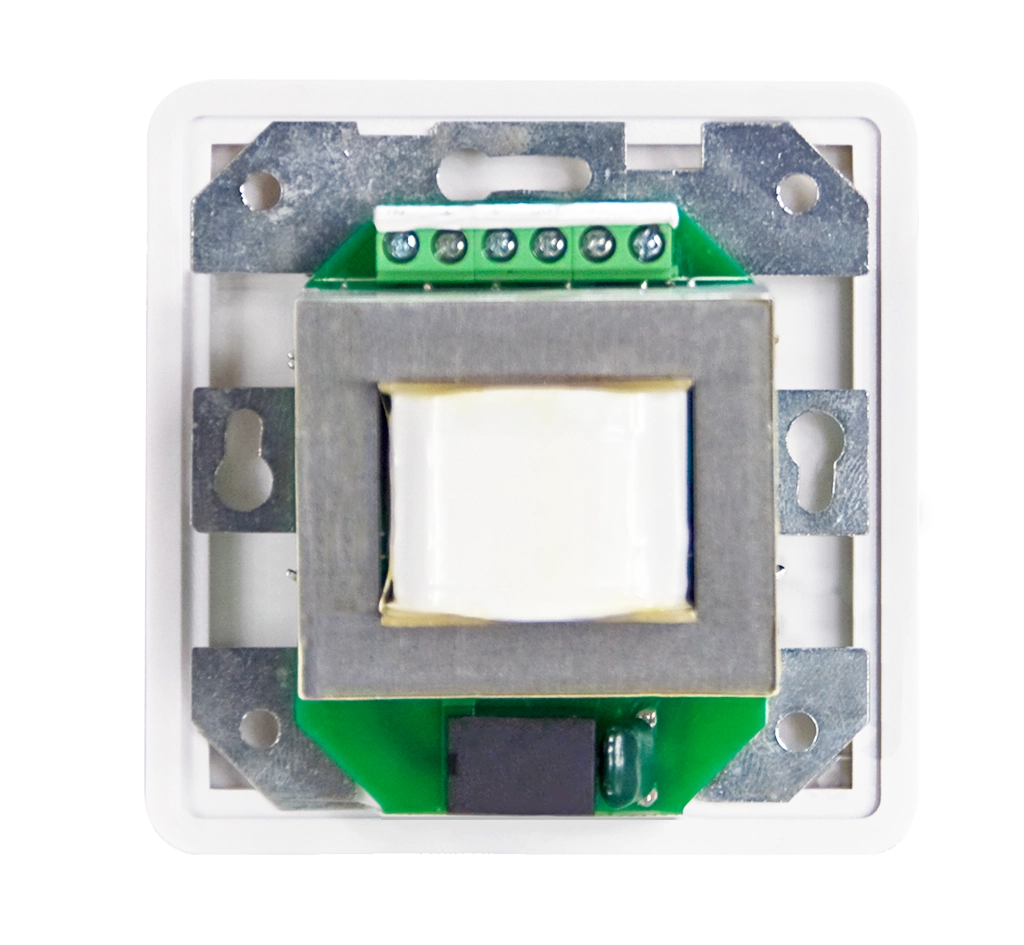

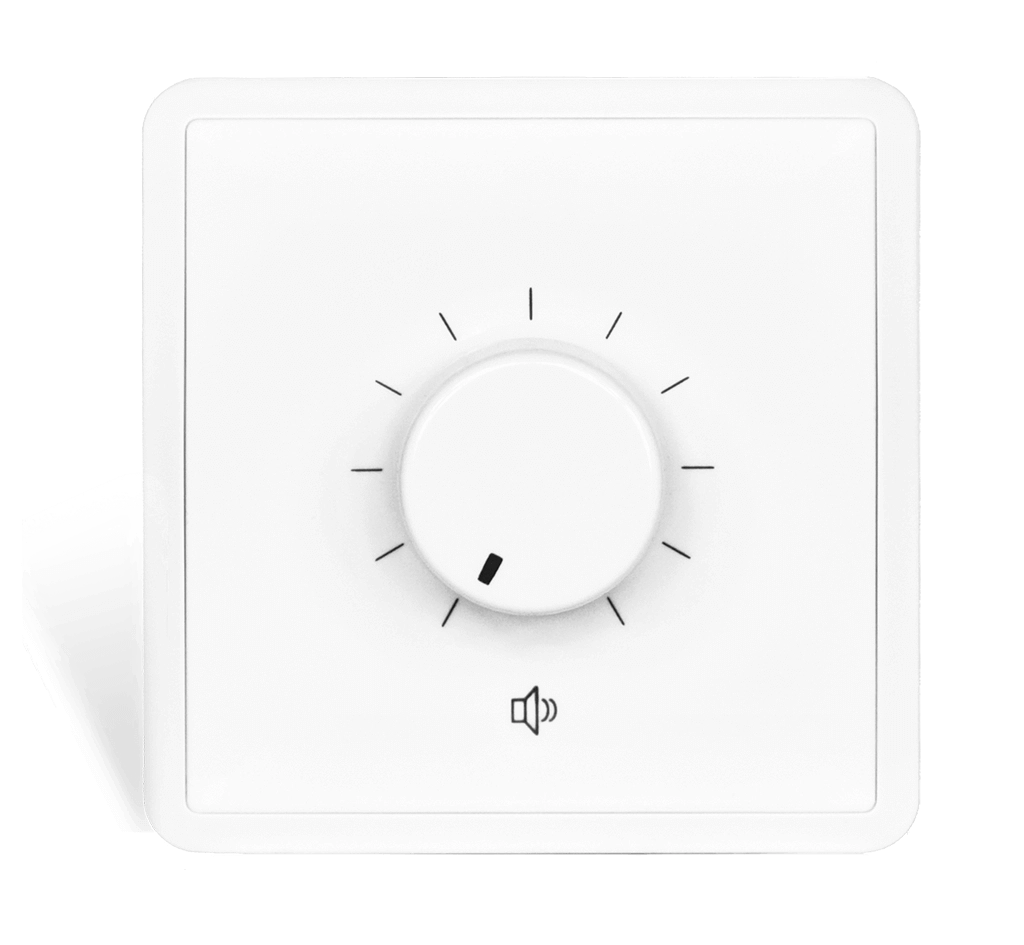

The VC3102 is a 100 Volt volume controller capable of handling a power up to 100 Watt. The volume is adjustable with a rotatable dial in 11 steps of 3 dB. It is equipped with a relay and separate input for the reception of 24V priority signals. This means that when a priority signal occurs, the volume will be automatically switched to maximum level. This can be very useful for emergency and evacuation messages. Due to it’s slim and good looking design, these volume controls will blend into all kinds of different environments or interiors. The construction is made of sturdy ABS and therefore suitable for big projects in industrial buildings as well as standard home interiors. The dimensions are 80 mm x 80 mm, and a built-in depth of 46 mm is required. The connections are made at the back with screw terminal blocks.

Technical specifications
Available models
VC3102/W White version
System specifications
Peak power handling 200 W
Program power handling 100 W
Max. operation Voltage 100 V
Attenuation 11 x 3 dB
Priority relay 24 V / 25 mA
Product Features
Dimensions 80 x 80 x 50 mm (W x H x D)
Built-in depth 46 mm
Weight 0.340 kg
Construction ABS
Colours White
Accessories Optional WB3102/FS Flush mount wall box
WB3102/SW Surface mount wall box
