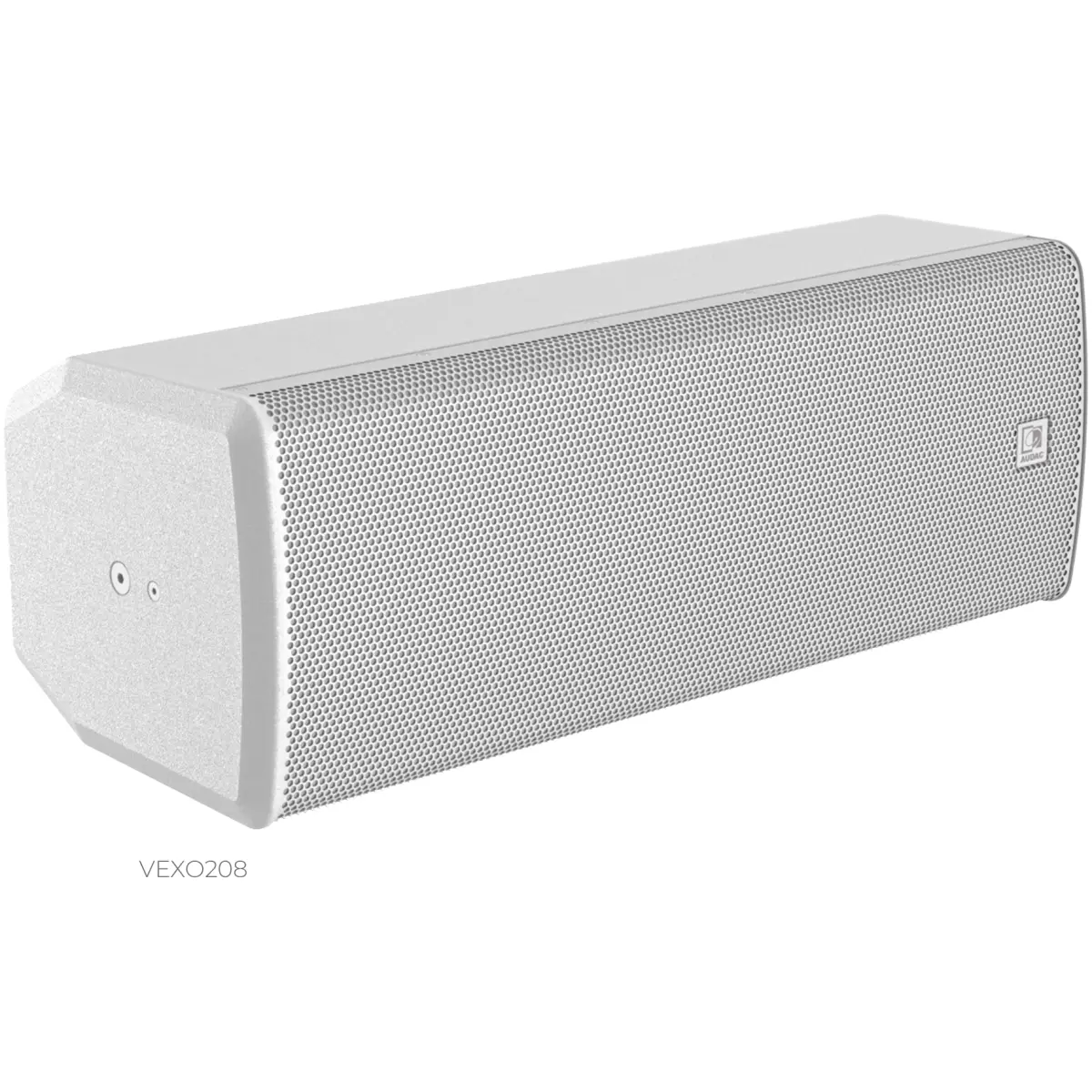

Audac VEXO208 White Compact 8” High Performance 3-way Loudspeaker

The VEXO208 is a high-output 3-way loudspeaker, providing a powerful and detailed signature sound of the VEXO family with a dual 8-inch driver in a compact cabinet.

The combination of the elegant enclosure and high performance allows them to be used in installation applications that require both a modern look and a unique audio experience from nightclubs to sports facilities. Compression driver overload protection is provided through an internal limiting circuit. Mounting in both horizontal and vertical directions is possible with the included wall bracket. An optional 70/100V transformer module can be installed to use VEXO208 in Hi-Z systems.

FEATURES:

• High performance coaxial driver and secondary low frequency extension driver
• Consistent vertical and horizontal wide coverage pattern
• Full range sound reproduction with possibility for extension with bass cabinet
• Compact enclosure/ Minimum visual impact
• DuraCoat™ texture paintwork
• Optional 70/100V line transformer available
• Impact resistant, ball impact proof

Technical specifications
Available models
VEXO208/W White version – 4 Ω
VEXO208I/B New Black improved version – 8 Ω

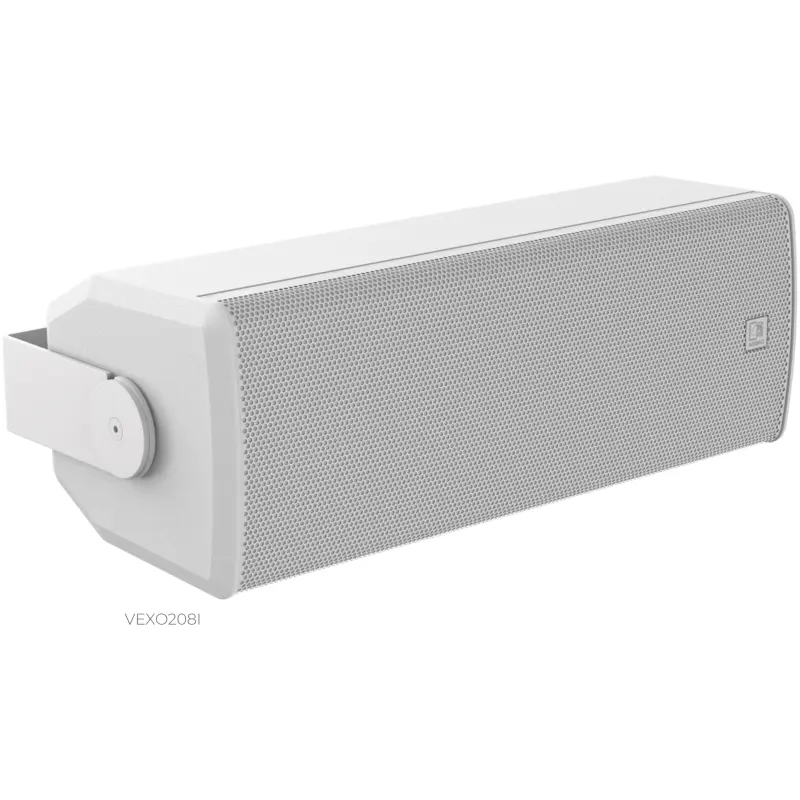

VEXO208I/W New White improved version – 8 Ω
System specifications
Speaker type 3-way
Peak power handling 1600 W
Program power handling 800 W
Continuous power (AES) 400 W
Sensitivity (1W/1m) 94 dB
Sound Pressure (Max. W/1m) 121 dB
Frequency Response (± 3 dB) 62 Hz – 20 kHz
Range (-10 dB) 46 Hz – 20 kHz
Drivers HF Compression driver with 1.4″ VC and 1″ throat
LF 1 x 8″ Coaxial LF with 2” voice coil, 1×8” LF with 1.8” voice coil
Impedance 4 Ω (VEXO208)
8 Ω (VEXO208I)
Connectors 2 x Speakon compatible (Linkthrough)
Dispersion Avg 1 kHz – 4 kHz | -6 dB | 1/3 oct Horizontal 96°
Vertical 100°
Product Features
Dimensions 710 x 260 x 290 mm (W x H x D)
Weight 17 kg
Construction 15 mm Multiply Plywood with multi-layer Polyurea coating
Finish Cabinet finishing Polyurethane coating
Front finish Powder coated steel grill with acoustical foam
Mounting Mounting pattern 127 x 70 x M8 mount
Powerdrive mount Powerdrive type 100 (127 x 70 mm)
Mounting & handling Rigging points 2 x M6 & 2 x M10
Accessories Included Mounting bracket
Drop safety wire
Optional 70V/100V transformer module
