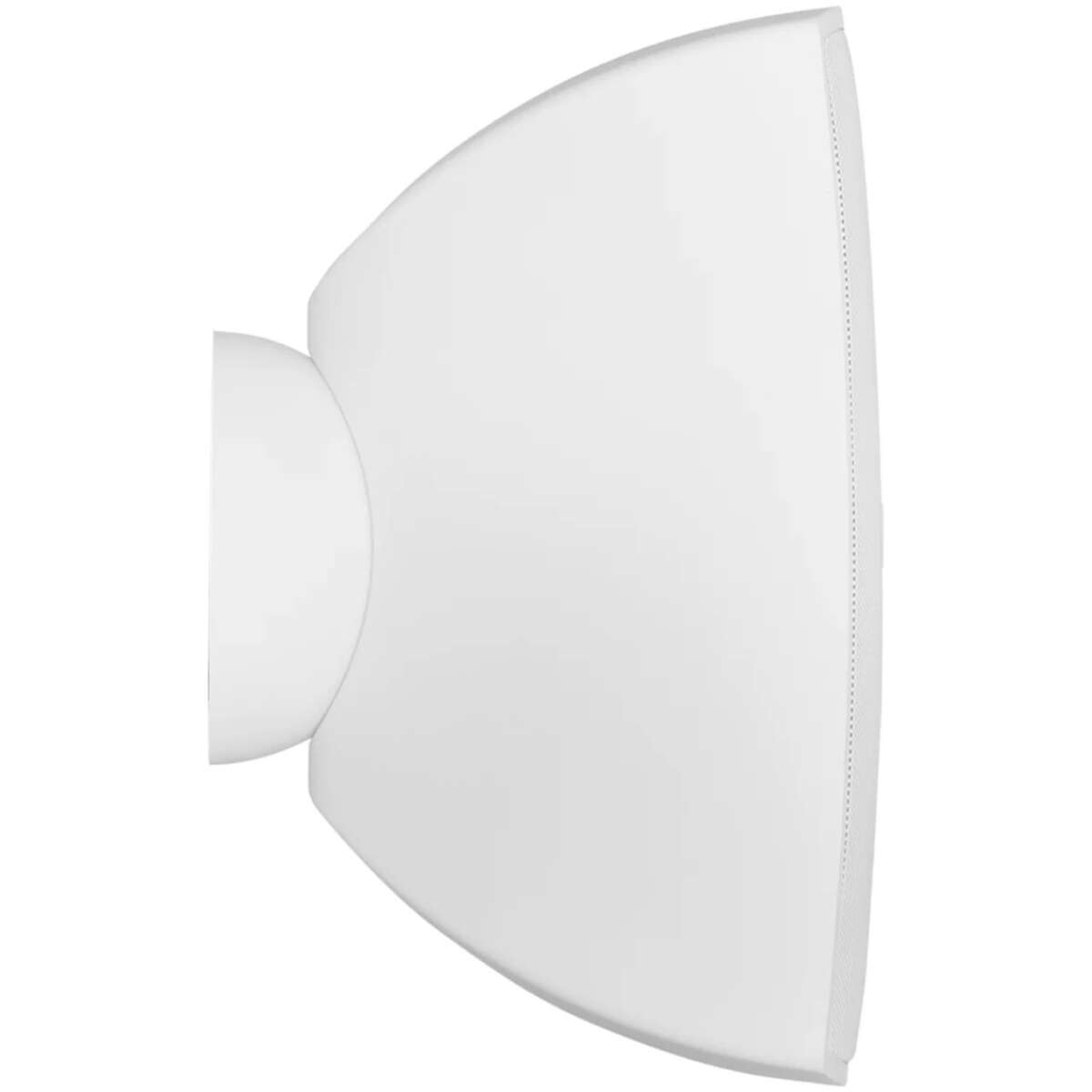

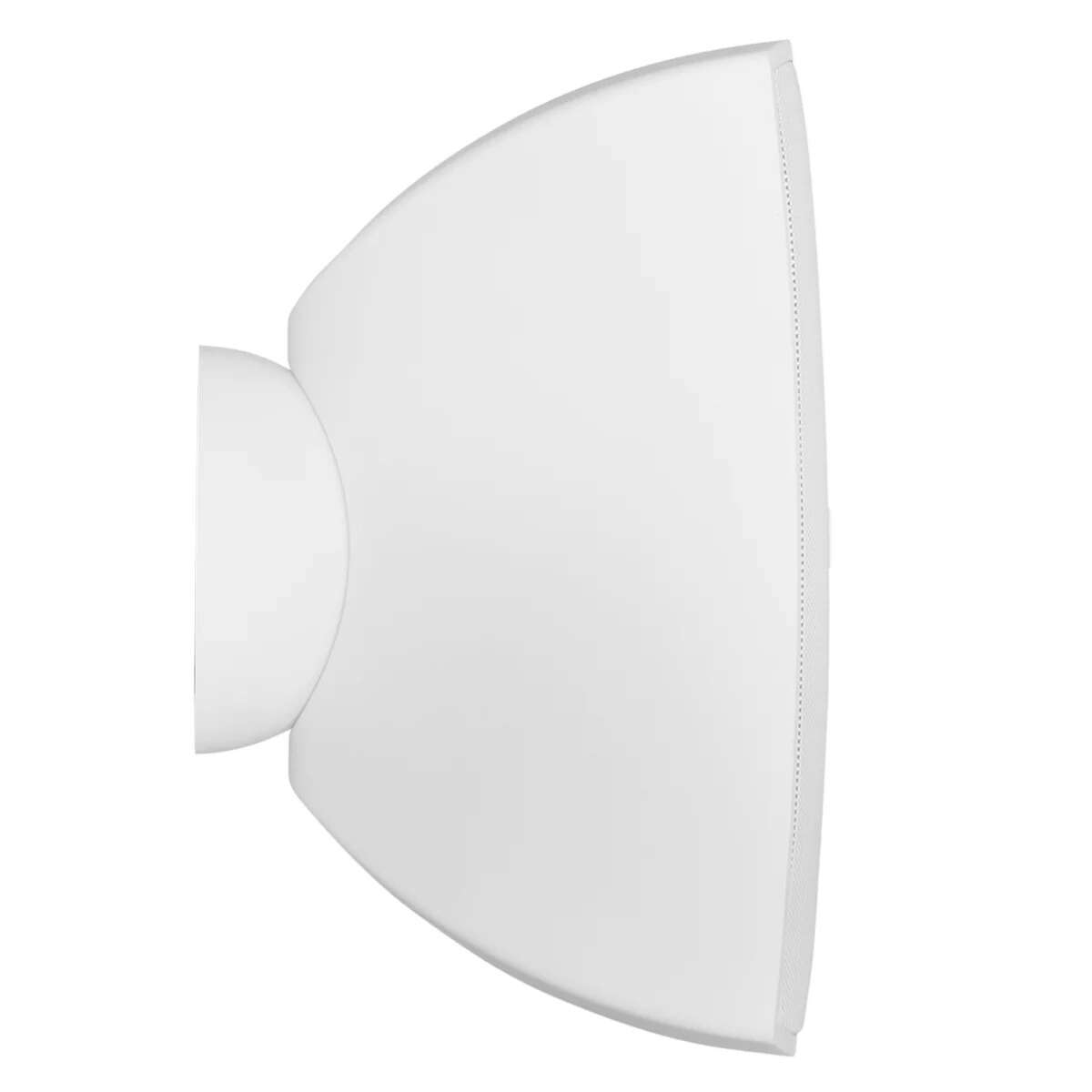

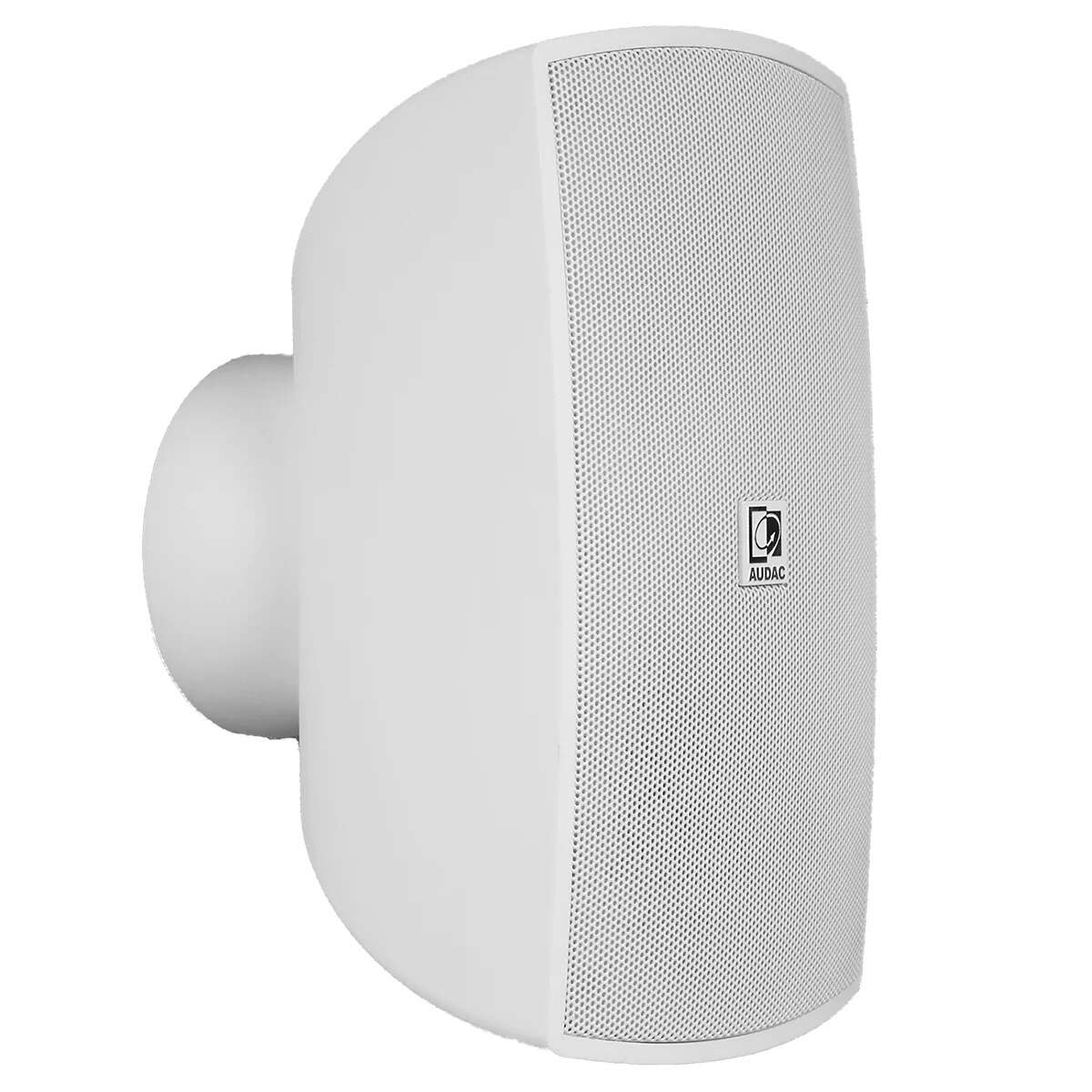

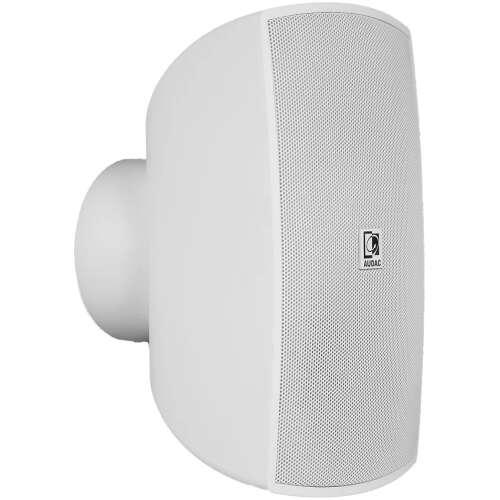

Audac Wall Speaker With Clevermount 4″ White Version – 8ohm

The AUDAC ATEO4MK2/W is an elegant 4-inch wall-mounted loudspeaker designed for fixed indoor sound installations. It is suitable for residential spaces, retail stores, restaurants, hotels, offices, pubs and entertainment venues.

A balanced 1-inch dome tweeter and 4-inch mid/low-frequency driver provide natural, high-fidelity reproduction of both music and speech. The improved crossover delivers an ultra-flat frequency response with clear and balanced sound.

AUDAC’s patented CleverMount™ system combines the mounting bracket, electrical connections and speaker cabinet into one clean installation. The supplied wall plate is mounted and wired first, after which the loudspeaker slides securely into position. The speaker can be adjusted horizontally or vertically to direct sound toward the required listening area.

The ATEO4MK2/W supports both standard 8Ω installations and 70V/100V distributed audio systems. The required operating mode and transformer power tap are selected through the custom terminal block.

Key Features

• Patented CleverMount™ mounting system
• 4-inch mid/low-frequency driver
• 1-inch dome tweeter
• Suitable for 8Ω and 70V/100V systems
• Multi-tapping line transformer
• Horizontal or vertical installation
• Adjustable mounting angle
• Ultra-flat frequency response
• Durable ABS enclosure
• Steel front grille
• White RAL9003 finish
• Designed for fixed indoor installations
• Minimum order quantity: 2 units

Technical Specifications

Speaker type: Full-range wall speaker
Continuous power handling: 35W AES
Program power handling: 70W
Peak power handling: 140W
Low-impedance operation: 8Ω
Sensitivity: 86dB at 1W/1m
Maximum sound pressure level: 101dB at 8Ω
Maximum sound pressure level: 100dB on a 100V system
Frequency response: 100Hz–20kHz ±3dB
Frequency range: 65Hz–20kHz at -10dB
Horizontal coverage: 130°
Vertical coverage: 130°
High-frequency driver: 1-inch dome tweeter
Mid/low-frequency driver: 4-inch woofer
Connector: 6-pin custom terminal block

70V/100V Transformer Tappings

100V: 24W, 12W or 6W
70V: 24W, 12W, 6W or 3W

Mounting Adjustment

Left: 30°
Right: 30°
Downward: 30°
Upward: 5°

Construction and Dimensions

Enclosure material: ABS
Front grille: Steel
Colour: White, RAL9003
Mounting system: CleverMount™
