Audac WP210 Black Universal Wall Panel – Microphone & Line Input

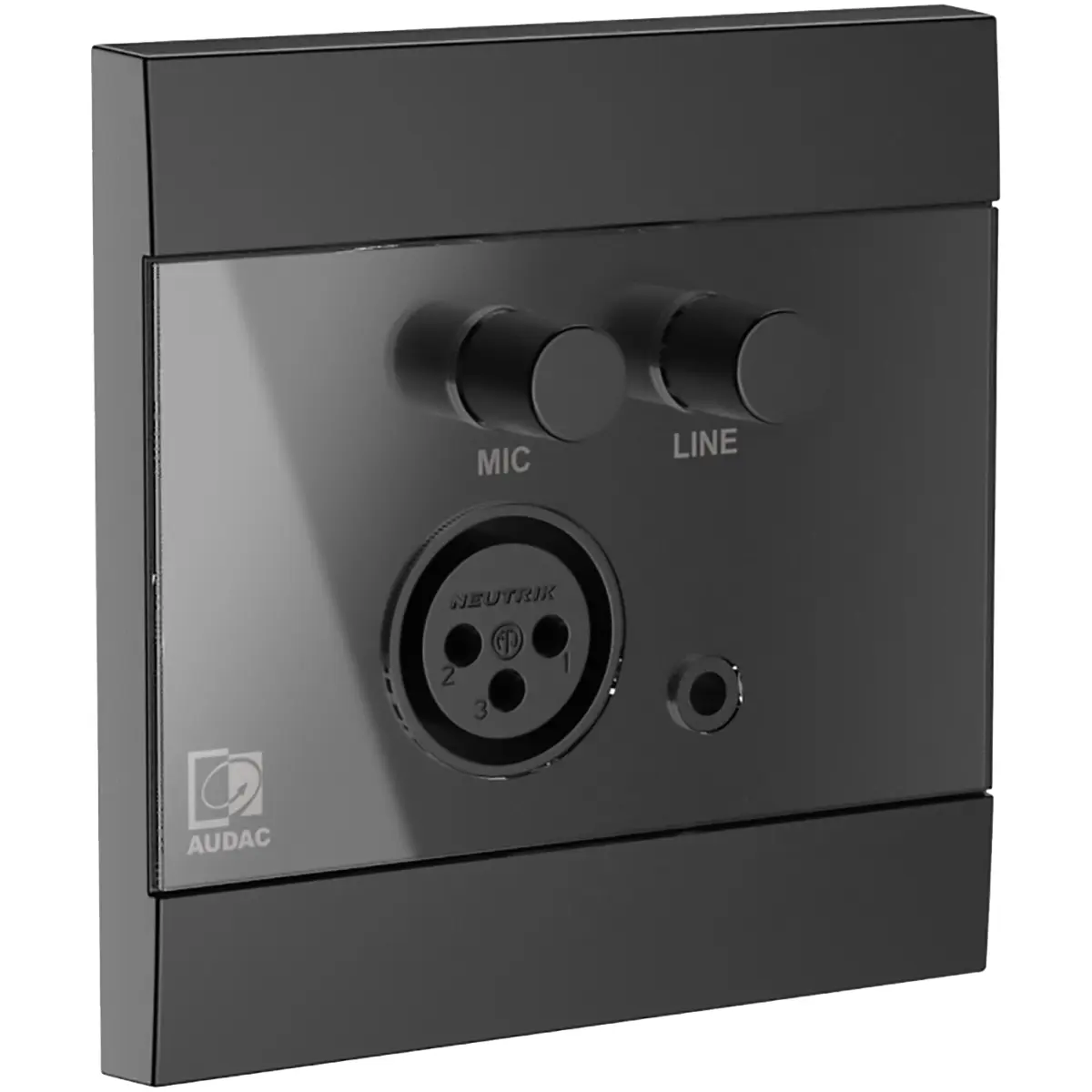

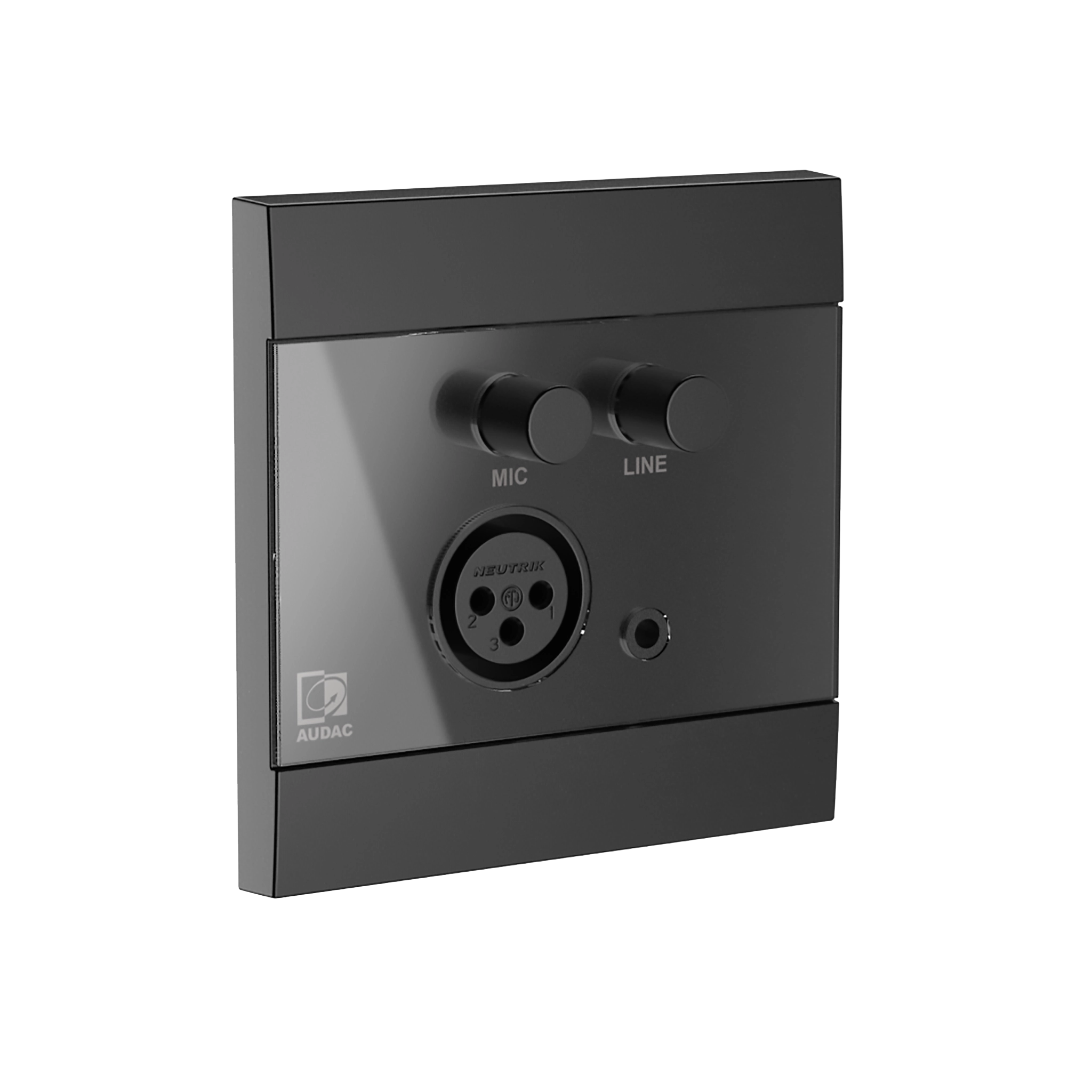

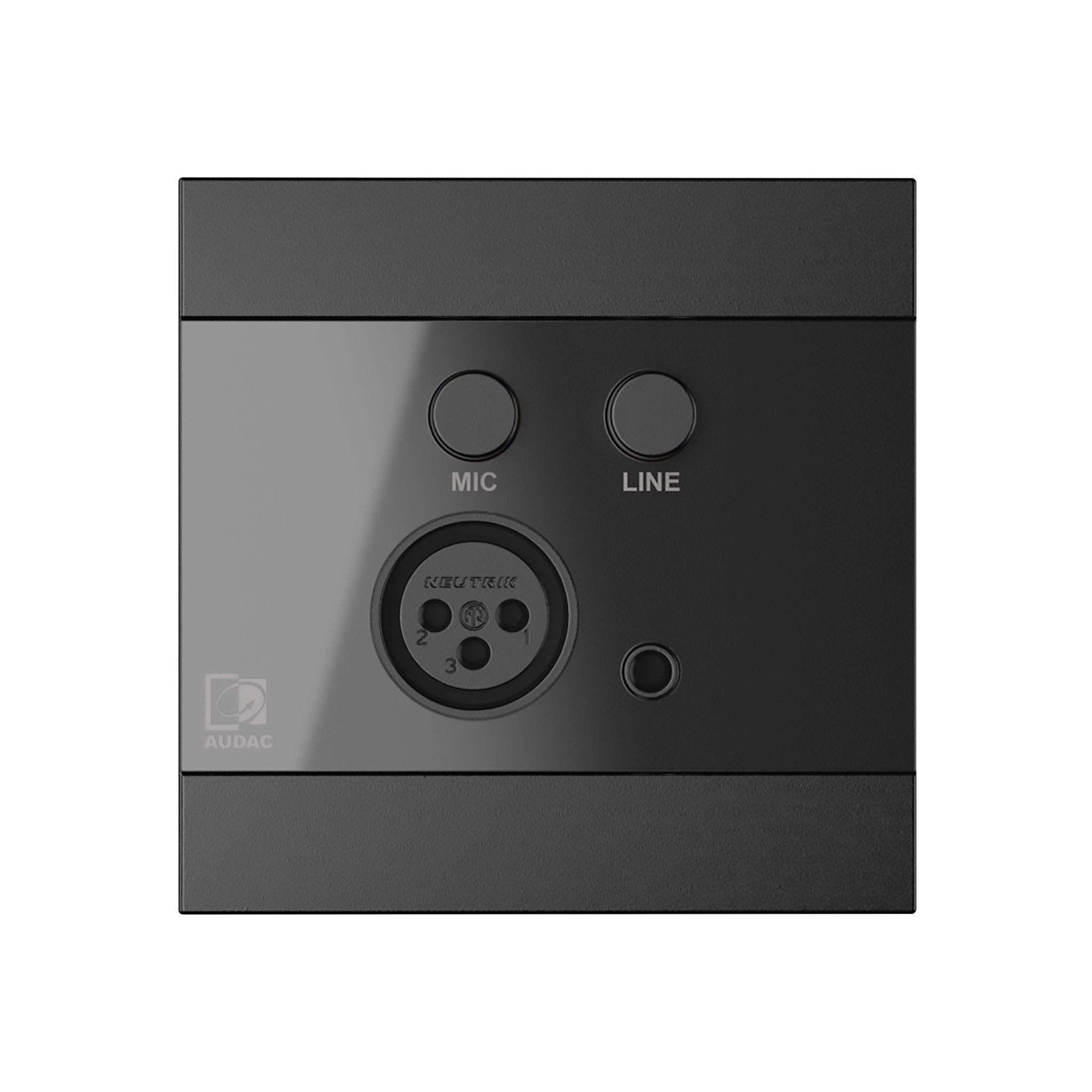

The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP210 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

FEATURE:

• Elegant design to blend in with any environment
• Compatible with EU (80×80 mm) installation materials
• Signal transmission over twisted pair (CAT5E) or better cabling
• Signal transmission insensitive for interference and noise

Technical specifications
Available models
WP210/B Black version – EU-style standard
WP210/W White version – EU-style standard
WP210US/B Black version – 1-gang US standard
WP210US/W White version – 1-gang US standard
System specifications
Outputs Level +12 dB
0 dB
Inputs Wall Panel Type 3.5 mm jack stereo line input connection
XLR microphone input connection
Mic & Line inputs on rear for permanent connections
Connection 3.5 mm jack input (Stereo line input)
Female XLR input connector (Microphone input)

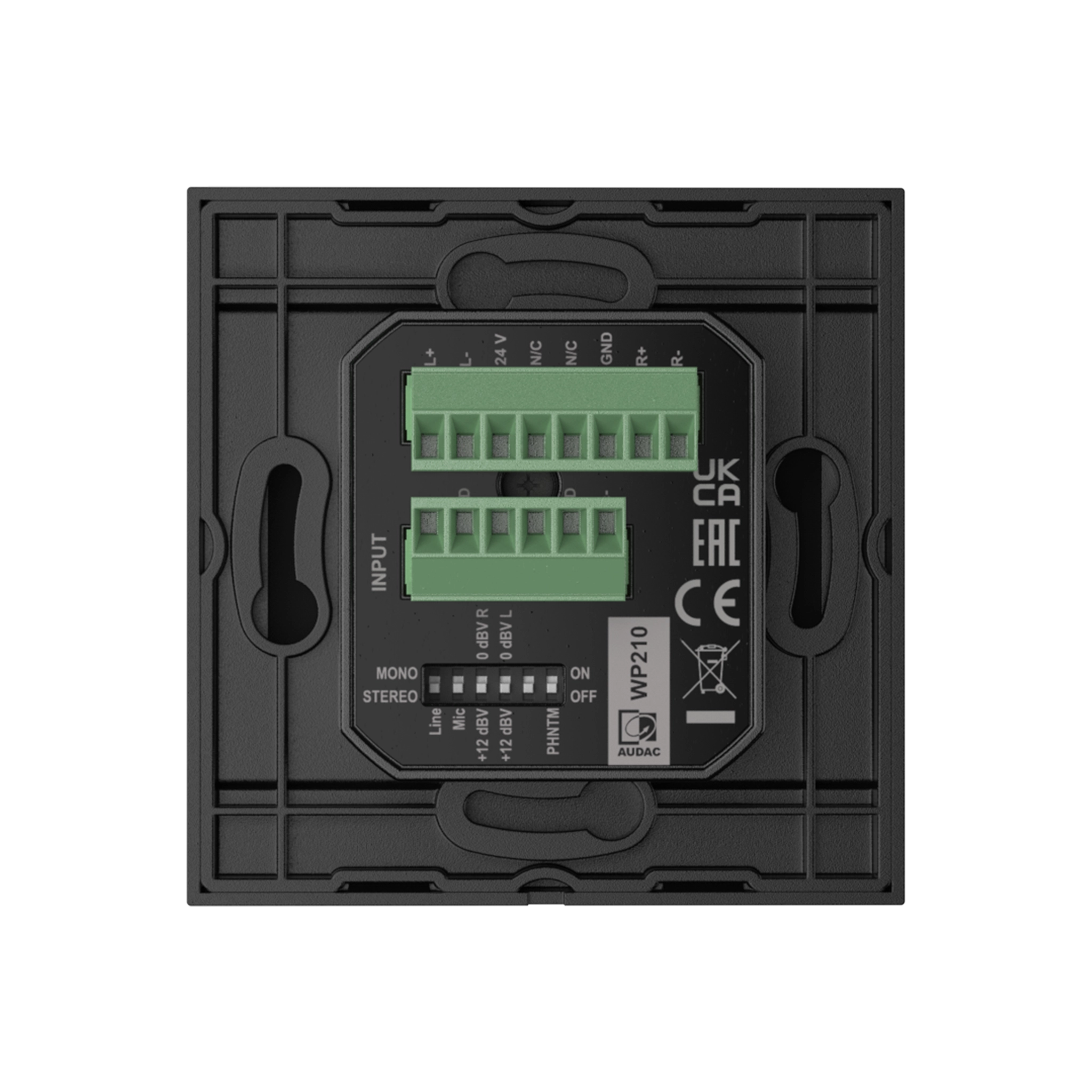

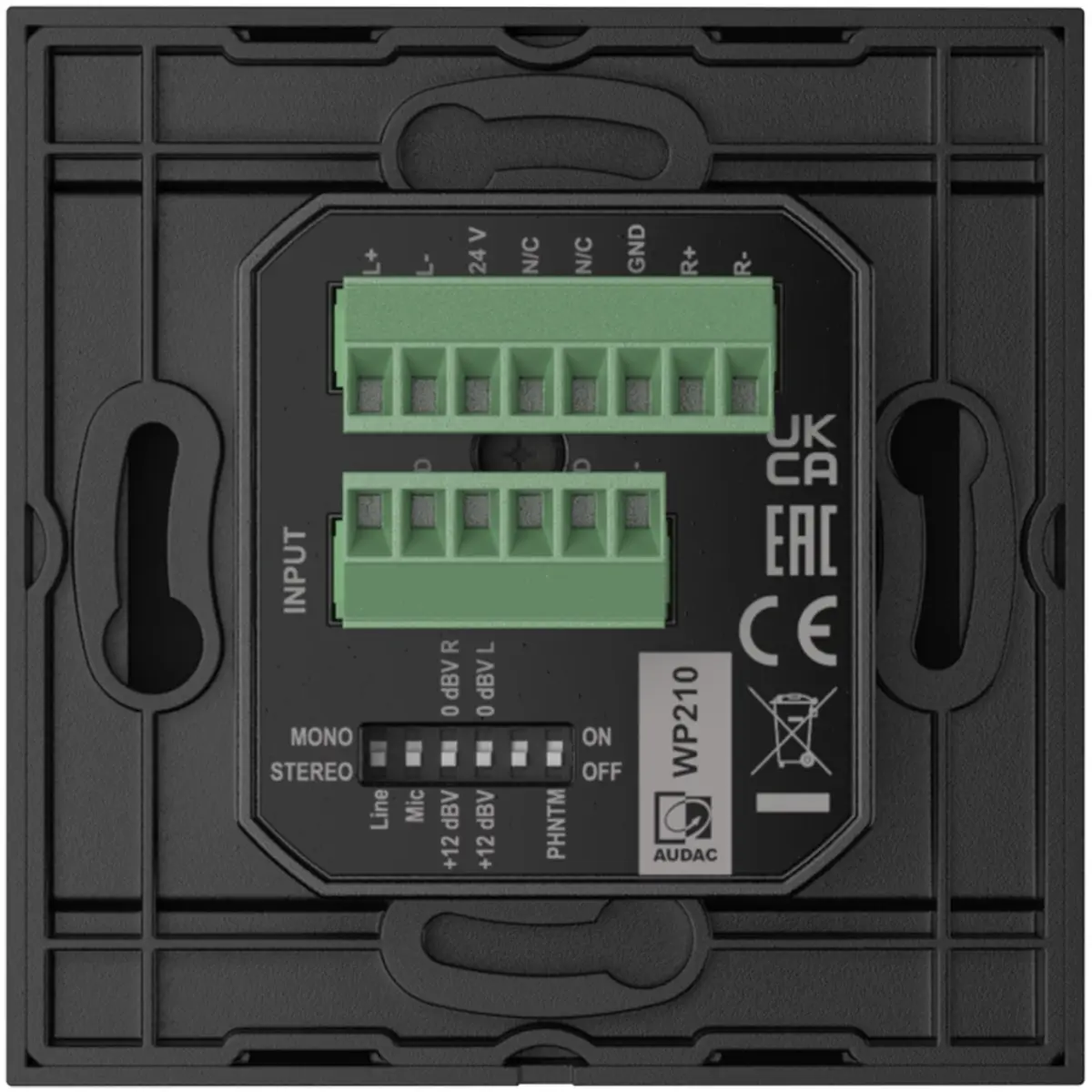

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)
8-pin terminal block (3.81 mm pitch) output connection
Control Individual input level control for Mic & Line
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Product Features
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Colours Black (RAL9005) (WP210/B)
White (RAL9003) (WP210/W)
Front finish Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes WB200 – Surface mount wall box for WP & NWP series
Flush mount Installation boxes Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS
Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
Installation standard Compatible with EU installation materials
1-gang US standard (WP210US)
