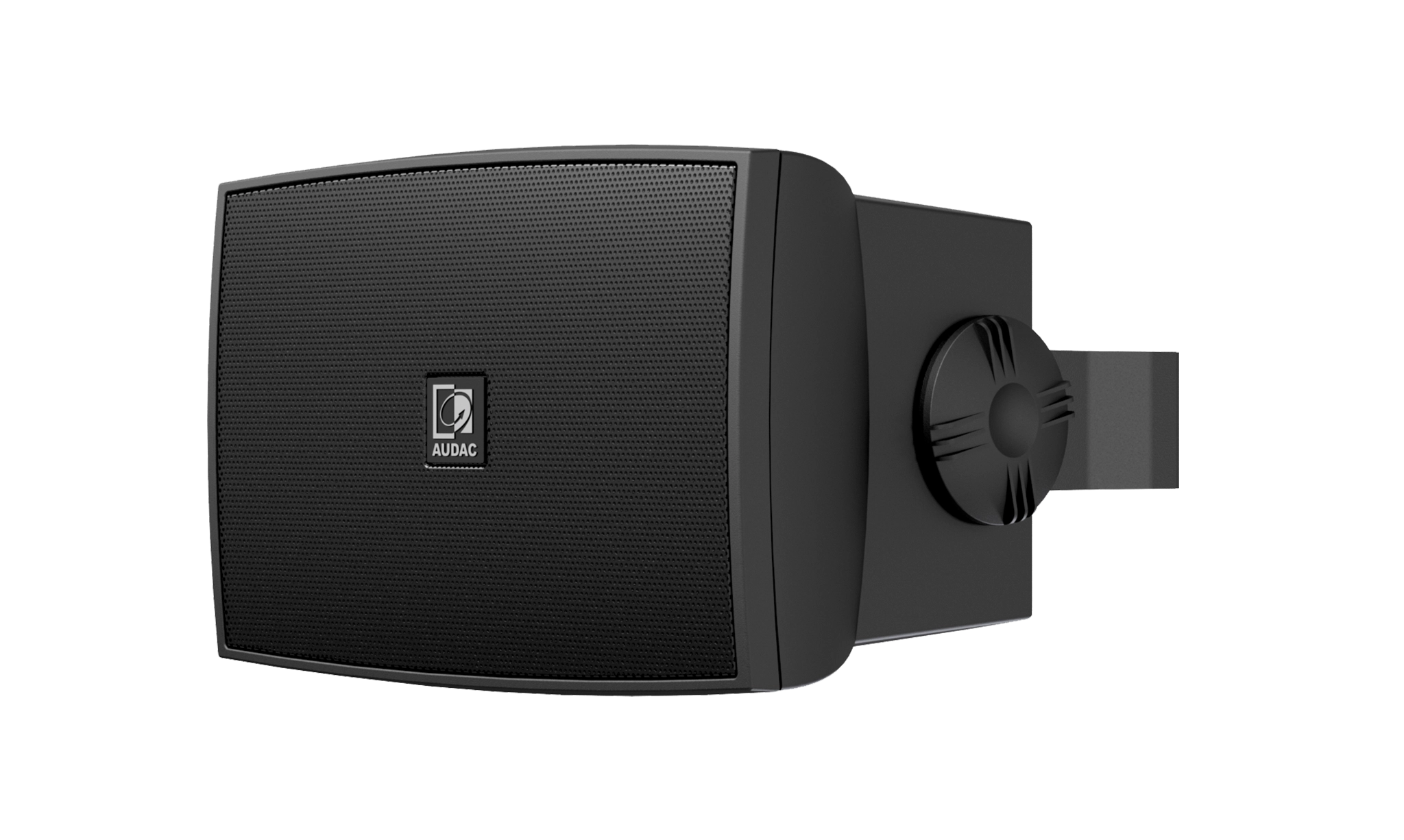

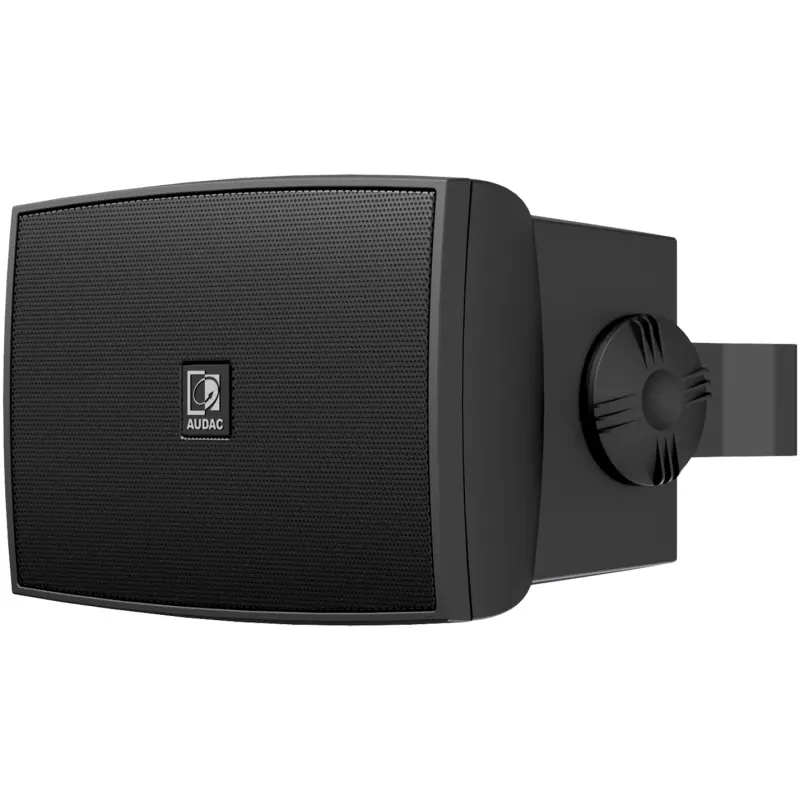

Audac WX302_O 3″ Black Outdoor Universal Wall Speaker

The WX302/O speakers are specifically designed for outdoor use and lend themselves to a variety of applications, ensuring true-to-nature, high-fidelity reproduction of music and speech.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX302/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of the special powder coating, the brackets can pass the 96 hours salt-spray test, which has reached the standard for outdoor applications. A drain hole behind the aluminum grill allows rainwater to flow out. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

Technical specifications
Available models
WX302MK2/OB Outdoor black version
WX302MK2/OW Outdoor white version
System specifications
Connectors Waterproof AWX-5 connector
Crossover Frequency 2.5 kHz
Type Passive built-in
Drivers HF 1”
LF 3”
Frequency Range (-10 dB) 60 Hz – 20 kHz
Response (± 3 dB) 90 Hz – 18 kHz
Impedance 8 Ω
Ingress Protection rating IP55
Peak power handling 120 W
Program power handling 60 W
Sensitivity (1W/1m) 85 dB
Sound Pressure (Max. W/1m) @ 100 V 95 dB
@ 8 Ω 100 dB
Speaker type 2-way
Continuous power (AES) 30 W
Dispersion Horizontal 100°
Vertical 100°
Line Transformer Tappings 1 250 Ω – 100 V / Not used – 70 V / 20 W
2 500 Ω – 100 V / 20 W – 70 V / 10 W
3 1000 Ω – 100 V / 10 W – 70 V / 5 W
Product Features
Dimensions 199 x 129 x 120 mm (W x H x D)
Weight 1.660 kg
Operating temperature -25 °C ~ 70 °C
Construction ABS
Mounting & handling Mounting bracket
Front finish Aluminium grill
Colours Black (RAL9005) (WX302MK2/OB)
White (RAL9003) (WX302MK2/OW)
Accessories Included Mounting bracket
5-pin connection cable (70 cm) AWC07
Optional AWC07 – AWX5 cable 0.7 m
AWC25 – AWX25 cable 2.5 m
AWC50 – AWX50 cable 5 m
