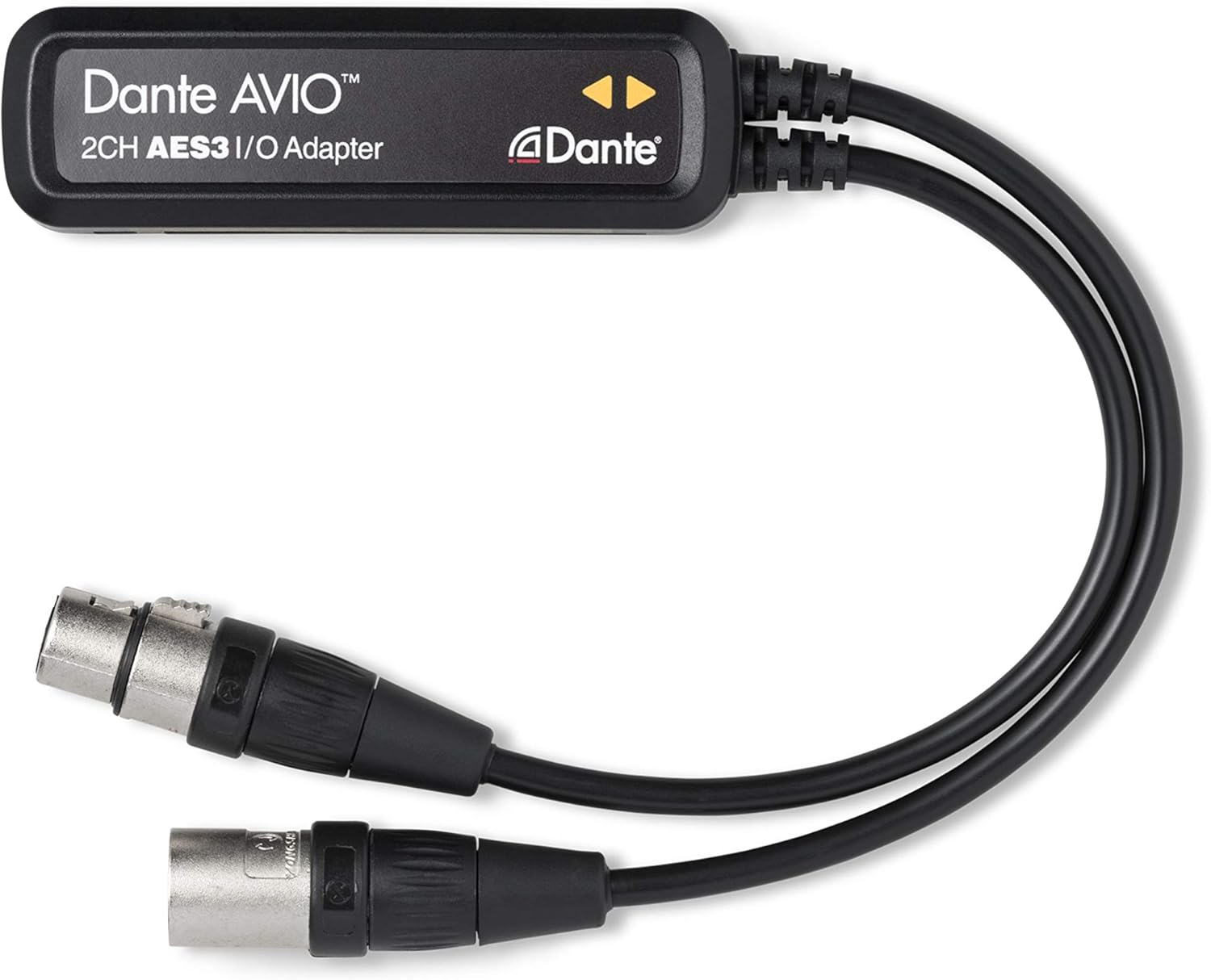

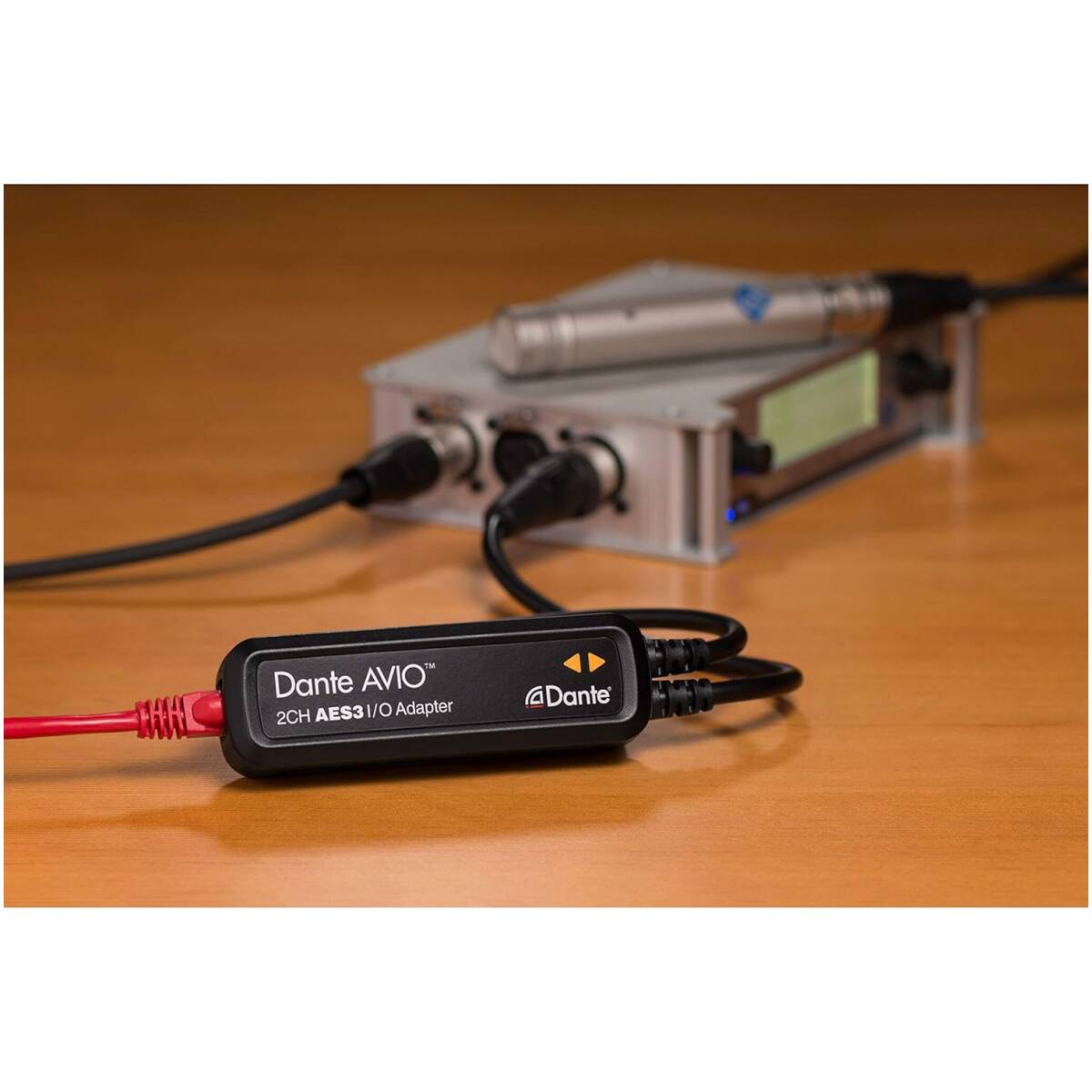

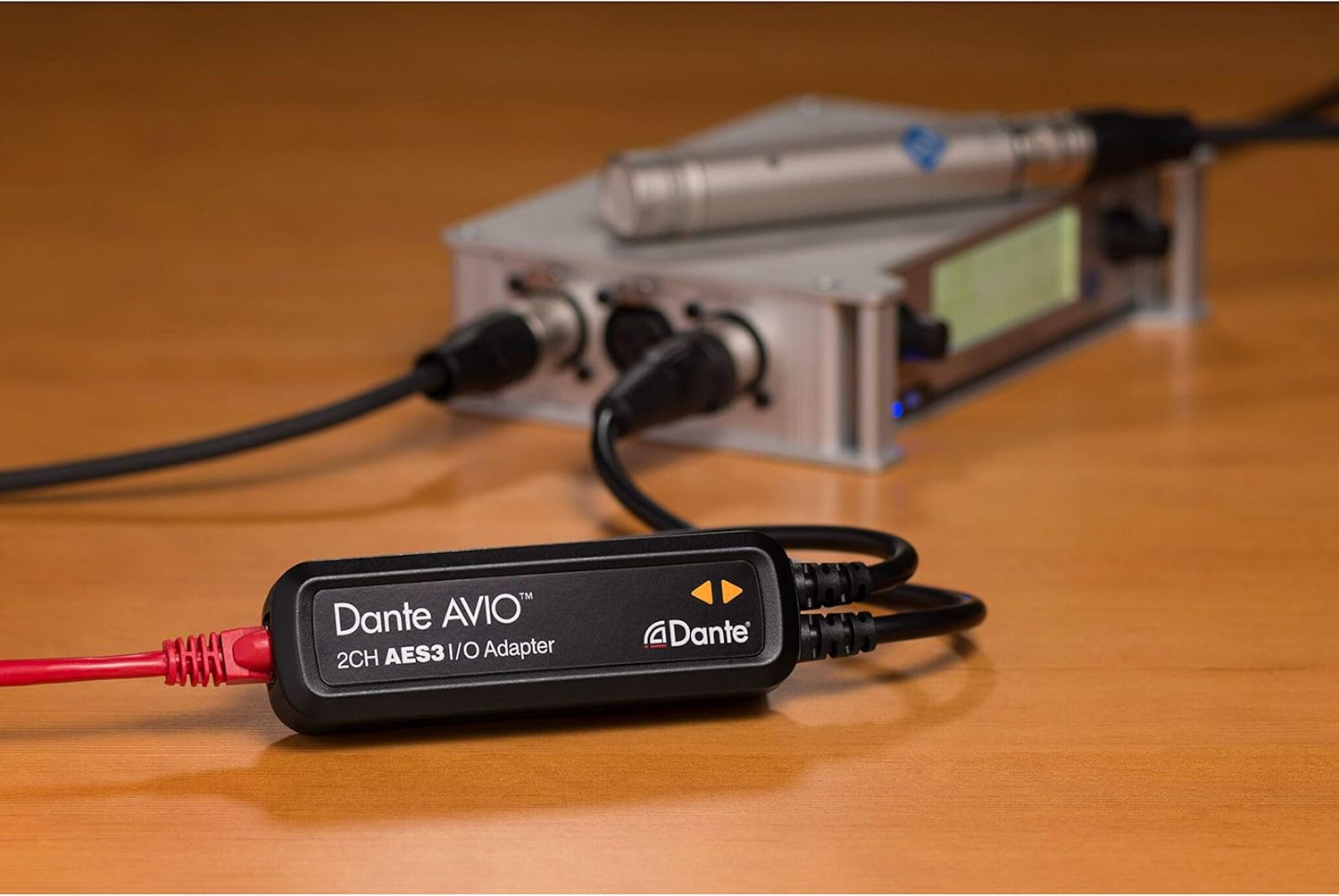

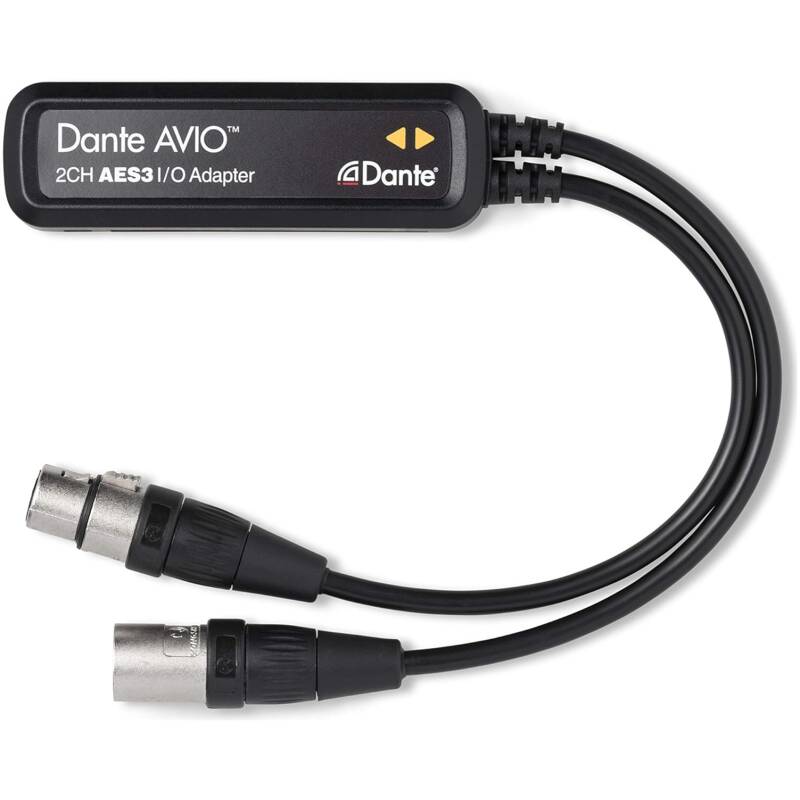

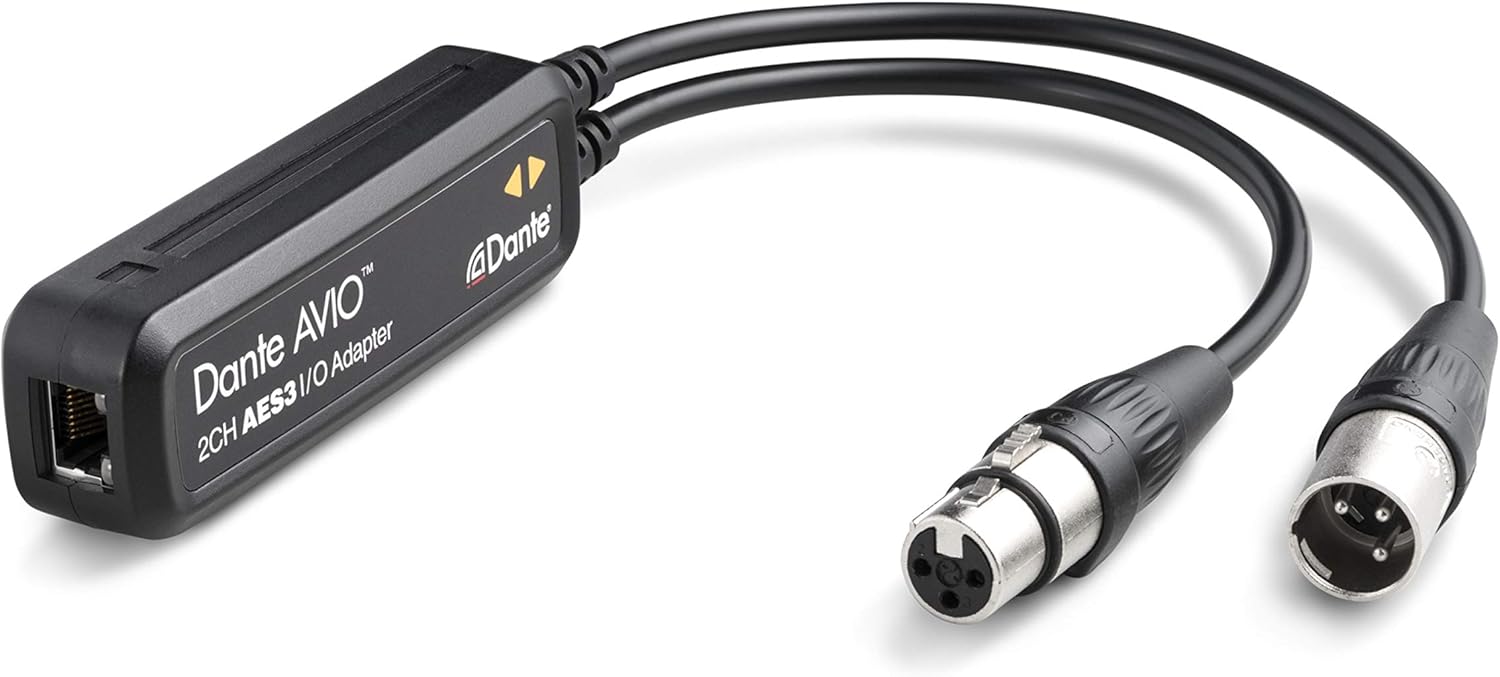

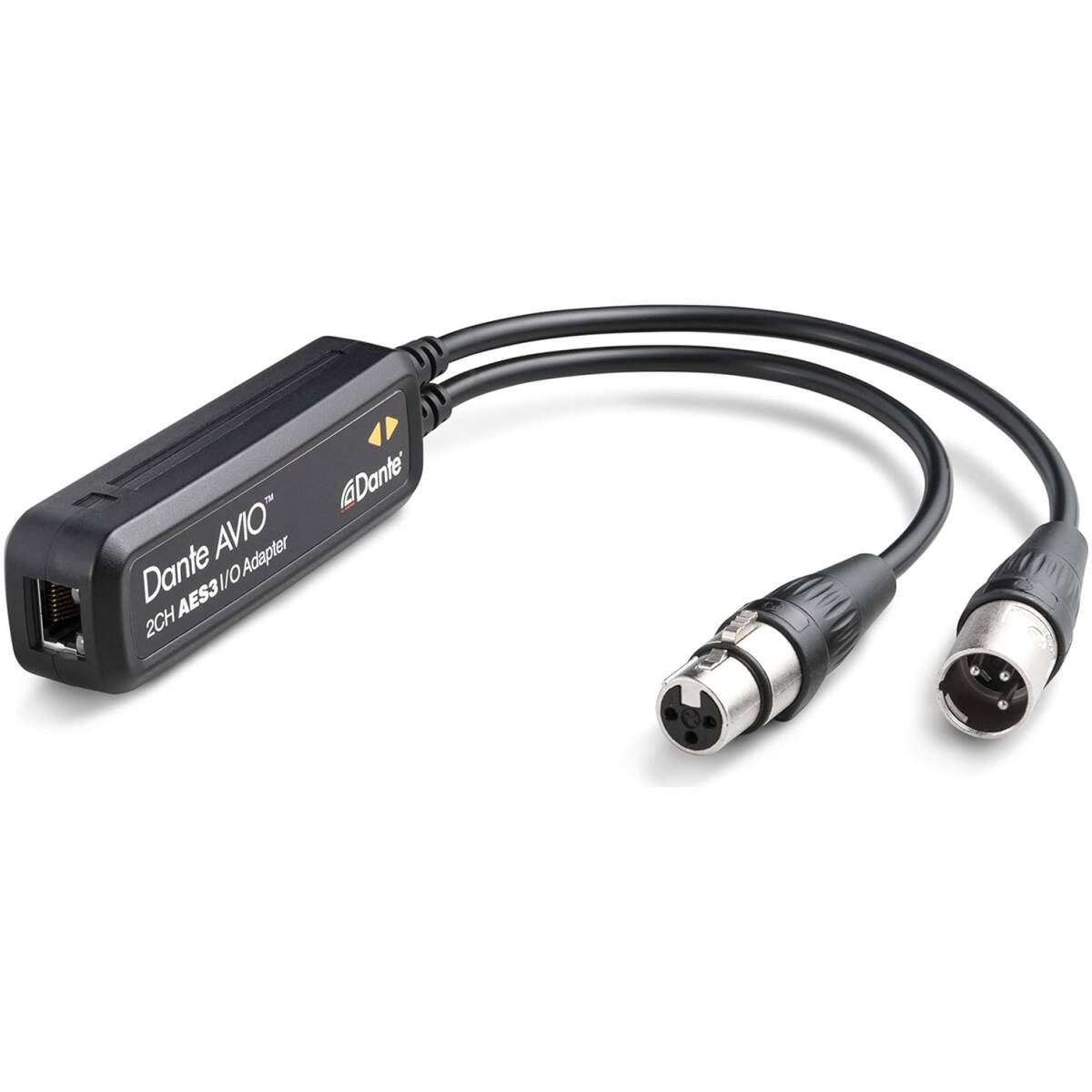

The Audinate ADP-AES3-AU-2X2 Dante AVIO AES3 I/O Adapter allows you to integrate professional AES3 digital audio equipment into a Dante network. It provides simple, reliable 2-in / 2-out digital audio conversion over standard Ethernet, making it ideal for installations, live sound, broadcast, and conferencing systems.

Key Features

• Audio Channels: 2 × AES3 Input / 2 × AES3 Output

• Network Protocol: Dante Audio over IP

• Connector Type: XLR (AES3 digital)

• Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

• Bit Depth: Up to 24-bit

• Latency: Ultra-low Dante network latency

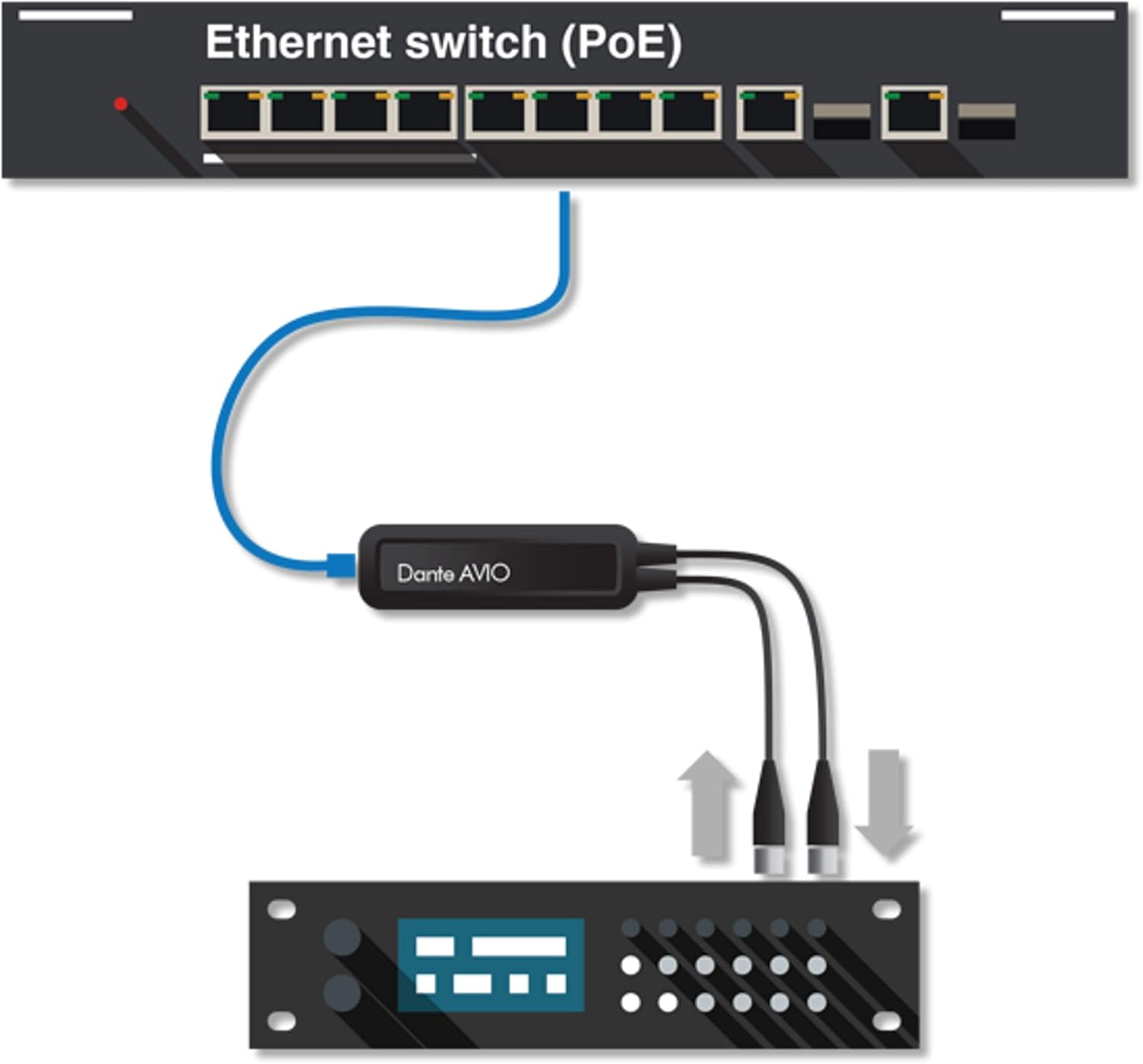

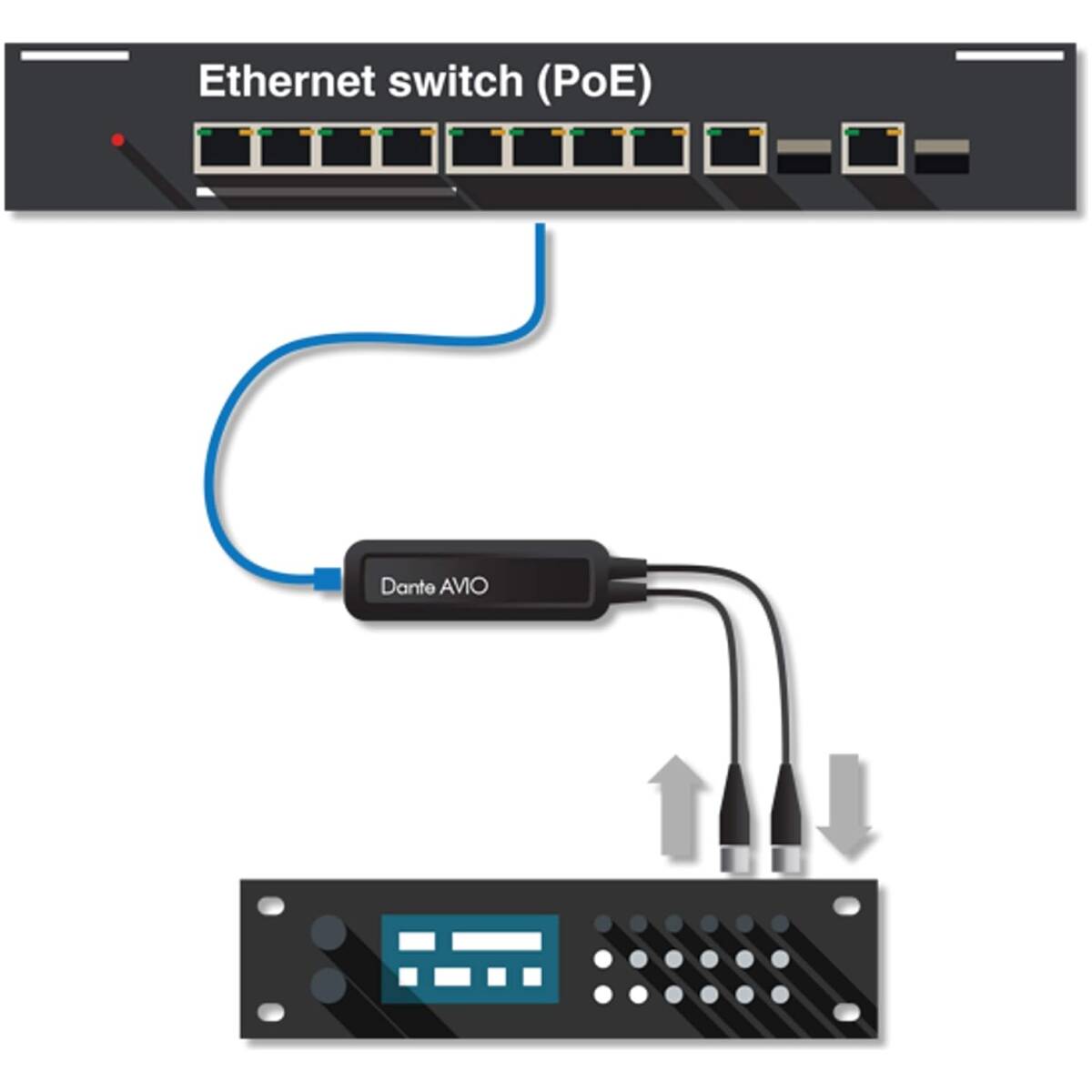

• Power: PoE (Power over Ethernet)

No external power supply required when connected to a PoE-enabled network switch.

Applications

• Connecting AES3-equipped DSPs to Dante networks

• Integrating digital mixers and processors

• Broadcast and production environments

• Conference and corporate AV installations

Connectivity

• 2 × XLR AES3 digital connectors

• 1 × RJ45 Ethernet port (Dante + PoE)

Build & Design

• Compact and rugged enclosure

• Plug-and-play with Dante Controller

• Designed for permanent or portable installations
