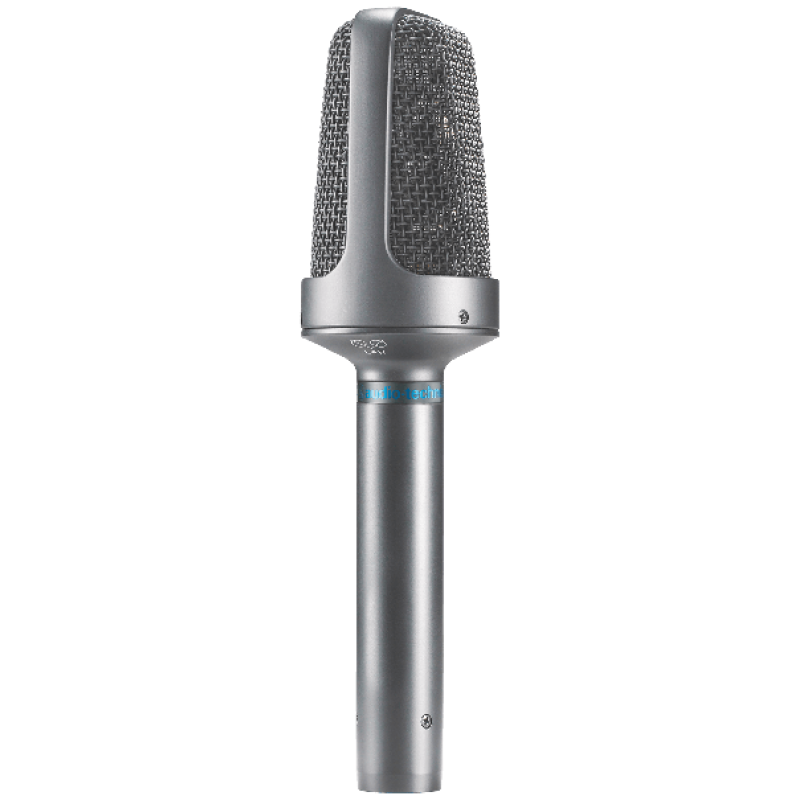

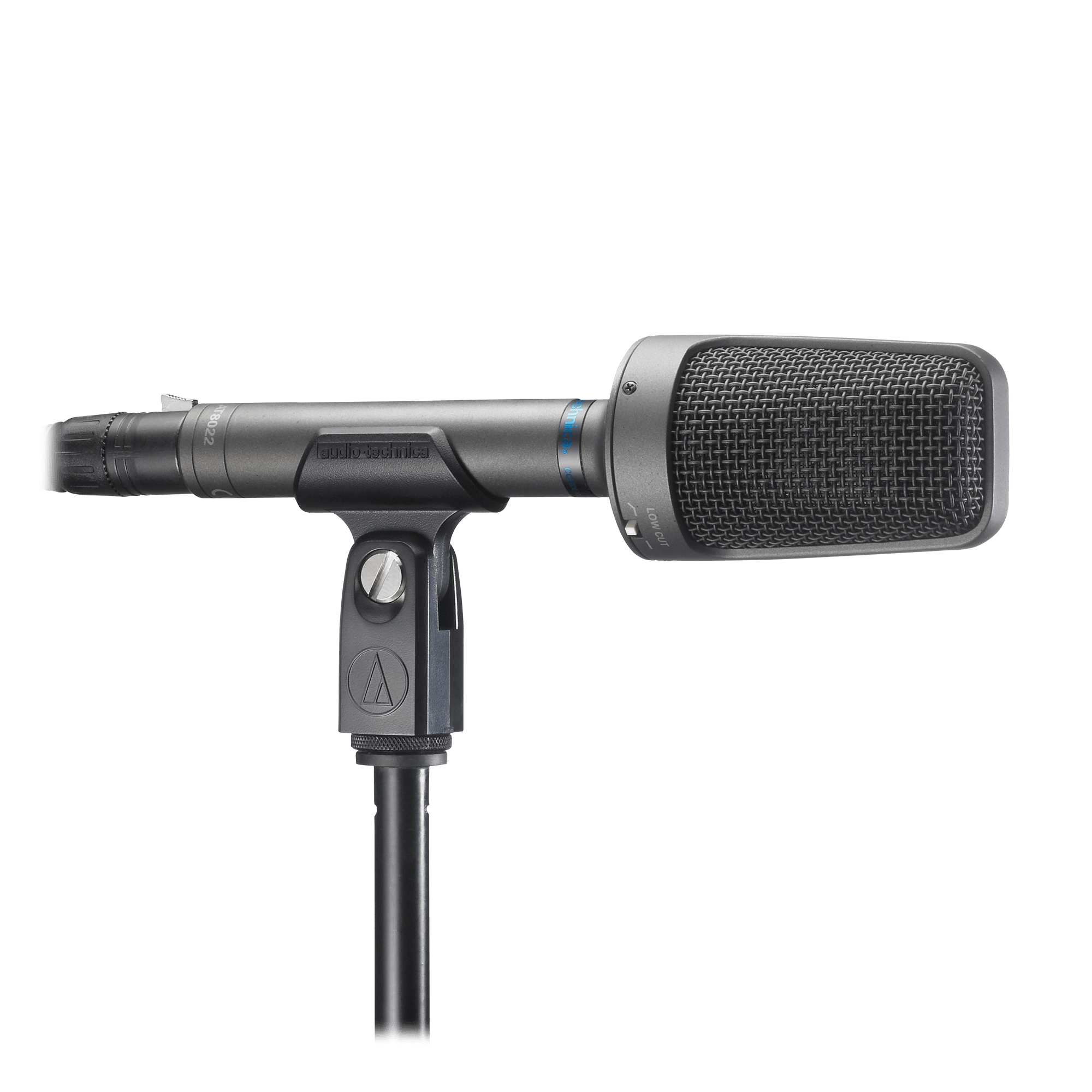

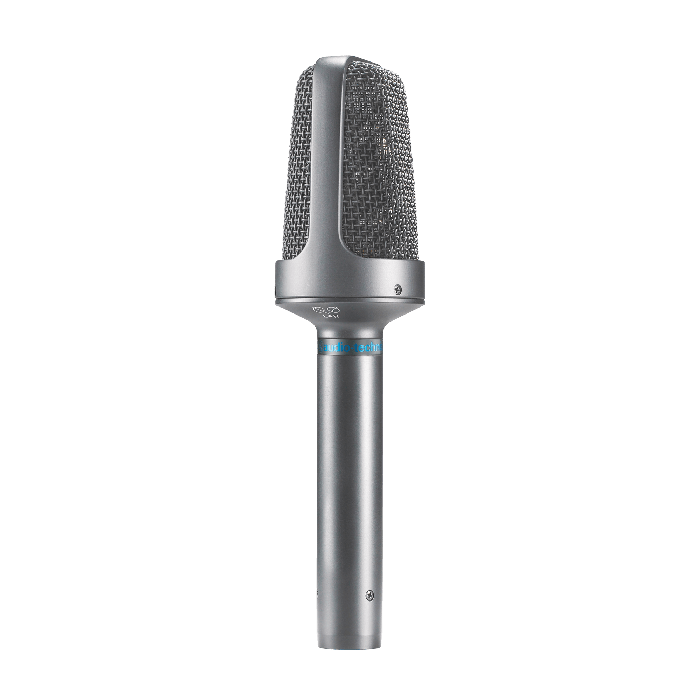

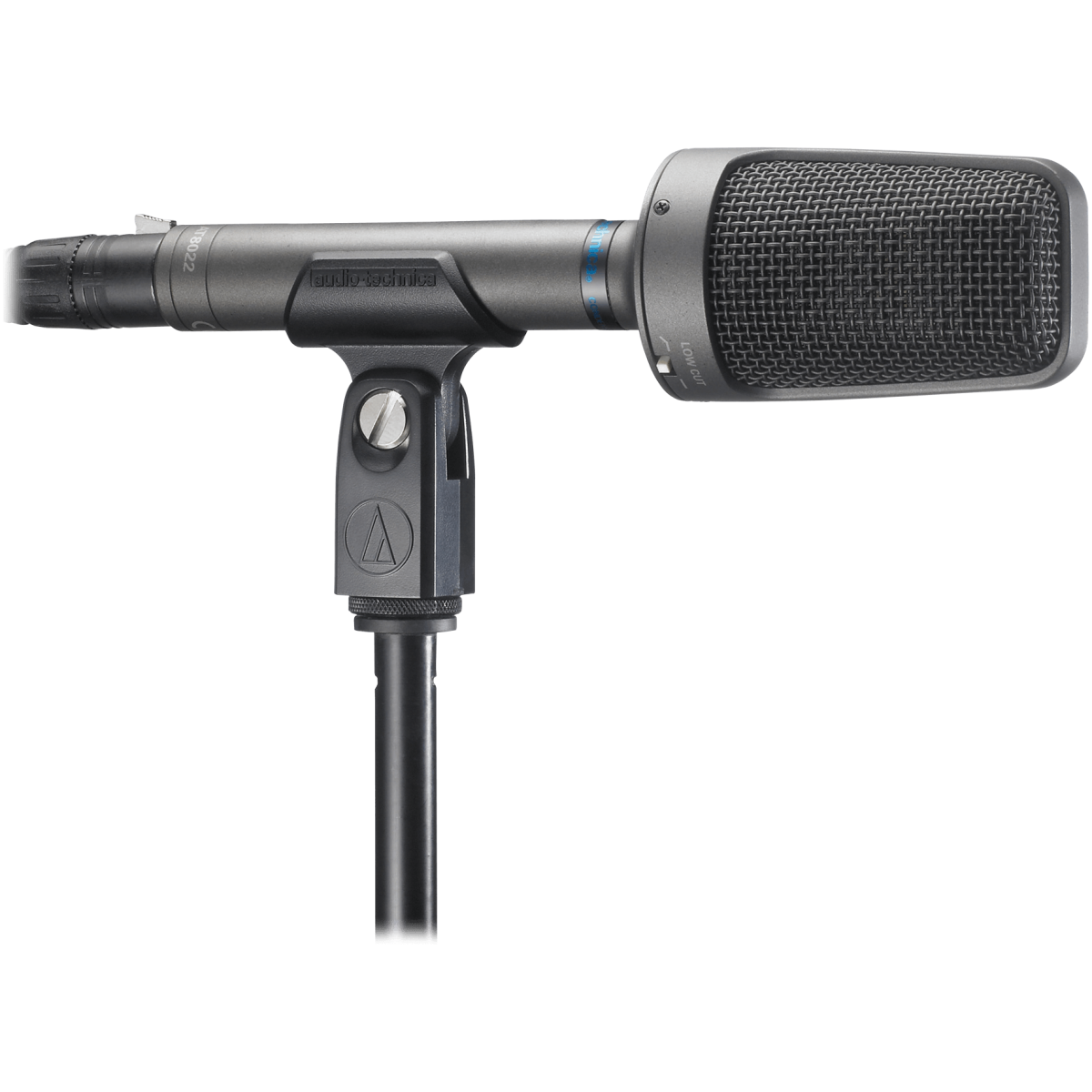

The AT8022 is a compact, professional-quality X/Y stereo condenser microphone designed for broadcast, video production, field recording, and sound design. Its convenient single-point design makes it ideal for capturing realistic stereo sound with accurate localization, all in a rugged housing that’s perfect for both studio and location use.

It can be powered either via phantom power or a 1.5V AA battery, giving engineers and creators maximum flexibility.

Key Features

• X/Y Stereo Configuration – Captures natural stereo imaging and accurate sound localization.

• Compact & Portable – Ideal for field recording, video production, and location sound.

• Dual Power Options – Operates on 48V phantom power or a 1.5V AA battery.

• Switchable Low-Frequency Roll-Off – Reduces handling noise and rumble.

• Wide Frequency Response – Delivers accurate reproduction of vocals, instruments, and ambient sound.

• Professional Build Quality – Rugged construction ensures reliability in demanding environments.

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser

• Stereo Technique: X/Y configuration

• Polar Pattern: Cardioid (X/Y stereo)

• Frequency Response: 20 Hz – 20 kHz

• Low-Frequency Roll-Off: 80 Hz, 12 dB/octave

• Open Circuit Sensitivity: -38 dB (12.5 mV)

• Impedance: 200 ohms

• Signal-to-Noise Ratio: 74 dB

• Dynamic Range: 108 dB

• Max SPL: 128 dB (phantom), 122 dB (battery)

• Power Requirements: 11–52V DC phantom or 1.5V AA battery

• Output Connector: 5-pin XLRF-type (stereo)
