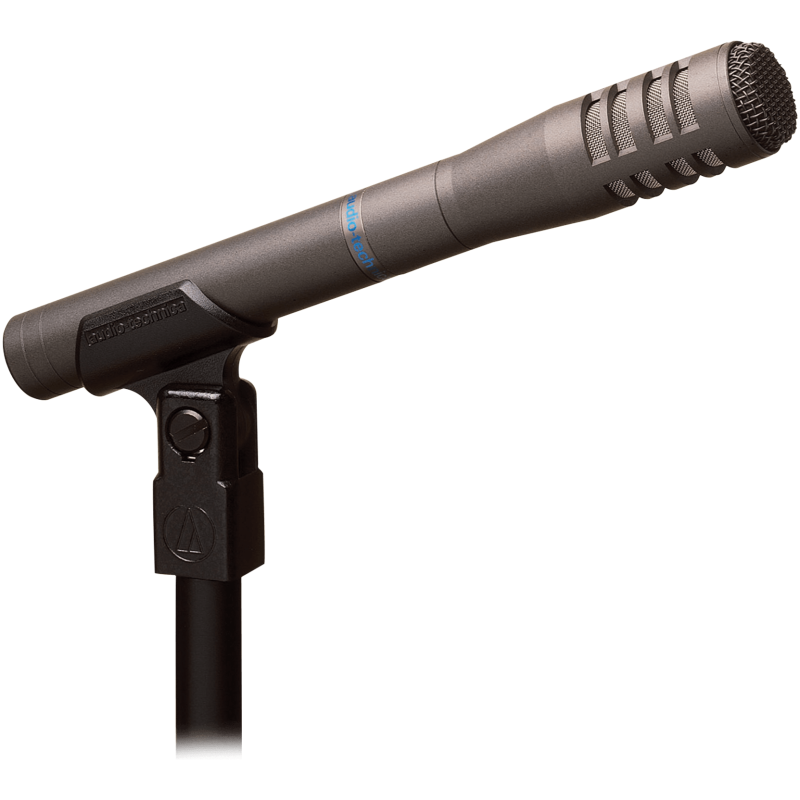

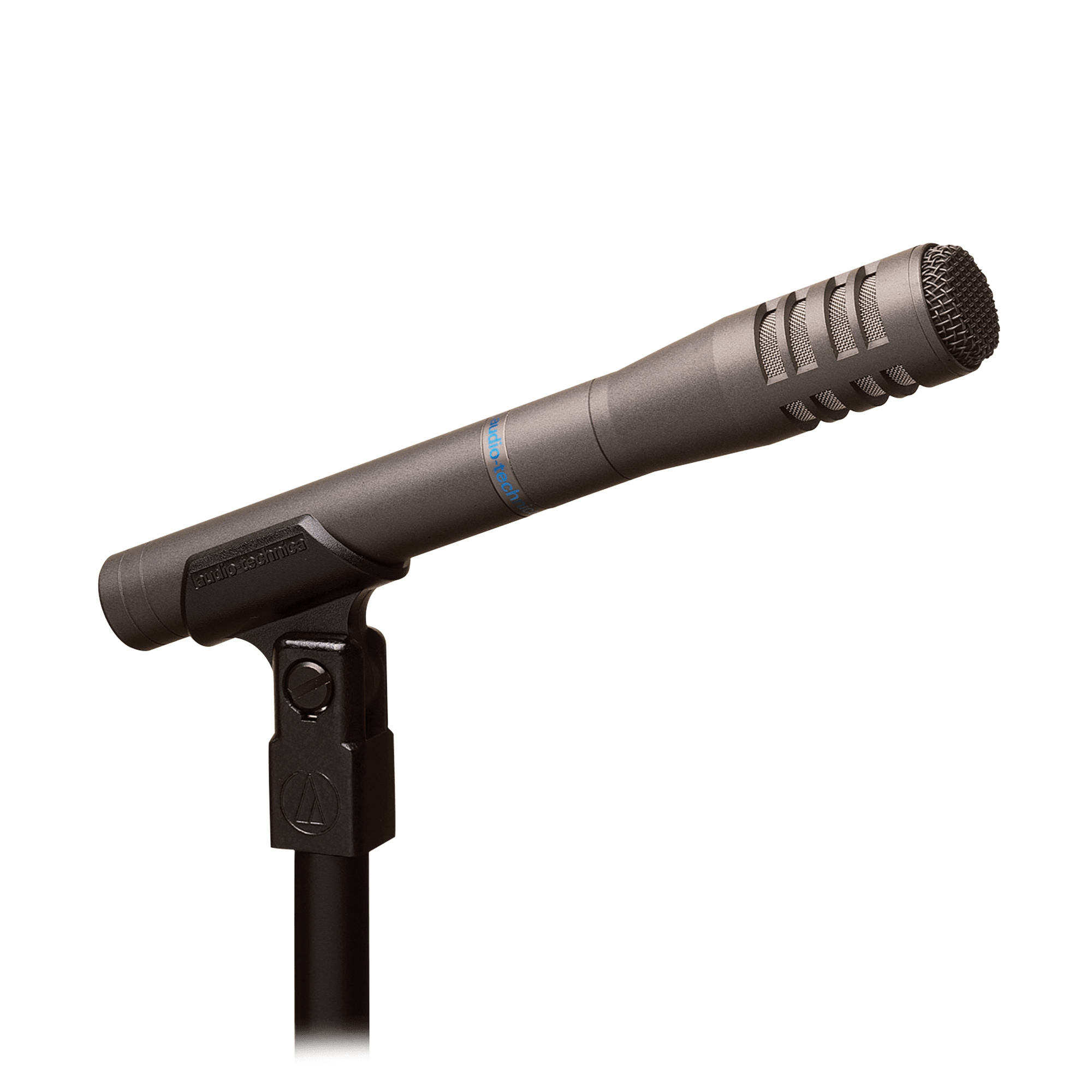

The AT8033 is a versatile handheld condenser microphone designed for recording, broadcast, and live sound applications. Featuring a cardioid polar pattern, it provides excellent isolation of the desired sound source while reducing unwanted background noise. Its ability to run on either phantom power or an AA battery makes it suitable for both studio and field use.
Key Features
-
Cardioid Pickup Pattern – Focused sound capture with reduced background noise.
-
Dual Power Options – Operates on 11–52V phantom power or a single AA battery.
-
Wide Frequency Response – Natural and accurate sound reproduction for vocals and instruments.
-
Rugged Build – Durable construction for professional stage and studio use.
-
Low-Frequency Roll-Off – Switchable filter reduces handling noise and unwanted low-end rumble.
Specifications
-
Element: Fixed-charge back plate, permanently polarized condenser
-
Polar Pattern: Cardioid
-
Frequency Response: 30 Hz – 20 kHz
-
Low-Frequency Roll-Off: 80 Hz, 12 dB/octave
-
Open Circuit Sensitivity: -40 dB (10 mV)
-
Impedance: 200 ohms
-
Signal-to-Noise Ratio: 71 dB
-
Dynamic Range: 113 dB
-
Max SPL: 145 dB SPL
-
Power Requirements: 11–52V DC phantom or 1.5V AA battery
-
Output Connector: 3-pin XLRM-type
