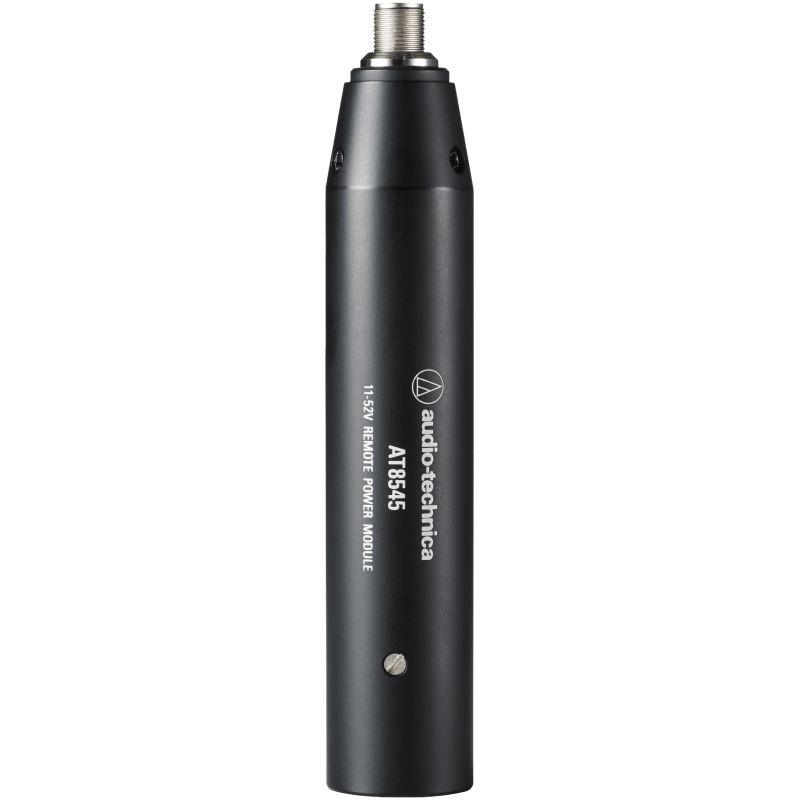

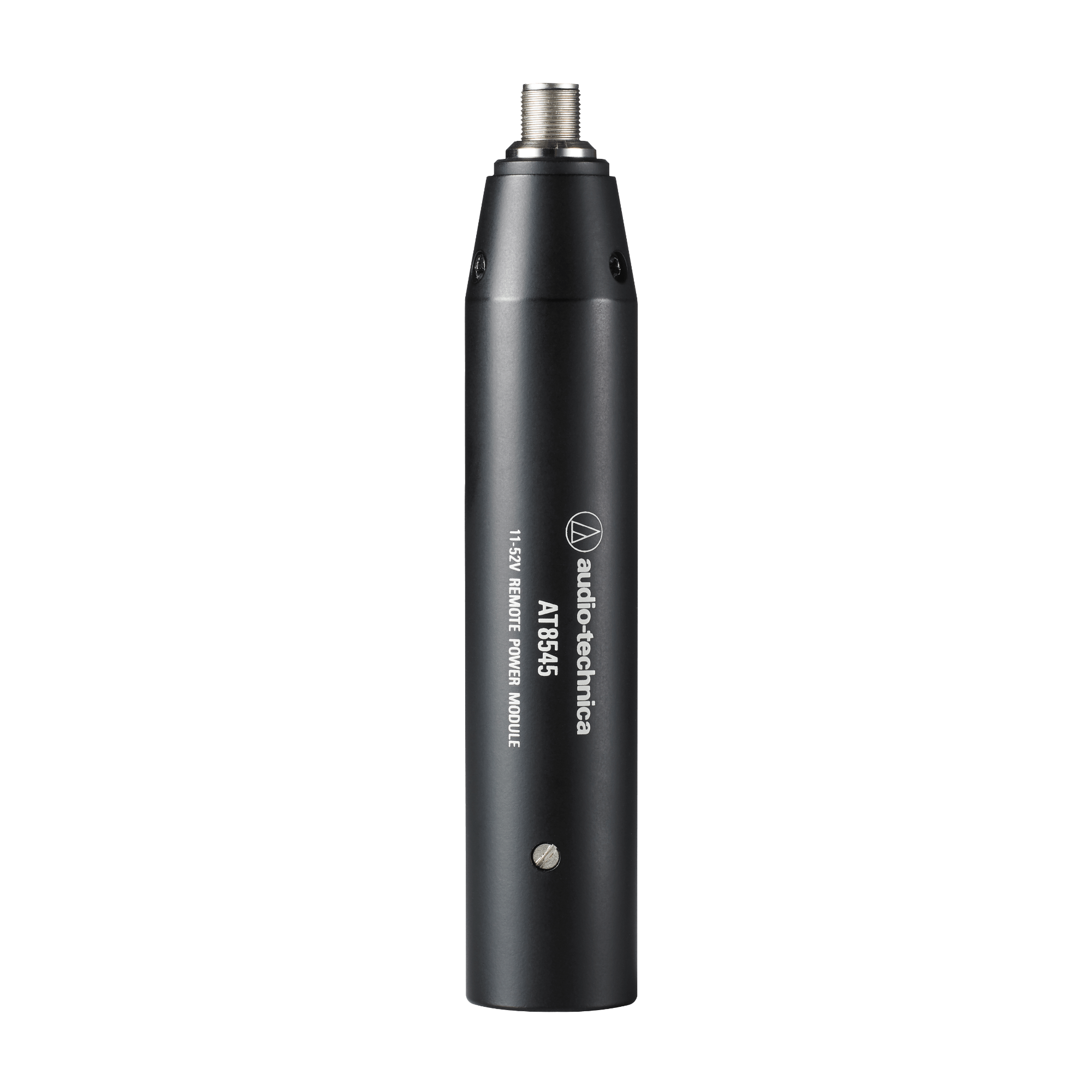

The Audio-Technica AT8545 is a power module adaptor that converts a cH-style locking 4-pin connector to a standard 3-pin XLR output. It provides phantom power (11–52V DC) to compatible Audio-Technica condenser microphones and enables them to interface with professional mixing consoles, audio interfaces, and other XLR-equipped devices.
Key Features:
-
cH-Style connector to XLR adaptor – connects cH-compatible Audio-Technica microphones to XLR devices.
-
Provides phantom power – supports 11–52V DC operation for condenser microphones.
-
Compact, rugged design – built for reliable use in professional environments.
-
Versatile use – suitable for wired mic operation in studio, broadcast, and live sound.
-
Plug-and-play operation – simplifies integration with standard XLR systems.
Specifications:
-
Type: Power module adaptor
-
Input Connector: cH-style locking 4-pin
-
Output Connector: 3-pin XLR (male)
-
Power Requirements: 11–52V DC phantom power
-
Compatibility: Audio-Technica condenser microphones with cH connector
