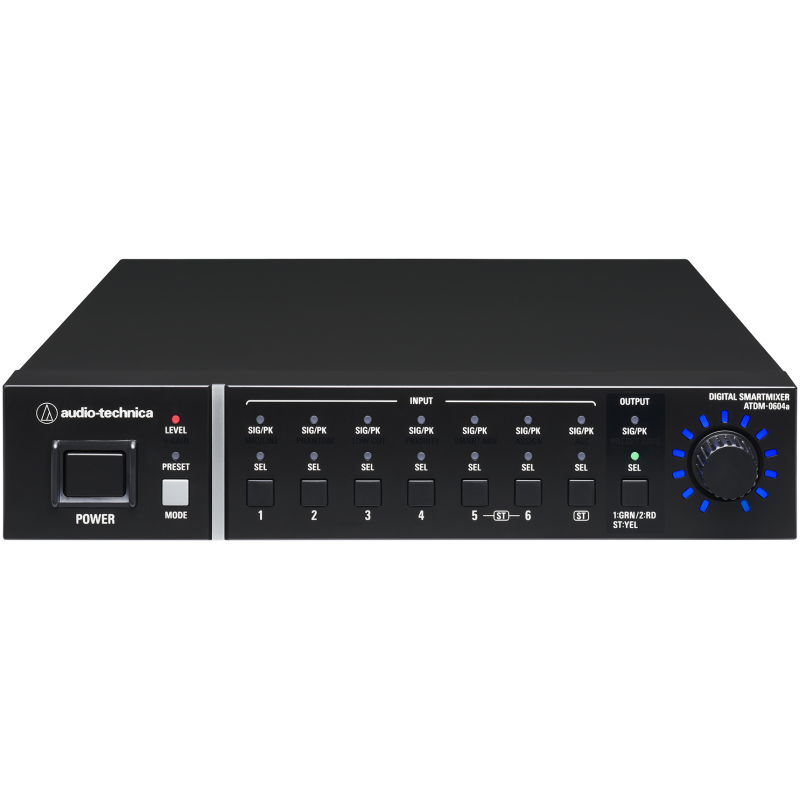

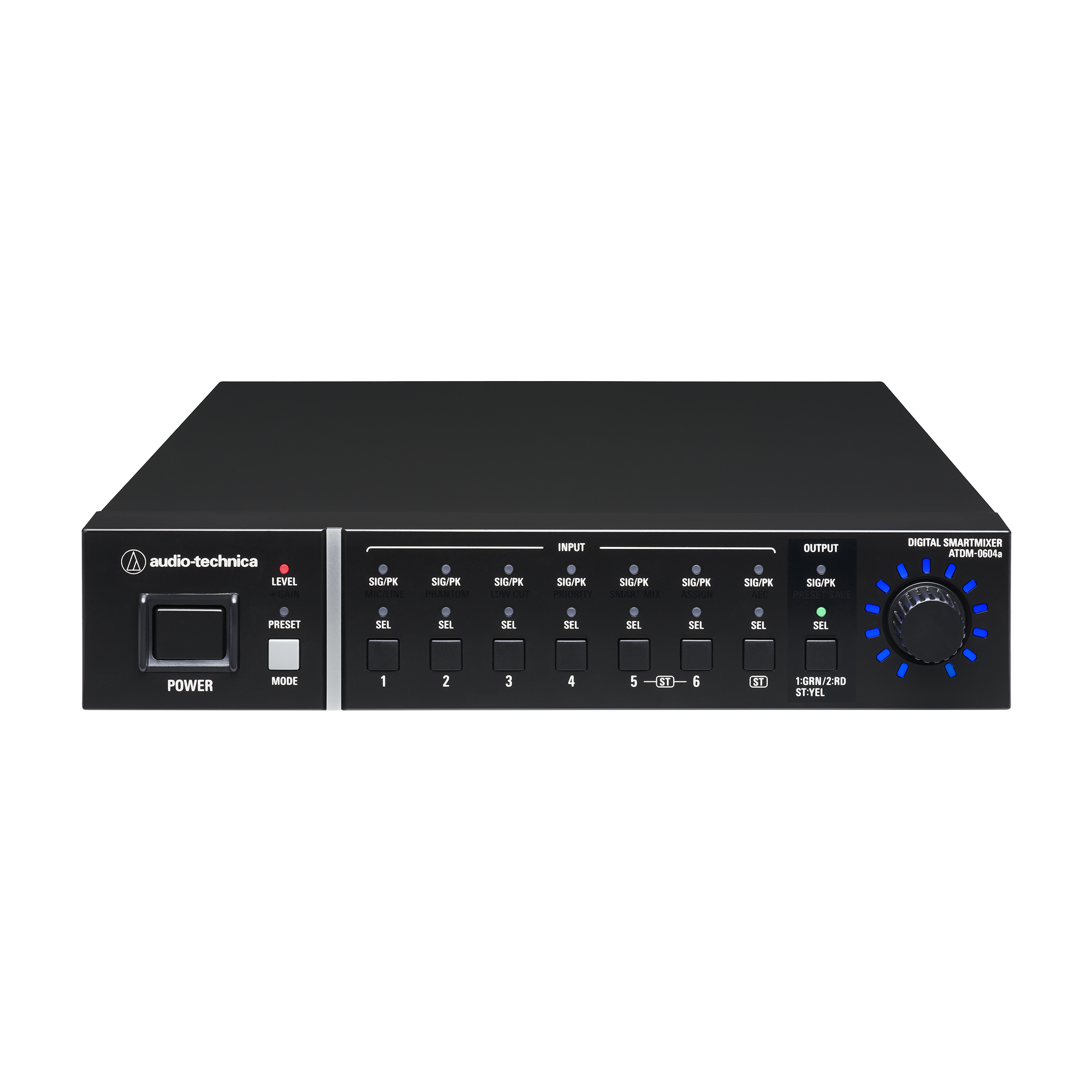

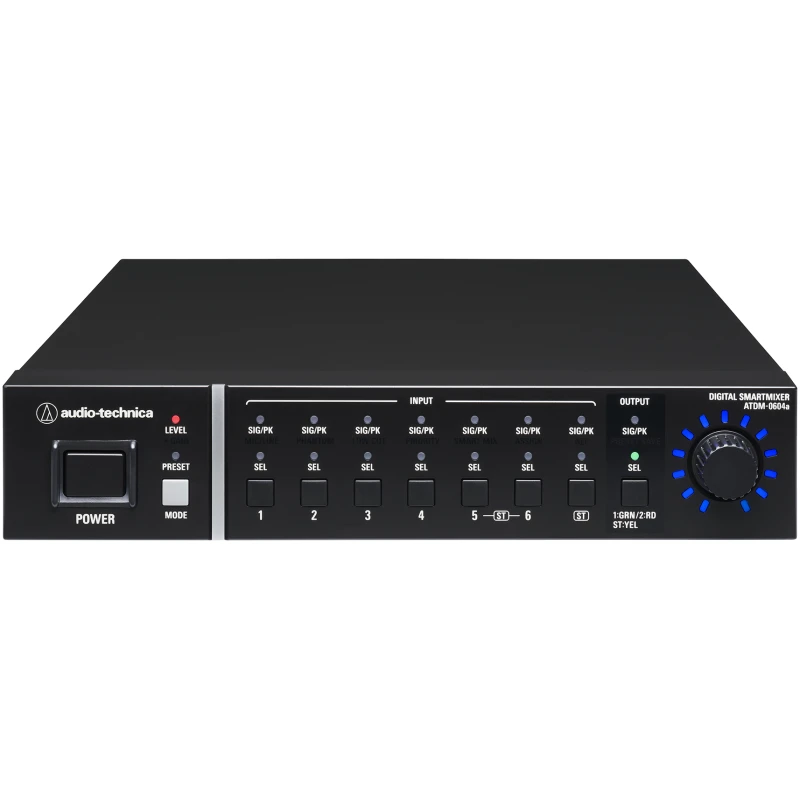

The Audio-Technica ATDM-0604a is a compact digital SmartMixer designed for huddle rooms, conference spaces, classrooms, and small AV setups. With 6 mic/line inputs and 2 balanced outputs, it combines automatic mixing with powerful DSP processing to deliver clear, reliable sound with minimal setup.
It automatically manages microphone levels, prioritizes active speakers, and reduces background noise, making it the ideal solution for professional conferencing and multi-mic environments.
Key Features:
-
6 inputs / 2 outputs – ideal for small to mid-sized conferencing applications.
-
Automatic mixing – maintains consistent, intelligible audio without feedback.
-
Built-in DSP tools – EQ, compression, limiting, matrix mixing, and feedback suppression.
-
Flexible I/O – 4 mic/line balanced inputs + 2 stereo line inputs.
-
Phantom power (+48V) – supports condenser microphones.
-
Remote control software – configure and monitor via PC/Mac.
-
Compact 1U rack-mount chassis – easy to integrate into AV systems.
Specifications:
-
Inputs: 6 (4 × mic/line XLR/TRS + 2 × stereo line)
-
Outputs: 2 (balanced line)
-
Frequency Response: 20 Hz – 20 kHz
-
THD: < 0.005%
-
Dynamic Range: 108 dB
-
Phantom Power: +48V (per input channel)
-
Control: Ethernet / USB software interface
-
Mounting: 1U rackmount
