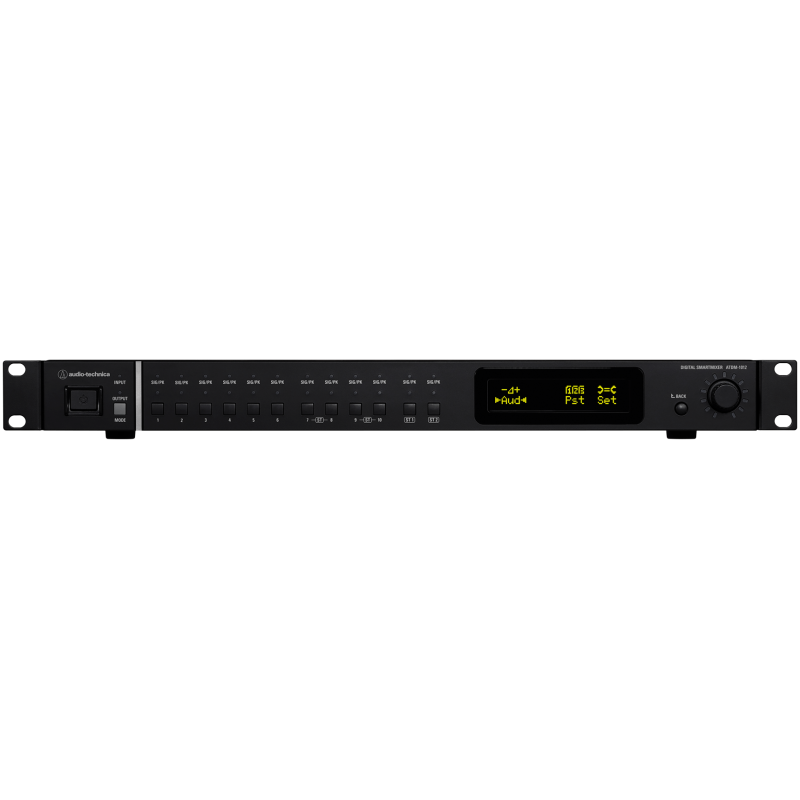

The Audio-Technica ATDM-1012 is a powerful digital SmartMixer designed for conference rooms, corporate boardrooms, houses of worship, and broadcast applications. Featuring 10 inputs and 12 outputs, it delivers flexible routing, high-quality audio processing, and automatic microphone mixing to ensure clear, feedback-free sound.
The ATDM-1012 simplifies multi-microphone setups by automatically managing levels, prioritizing active speakers, and reducing background noise, making it ideal for panel discussions, conferences, and live events.
Key Features:
-
10 inputs / 12 outputs – ideal for small to mid-sized conference or AV setups.
-
Automatic mixing – ensures consistent, intelligible speech without feedback.
-
Advanced DSP tools – built-in EQ, compression, limiting, matrix mixing, and feedback suppression.
-

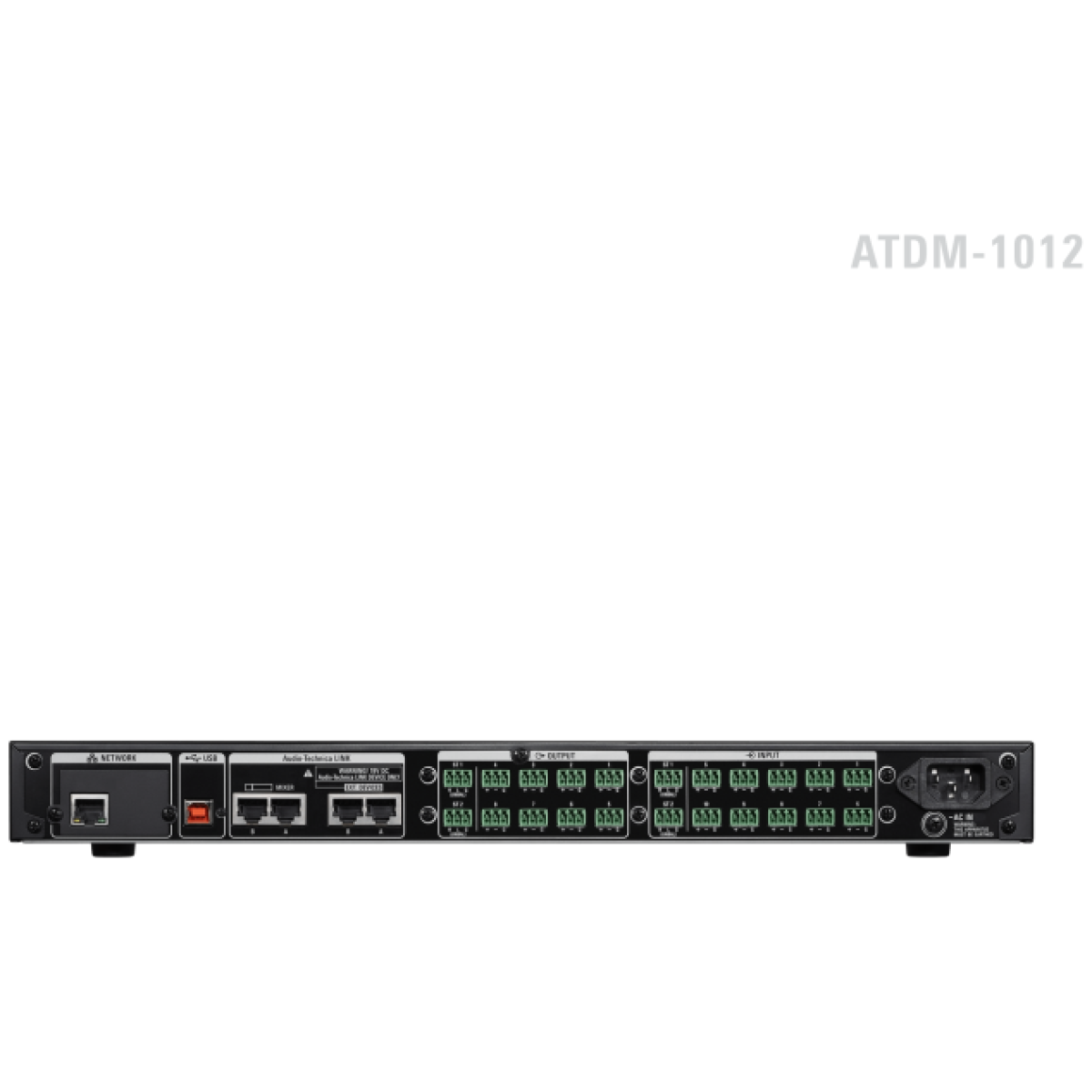

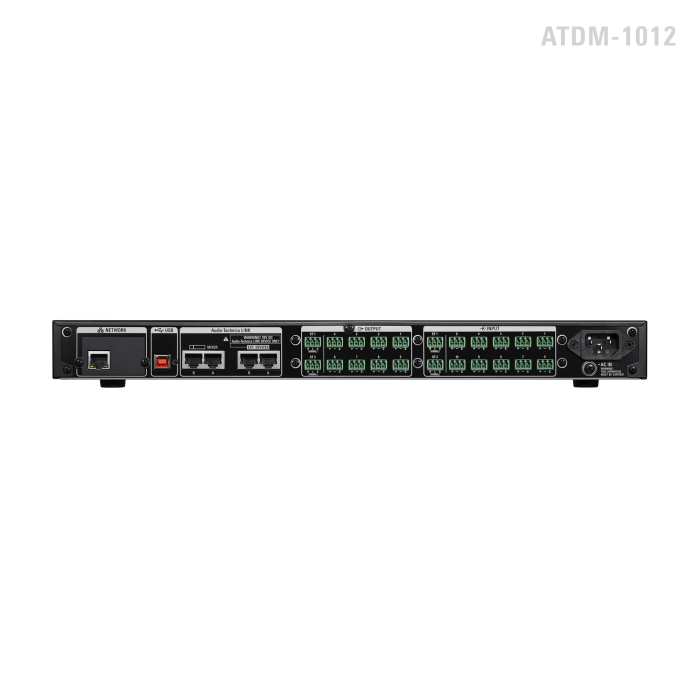

Flexible connectivity – balanced mic/line inputs, stereo inputs, and balanced outputs.
-
Phantom power (+48V) – supports condenser microphones.
-
Intuitive software control – configuration and monitoring via PC/Mac interface.
-
Rack-mountable design – professional 1U form factor.
Specifications:
-
Inputs: 10 (8 × mic/line XLR/TRS + 2 × stereo line)
-
Outputs: 12 (balanced line)
-
Frequency Response: 20 Hz – 20 kHz
-
THD: < 0.005%
-
Dynamic Range: 110 dB
-
Phantom Power: +48V (per input channel)
-
Control: Ethernet / USB software interface
-
Mounting: 1U rackmount
