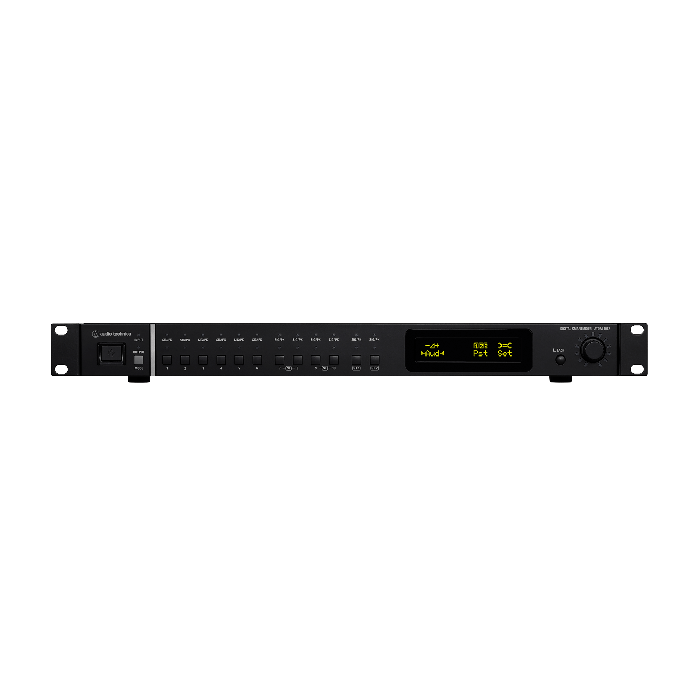

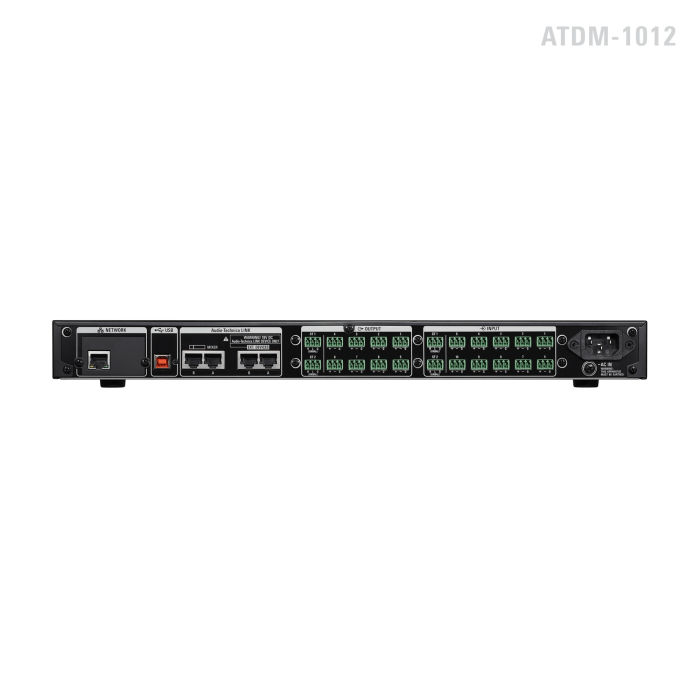

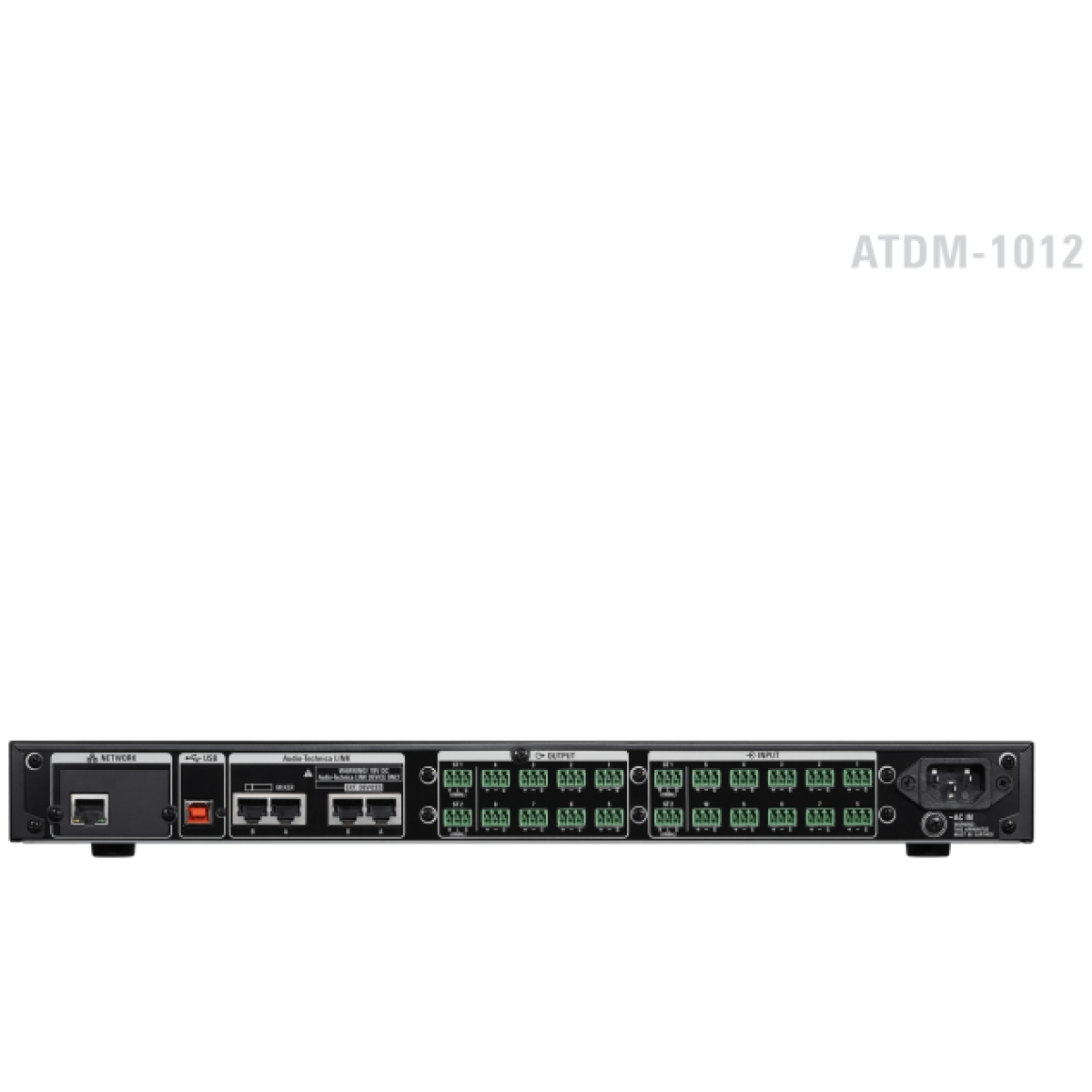

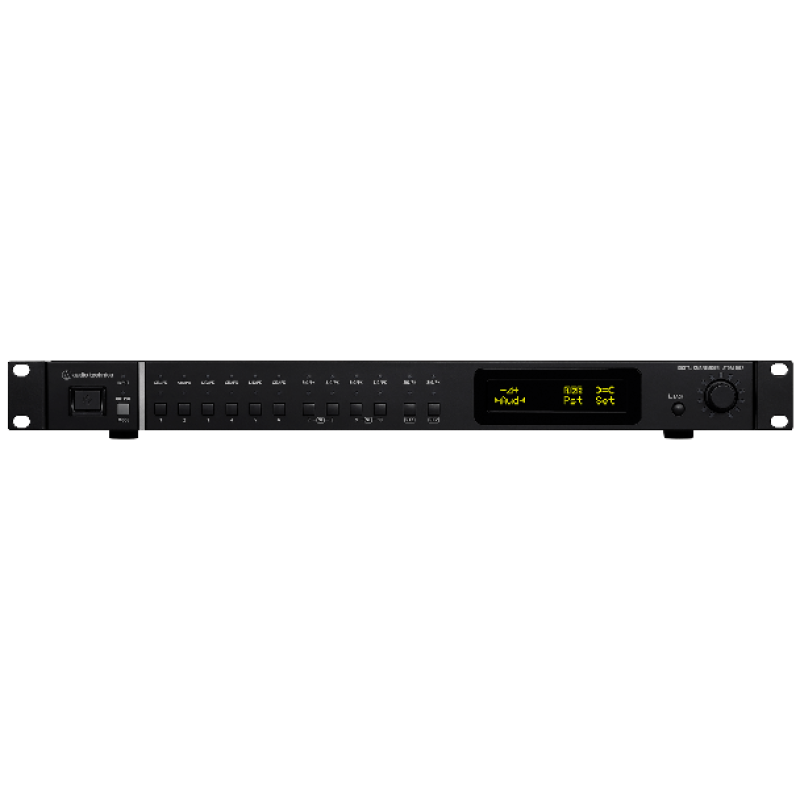

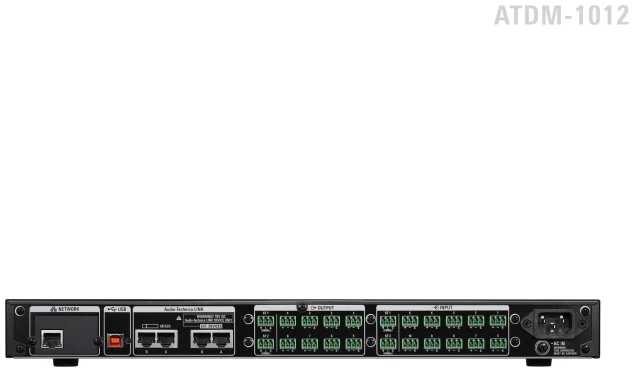

The Audio-Technica ATDM-1012DAN is a professional-grade digital SmartMixer designed for conferences, corporate events, broadcast applications, and installed AV systems. Featuring 10 inputs and 12 outputs, along with integrated Dante networked audio support, the ATDM-1012DAN delivers flexible signal routing, superior audio quality, and powerful DSP functions in a compact rack-mountable unit.
It automatically mixes multiple microphones in real time, ensuring clean, intelligible speech without feedback or unwanted noise — making it ideal for large meeting rooms, houses of worship, and multi-mic panel discussions.
Key Features:
-
10 inputs / 12 outputs – versatile for mid-to-large installations.
-
Integrated Dante support – seamless digital audio networking and interoperability.
-
Automatic mixing – prioritizes active microphones while reducing noise and feedback.
-
Powerful DSP tools – includes EQ, compression, limiting, matrix mixing, and feedback suppression.
-
Intuitive software control – remote setup and monitoring via PC/Mac.
-
Scalable system design – ideal for integration into multi-room AV and conferencing environments.
-
Rack-mountable – compact 1U chassis for professional installations.
Specifications:
-
Inputs: 10 (8 mic/line XLR/TRS + 2 stereo line)
-
Outputs: 12 (balanced line)
-
Dante Connectivity: Yes (primary + secondary ports for redundancy)
-
Frequency Response: 20 Hz – 20 kHz
-
THD: < 0.005%
-
Dynamic Range: 110 dB
-
Phantom Power: +48V (per input channel)
-
Control: Ethernet / USB remote software
-
Mounting: 1U rackmount
