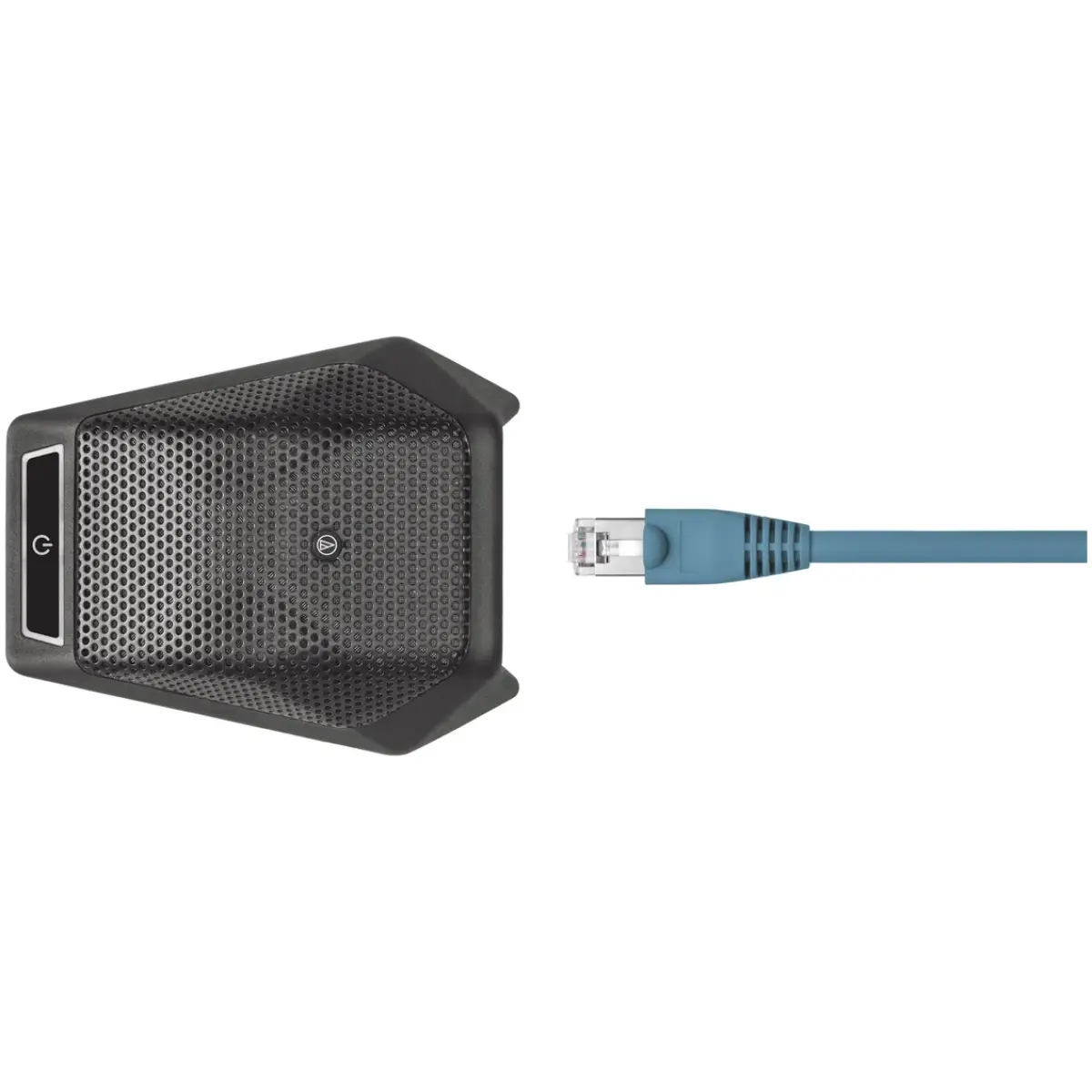

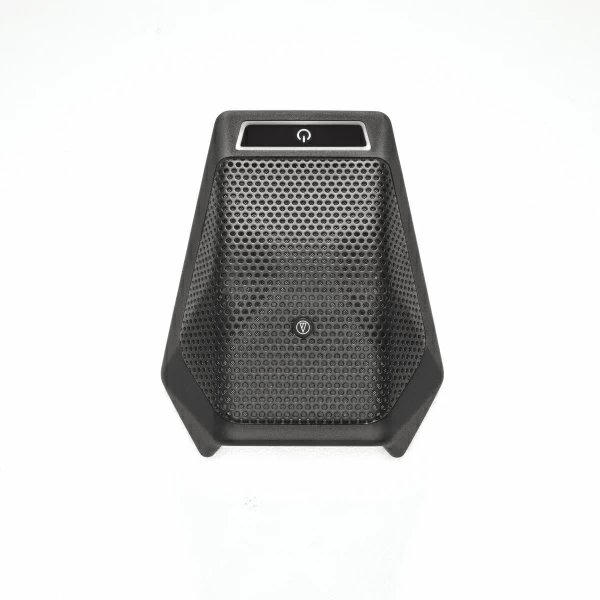

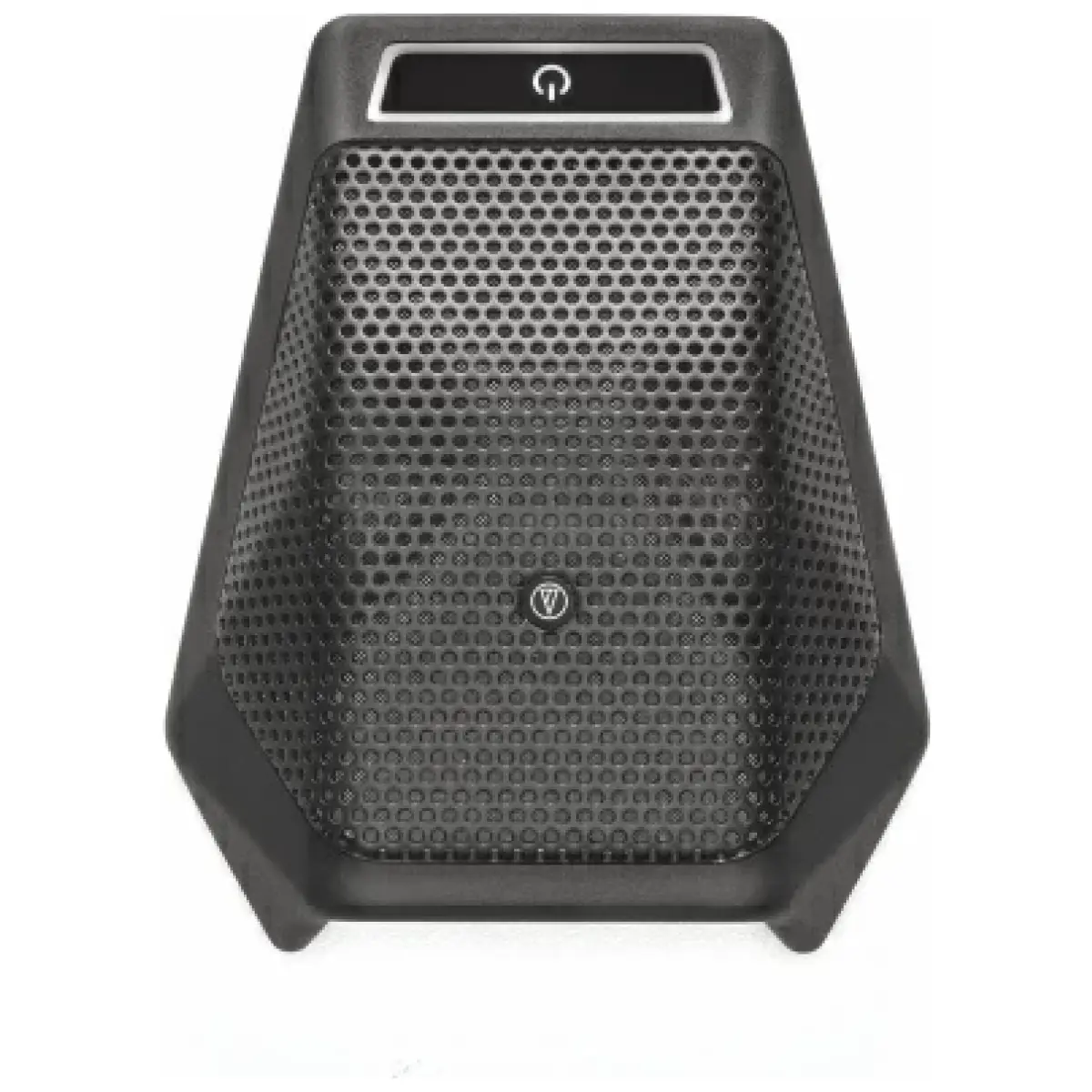

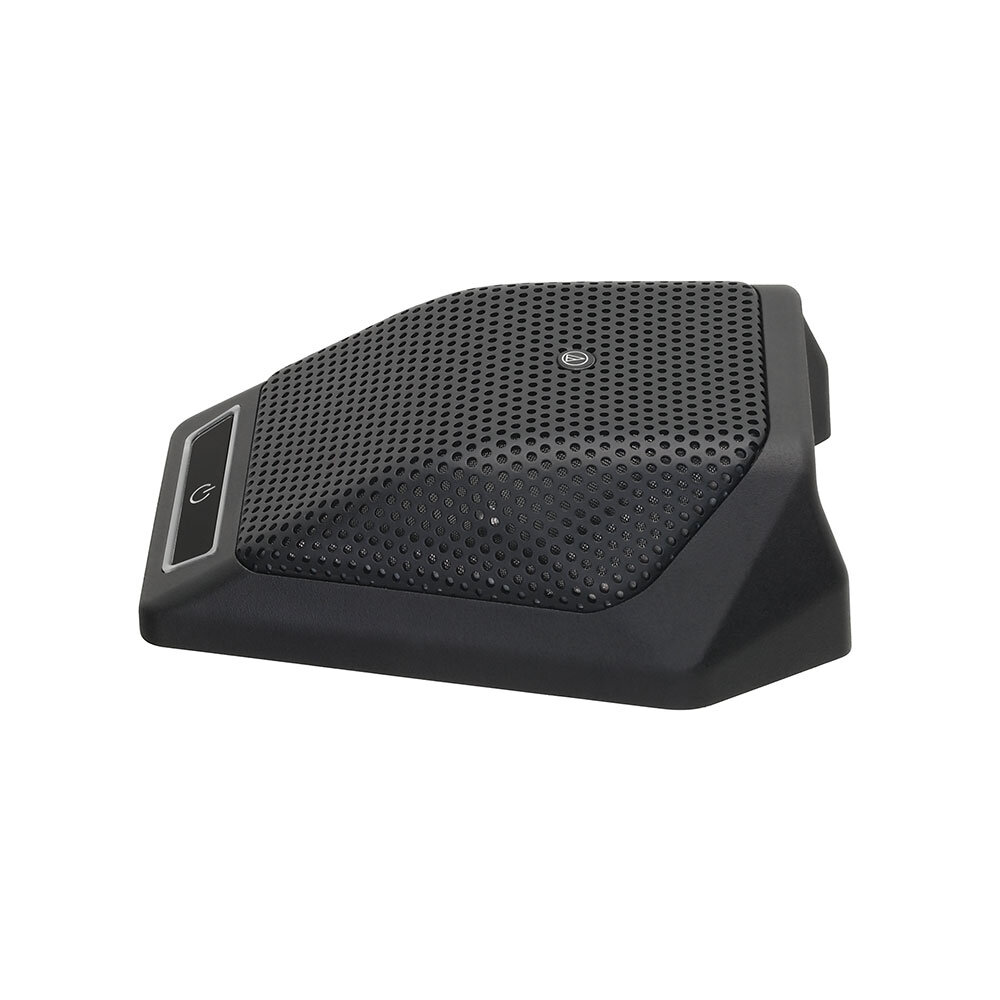

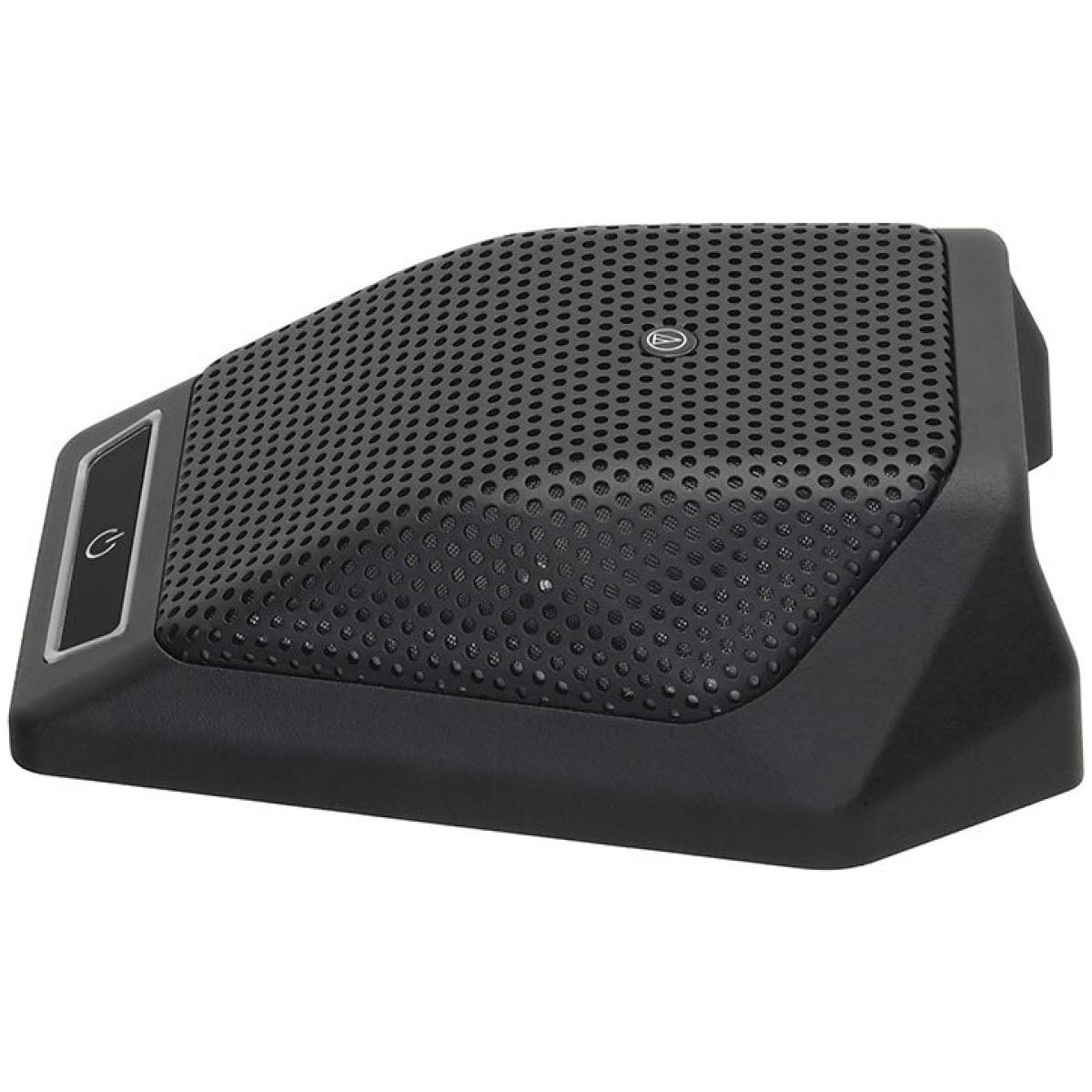

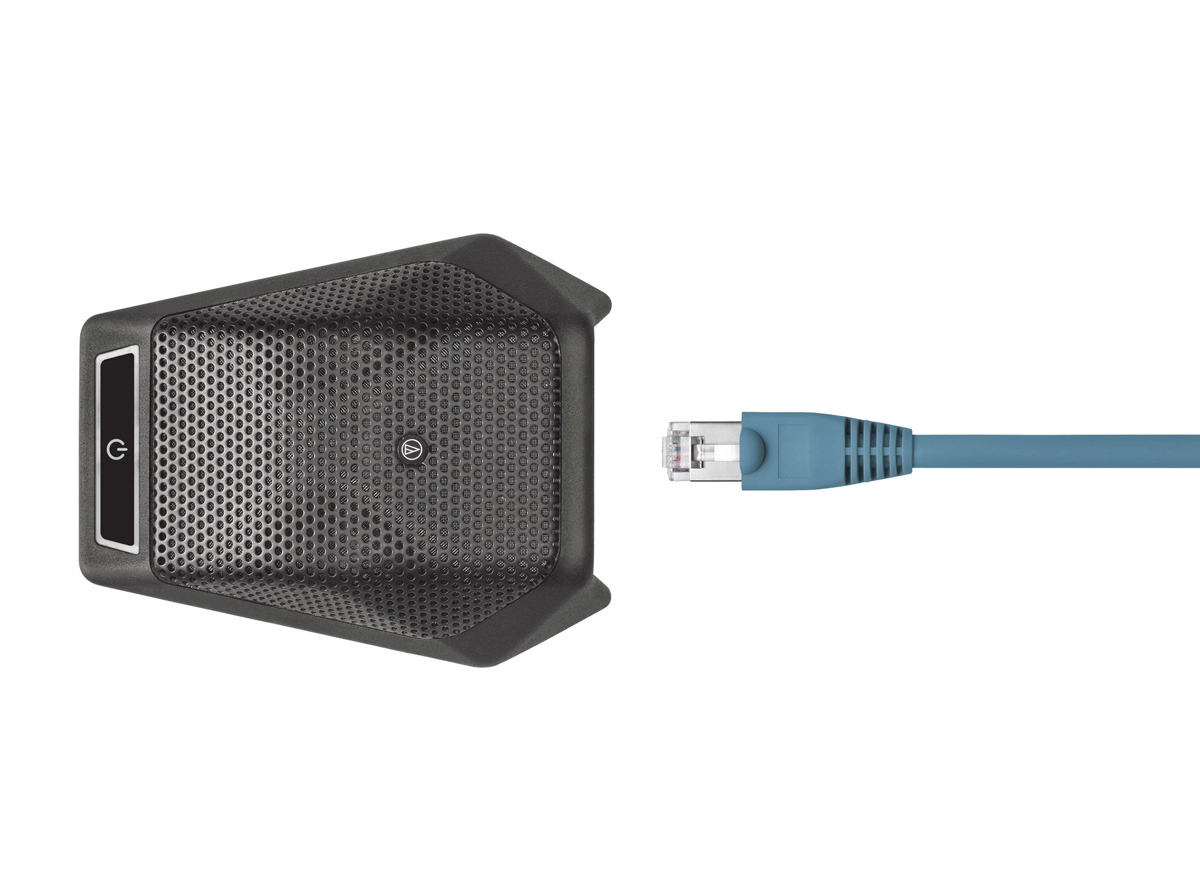

A true audio/IT convergence, the ATND971a boundary mic not only delivers the superior audio you would expect from Audio-Technica, with outstanding speech intelligibility and transparent sound quality, but it also transmits control data to communicate across a network of Dante-enabled devices. The integrated programmable user switch allows users to trigger a video camera’s pan/tilt, recall lighting presets or control anything else on the network at the push of a button. And with a Red/Green LED the microphone can visually convey mute status, incoming phone calls or other creative visual effects utilizing a control system. The microphone plugs into the network via Ethernet cable – easy to install and operate.
Features
- A digital Ethernet mic with Dante capabilities – an Audio-Technica innovation
- Connects directly to network via Ethernet cable – no need for expensive audio cable or soldering
- Integrated switch allows mic to communicate with – and control – other Dante-enabled devices within a network
- Local or remote control of mic gain, low-cut filter and LED indicator
- Red/Green LED indicator
- UniGuard® RFI-shielding technology; UniSteep® filter
- Powered by network PoE
- Scalable across Dante’s 512 bidirectional audio channels
- Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
- Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more
Specifications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Half-cardioid (cardioid in hemisphere above mounting surface) |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Maximum Input Sound Level | 117 dB SPL, 1 kHz at 1% T.H.D. |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Power Requirements | PoE IEEE802.3af standard (Power consumption 1.5W) |
| Sample Rate | Fixed at 48kHz |
| Switches | Local Mode: Touch-sensitive capacitivetype user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB Remote Mode: Low-cut and Gain via third-party software* |
| Switch Logic | Local Mode: Touch-sensitive capacitivetype user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB Remote M |
| Weight (Microphone) | 393 g (13.8 oz) |
| Weight | 393 g |
| Dimensions | 110.0 mm (4.33″) maximum length, 89.5 mm (3.52″) maximum width, 35.8 mm (1.41″) maximum height |
| Output Connector | RJ45 |
| Optional Interchangeable Elements | UE-O omnidirectional (360°) UE-H hypercardioid (100°) |
| Accessories Included | Soft protective pouch |
| Notes | Dante Network Specifications Physical level: standard Ethernet Connector: single RJ45 Cable quality: Shielded CAT5 or CAT6 recommended Transmission speed: 100 Mbps |
