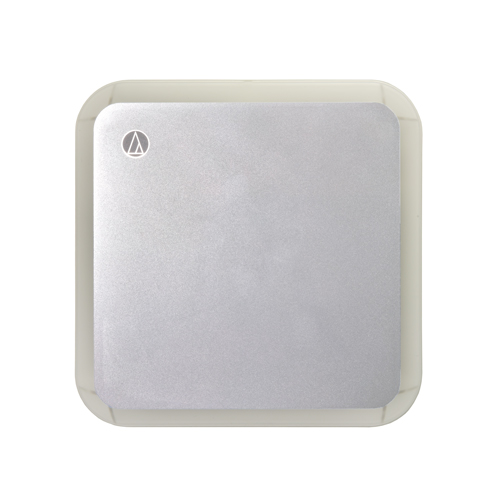

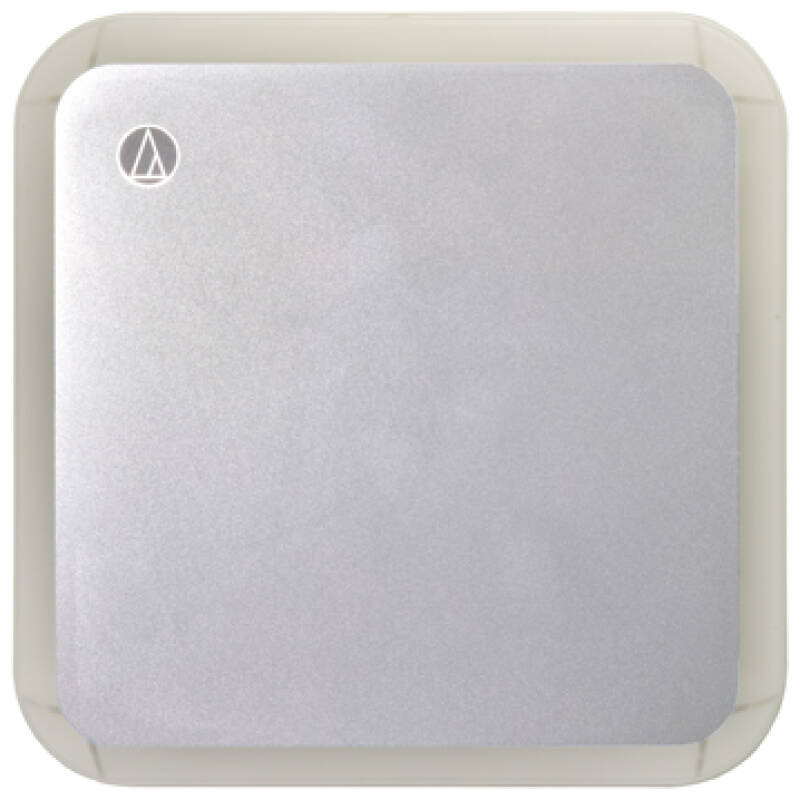

The ceiling-mount ATUC-IRA IR Transmitter/Receiver Unit is designed for reception and distribution of the IRDU signals (max. range 6 m). Equipped with a BNC connector for connection to the IRCU. The unit has a white finish and measures 130 mm (5.1″) W x 35 mm (1.4″) D x 130 mm (5.1″) H. Includes mounting bracket and screws. For wired or wireless systems.
Features
- The ceiling-mount ATUC-IRA IR Transmitter/Receiver Unit is designed for reception and distribution of the IRDU signals (max. range 6 m)

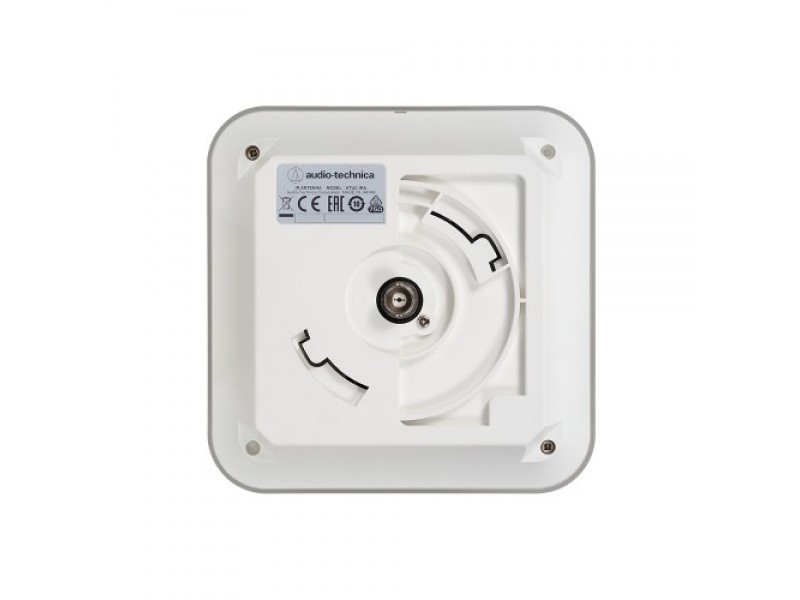

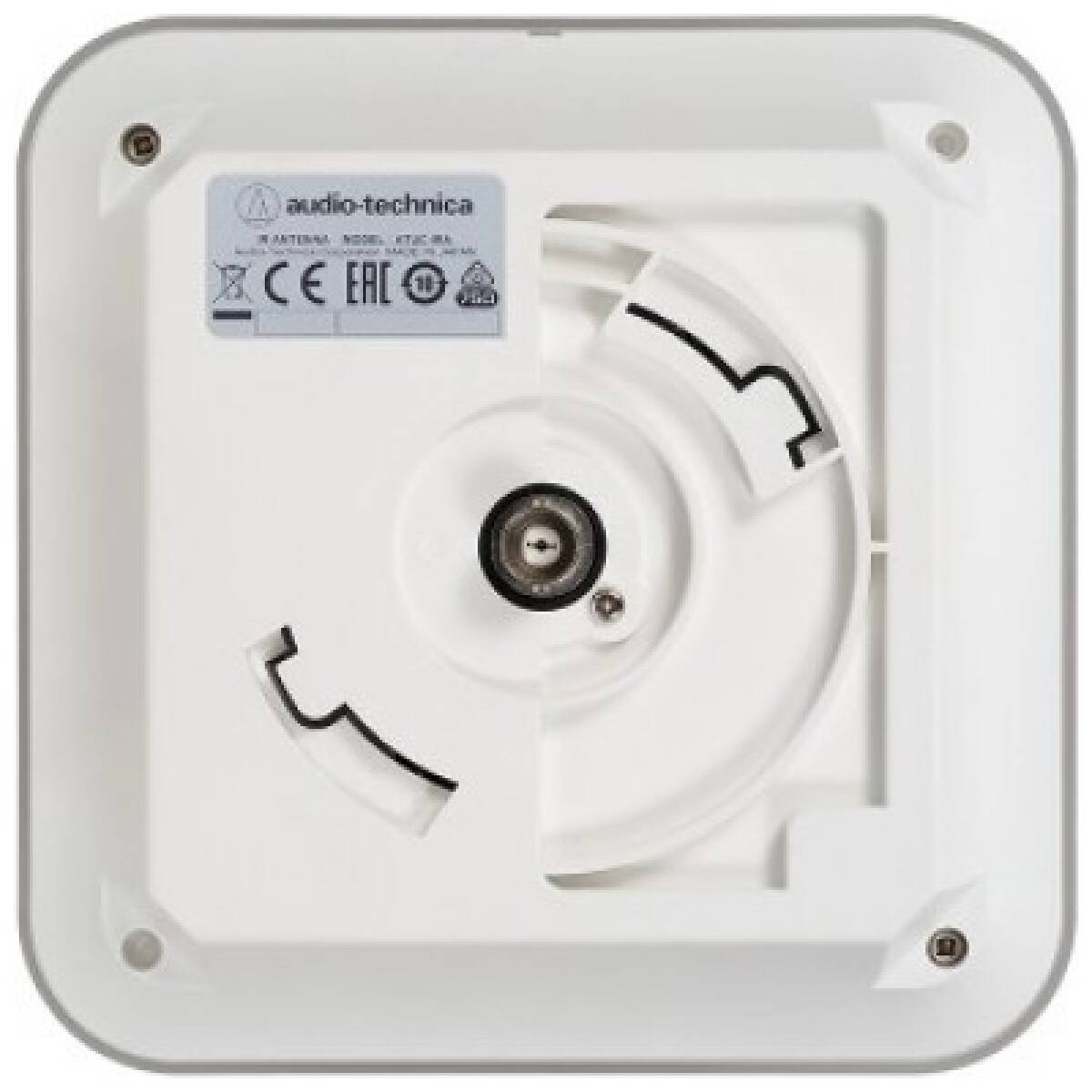

- Equipped with a BNC connector for connection to the IRCU
- The unit has a white finish
- Measures 130 mm (5.1″) W x 35 mm (1.4″) D x 130 mm (5.1″) H

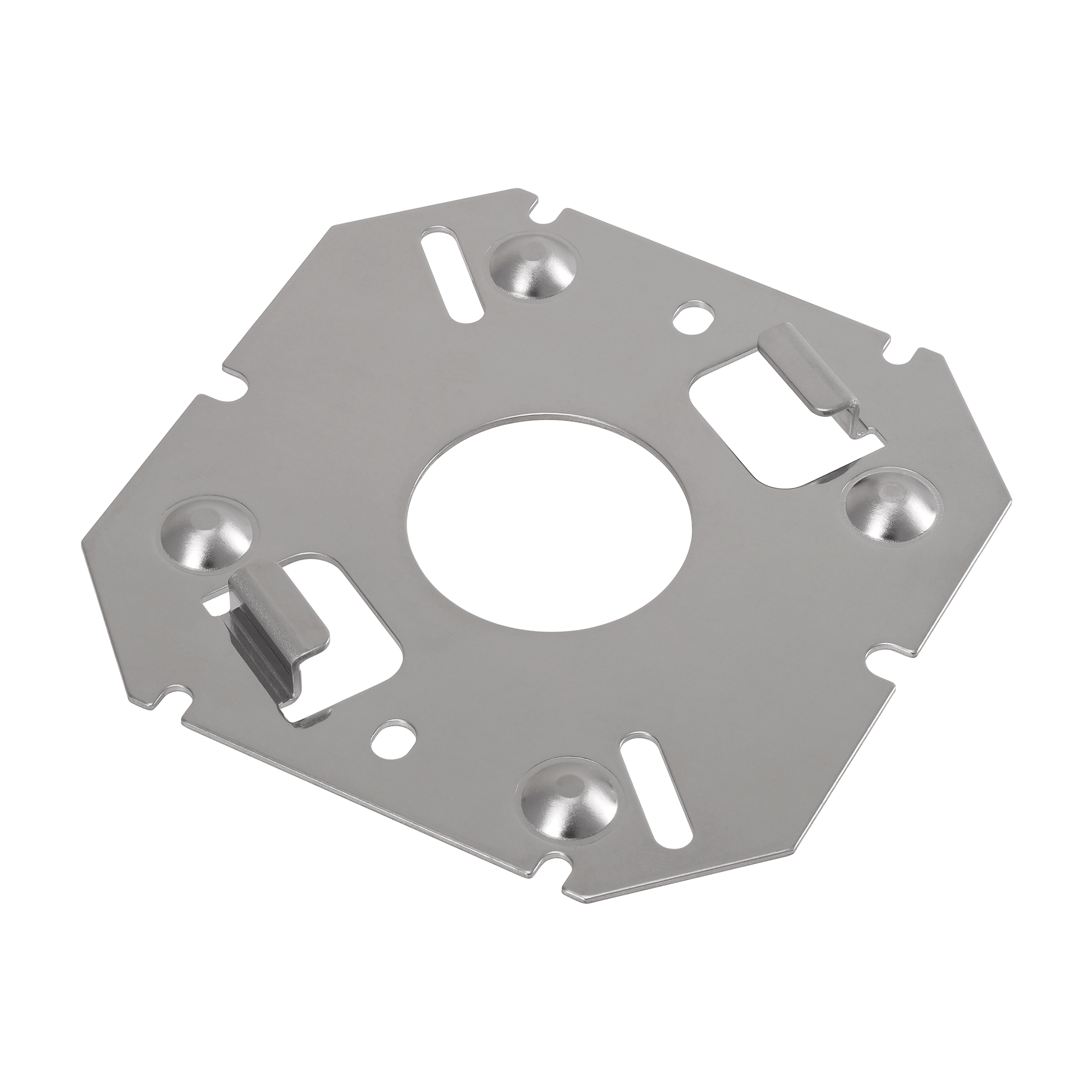

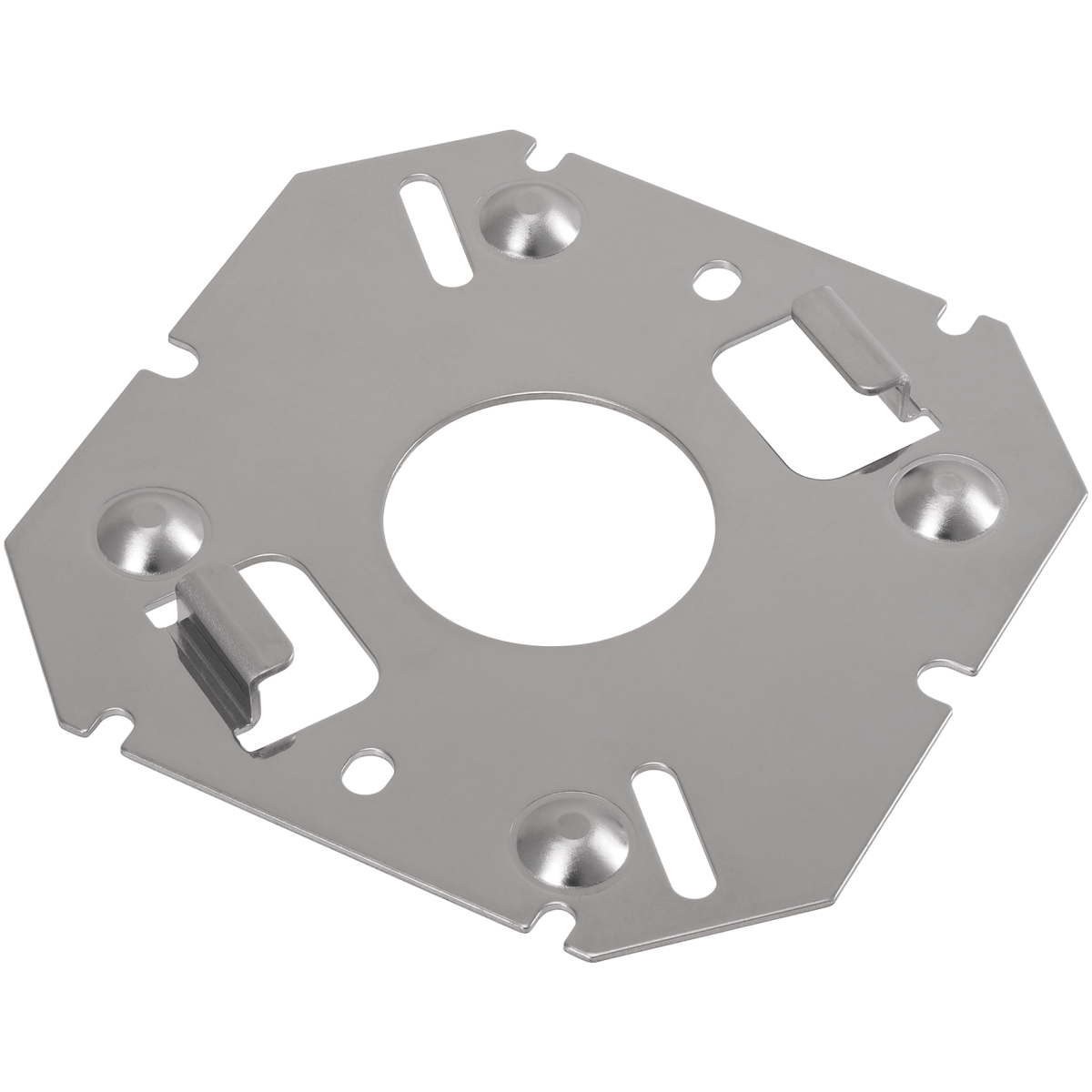

- Includes mounting bracket and screws
- For wired or wireless systems
Specifications
| Antenna & Distribution | |
|---|---|
| Operating Distance | Max. 6m |
| Operating Temperature Range | 0 – 40°C |
| Connections | BNC x 1 |
| Power Consumption | 4.0W |
| Dimensions | 130mm × 35mm × 130mm |
