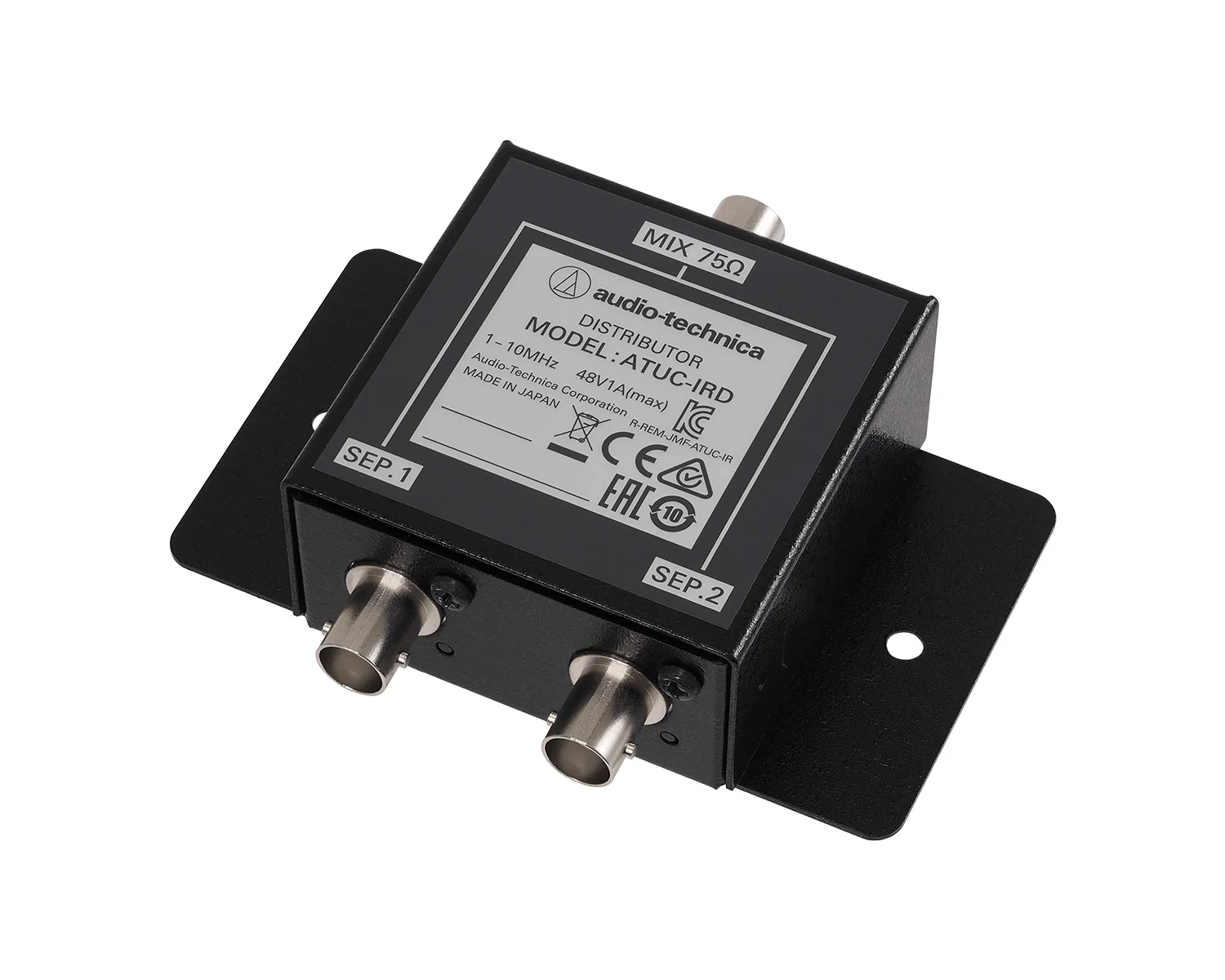

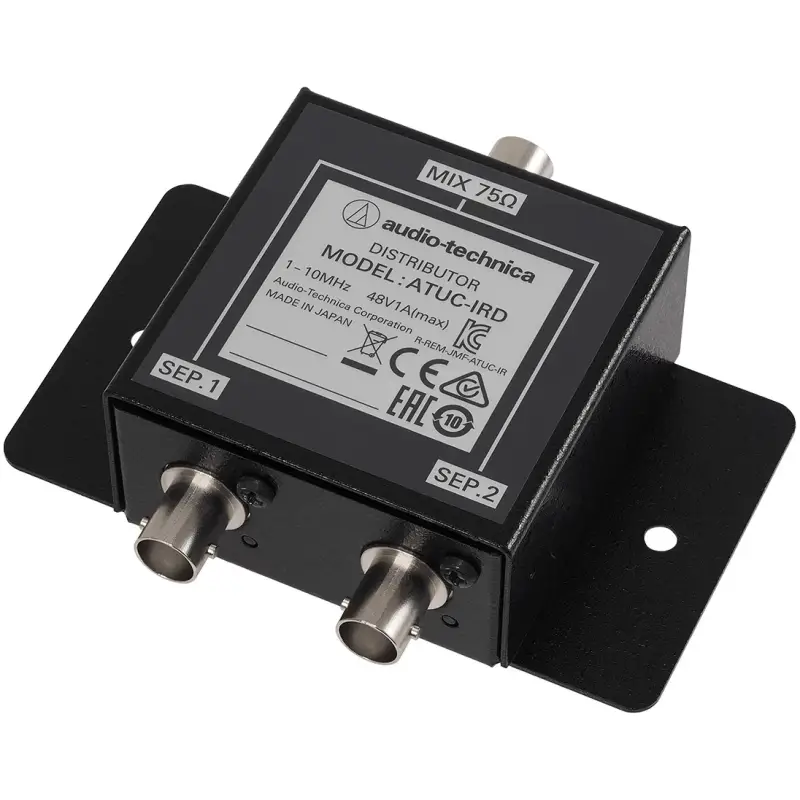

ATUC-IRD IR Distribution Unit – Antenna distributor designed for the ATUC-IR infrared conferencing system, 1 BNC entry point and 2 BNC exit points
Features
- Mountable 2-to-1 BNC cable distributor
- Up to 12 distributors can be used to increase the number of ATUC-IRA antennas in a discussion system from 4 to 16
Specifications
| Antenna & Distribution | |
|---|---|
| Number of Distributions | 2 |
| Operating Temperature Range | –10 to 50°C |
| Connections | BNC jack (power passing type, 50V or less, 1A or less) |
| Dimensions | 100 mm × 82.6 mm × 30mm |
| Weight | 167g |
