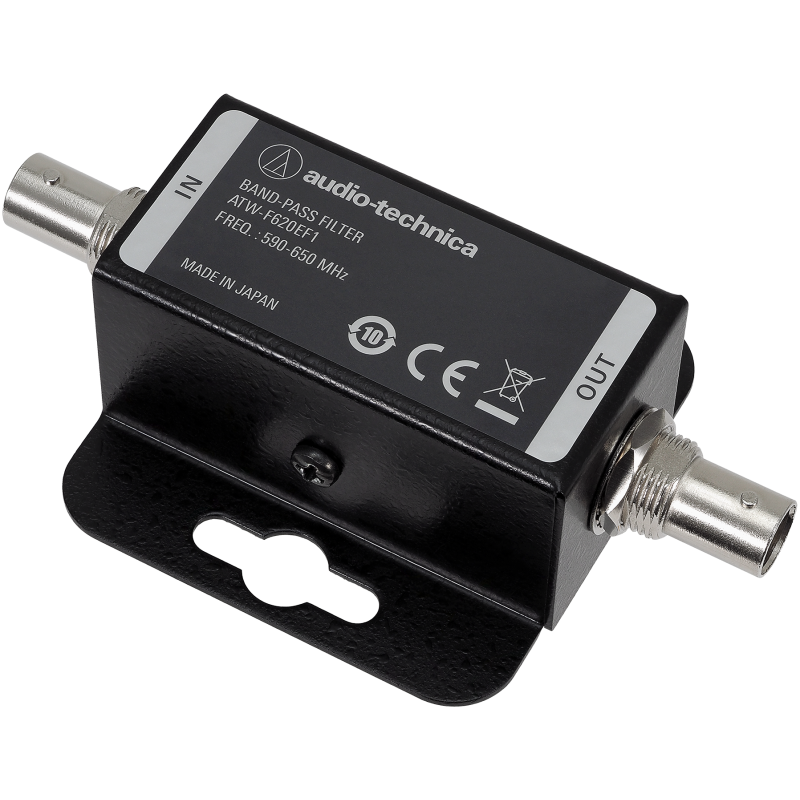

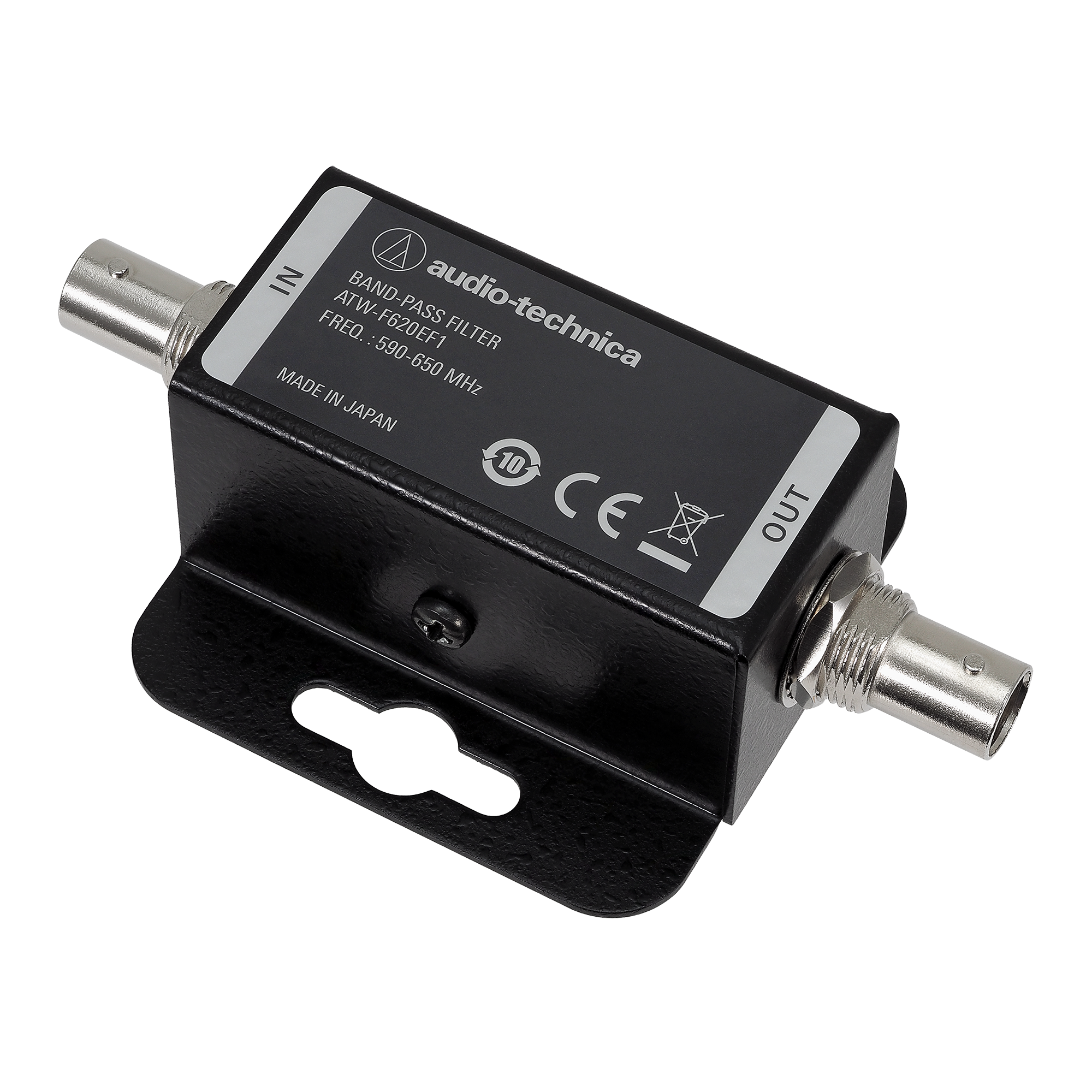

Band-Pass Filter Pair. These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range. Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.
Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less than 420 mA.
FEATURES
- Passive operation
- Industry-standard BNC-type connectors
- Band-Pass Filter Pair
- Filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers
- Frequency Range: 590 to 650 MHz (ATW-F620EF1)
- Current Pass Through: 420 mA
SPECIFICATIONS
- Frequency Range: 590 to 650 MHz (ATW-F620EF1)
- Impedance: 50 ohms
- High Frequency Transmission Loss: 4 dB (typical)
- Current Pass Through: 420 mA
- Operating Temperature Range
- Allowable: -10 to +60 °C
- Recommended: +15 to +35 °C
- Connections: BNC-J x 2
- Dimensions: 99.8 mm × 60 mm x 30 mm (W × D × H)
- Weight: 136 g
