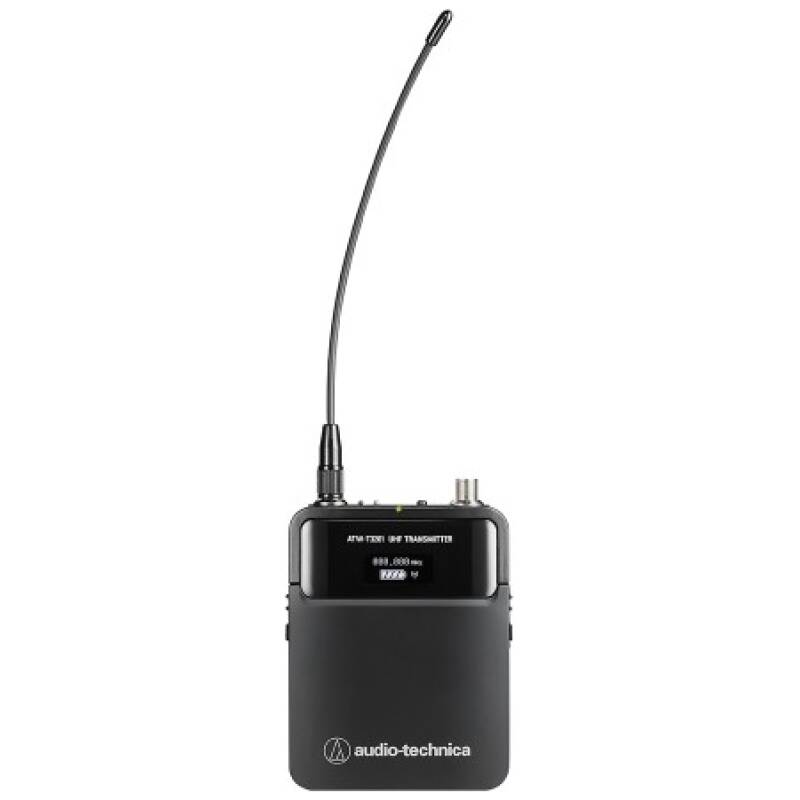

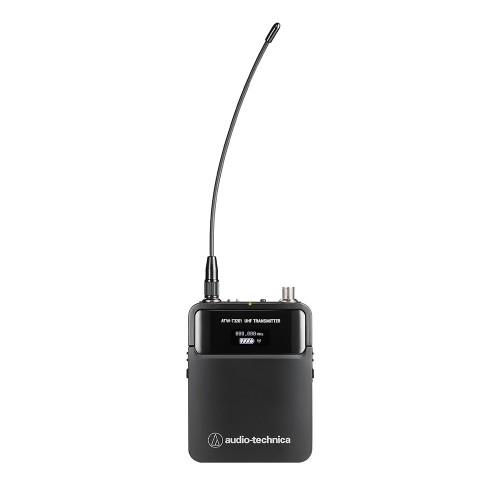

| 3000 Series scan and synch true diversity 40 channel UHF wireless beltpack transmitter with cH 4 pin connector, supplied without microphone or cable. |
Features

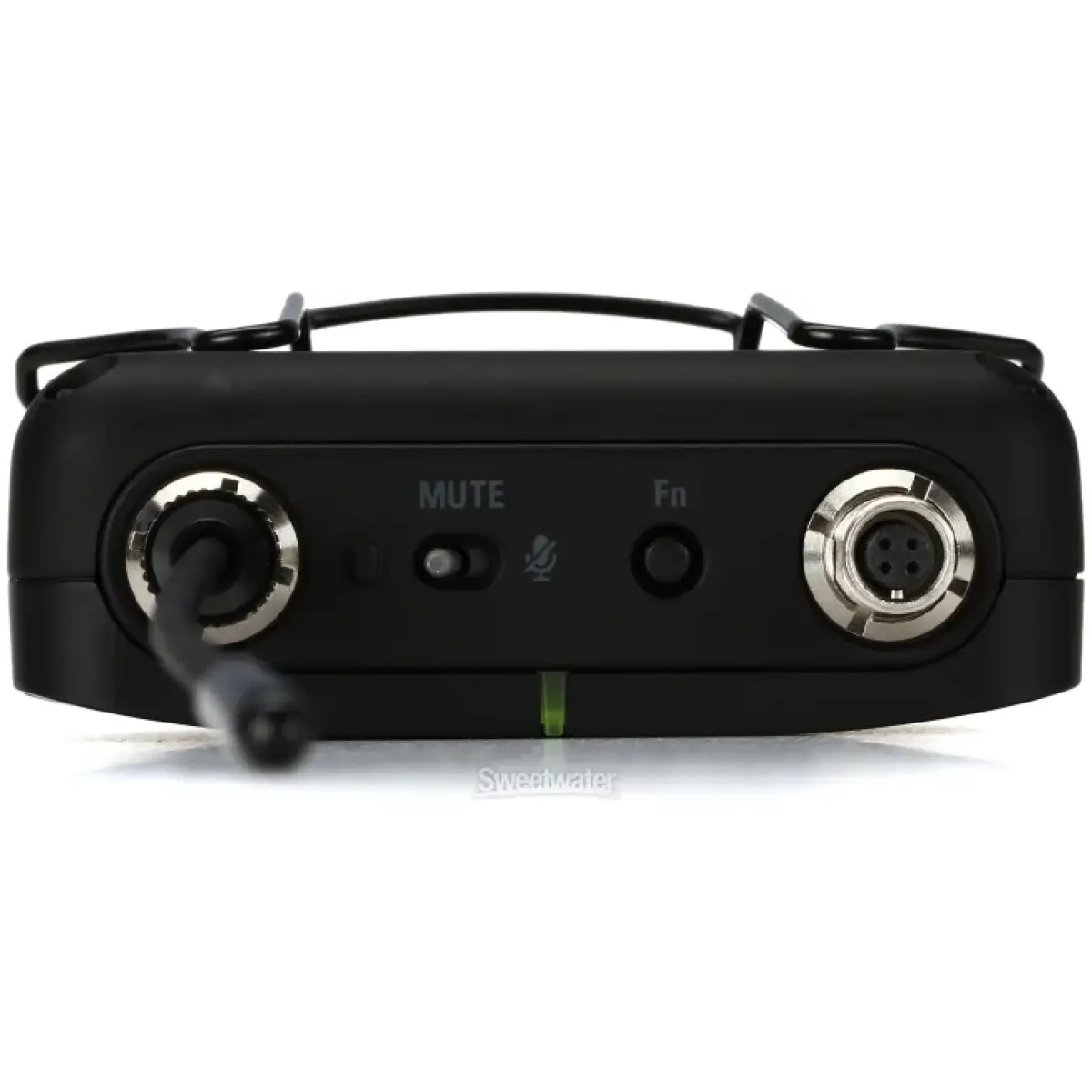

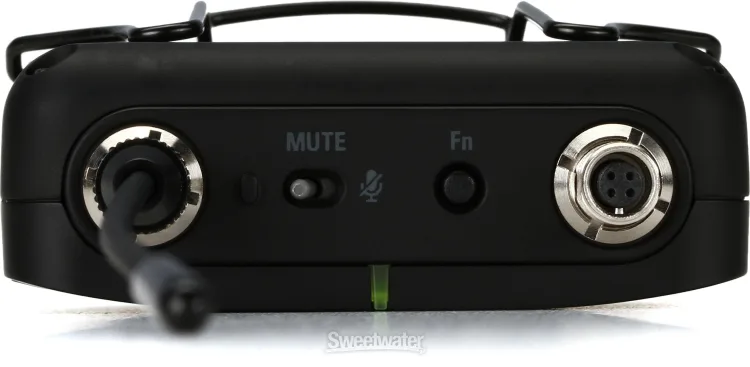

- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts
Specifications
| Body Pack | |
|---|---|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 Ω |
| Battery Life | High: 8.0 hours / Low: 9.0 hours (alkaline) High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage and environmental conditions. |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 64 mm x 82 mm x 23 mm (W x D x H) |
| Input Connections | 4-Pin screw down cH-Style Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Net Weight | 102 g |
| Spurious Emissions | Following Federal and National Regulations |
