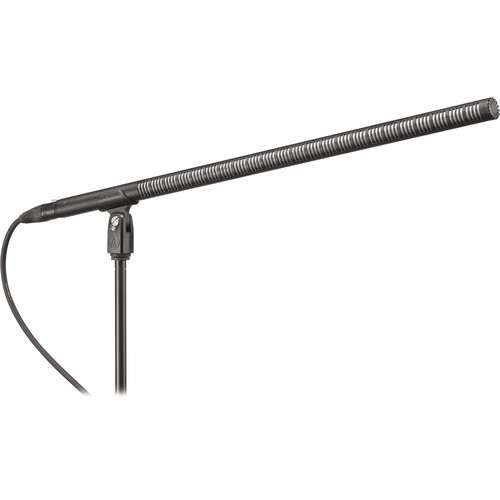

The BP4071L Line and Gradient Condenser Microphone from Audio-Technica features an extended length of 21″ that maximizes directivity and narrows the pickup area. The result is focused audio capturing and minimal noise and artifacts from sources outside the pickup area. The BP4071L is a popular choice among broadcast and film recording professionals, but may also be used in ENG (News Gathering), sound design applications and more.
Features
- Overall length of 21.22” with an extremely narrow, highly directional pickup pattern
- Ideal for use in broadcasting, film/TV production, and theater sound reinforcement
- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Transformerless design for improved pickup of transients
- Rugged housing made of lightweight structural-grade aluminum alloy
- Interference tube design for narrow acceptance angle
- Switchable 80 Hz high-pass filter & 10 dB pad
- RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Specifications
| Microphones | |
|---|---|
| Element | Externally polarized (DC bias) capacitor |
| Polar Pattern | Line + gradient |
| Frequency Response | 20-18,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -29 dB (35.5 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 141 dB SPL, 1 kHz at 1% T.H.D.; 151 dB SPL, with 10 dB pad (nominal) |
| Noise | 13 dB SPL |
| Dynamic Range | 128 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 81 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 4.8 mA typical |
| Switches | Flat, roll-off; 10 dB pad (nominal) |
| Weight | 175 g (6.2 oz) |
| Dimensions | 539.0 mm (21.22″) long, 21.0 mm (0.83″) maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; AT8147 windscreen; two O-Rings; protective carrying case |
| Audio-Technica Case Style | SG5 |
