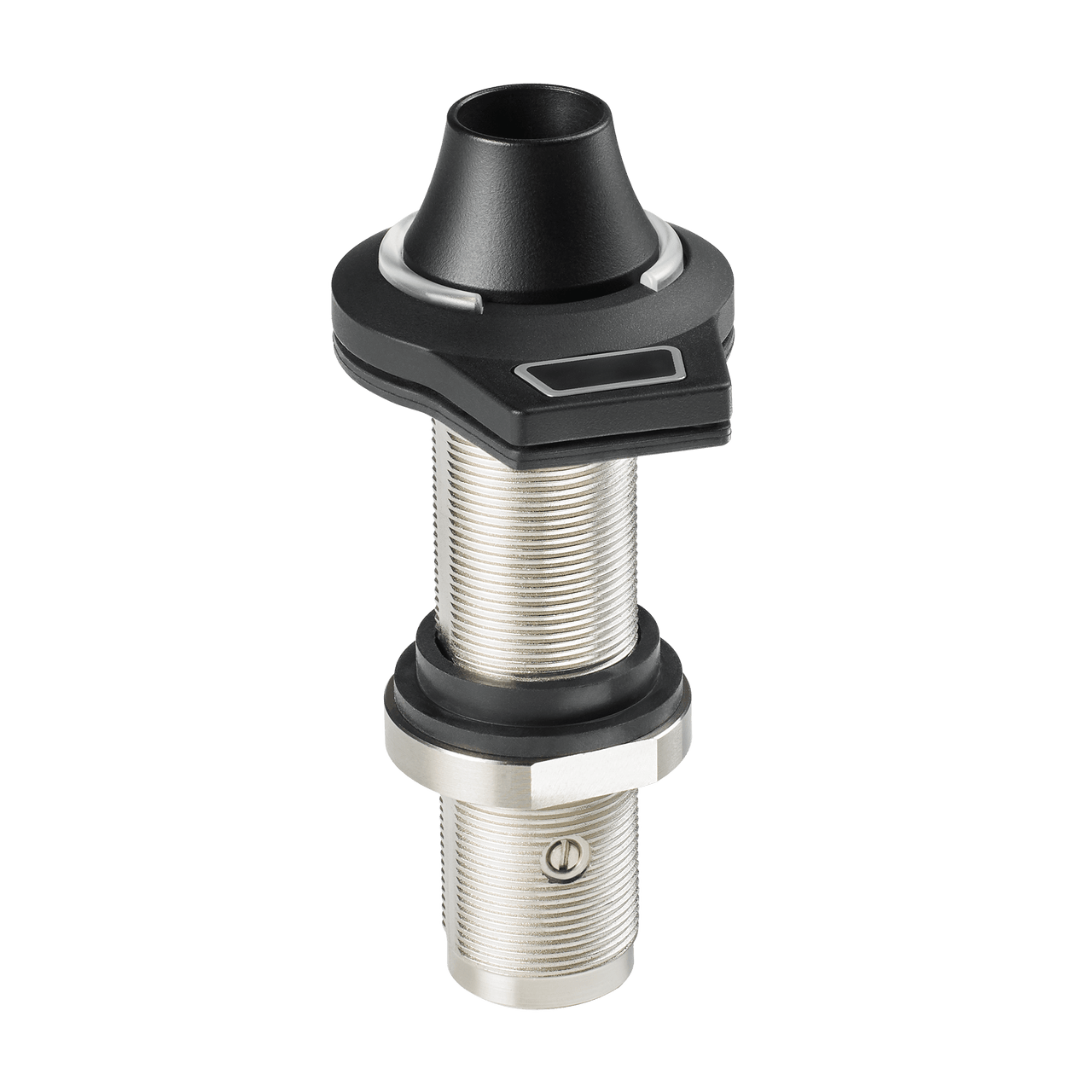

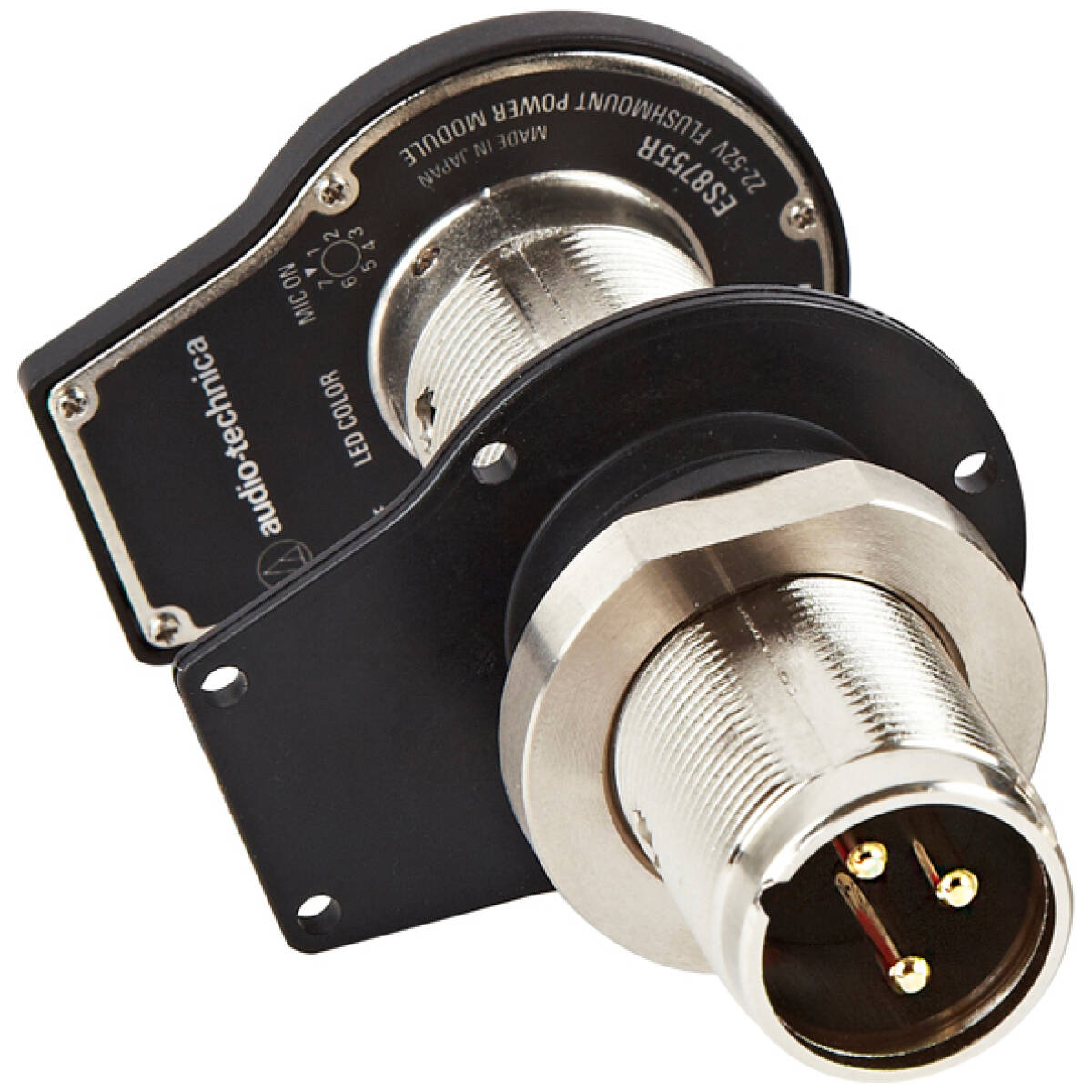

3-Pin flush mount Power base module for Audio-Technica ES925 series.
This power base can be interchanged with a variety of different condenser capsules (Cardioid, Hypercardioid & MicroLine®) and gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
This component is available in four different power modules (XLR, FM3, FM5 & DS5)
FEATURES:
- Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Interchangeable condenser microphone elements provide full-range, natural sound
- Designed for professional sound reinforcement and other commercial sound applications
- Small-diameter gooseneck design permits highly flexible positioning
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Available in four different power modules (XLR, FM3, FM5 & DS5)
- ES925 Compatible condenser capsules (Cardioid, Hypercardioid & MicroLine®)
- ES925 Compatible gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
- All product combinations available
SPECIFICATIONS:
General
- Impedance: 180 ohms
- Switches: LED colour x2: mic on, mic off
- Power Requirements: 22-52V DC
- Output Connector: Integral 3-pin XLRM-type
- Switch Logic: Local
Physical
- Weight: 75 g
- Dimensions: 38.0 mm W x 48.0 mm D x 90.8 mm H
