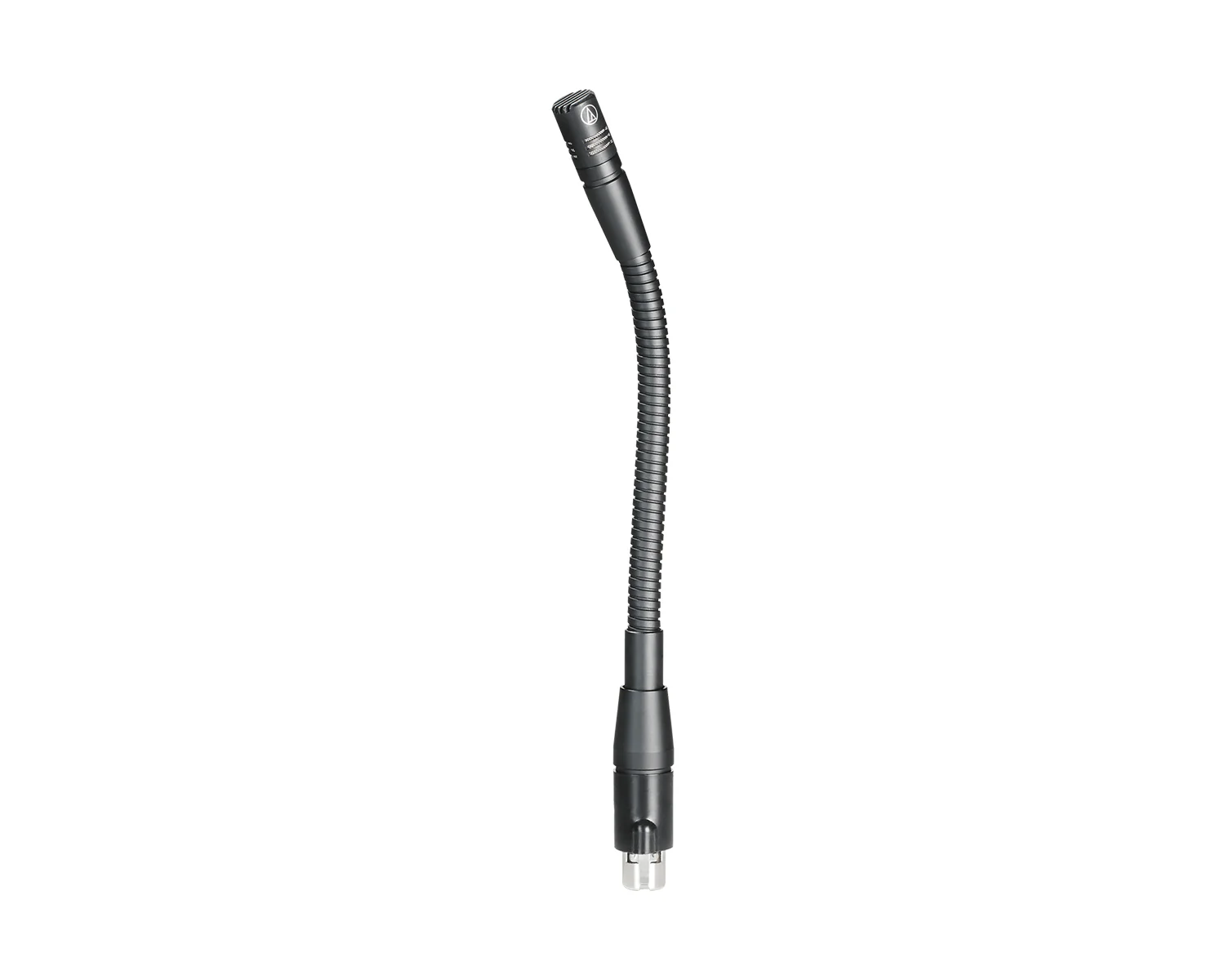

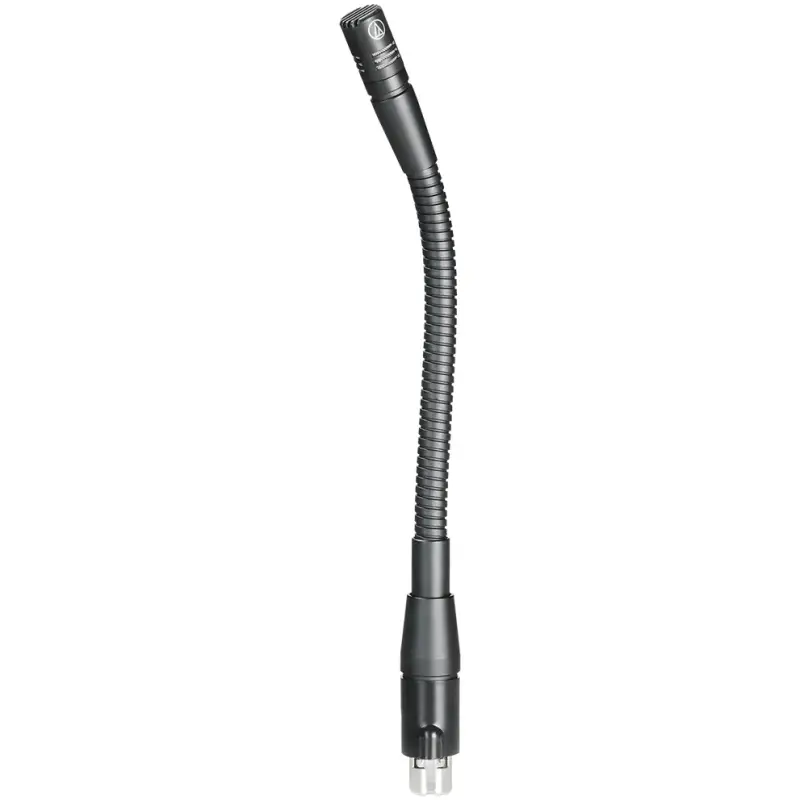

The ES931H/MIC is a wide-range miniature condenser microphone with a hypercardioid polar pattern. It is designed for quality sound reinforcement. The small-diameter gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance. The combination of small size and excellent response makes the microphone ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications.
FEATURES:
- Uniform hypercardioid polar pattern with 100° acceptance angle
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Easy-to-adjust, rugged, small-diameter gooseneck with virtually no “memory” permits quick positioning into desired shape
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
General
- Element: Fixed-charge back plate, permanently polarised condenser
- Polar Pattern: Hypercardioid
- Frequency Response: 80-20,000 Hz
- Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
- Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic Range: 109 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
- Output Connector: TA3F-type
- Audio-Technica Case Style: M41
- Accessories Included: AT8109 two-stage foam windscreen
Physical
- Weight: 39g
- Dimensions: 152.4 mm long (with capsule), 8.4 mm (head diameter), 11.6 mm (base diameter)
- Finish: Black
