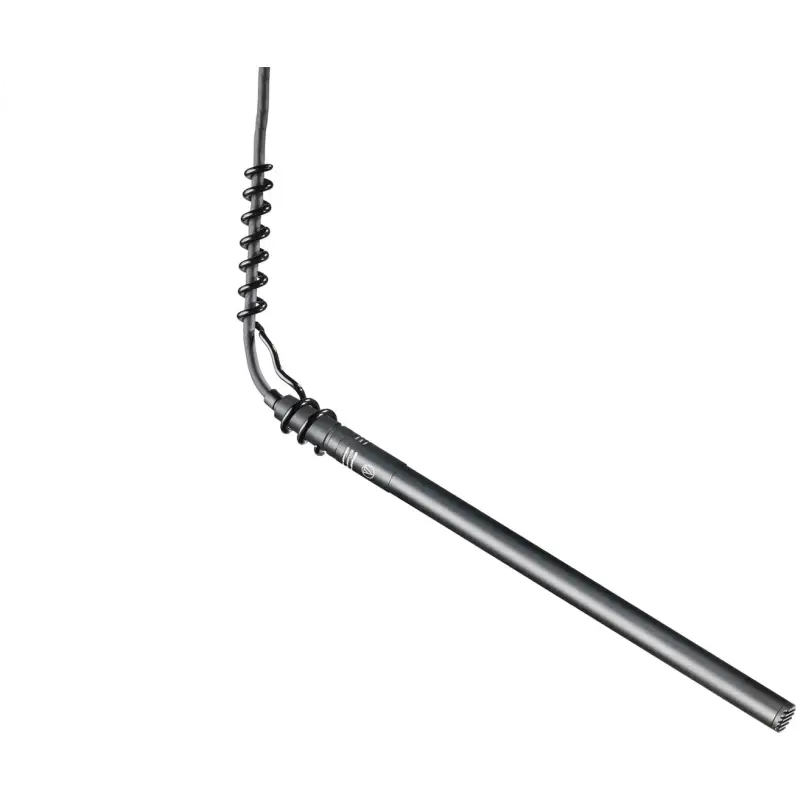

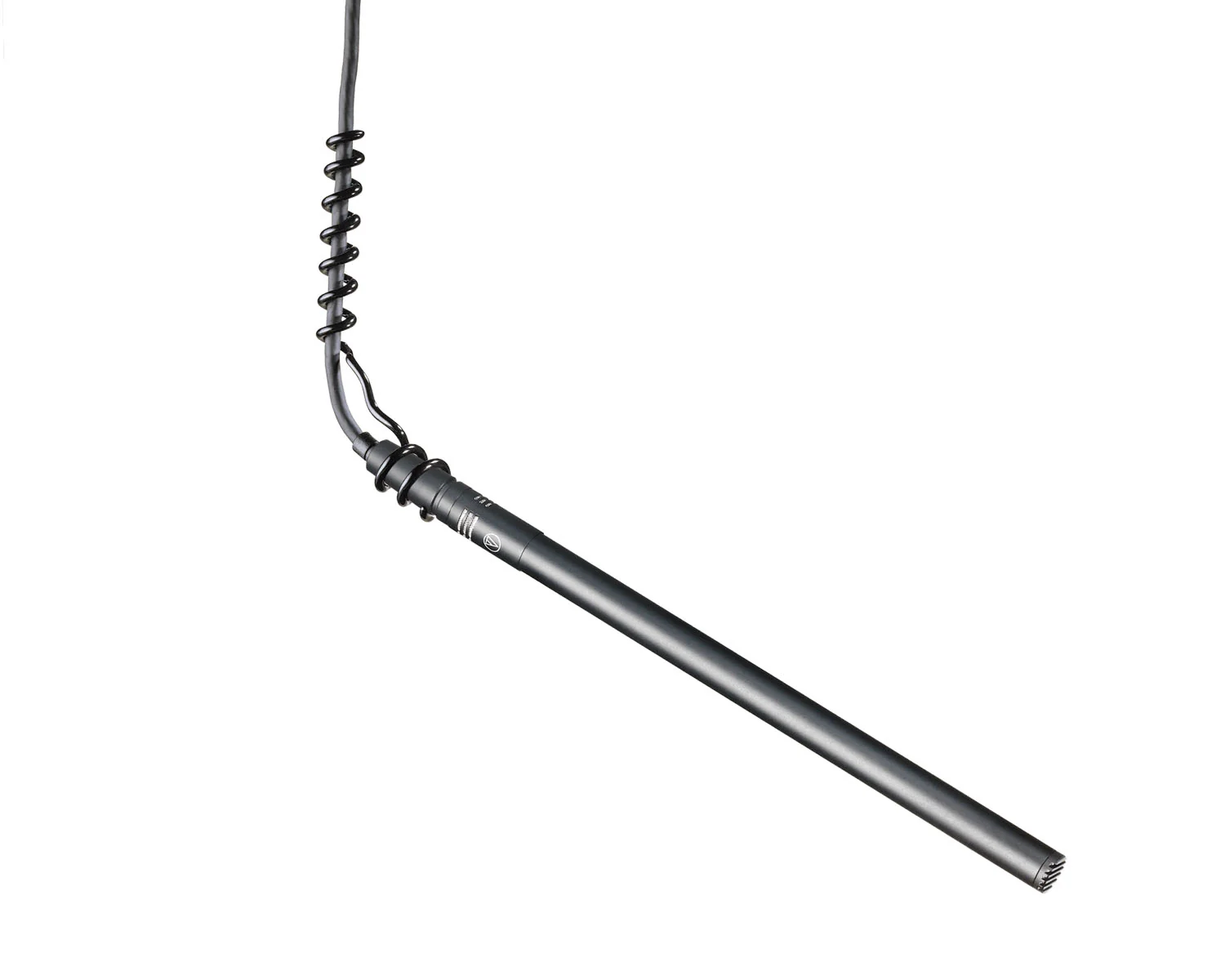

The ES933 condenser hanging microphone is designed for quality sound reinforcement, professional recording, television, and other demanding sound pickup applications. Its low-profile design and excellent response make it ideally suited for suspending over choirs, instrumental groups and theatre stages.
The microphone is equipped with a 15.2 m (50\’) permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules. UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).
FEATURES:
- Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
- Small size and excellent response are ideal for suspension over choirs, instrumental groups and theatre stages
- Available interchangeable elements permit angle of acceptance from 90º to 360º
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
SPECIFICATIONS:
- Polar Pattern: MicroLine
- Element: Fixed-charge back plate, permanently polarised condenser
- Frequency Response: 30 – 20,000 Hz
- Low Frequency Roll Off: 80 Hz, 18 dB/octave
- Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
- Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% THD
- Dynamic Range: 109 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 11-52V DC, 2 mA typical
- Switches: Flat, roll-off
- Cable: 15.2 m (50\’) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable, terminated with TA3F-type connector
