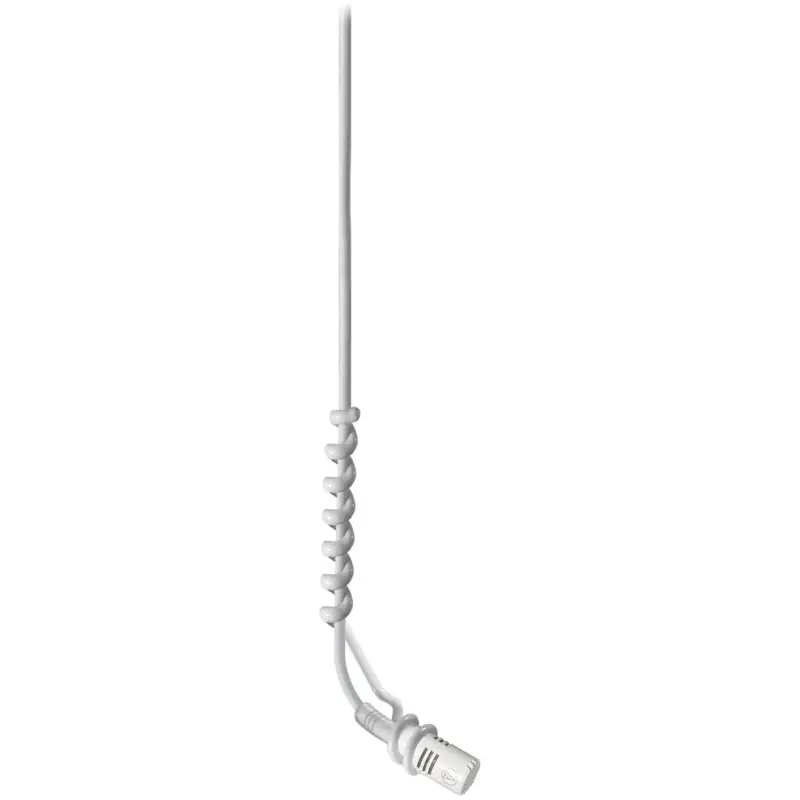

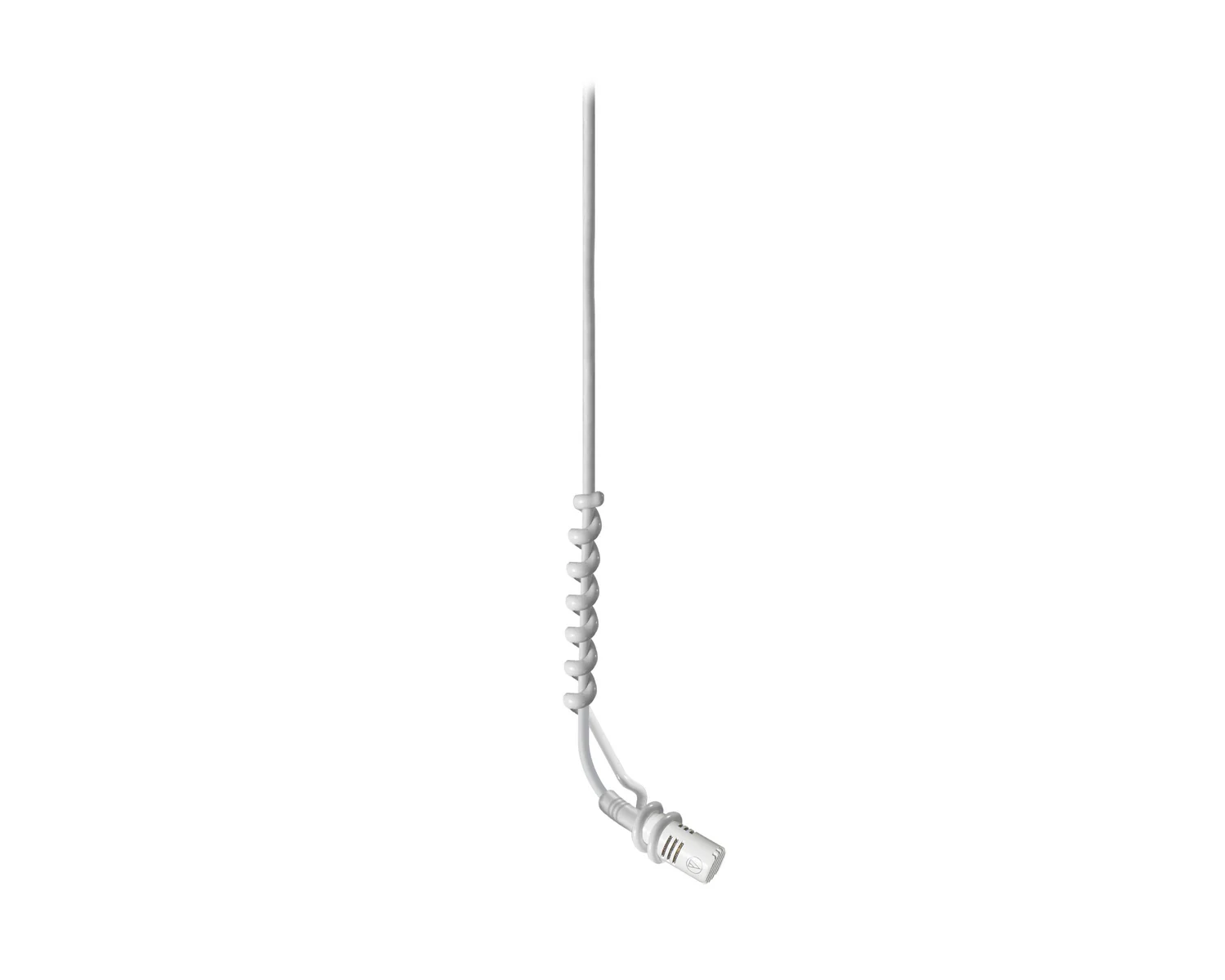

The ES933WH/MIC hypercardioid condenser hanging microphone is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. Its low profile and excellent response make it ideally suited for suspending over choirs, instrumental groups and theatre stages.
The microphone is equipped with a 15.2 m (50\’) permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules (not included). UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).
FEATURES:
- Uniform hypercardioid polar pattern with 100° acceptance angle
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Steel hanger positions microphone over choirs, instrumental groups and theatre stages
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Includes AT8538 XLR phantom power only in-line power module
SPECIFICATIONS:
- ELEMENT: Fixed-charge back plate, permanently polarized condenser
- POLAR PATTERN: Hypercardioid
- FREQUENCY RESPONSE: 80-20,000 Hz
- OPEN CIRCUIT SENSITIVITY: -40 dB (10.0 mV) re 1V at 1 Pa
- MAXIMUM INPUT SOUND LEVEL: 138 dB SPL, 1 kHz at 1% T.H.D.
- DYNAMIC RANGE (typical): 109 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
- OUTPUT CONNECTOR: TA3F-type
- CABLE: 15.2 m (50\’) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable, terminated with TA3F-type connector
