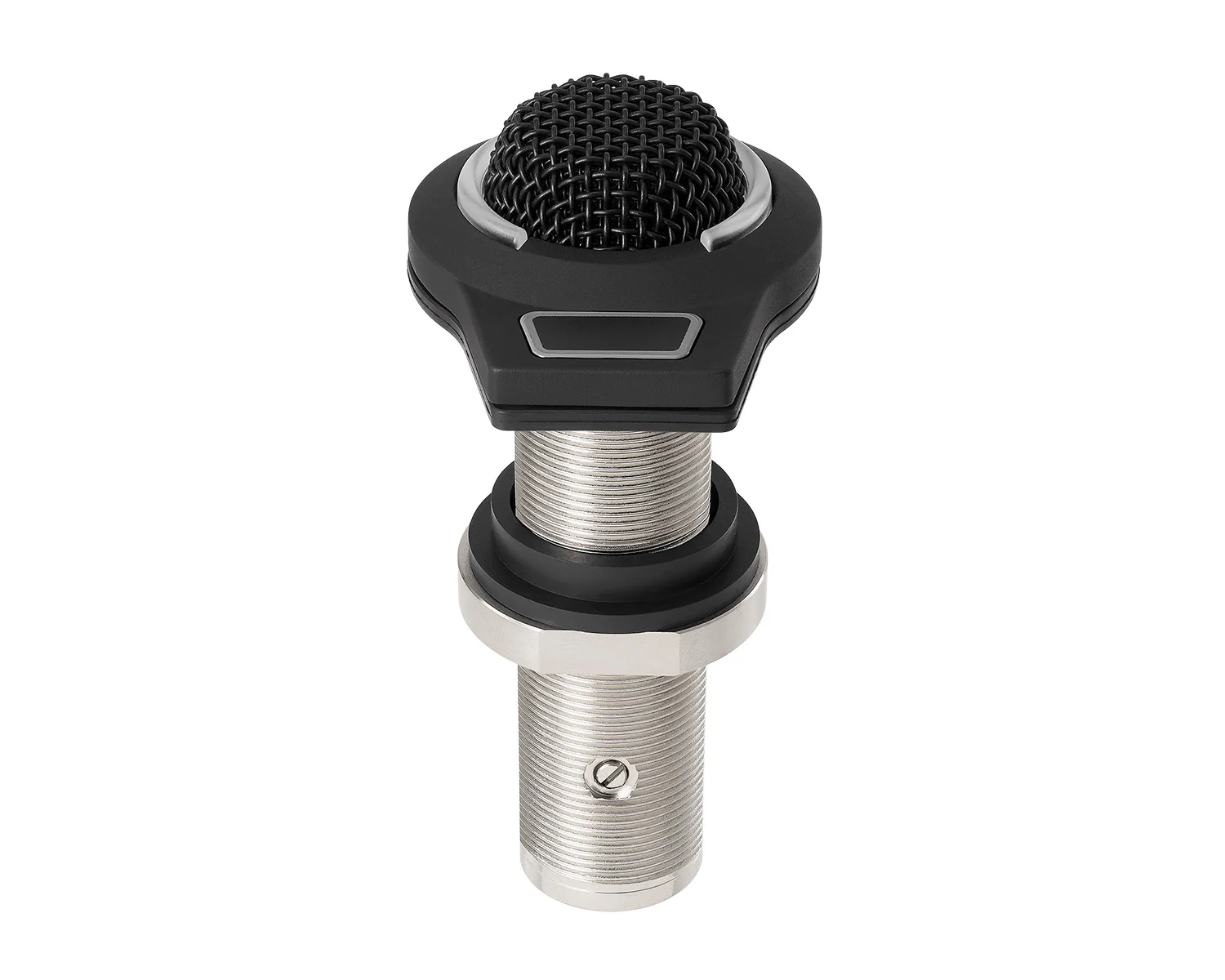

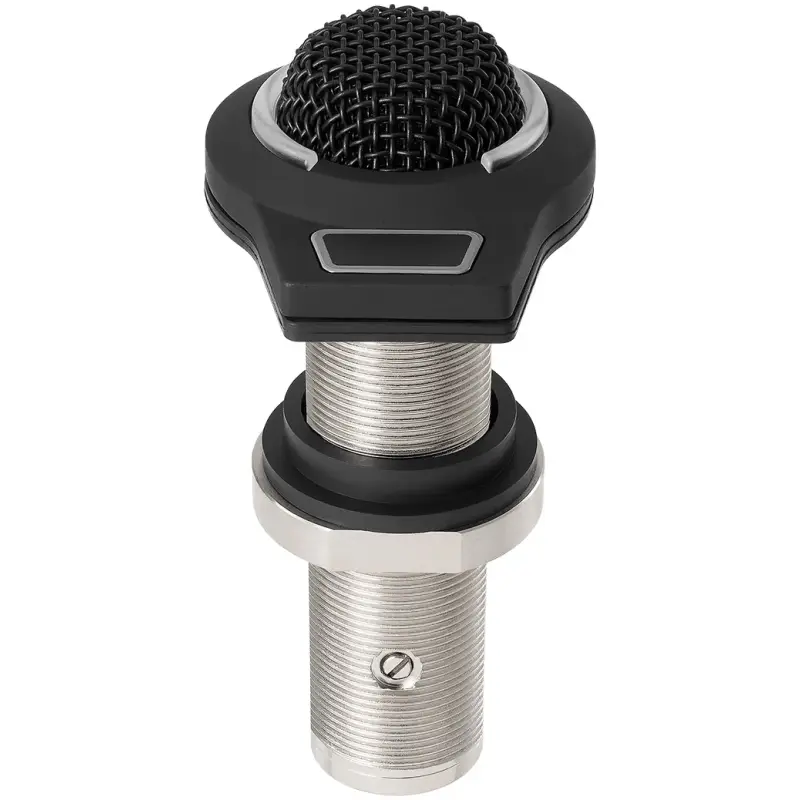

This phantom-powered omnidirectional condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.
Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES945O/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colours + OFF) to indicate mute status.
The microphone’s omnidirectional polar pattern provides 360° coverage. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).
Features
- Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
- Capacitive touch switch enables local muting of the microphone
- Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
- Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
- Mounts unobtrusively in tabletops and panels

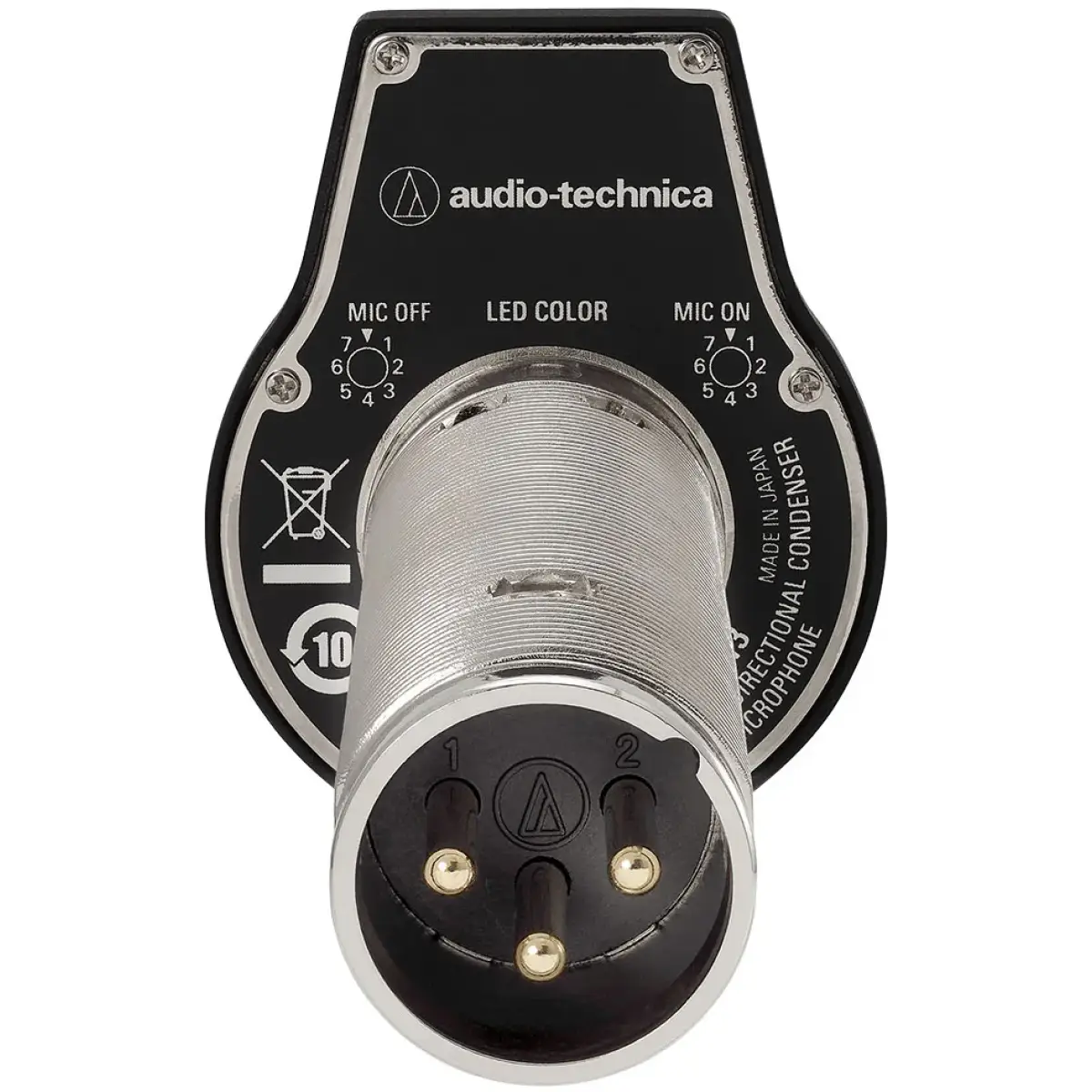

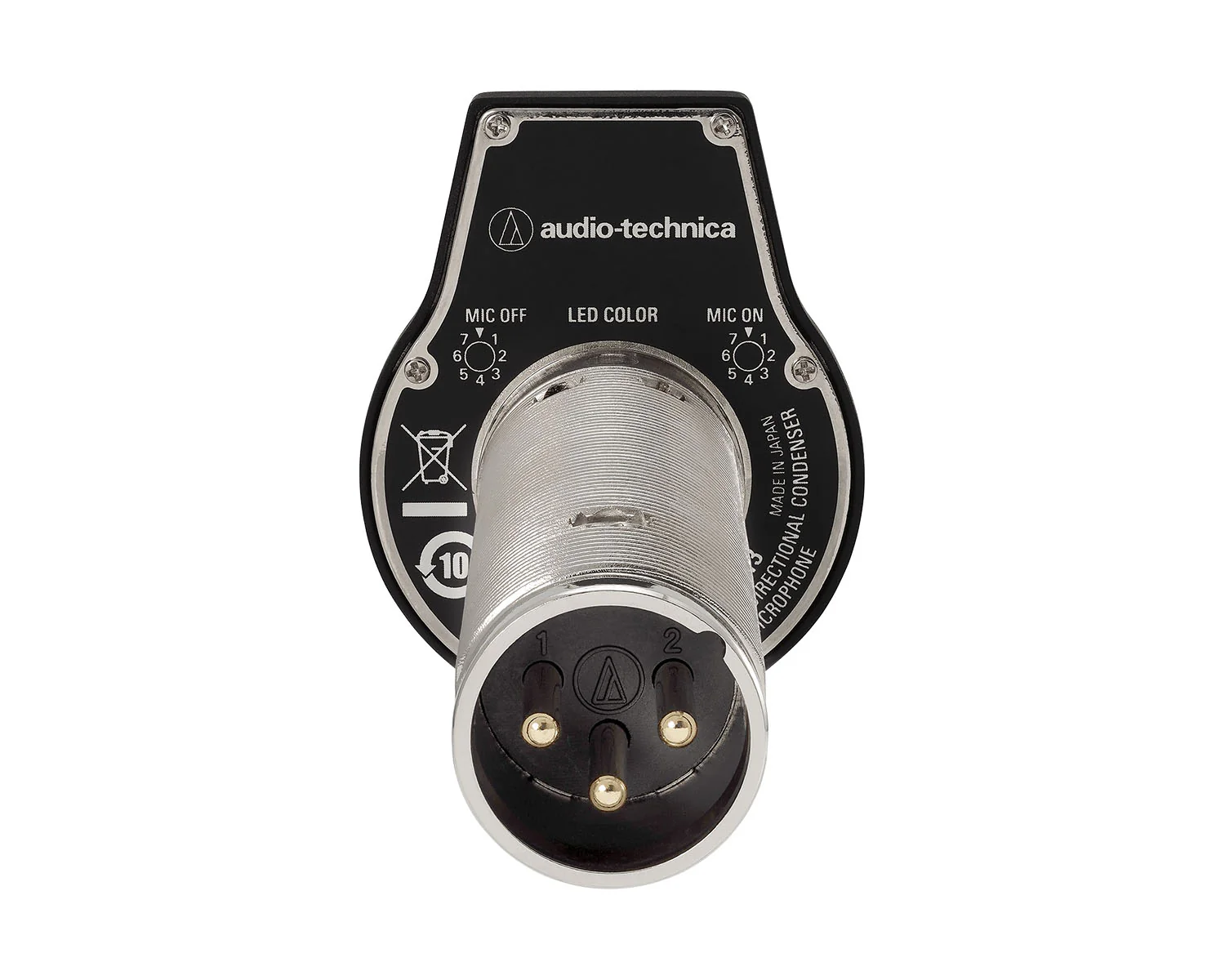

- Self-contained power module with 3-pin XLR output connector
- Rugged all-metal case with a two-layer steel mesh grille
- Rubber Isolators provide mechanical dampening of mounting-surface vibration
- Requires 11V to 52V DC phantom power
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Specifications
| Microphone | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 60-15,000 Hz |
| Open Circuit Sensitivity | -33 dB (0 dB = 1V/Pa, 1 kHz) |
| Output Impedance | 60 ohms |
| Maximum Input Sound Level | 130 dB SPL (1 kHz at 1% THD) |
| Dynamic Range | (typical) 109 dB (1 kHz at max SPL) |
| Signal-to-Noise Ratio | 73 dB (1 kHz at 1 Pa, A-weighted) |
| Phantom Power Requirements | 11-52V DC, 7.5 mA |
| Weight | 59 g (2.1 oz) |
| Dimensions | 38.0 mm (1.50″) W x 48.0 mm (1.89″) D x 84.8 mm (3.34″) H |
| Output Connector | 3-pin XLRM-type |
