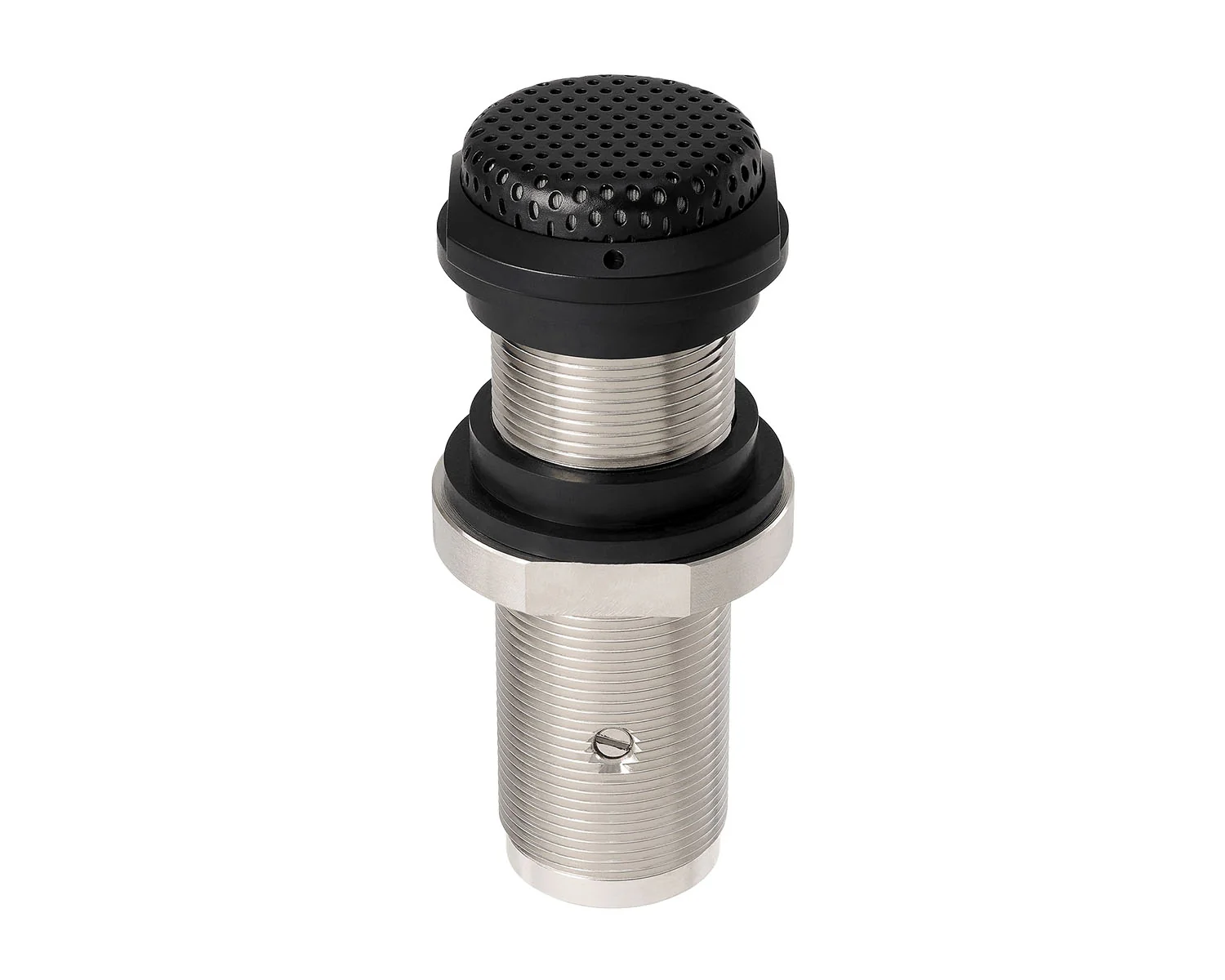

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES947C/XLR cardioid condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.
Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s cardioid polar pattern affords a 120° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water, and has a small front-of-mic indicator to ensure proper orientation.
The ES947C/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. It is available in black (ES947C/XLR) and white (ES947WC/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.
FEATURES:
- Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
- Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
- Mounts unobtrusively in tabletops, ceilings and panels
- IPX4 water resistance protects the microphone from splashes of water
- Self-contained power module with XLRM-type output connector
- Rugged all-metal case with a two-layer perforated grille
- Rubber Isolators provide mechanical dampening of mounting-surface vibration
- Requires 11V to 52V DC phantom power
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Available in two colours: black (ES947C/XLR) and white (ES947WC/XLR)
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
SPECIFICATIONS:
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 70-8,500 Hz
- Open Circuit Sensitivity: -37 dB (0 dB = 1V/Pa, 1 kHz)
- Output Impedance: 100 ohms
- Maximum Input Sound Level: 134 dB SPL (1 kHz at 1% THD)
- Dynamic Range: 110 dB (1 kHz at max SPL)
- Signal-to-Noise Ratio: 70 dB (1 kHz at 1 Pa, A-weighted)
- Phantom Power Requirements: 11-52V DC, 2 mA
- Weight: 62 g (2.2 oz)
- Dimensions: 26.0 mm (1.02″) W x 30.0 mm (1.18″) D x 69.0 mm (2.72″) H

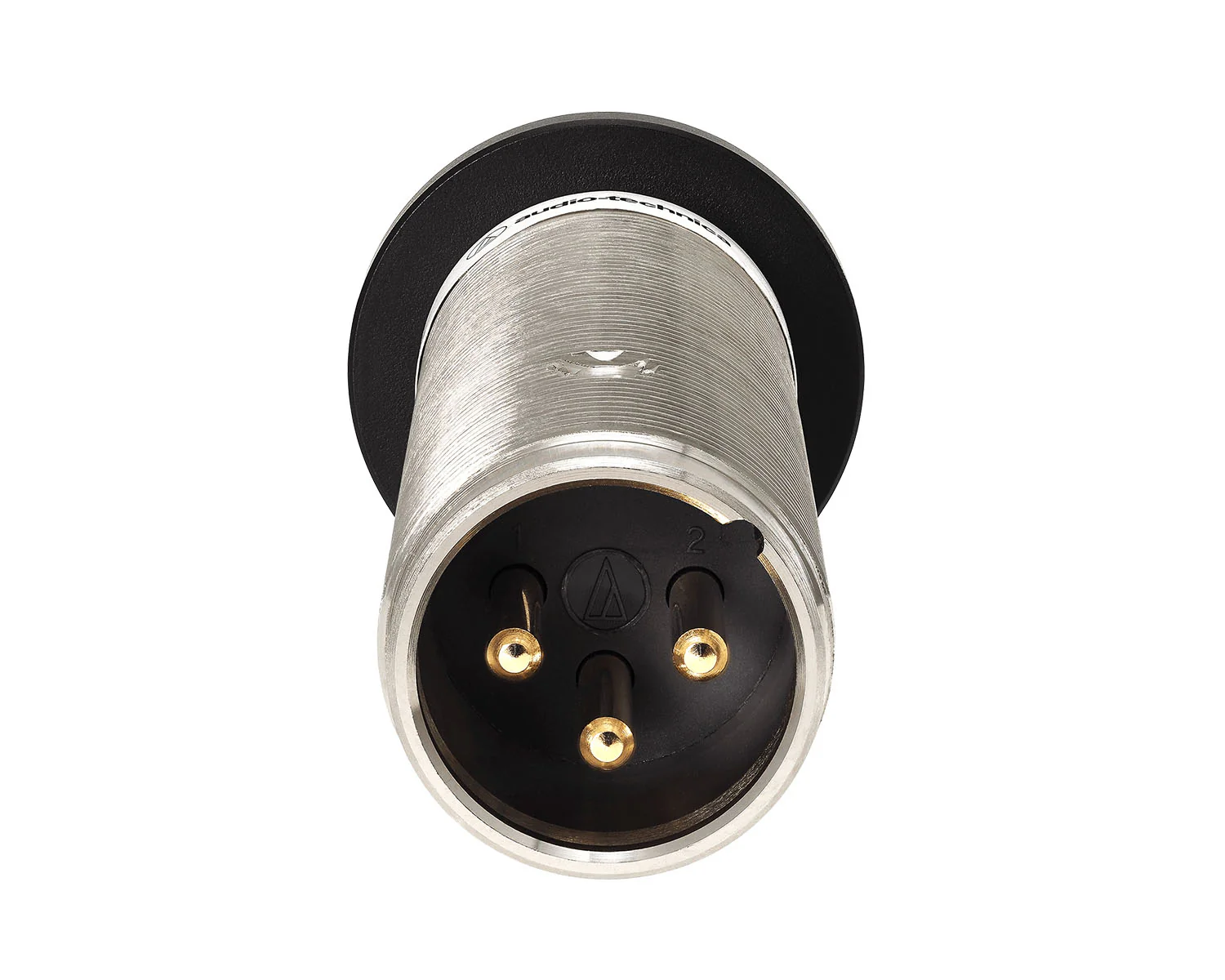

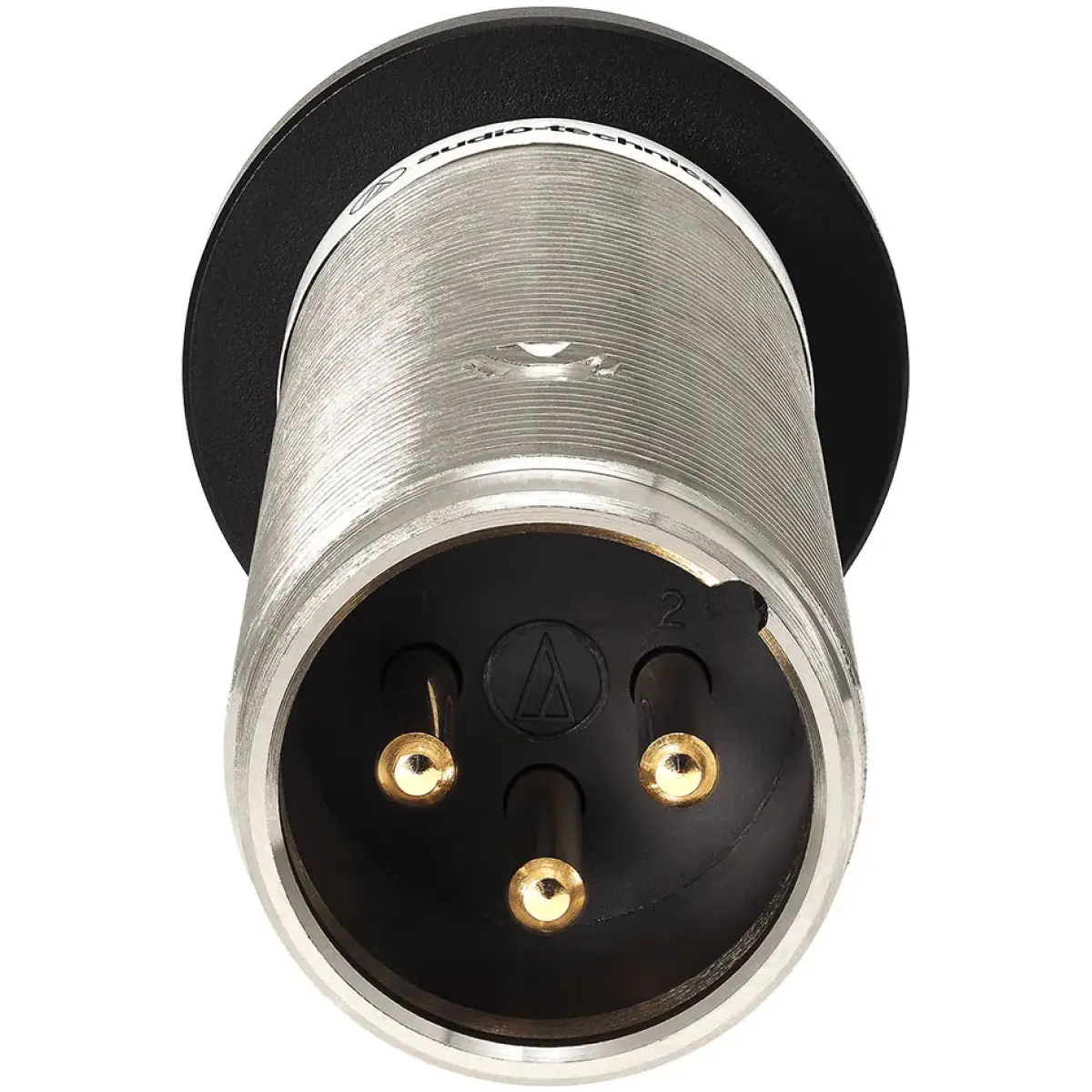

- Output Connector: 3-pin XLRM-type
