Features

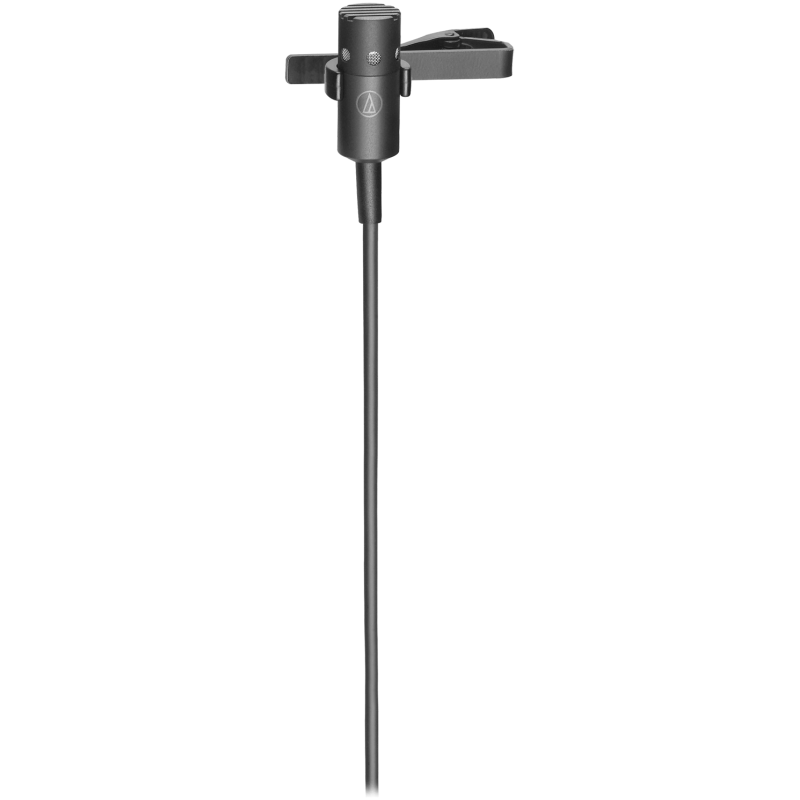

- Miniature condenser microphone is ideal for both vocal and acoustic guitar applications
- Natural and articulate vocal reproduction when used as a clip-on lavalier—clothing clip included
- Excels in pickup of acoustic guitar with included instrument adapter
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Switchable low-frequency roll-off
- Corrosion-resistant contacts from gold-plated XLRM-type connector
- Operates on battery or phantom power
- 6′ (1.8 m) cable permanently attached between microphone and power module
Specifications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 100-14,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -45 dB (5.6 mV) re 1V at 1 Pa Battery: -45 dB (5.6 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 123 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 96 dB, 1 kHz at Max SPL Battery: 96 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 67 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight (Microphone) | 0.3 oz (8 g) |
| Weight (Power Module) | 4.7 oz (134 g) |
| Cable | Integral 6′ (1.8 m), permanently attached between microphone and power module |
| Dimensions (Power Module) | 3.27″ (83.0 mm) H x 2.48″ (63.0 mm) W x 0.87″ (22.0 mm) D |
| Dimensions (Microphone) | 0.98″ (25.0 mm) long, 0.40″ (10.2 mm) diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8411 clothing clip; AT8444 instrument adapter; power module; windscreen; battery; soft protective pouch |
| Audio-Technica Case Style | M1 |
