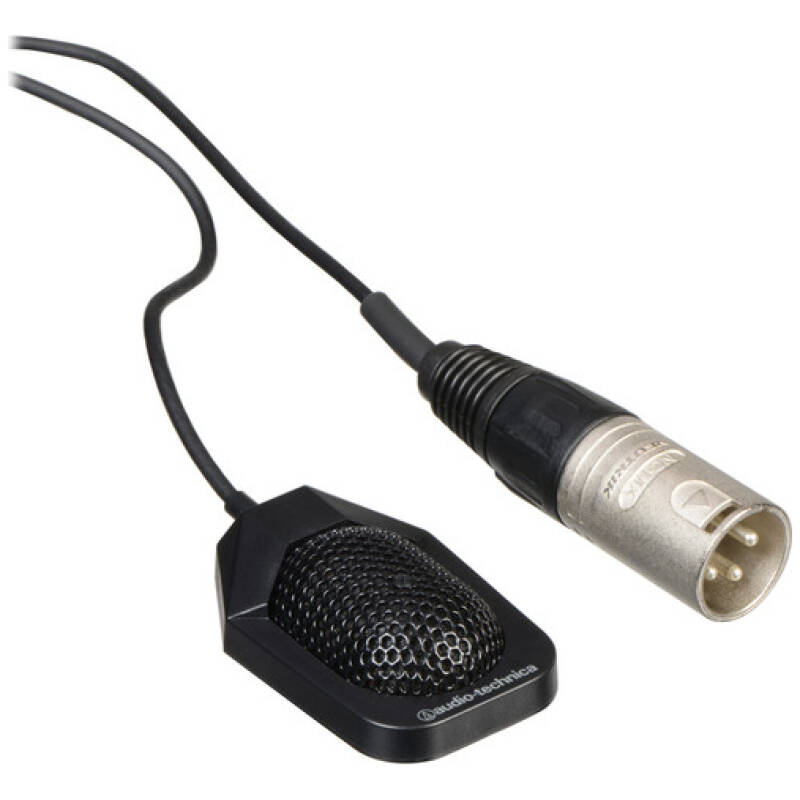

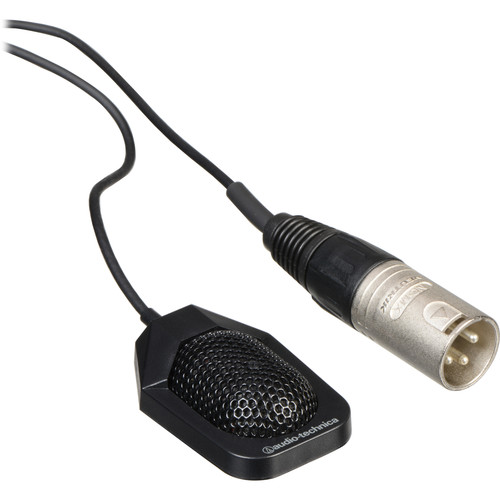

Audio Technica PRO42 Miniature Unidirectional Condenser Boundary Mic

The PRO42 low profile design assures inconspicuous appearance for surface mount use in a boardroom, school, government, house of worship and other installed applications. Designed for sound reinforcement, broadcasting and recording applications, the mic brings a crisp, intelligible audio reproduction to the stage, conference table and beyond. With a wide range condenser element and low mass diaphragm for superior performance, the PRO42 is equipped with self contained electronics, eliminating the need for external power modules.

FEATURES:

• Audio Technica PRO42
• Very low-profile design for minimum visibility
• Wide-range condenser element with low-mass diaphragm for superior performance
• Uniform polar pattern for maximum rejection of unwanted sounds
• Rugged design and construction
• 25\’ (7.6 m) cable permanently attached between microphone and XLRM-type connector

SPECIFICATIONS:

General

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Half-cardioid (cardioid in hemisphere above mounting surface)
• FREQUENCY RESPONSE: 70-14,000 Hz
• OPEN CIRCUIT SENSITIVITY: -38 dB (12.5 mV) re 1V at 1 Pa
• IMPEDANCE: 100 ohms
• MAXIMUM INPUT SOUND LEVEL: 134 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 105 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 9-52V DC, 2 mA typical
• OUTPUT CONNECTOR: 3-pin XLRM-type on cable
• CABLE: 25\’ (7.6 m) long, permanently attached

Physical & Dimensions

• Height: 15.5mm
• Max. Length: 54.3mm
• Max. Width: 36.6mm
