Overview

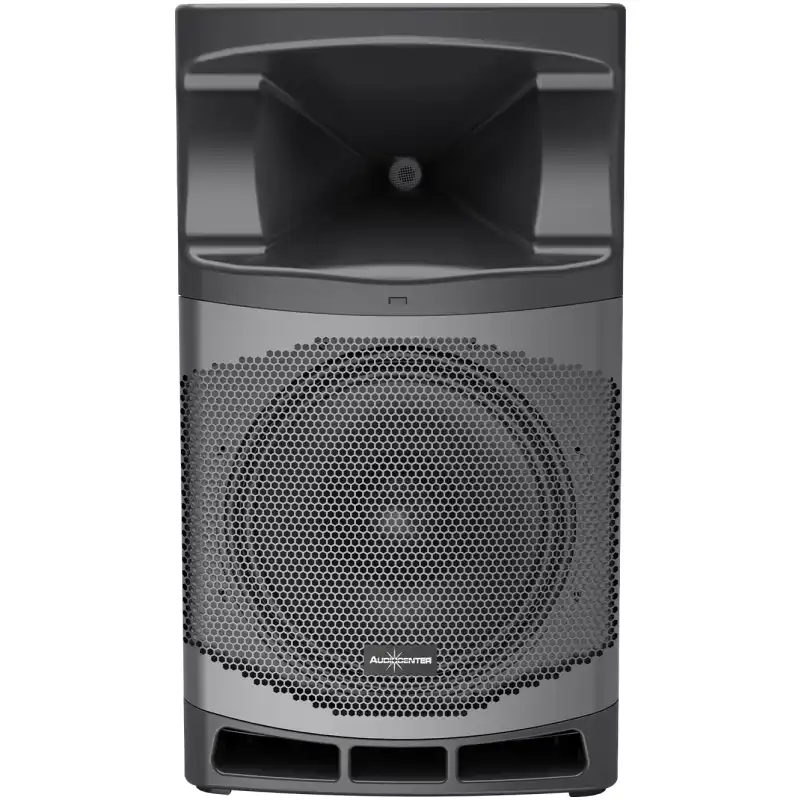

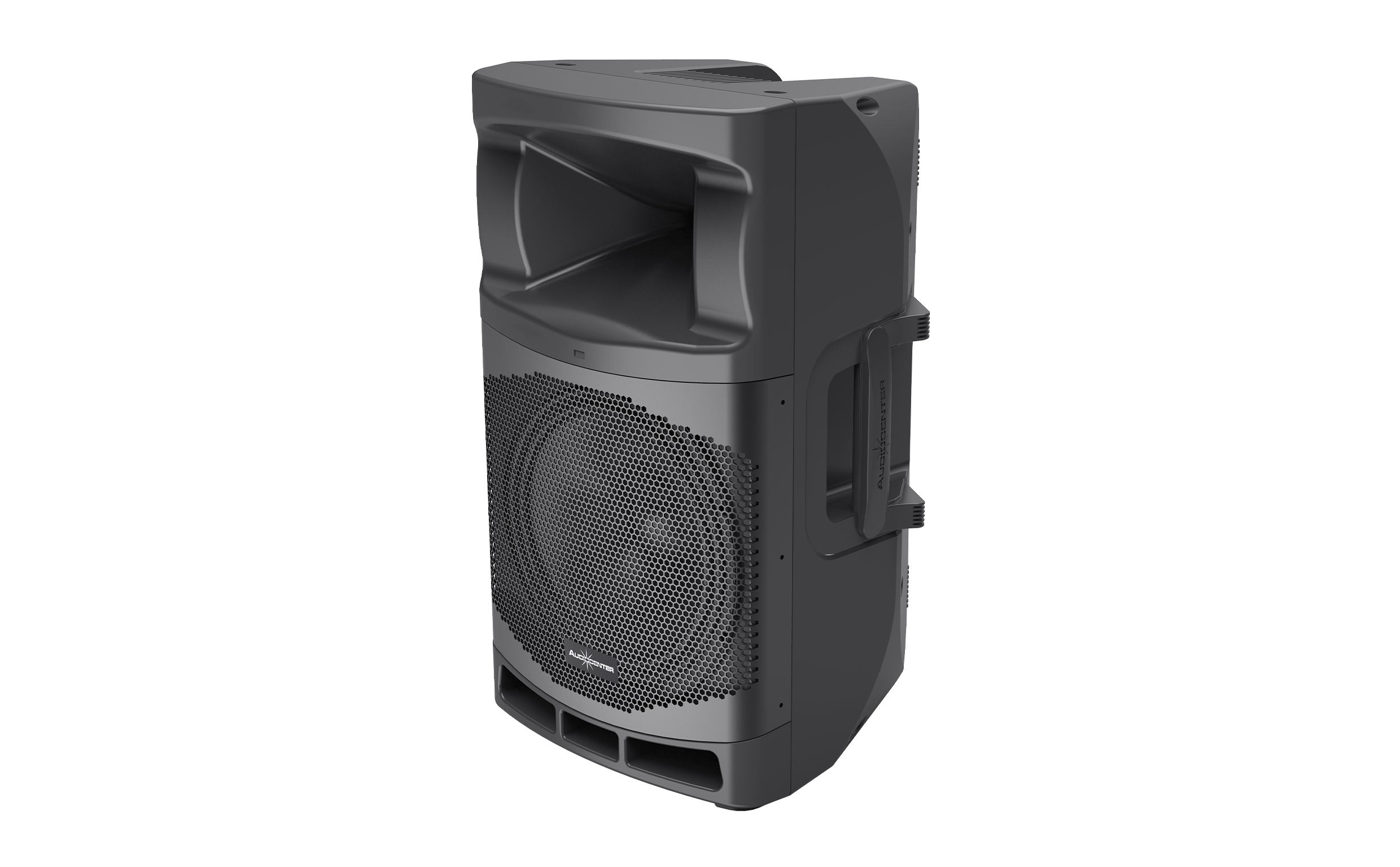

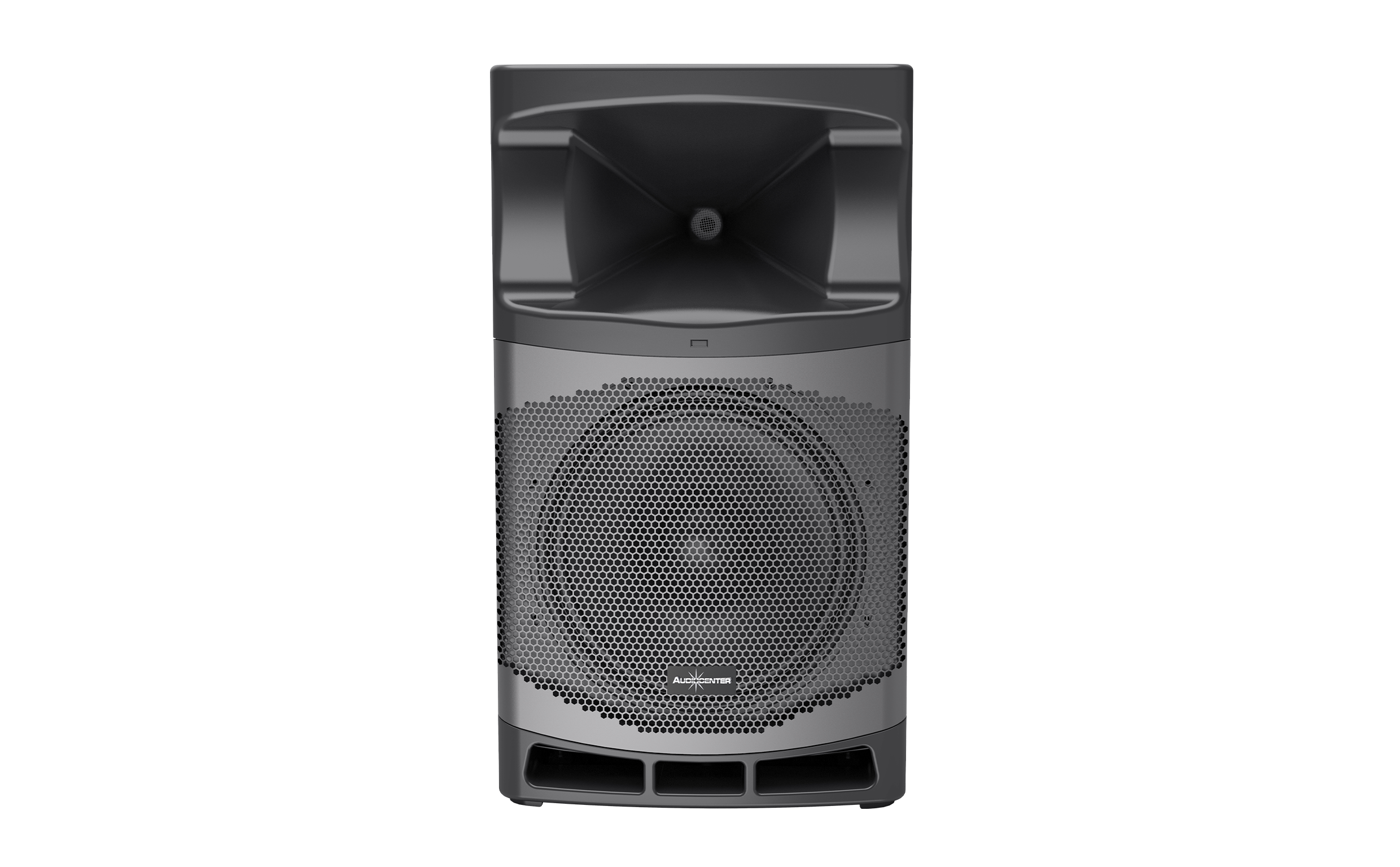

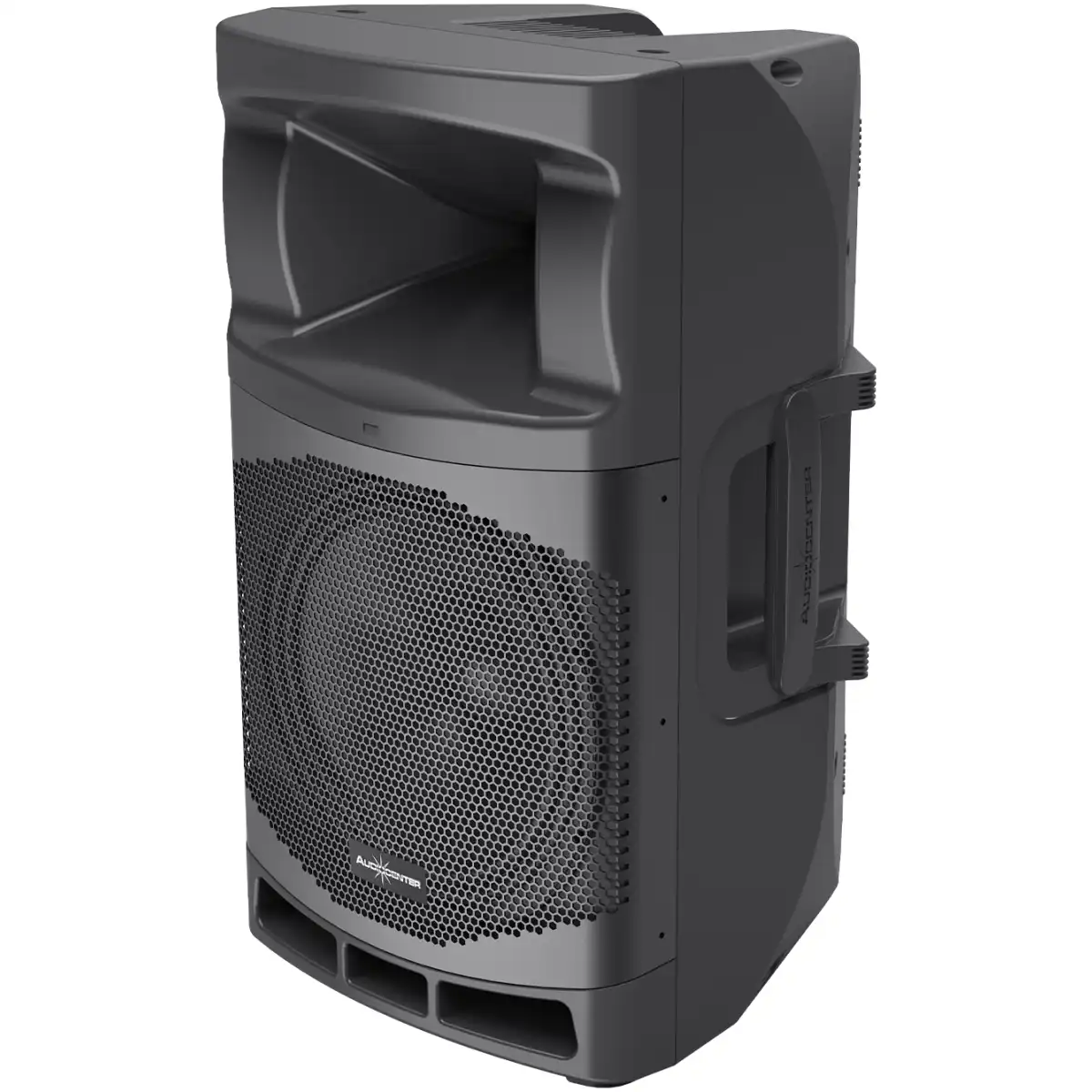

MA12 full range DSP-controlled speaker, is molded and made from new polypropylene composite material, with fashionable design and supreme performance. Audiocenter BrainCore™ Technology, provides the best sound quality by analyzing and processing input signal, integrated Class D amplifier and DSP module optimally, improving the audio performance of the system significantly. Built-in Bluetooth, link with various smart devices easily.
MA12 can be used as PA speakers and stage monitor. There are multiple ways of mounting and installation, for example, pole mount with a three-feet stand, or hanging installation.
Specifications
| Type | Portable Active DSP-controlled Loudspeaker |
| Frequency Response(-10dB) | 50Hz-20kHz |
| Horizontal Coverage | 80° |
| Vertical Coverage | 50° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 125dB/131dB |
| HF Driver | Customized driver, 1.4” voice coil and 1.0”exit |
| LF Driver | Customized 12” driver, 2.5” voice coil |
| DSP | |
| Processor | 48kHz signal sampling frequency |
| Presets | / |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 800W |
| Peak Power | 1600W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |

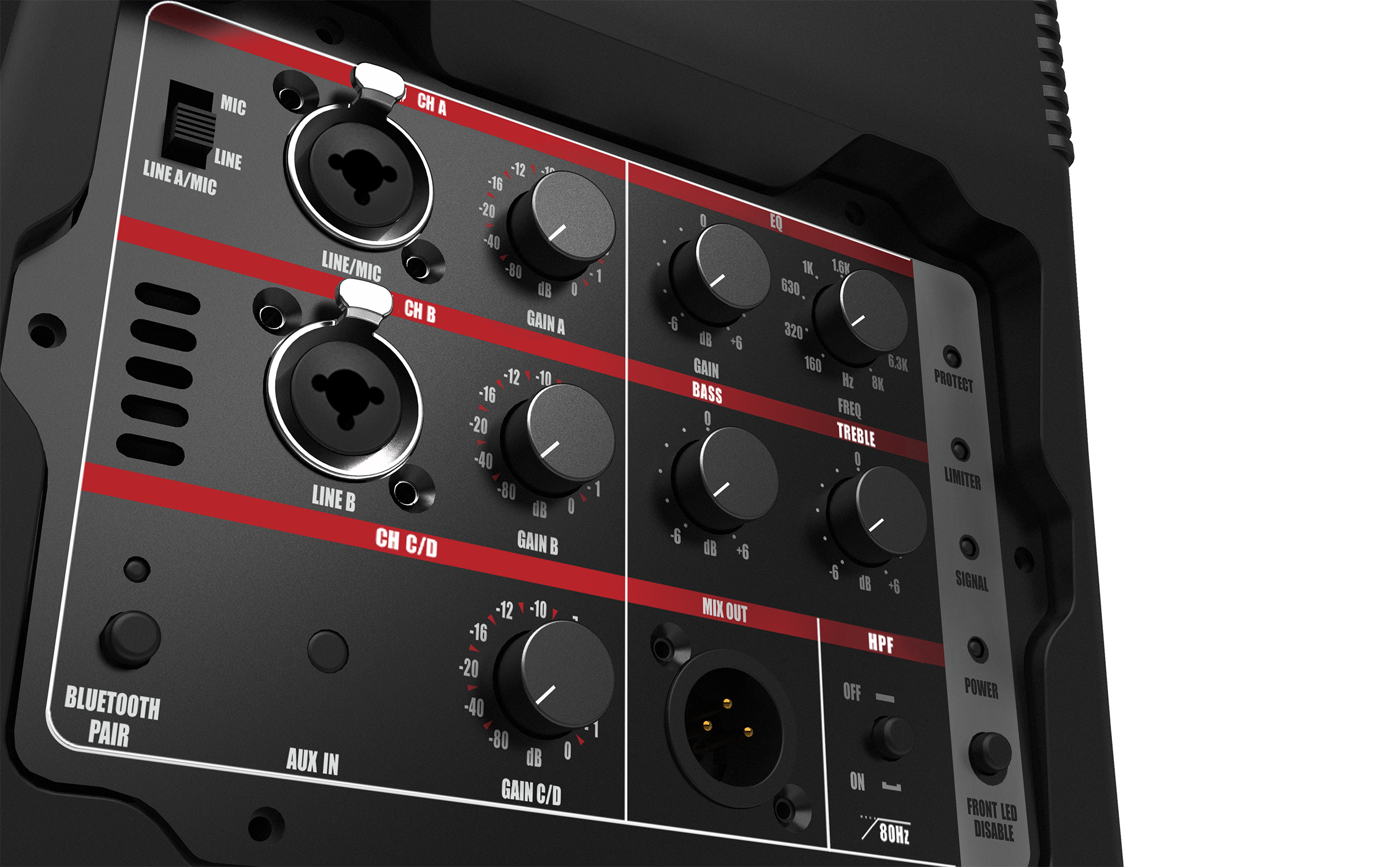

| Signal Input | 2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Mini jack 3.5 |
| Signal Output | Male XLR |
| Power Input | IEC power connector |
| Working Voltage | 100-240V~ (±10%，50/60Hz） |
| Power consumption (1/8 output power) | 55W |
| CABINET | |
| Cabinet Material | New polypropylene composite material |
| Cabinet Color | Black is the default color |
| Grille | Iron mesh |

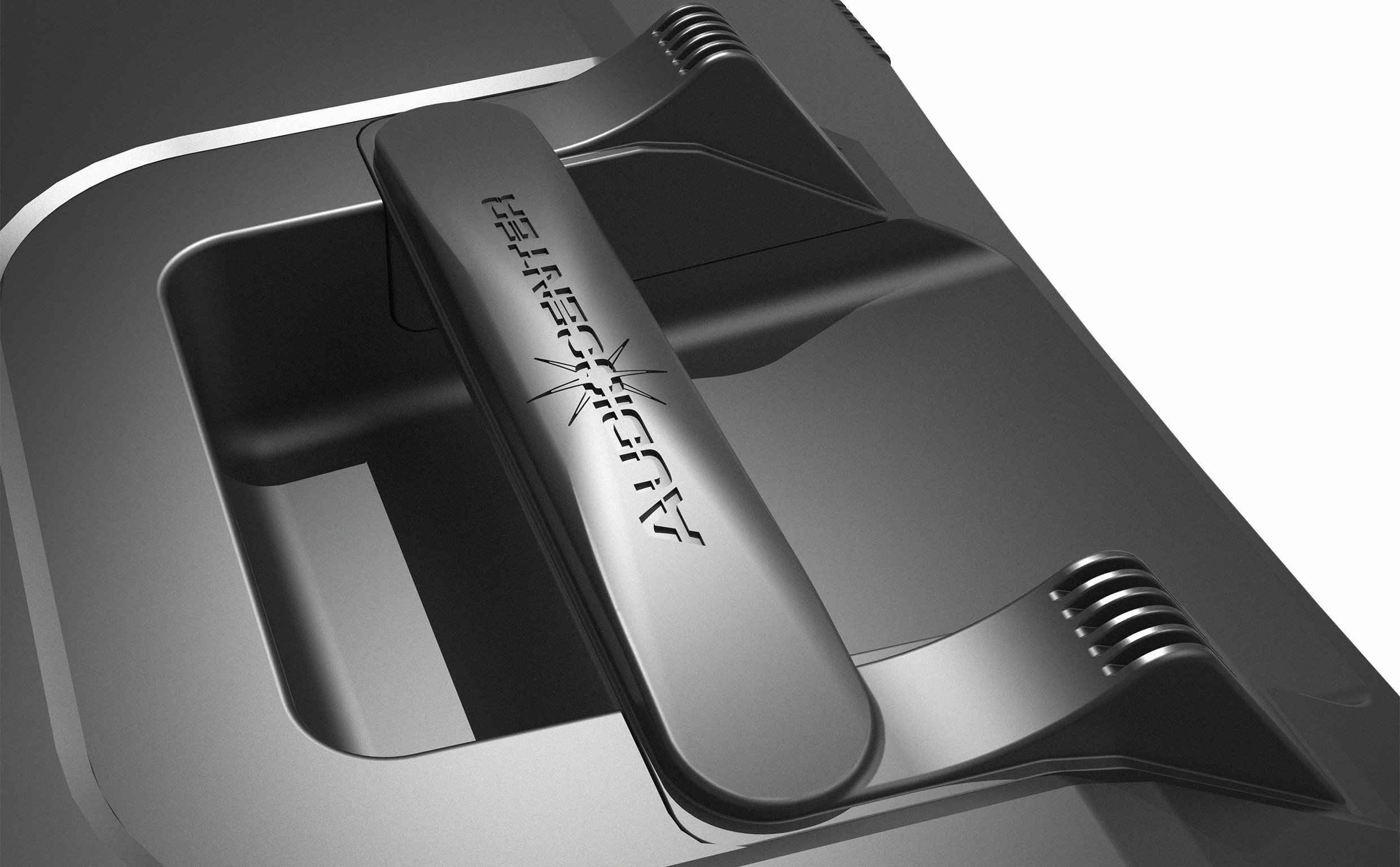

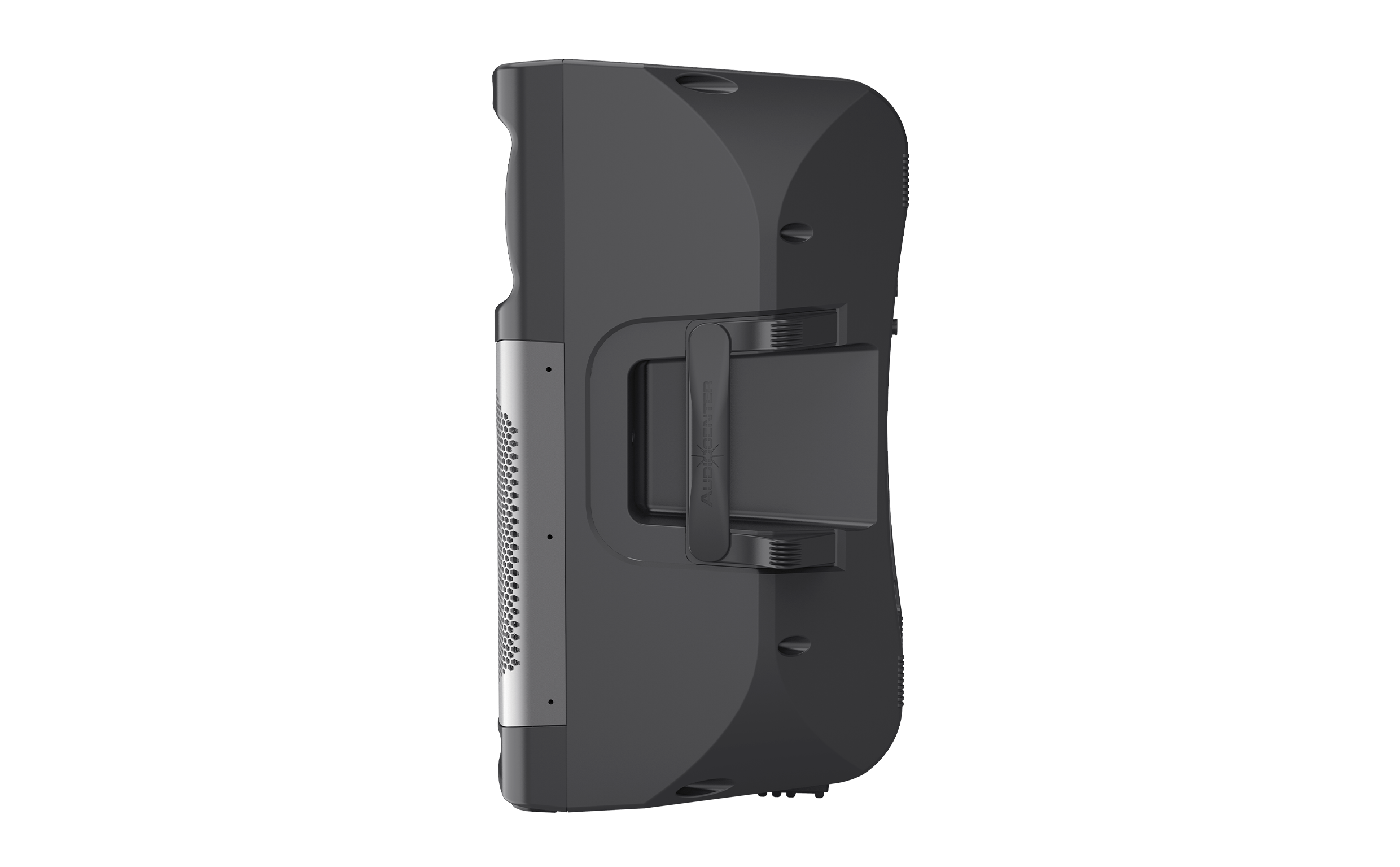

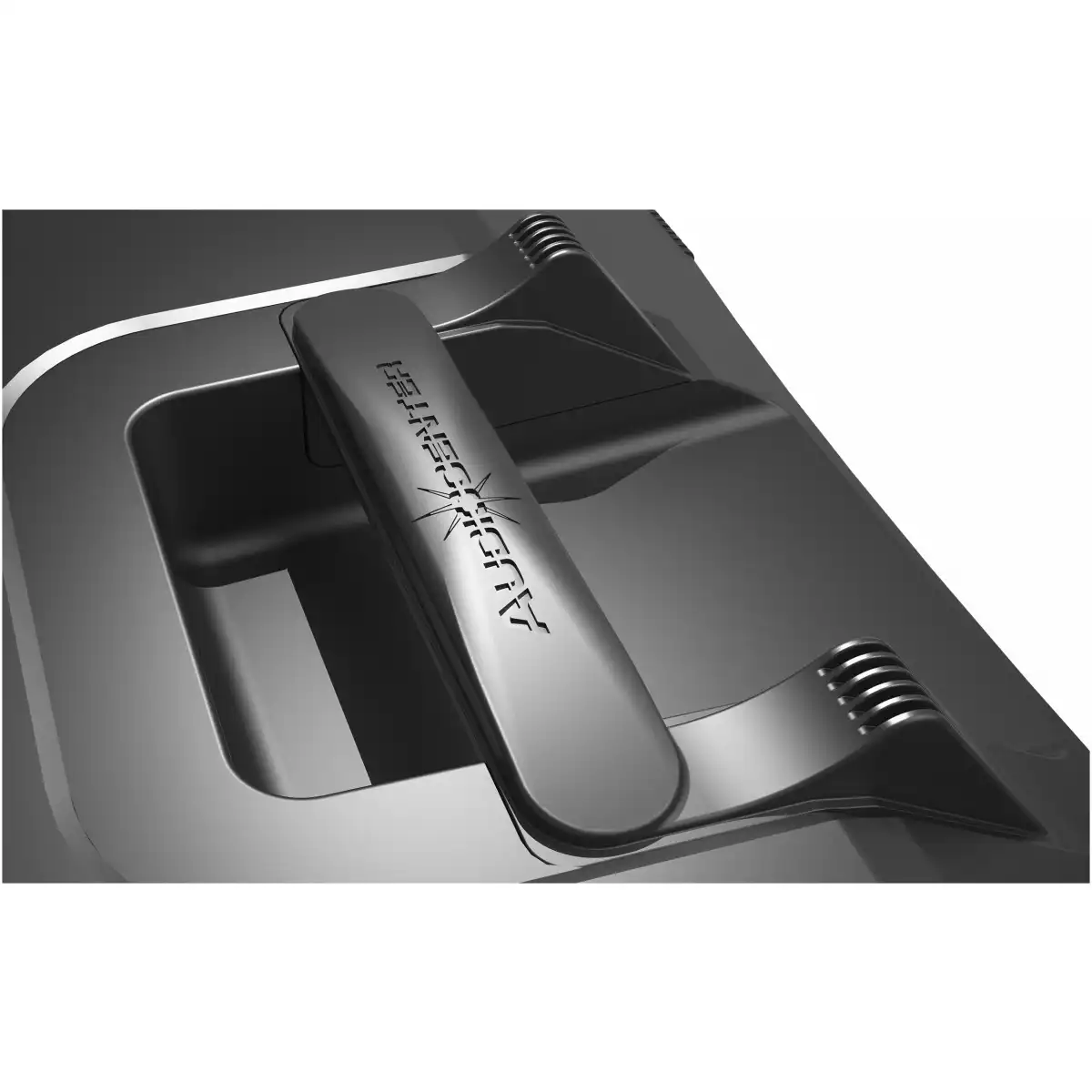

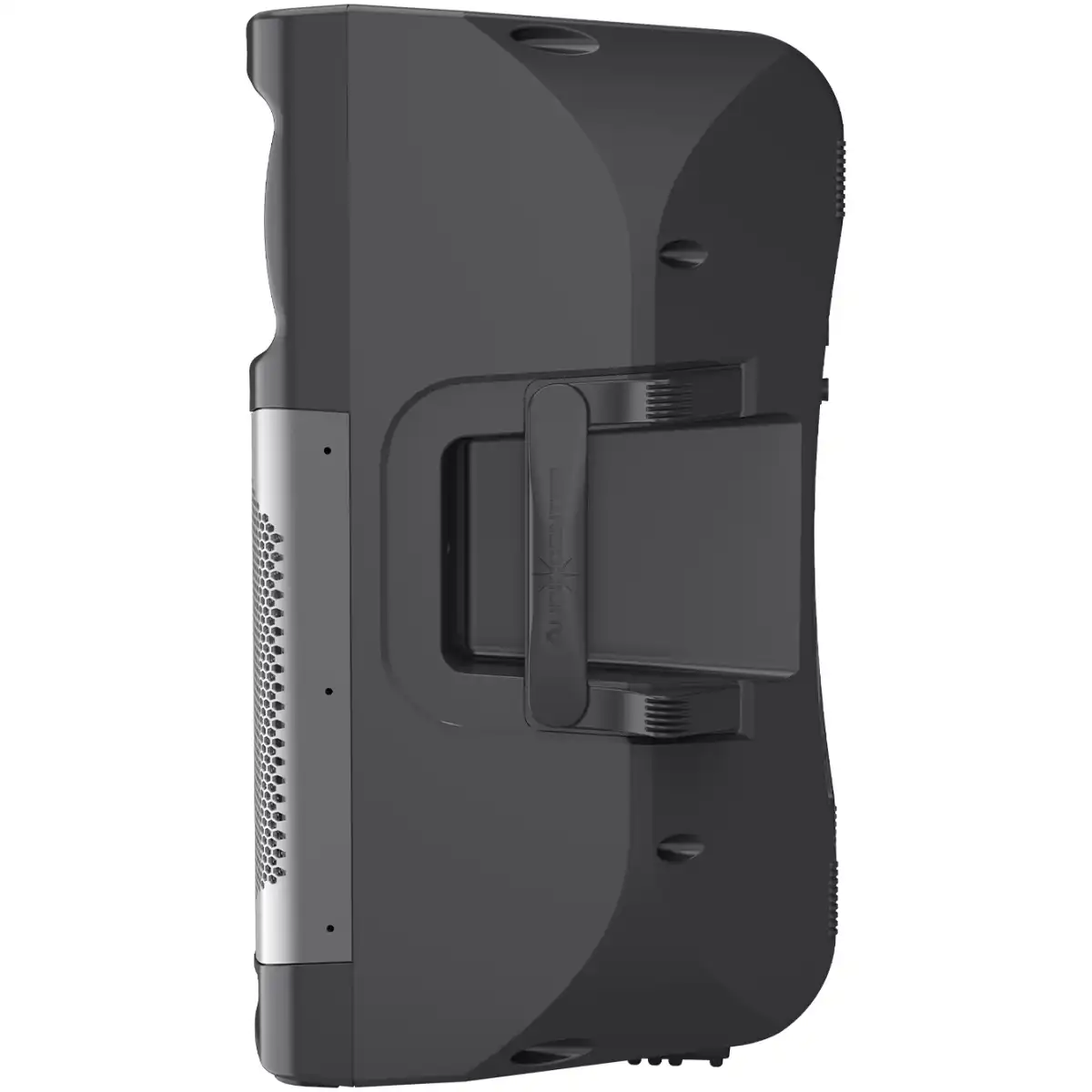

| Handles | 2 side,1 top |

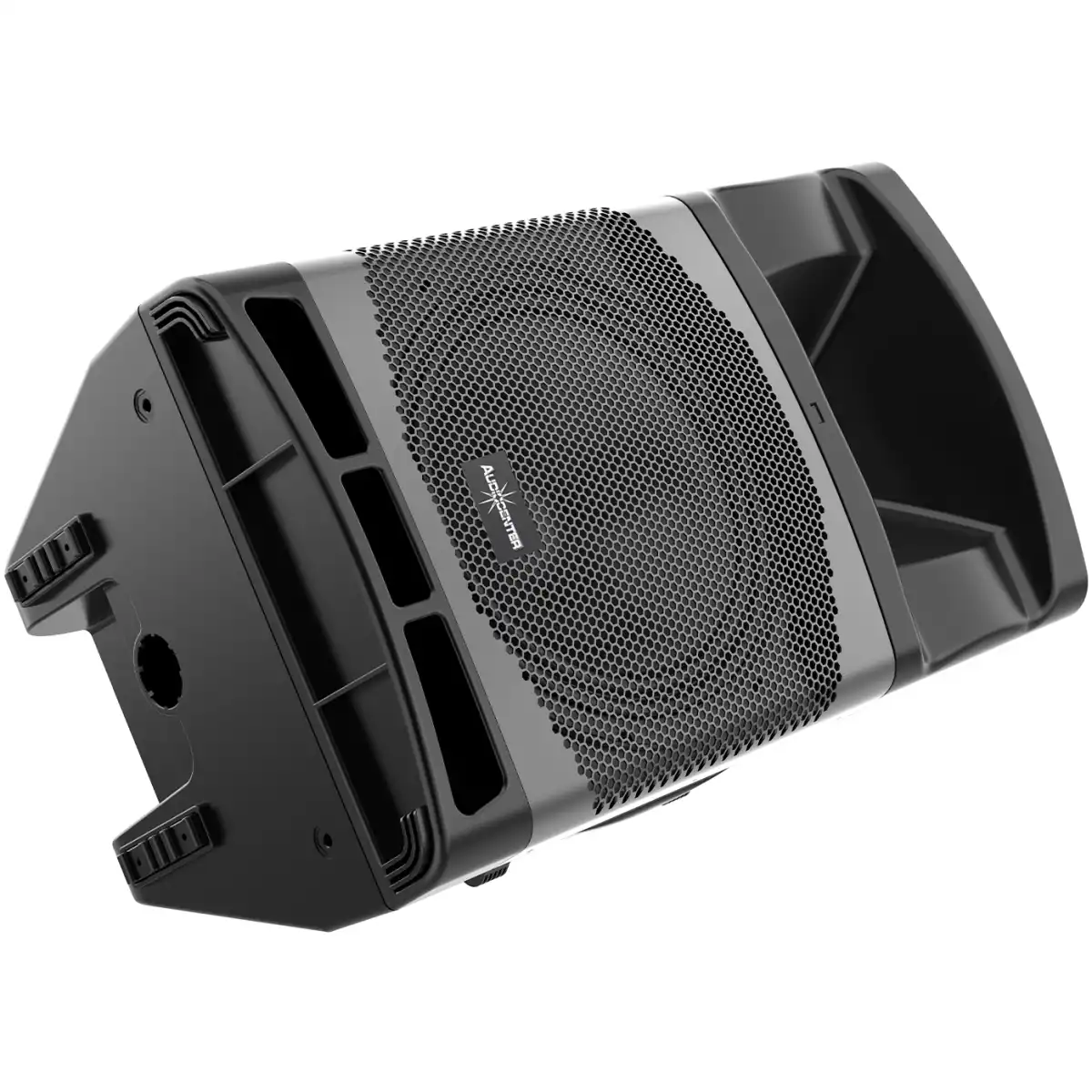

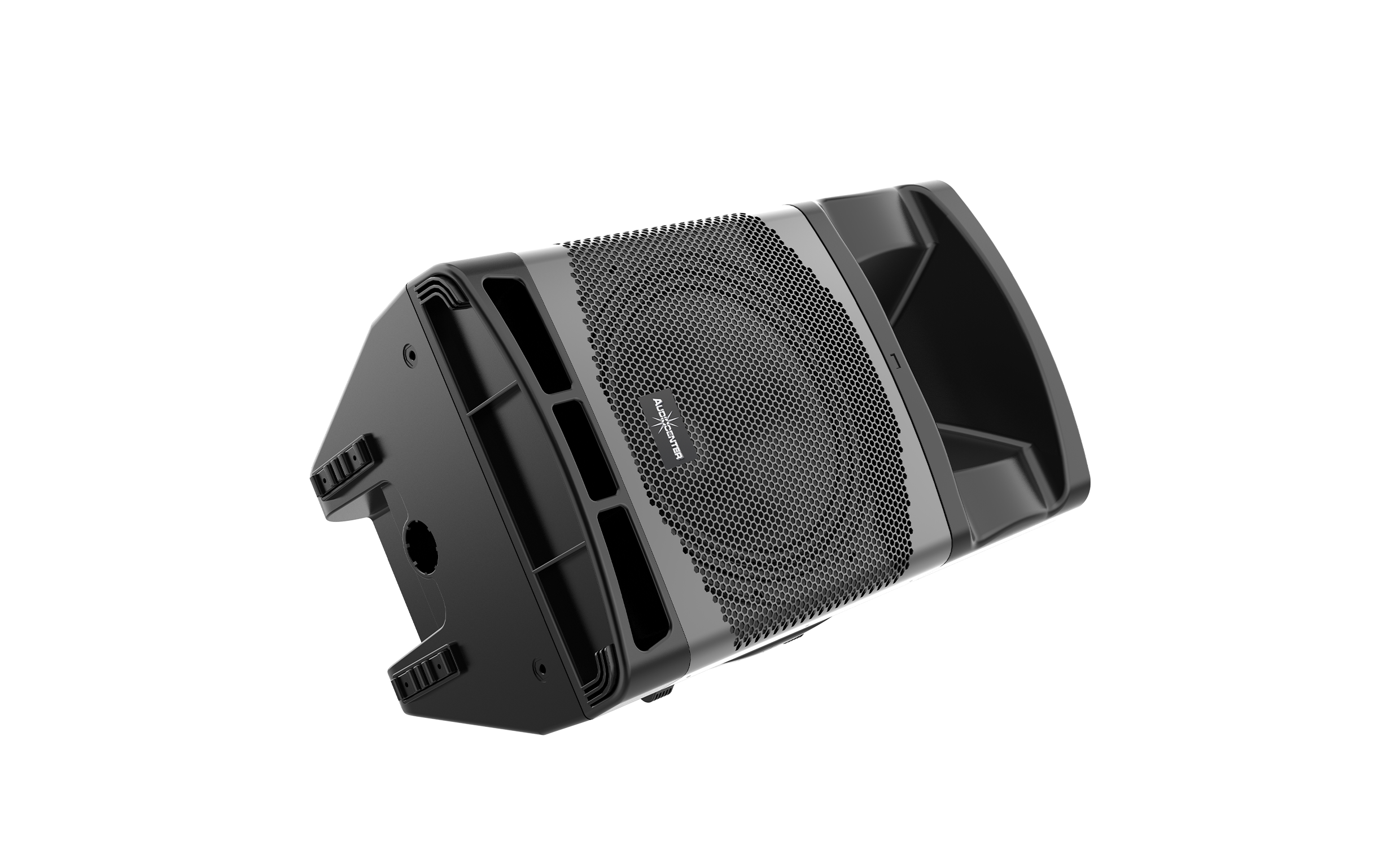

| Monitor Angle | Symmetrical 45° monitor angle |
| Hanging Hardwares | M8 screw |
| Pole Mount | Base hole Φ35mm |
| Speaker Dimension (W×H×D) | 345×610×352mm |
| Carton Dimension (W×H×D) | 405x680x405mm |
| Net Weight | 14.0kg |
| Shipping Weight | 17.5kg |
