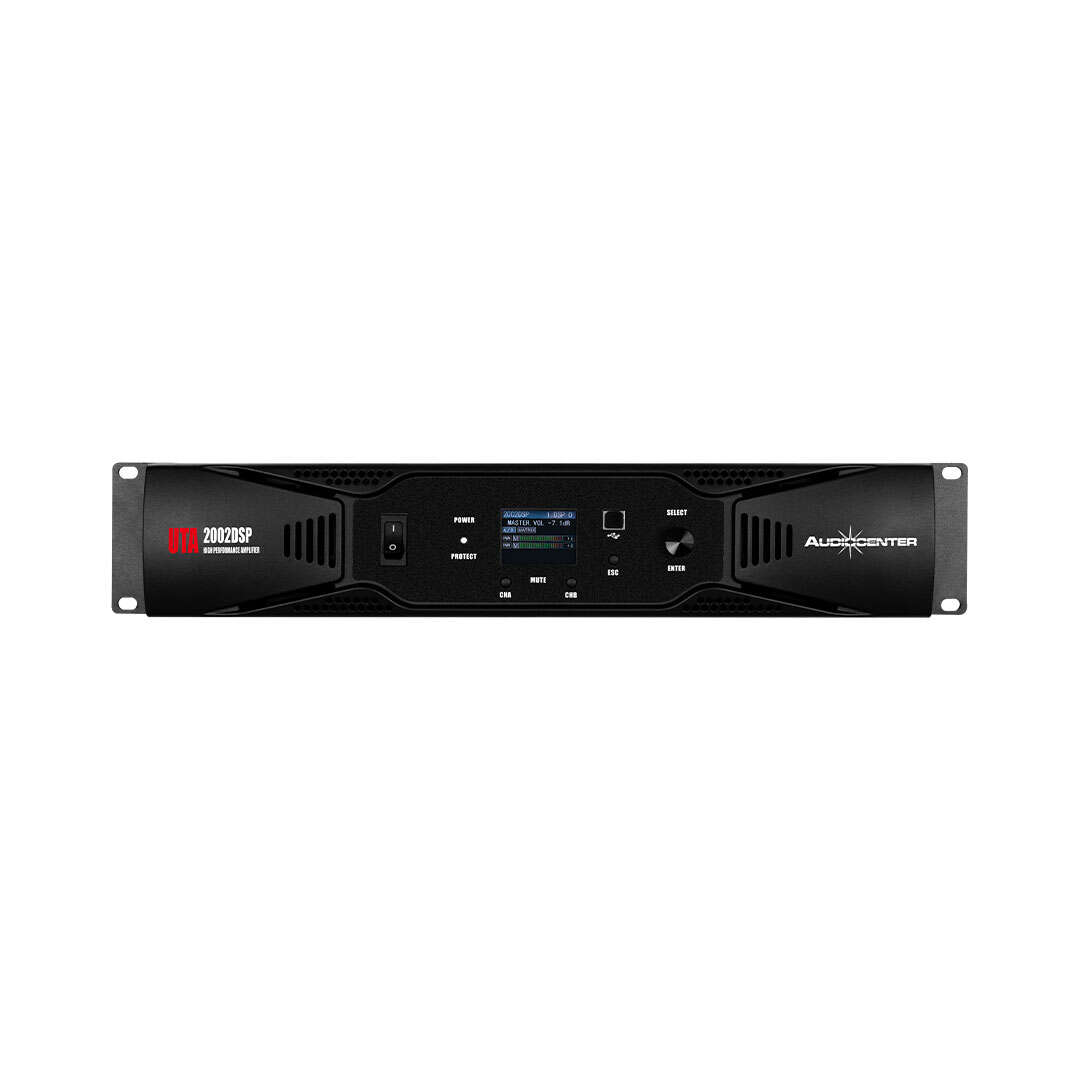

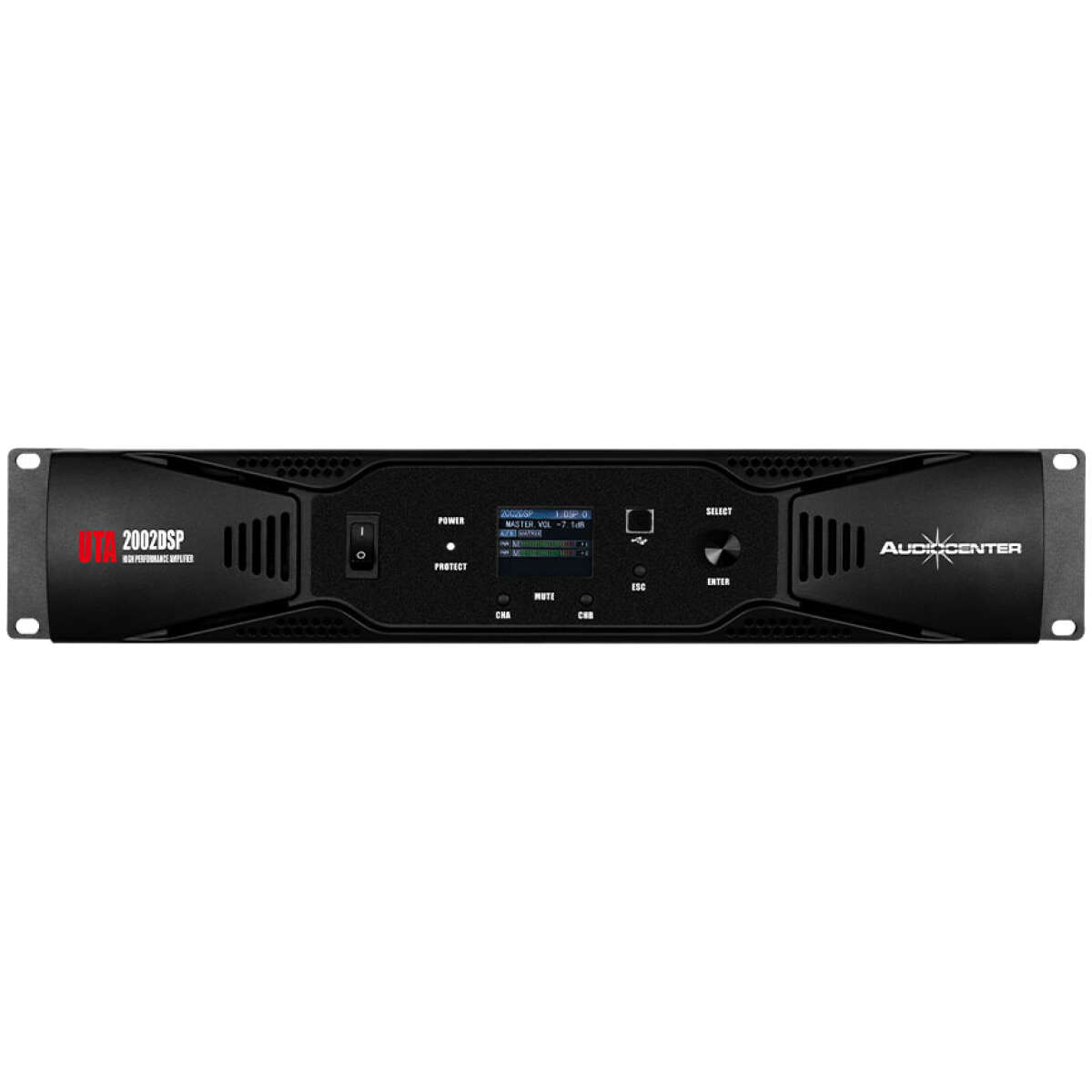

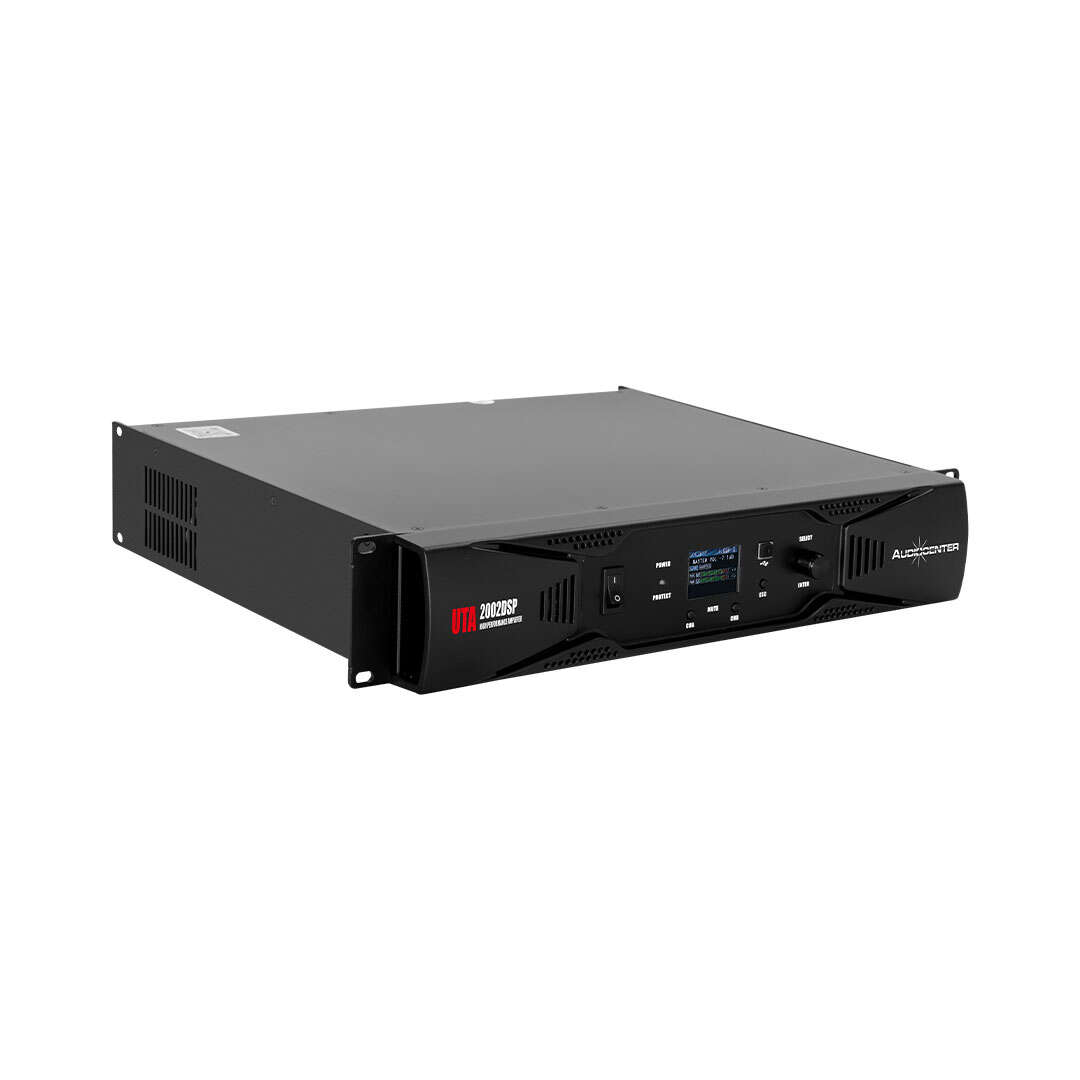

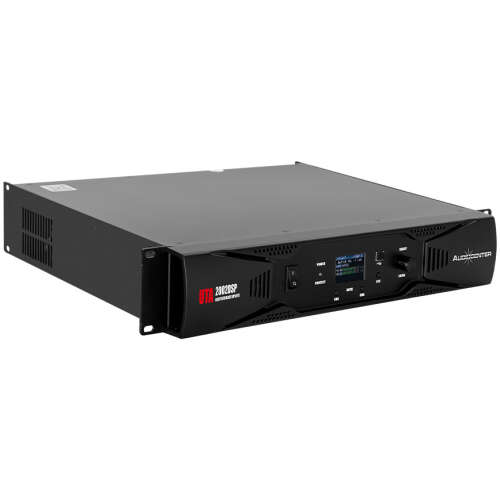

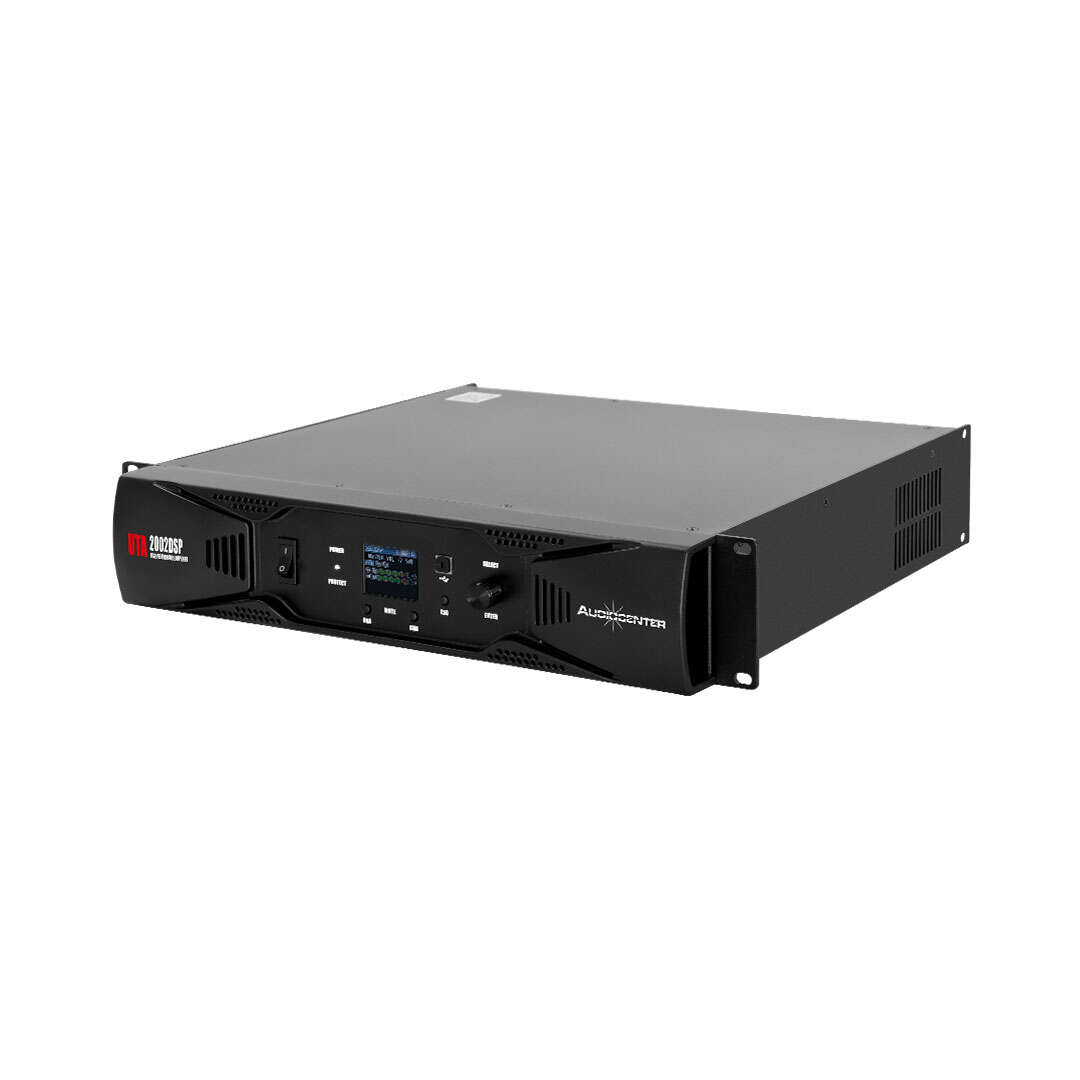

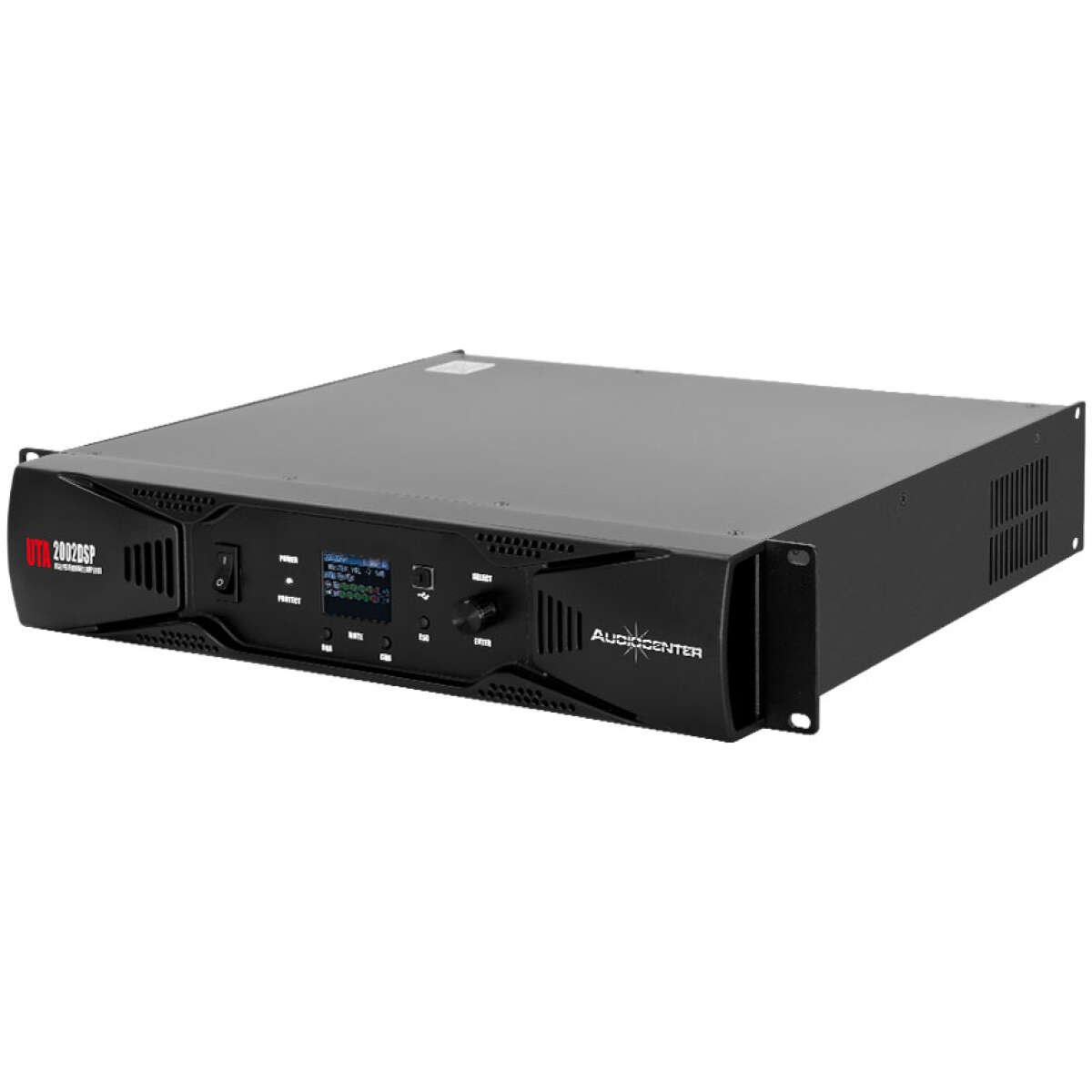

Audiocenter UTA-2002DSP 2-Channel Digital Power Amplifier

The Audiocenter UTA-2002DSP is a 2-channel Class D digital power amplifier with built-in DSP, designed for professional PA systems, installations, and subwoofer/full-range speaker setups.

Audiocenter UTA-2002DSP

Power Output

• 2 × 1400W @ 8Ω
• 2 × 2000W @ 4Ω

DSP

• 48kHz / 24-bit processing
• 15-band input EQ
• 15-band output EQ
• HPF & LPF filters
• Butterworth, Linkwitz-Riley and Bessel filters
• 6dB/oct – 48dB/oct slopes
• Input & output delay
• Compressor and limiter
• Noise gate
• Phase, mute and volume control
• 512-tap FIR per channel
• User presets/data storage

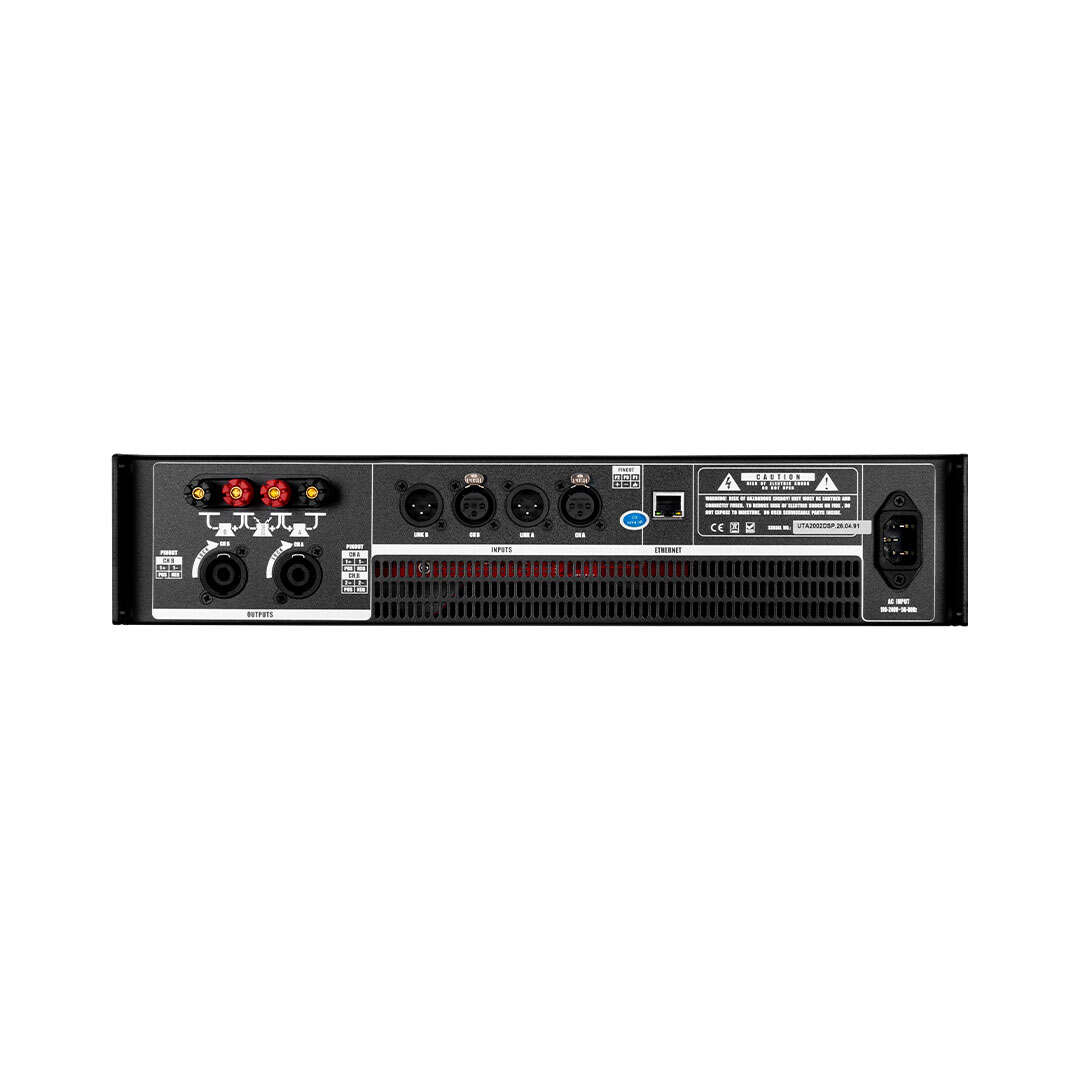

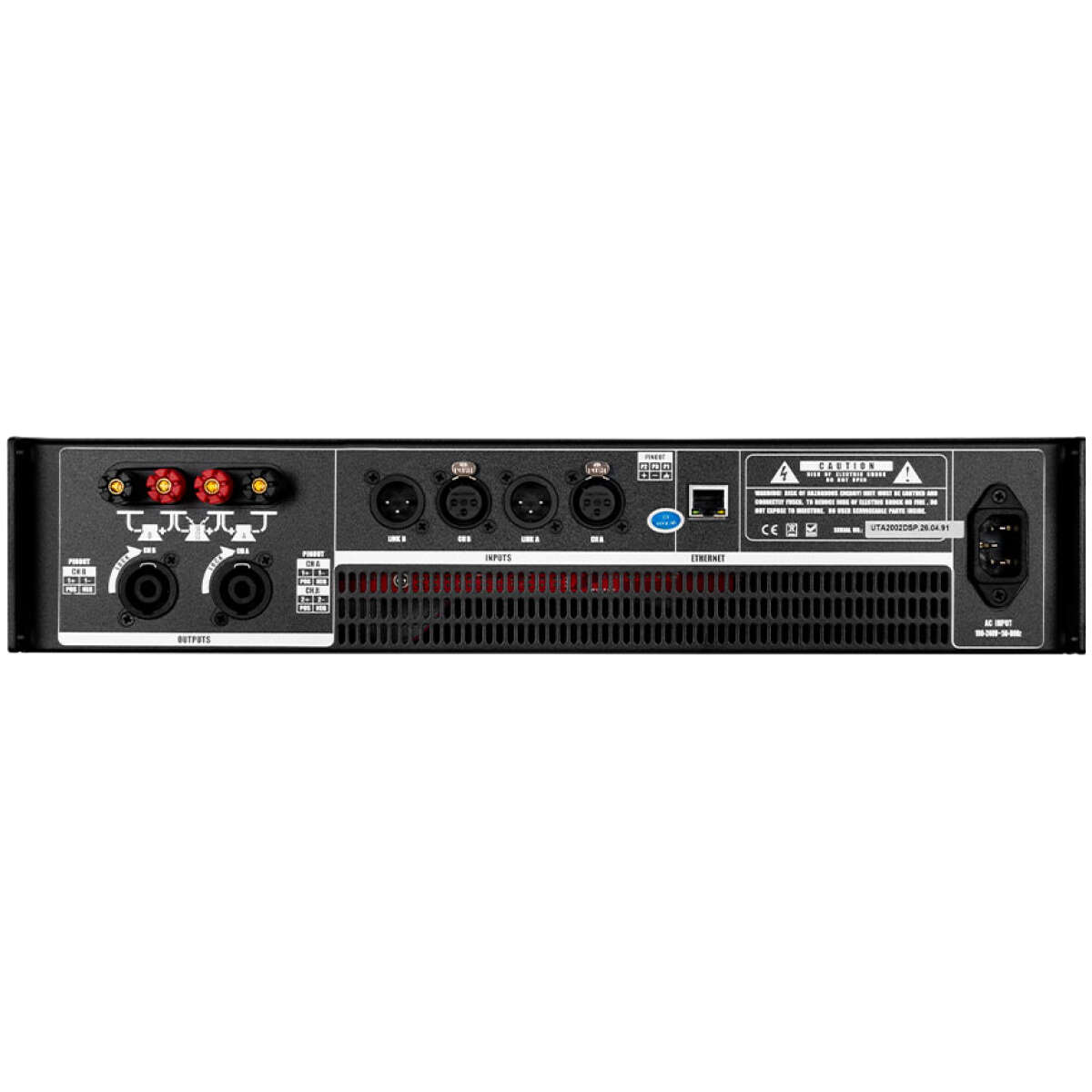

Connections

• 2 × analogue inputs
• Male & Female XLR
• Speakon + binding-post outputs
• USB-B control
• RJ45 network control

Performance

• Frequency response: 20Hz–20kHz ±1dB
• Signal-to-noise ratio: ≥100dB
• Damping factor: ≥500
• THD+N: ≤0.1%
• Maximum input level: ≥18dBu
• Input impedance: ≥20kΩ balanced / ≥10kΩ unbalanced
• Class D output circuitry with PFC
