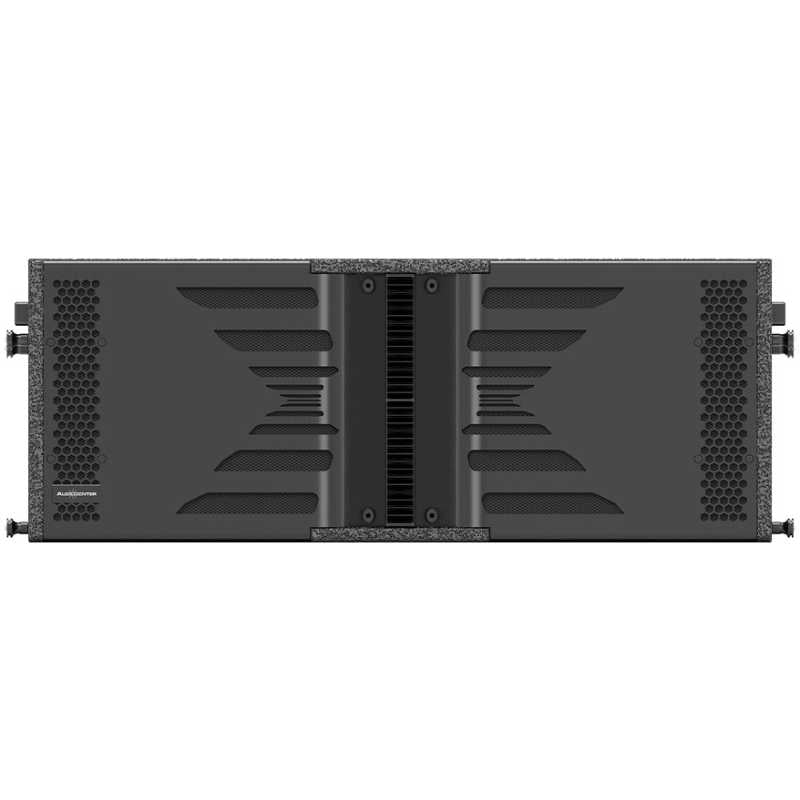

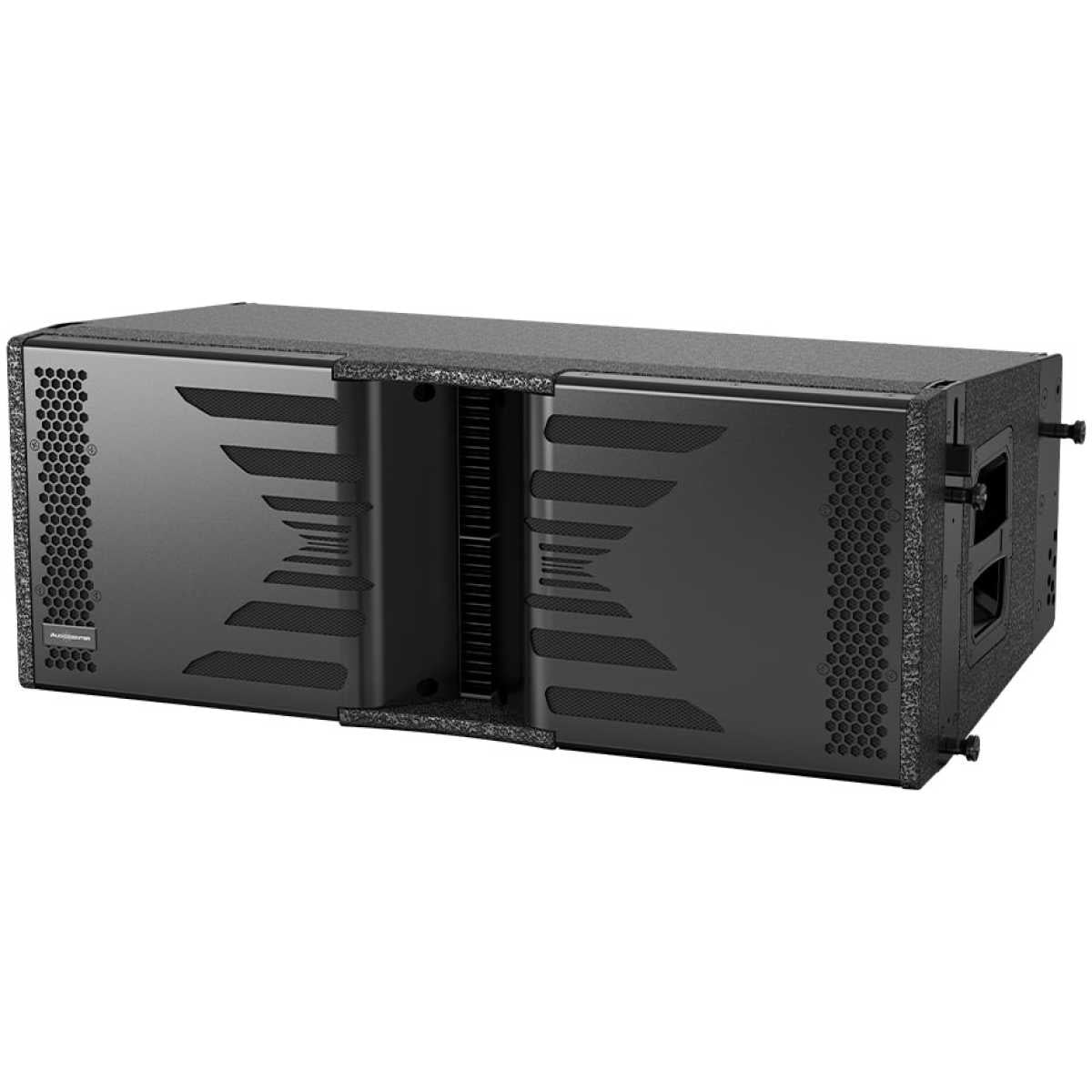

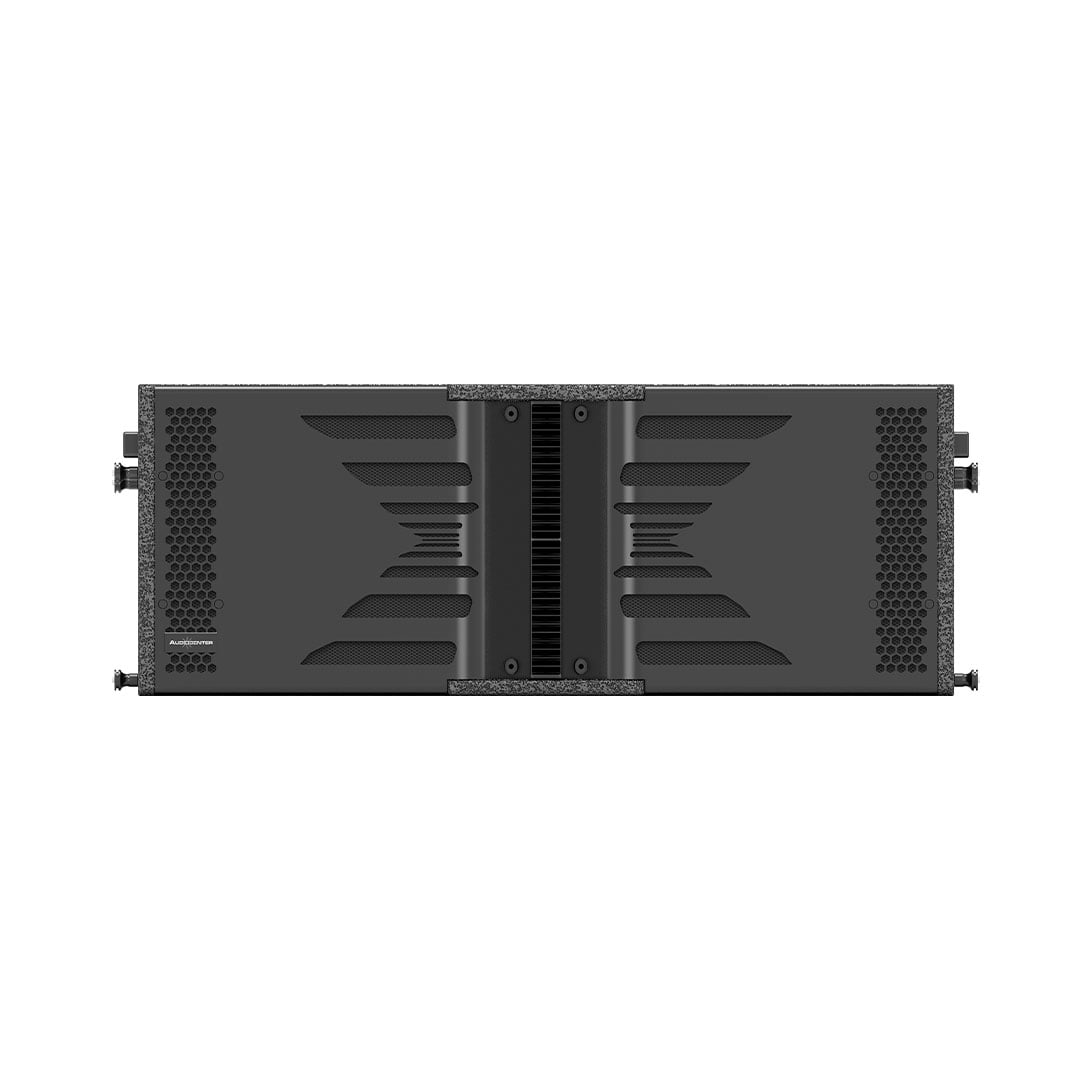

Audiocenter XLA102-DSP Line Array

Active DSP-controlled Line Array Speaker

The Audiocenter XLA 102-DSP is an active line array system. A newly designed horn and acoustic load provide high efficiency in the mid-frequency range and 90 degrees uniform horizontal coverage. Its excellent sound performance, compact size and light weight make it ideal for demanding touring events and fixed installations. The Audiocenter XLA102-DSP features two customised 1.75” HF drivers with composite diaphragms and two customised 10” LF drivers (with 2.5” voice coils). Audiocenter XLA102-DSP system can be used as a main PA system with a maximum of 16 cabinets per array. User selectable three presets (Linear, HFX, W/SUB) in Audiocenter XLA102-DSP are available for users to choose according to their needs.

The Audiocenter XLA 102-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the different requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).

FEATURES

Customised drivers
Innovative ETE™ waveguide technology for perfect frequency response and even coverage
Newly designed horn for extremely precise dispersion
High end built-in digital controller (DSP) with 96KHz sampling frequency, 2 4bit precision
Class D amplifier
Advanced cooling system
Optimised and compact cabinet design
Solid, moisture-free, CNC-machined birch plywood cabinet
Wide range of accessories for different applications
