Specifications

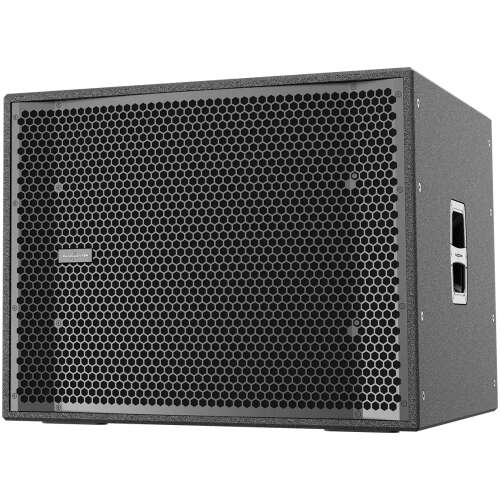

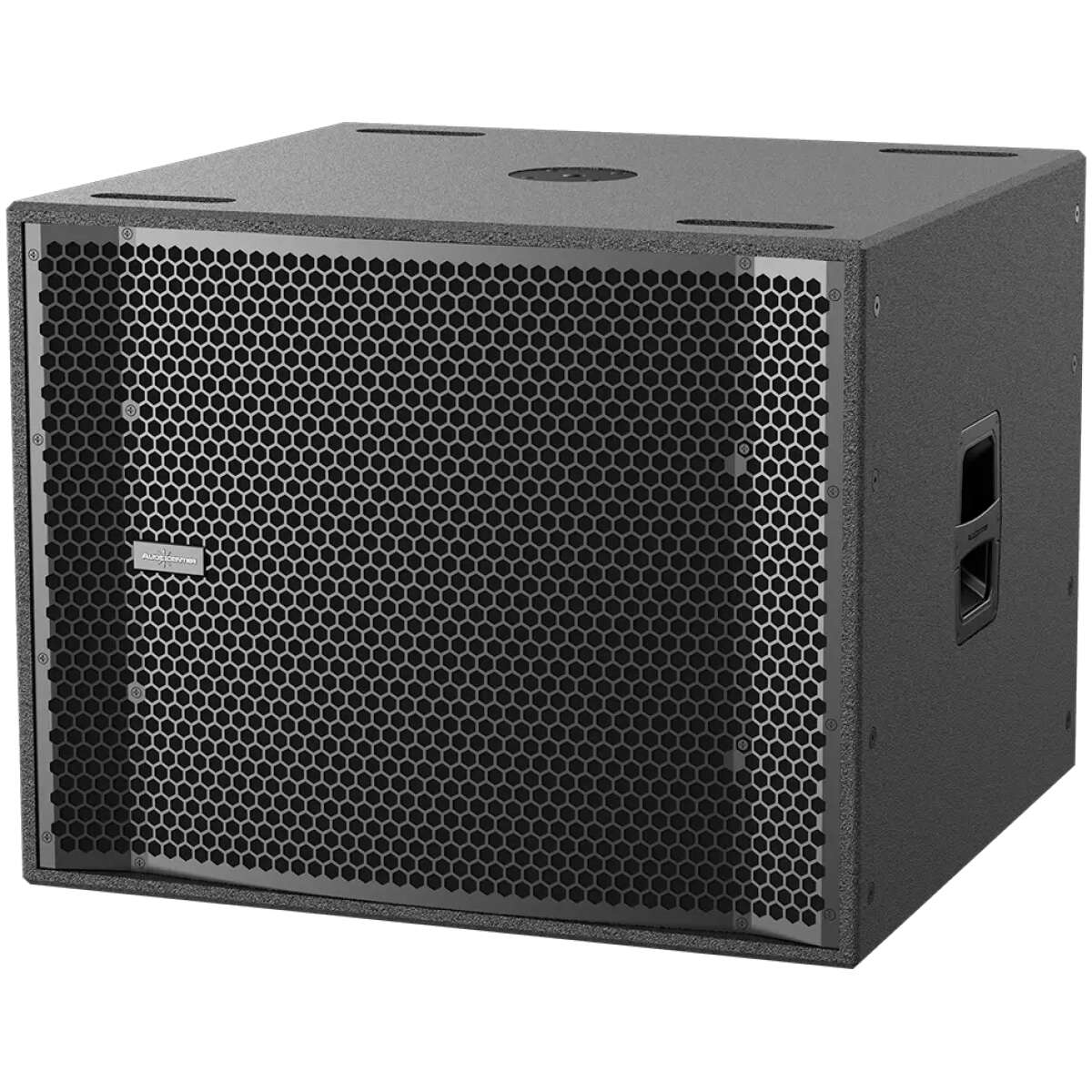

| Type | Active DSP-controlled Compact Subwoofer |
| Frequency Response(-10dB) | 30Hz-130Hz |
| Maximum Calculated SPL/1M (Continuous/Peak) | 129dB/135dB |
| LF Driver | Customized 1×18” driver, 4.0” voice coil |
| DSP | |
| Processor | 48kHz signal sampling frequency |
| Presets | 80Hz, 100Hz, Cardioid |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 1500W |
| Peak Power | 3000W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input | Female XLR |
| Signal Output | Male XLR |
| Power Input | Power connector |
| Working Voltage | 100-240V~(±10%,50/60Hz) |
| Power consumption (1/8 output power) | 149W |
| CABINET | |
| Cabinet Material | CNC made of excellent wood |
| Coating | Durable Polyurea Coating |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 2 side |
| Pole Mount | M20 base Φ35mm |
| Speaker Dimension (W×H×D) | 700x556x655mm |
| Carton Dimension (W×H×D) | 786x675x741mm |
| Net Weight | 48.0kg |
| Shipping Weight | 52.0kg |
