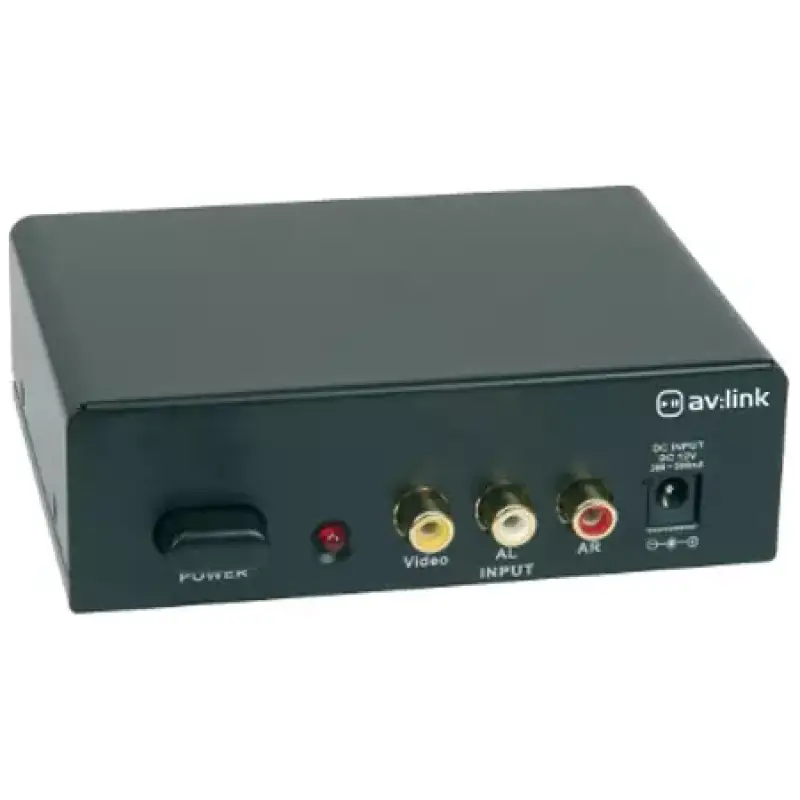

Avlink – Ad – AV14 – 4 Way A/v Distribution Ampilifier

A compact composite video/stereo audio signal distribution amplifier with 1 input to 4 outputs.

Features:

• Ideal for distributing signals from VCR, DVD, video game console, satellite receiver, etc. to up to 4 screens
• Gold plated RCA phono sockets
• Non-slip feet
• Supplied with mains adaptor and a 2m, 3 x RCA to 3 x RCA lead
• Push On/Off switch and LED power ON indicator

Specifications:

• Power supply: 12Vdc, 420mA
• Audio input: -20dB, 25k ohms
• Audio output: 4 x -20dB, 25k ohms
• Channel separation: >50dB
• Distortion : audio: <0.6dB
• Distortion : video: 50dB
• Video bandwidth: >10MHz
• Video input: 1 – 2V (p-p), 75 ohms
• Video output: 1V (p-p), 75 ohms
• Dimensions: 130 x 109 x 42mm
• Weight: 418g
