Avlink Ad – SPK18 Loudspeaker Selector

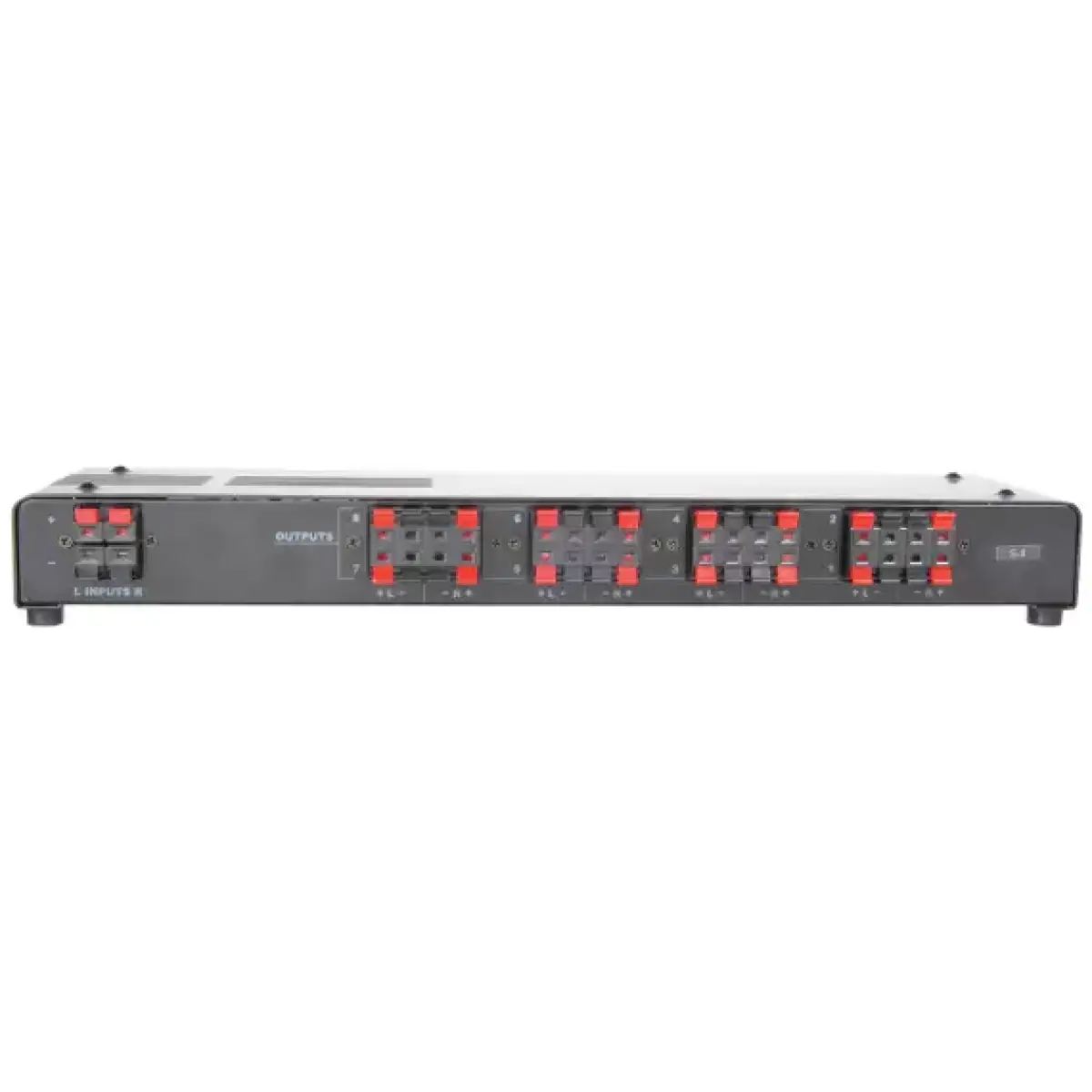

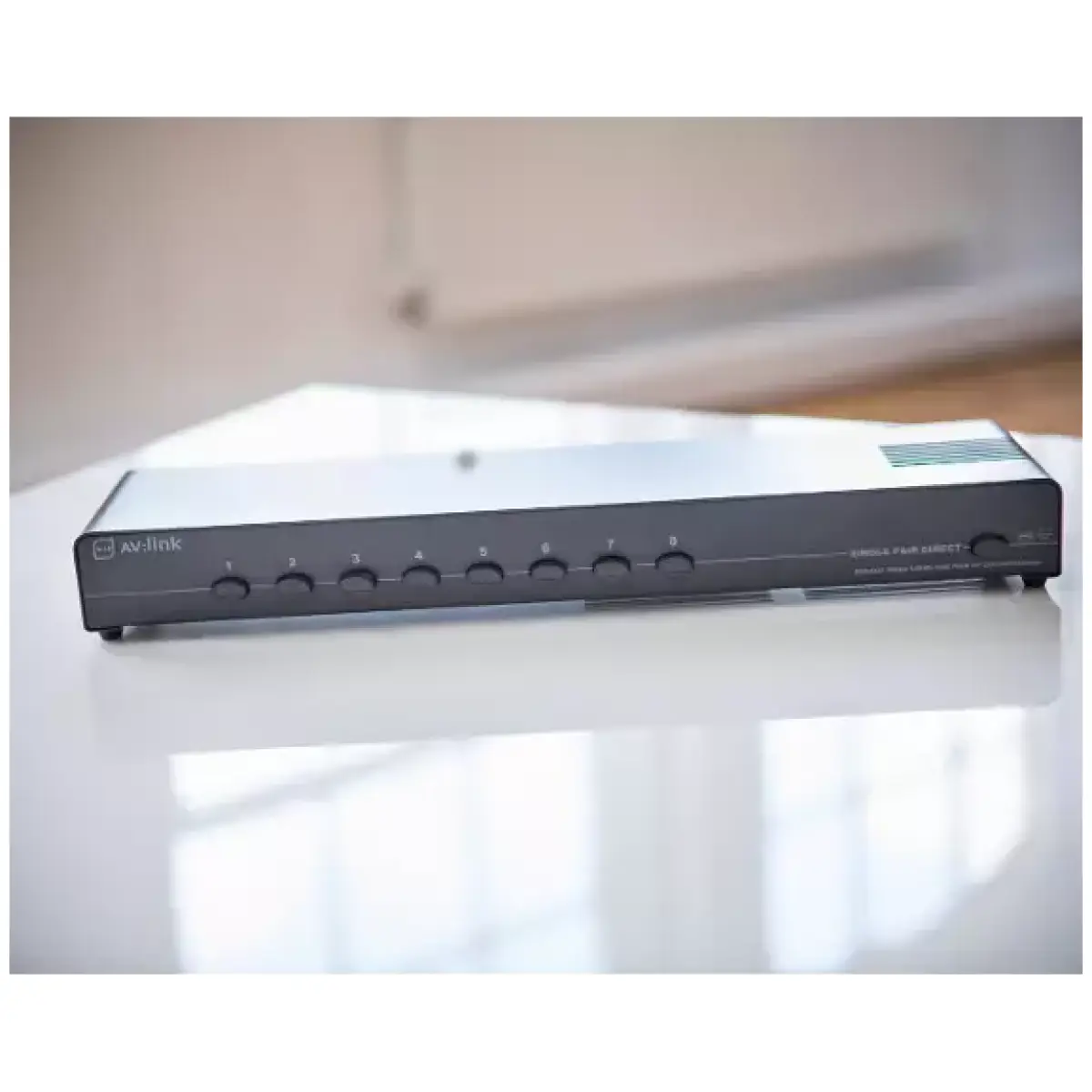

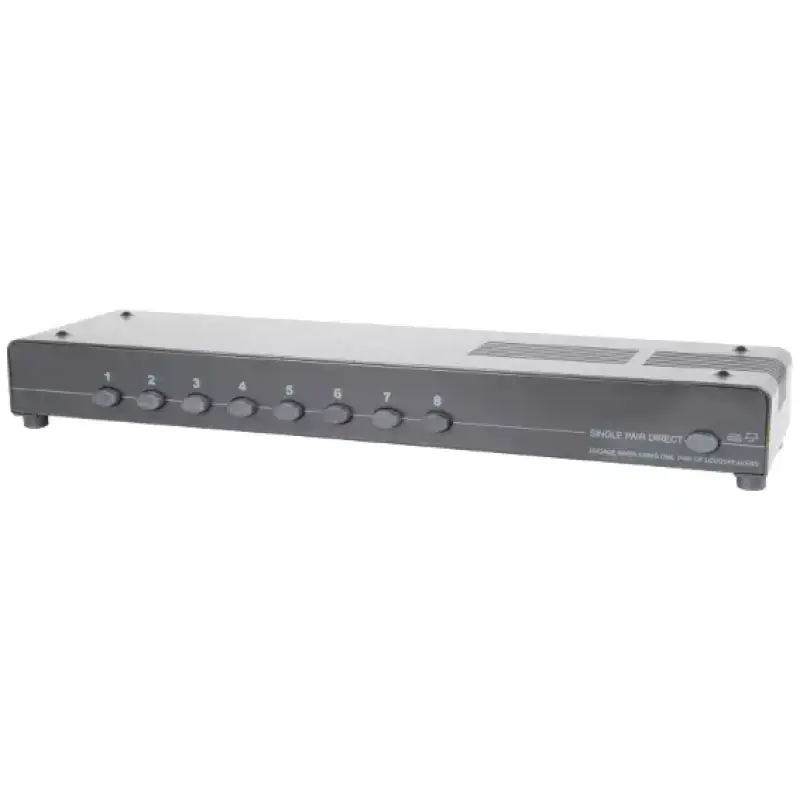

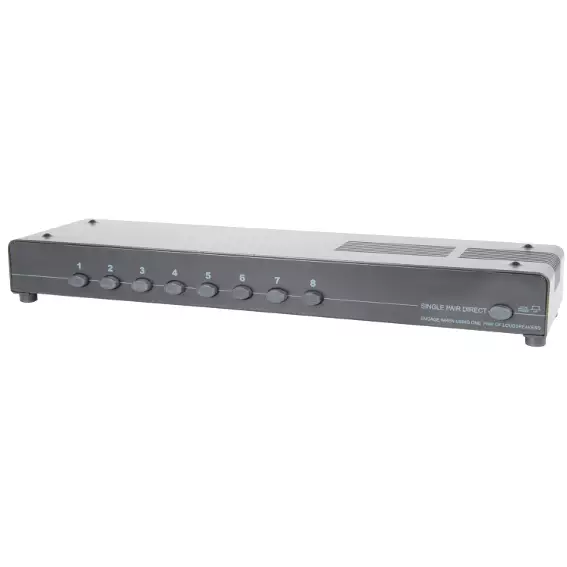

This switcher unit allows the distribution of a stereo amplifier. Simply connect the output of an amplifier to the box, this output can then be distributed to up to eight different stereo speaker sets in eight different locations, each speaker set can be individually activated via the push buttons on the front of the box. Ideally suited for buildings where an independent sound control is required for different rooms or zones.

Features:

• Enables eight pairs of speakers to be connected to a single stereo amplifier
• Heavy duty push-buttons
• Built-in overload protection
• Spring clip terminals
• Designed for 4-16 ohms speakers

Specifications:

• Wiring gauge: 14 to 22 gauge
• Input: 1 x stereo
• Output: 8 x stereo
• Power per channel: 100W max.
• Dimensions: 432 x 125 x 55mm
• Weight: 2.08kg
