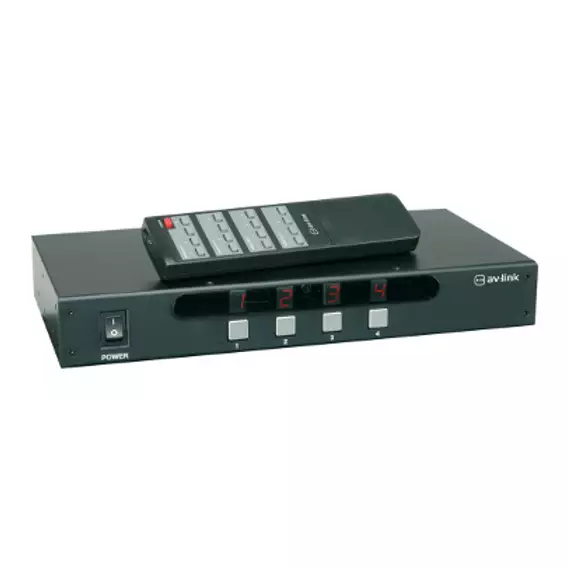

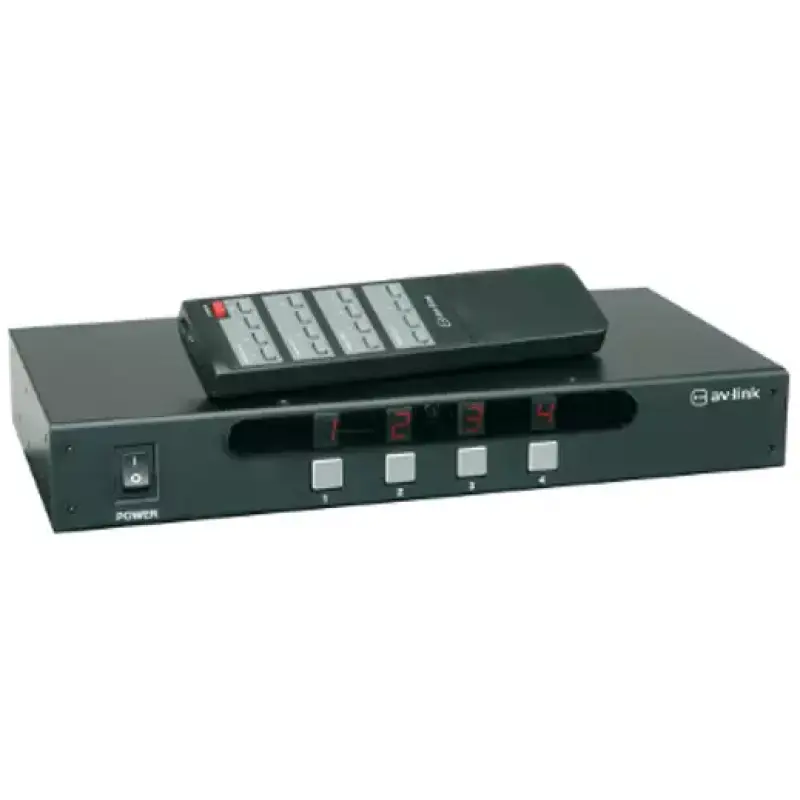

Avlink – Avlink – Ad – AV44 4:4 A/v Matrix Switcher With Ir Remote Control

A composite video/stereo audio matrix router which is the ideal solution for the most complex AV installations allowing any input to be sent to any output. All 4 inputs and outputs have colour coded RCA phono sockets, red (right audio), white (left audio), yellow (video). Up to 8 pieces of equipment can be connected to this unit at the same time.

Features:

• Any or all of the four inputs can simultaneously be switched to any or all of the outputs
• Manual or IR remote operation
• Gold plated RCA phono sockets for optimum signal transfer
• Four 7 segment LED displays
• Black anodised metal case with non-slip feet
• Supplied with a 3-way RCA to RCA lead, VGA lead, software and 19″ rack mounting kit
• Batteries supplied

Specifications:

• Power supply: 12Vdc, 660mA
• Audio input: 4 x stereo RCA, 40k Ohms
• Audio output: 4 x stereo RCA, 100k Ohms
• Channel separation: >50dB
• Distortion : audio: <0.6dB
• Distortion : video: 50dB
• Video input: 4 x RCA, 75 Ohms
• Video output: 4 x RCA, 75 Ohms
• Dimensions: 47 x 305 x 162mm
• Weight: 1.34kg
