The new half 19 inch main station CP100S uses the two wire principle or party line principle for full duplex operation with headsets and has a built in monitoring loudspeaker.

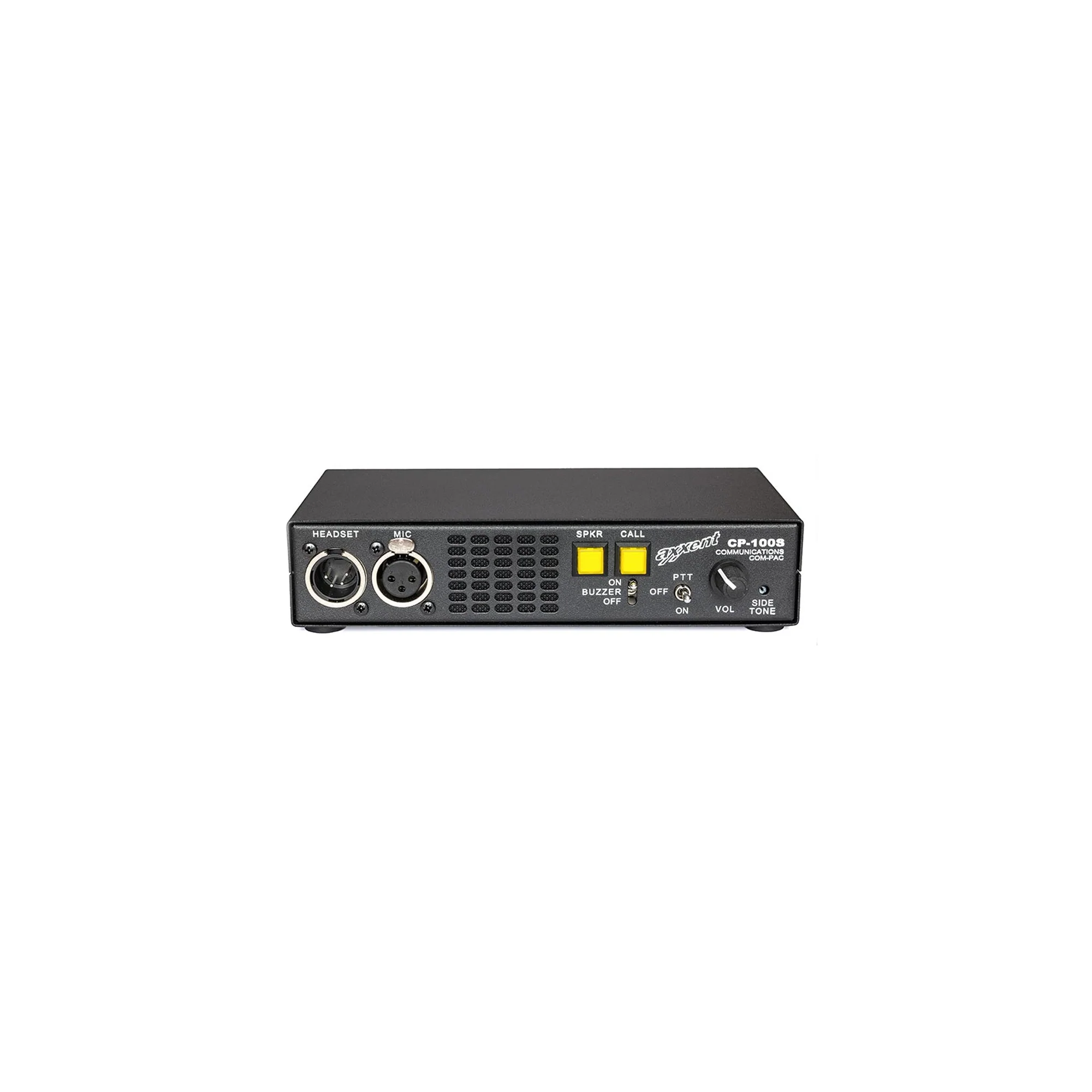

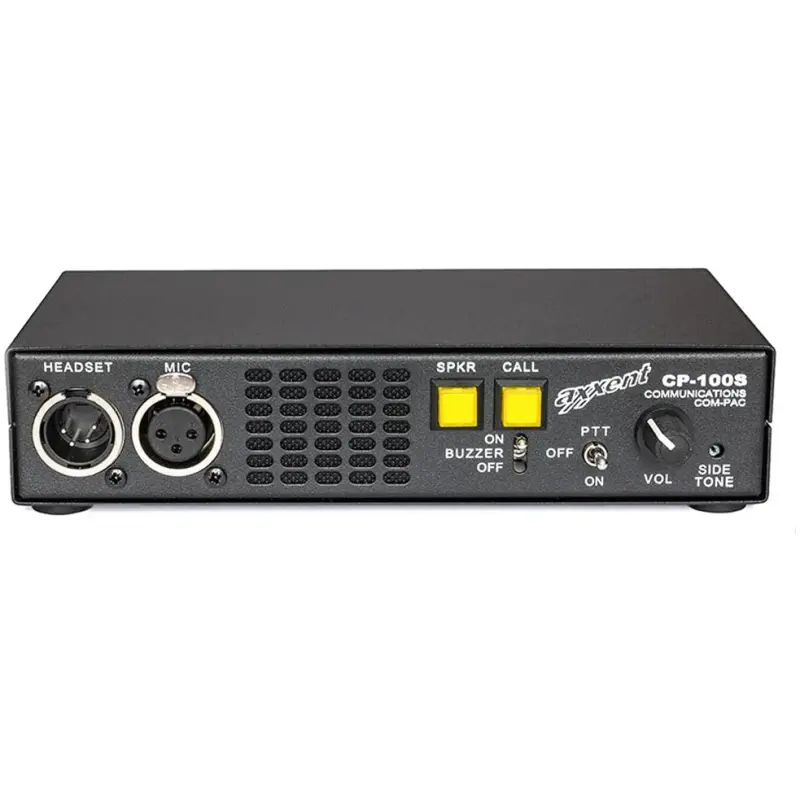

All headsets with dynamic microphone cartridges may be used with the station. Gooseneck microphones or wired microphones may be plugged into the 3 pin xlr connector on the units’ front.

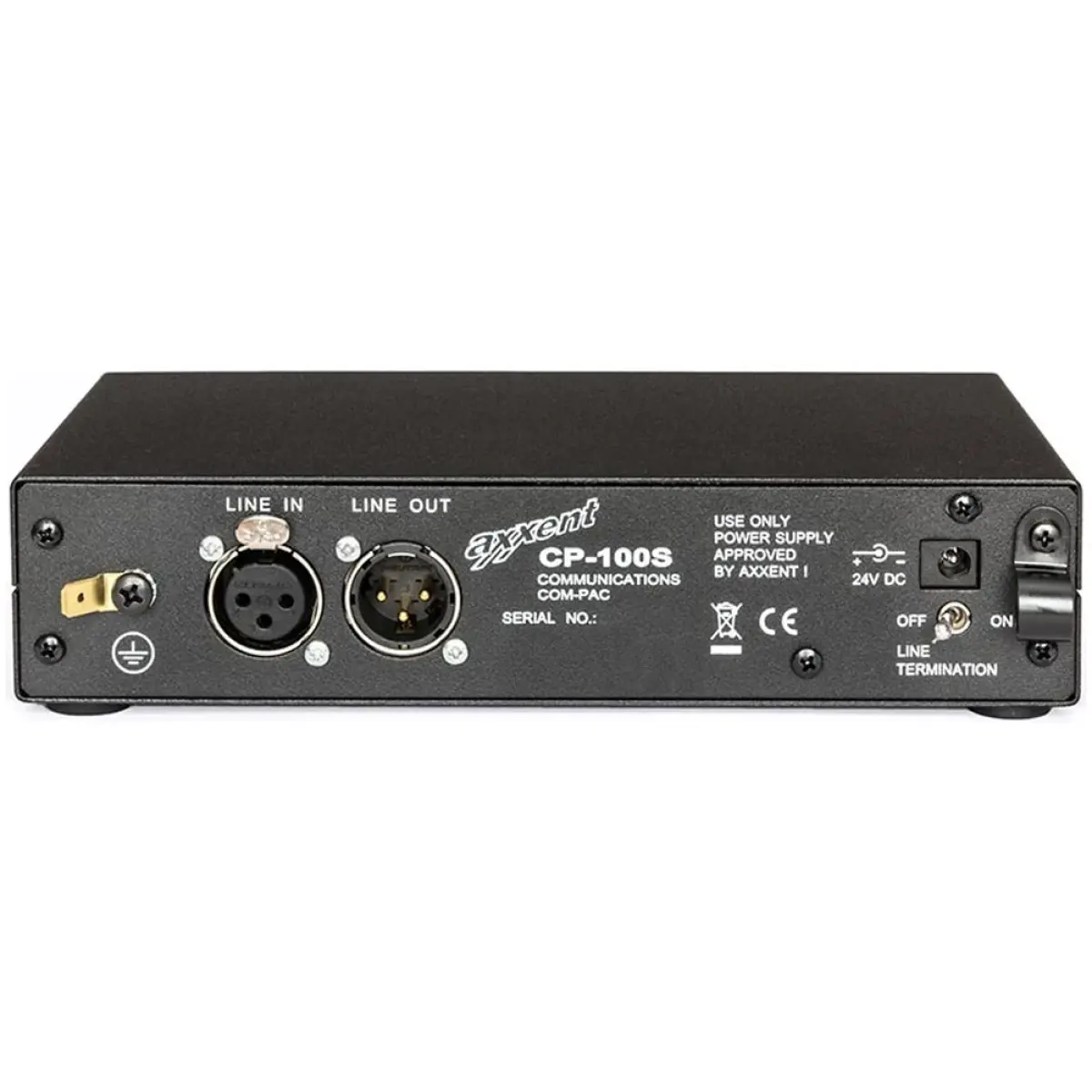

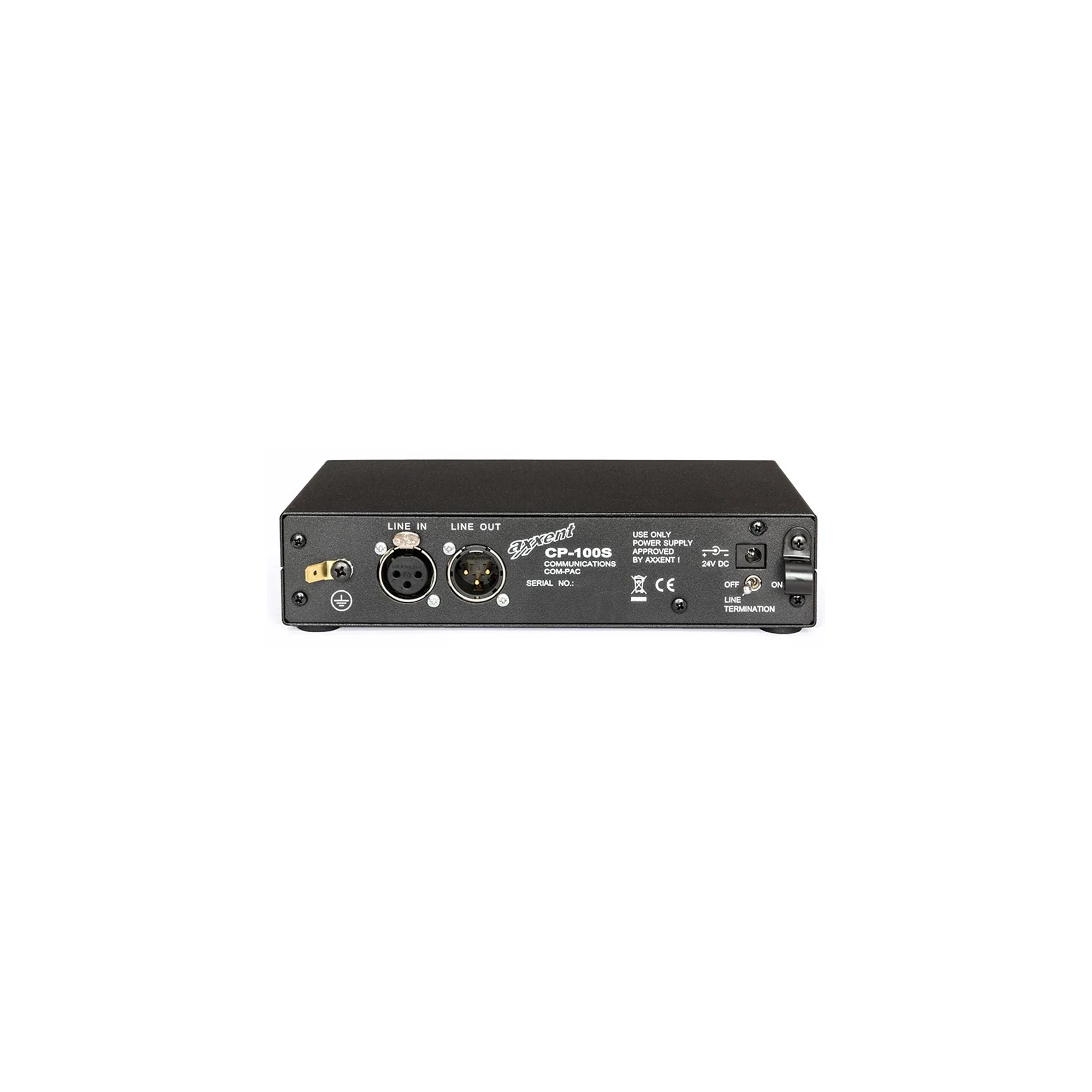

A line termination switch on the back facilitates a stable intercom level. To be switched on when CP100S is being used as a master station. When powered from another station, the switch should not be activated.
The external power supply allows universal operation (100 – 240 V) of approximately 10 components such as belt packs or signal lights.
The CP100S may be mounted in a 19” rack via an optional rack kit RMK100.
Specifications
| External power supply | 24 VDC, 1 A secondary, 100-240 VAC primary provides sufficient power for approximately 10 intercom components |
| Dimensions | 20 x 12 x 4.4 cm (W x D x H) |
| Weight | 785 g net without power supply |
Key Features
- The new half 19 inch main station CP100S uses the two wire principle or party line principle for full duplex operation with headsets and has a built in monitoring loudspeaker.
