Axxent GN-M100 Gooseneck Microphone Pod

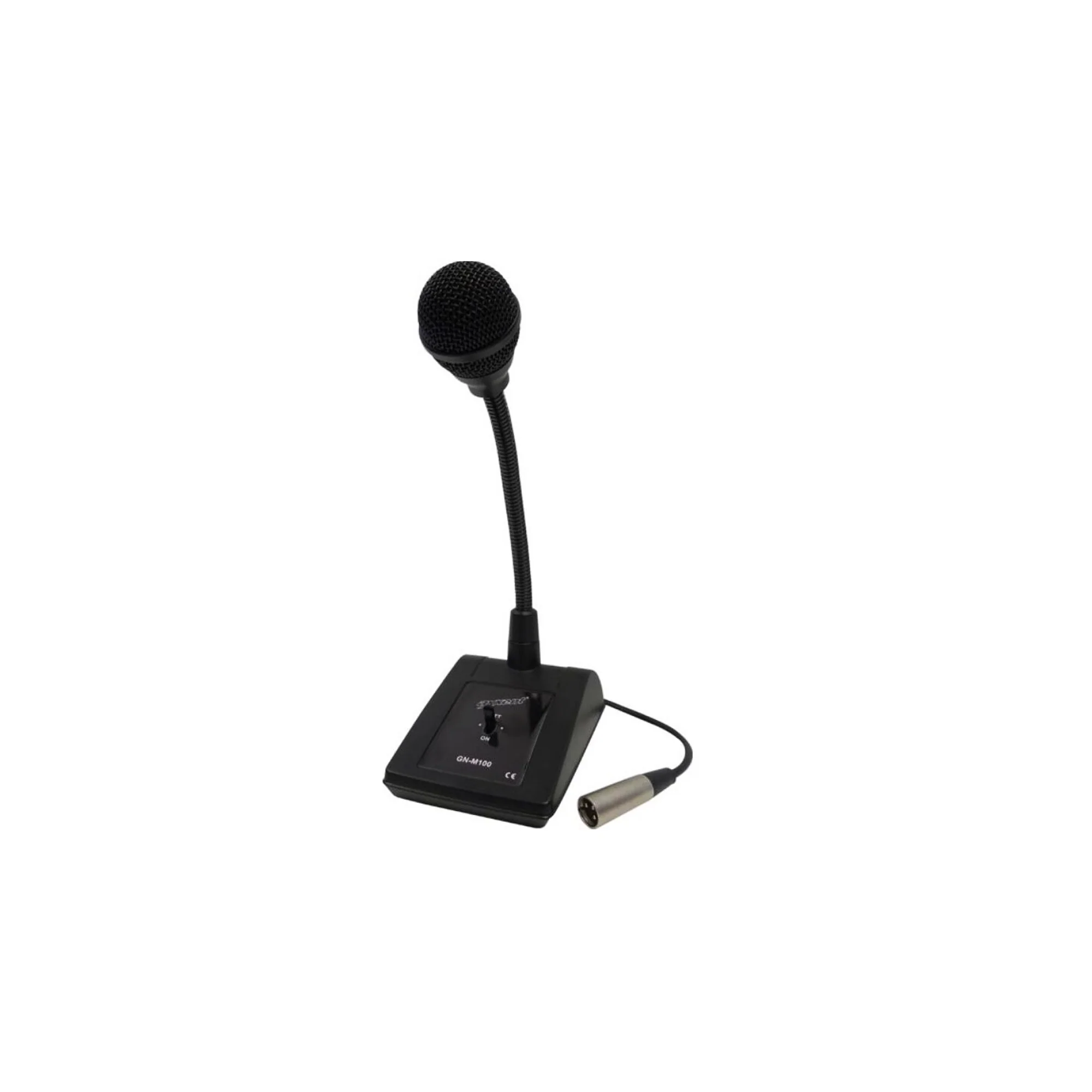

This intercom station is used for announcements via the intercom main stations CP-100S and MS-200, each of which has a 3-pin XLR socket on its front panel for connection to microphones. The connector socket of the intercom main station CP-100S is designed for dynamic microphones and the socket of the intercom main station MS-200 is adjustable for microphone to auxiliary level.

The intercom station has a dynamic microphone element so that phantom power is not necessary. It also has a long connection cable of 5 m, so that the intercom station can be located further away.

The microphone capsule has an efficient pop protection with wire mesh and is mounted on a sturdy gooseneck.

Three positions of the intercom switch provide flexibility: duration on, moment on, and duration off.

Technical Data

• Polar pattern: cardioid
• Frequency range: 60 Hz – 12 kHz
• Sensitivity: 3.2 mV/Pa at 1 kHz
• Impedance: 600 Ohm
• Dimensions(L): 310mm (gooseneck)
• Weight: 1.1kg
