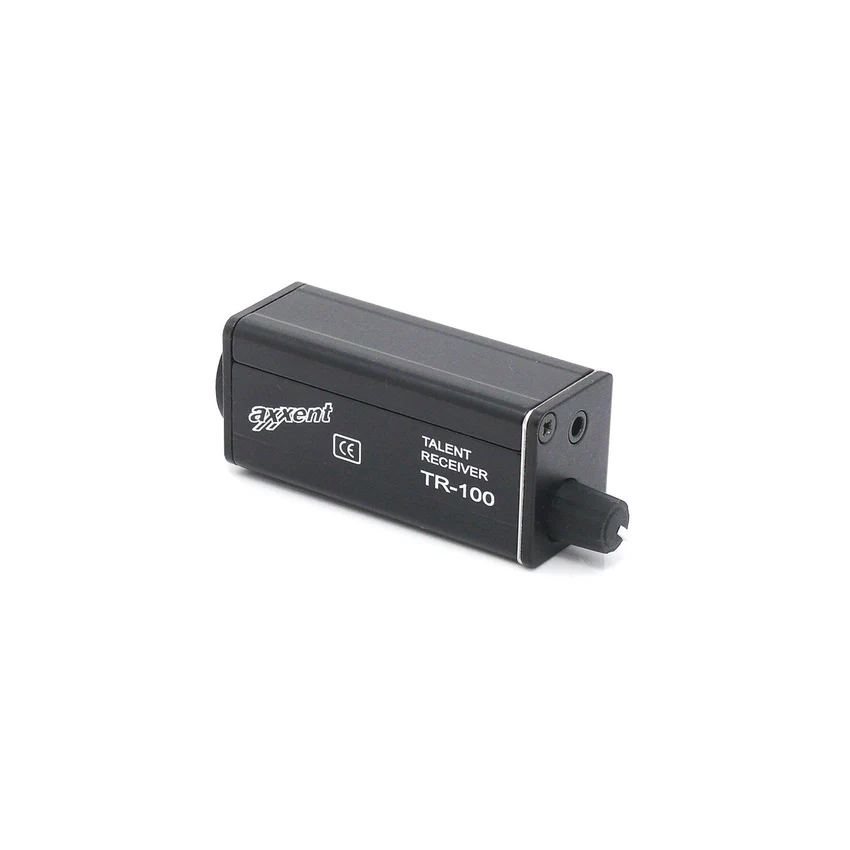

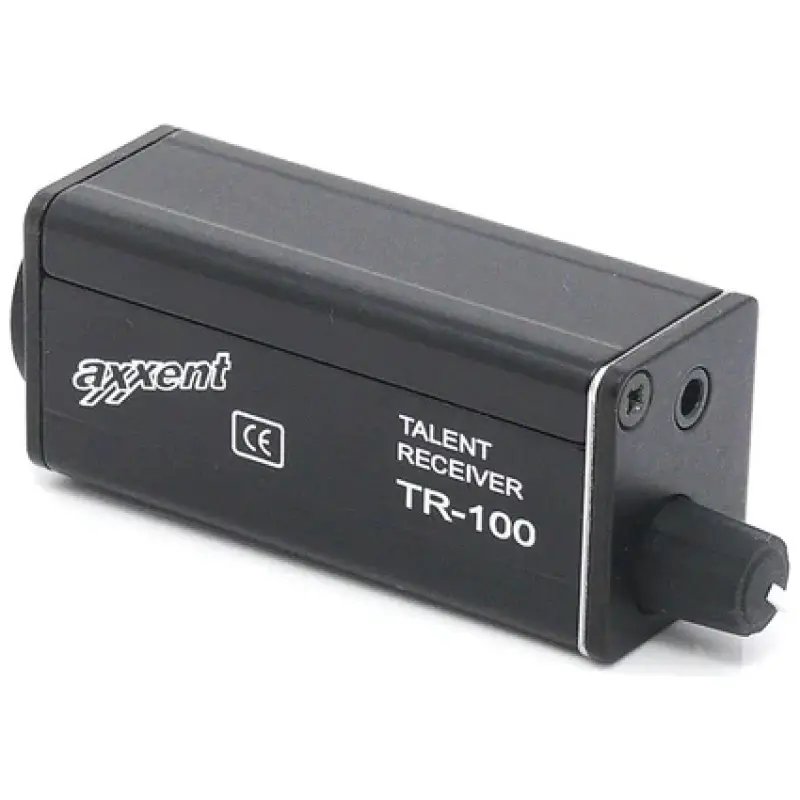

Axxent Intercom TR-100 Talent Receiver

The Talent Receiver is used to announce messages to all persons who do not need or should not have the possibility to talk back into an intercom. Users can listen to programme material as well as commands through the intercom system. It is ideal for artists waiting for their stage performance.

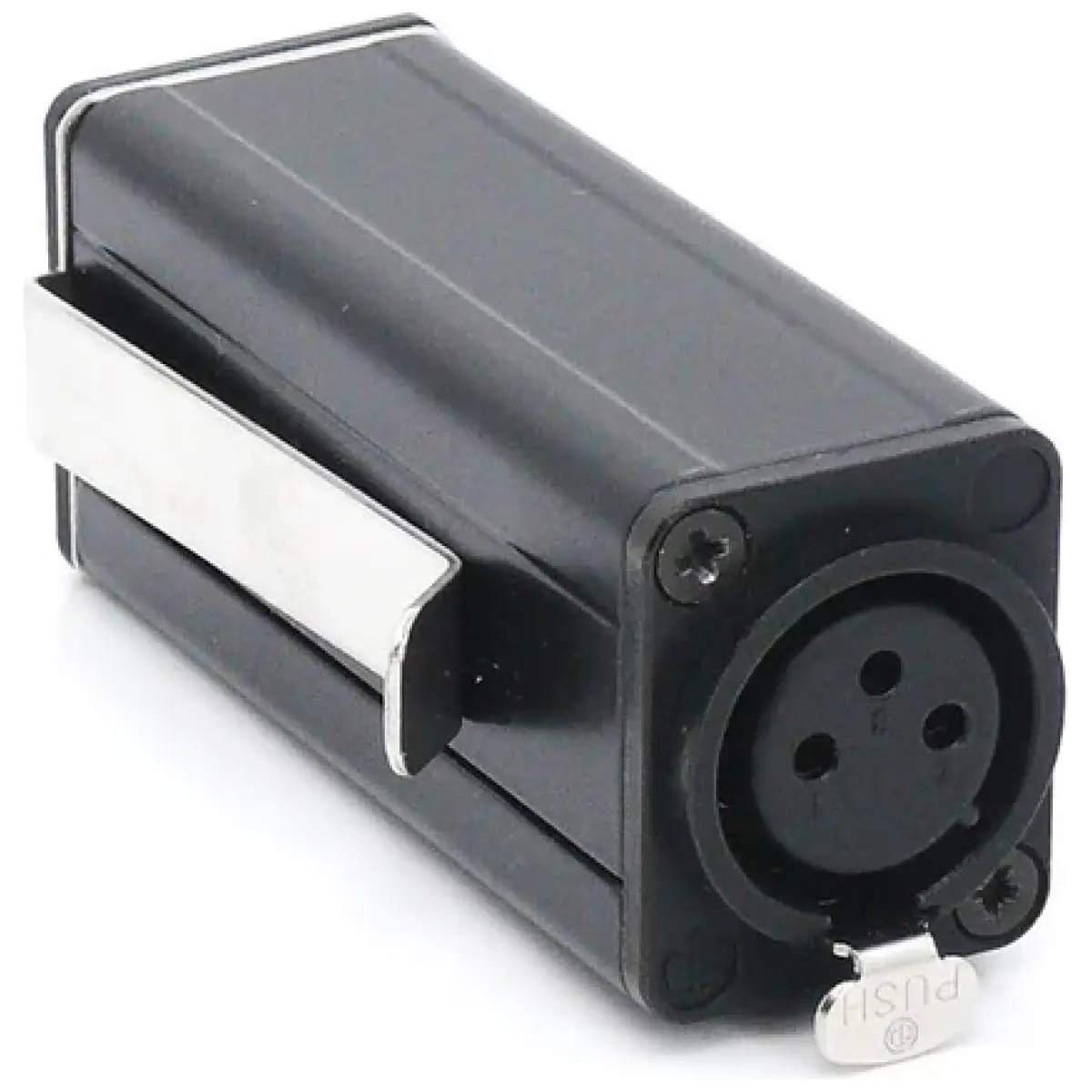

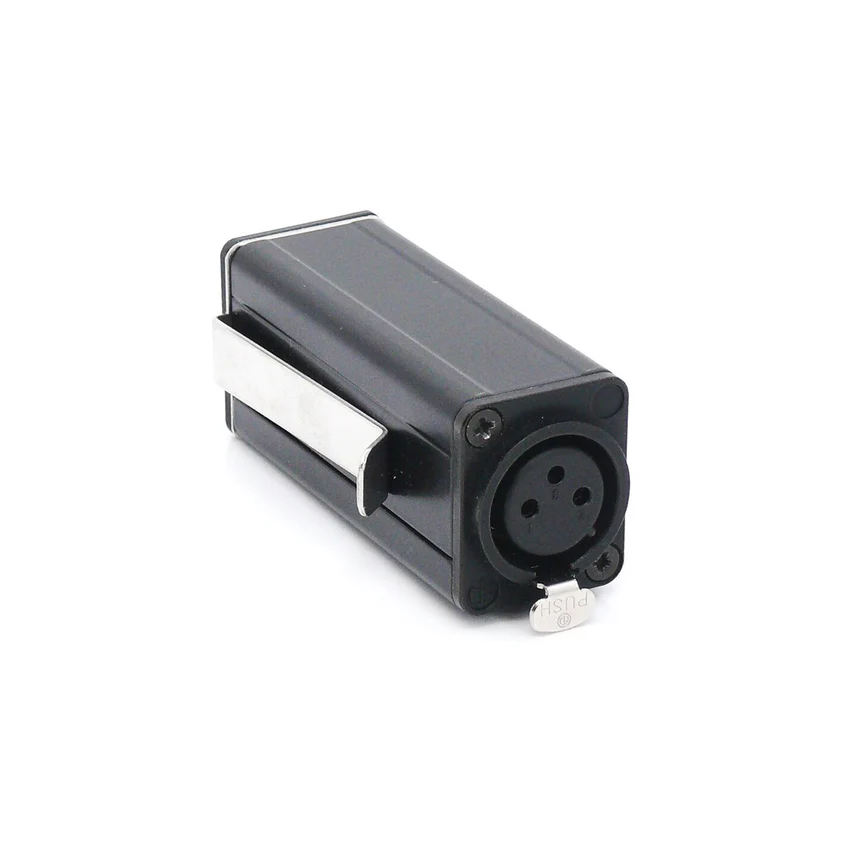

It features the standard 3-pin XLR socket of the partyline intercom components and a 3.5 mm jack socket for connecting practically all earphones and headphones.
The TR100 is housed in a Neutrik metal case and has a powerful headphone amplifier. The amplifier can drive any ear and headphone with impedances from 8 ohms to 600 ohms in mono or binaural mode. The volume is independent of the headphone impedance.
The listening level is adjusted with a rotary potentiometer. If necessary, the minimum level can be set to -40 dB level (by means of an internal jumper) so that no message is missed. To do this, the jumper must be removed. To remove it, two screws of the XLR socket are removed.
The TR100 Talent Receiver is supplied with the necessary operating voltage from any axxent intercom component. Since the partyline intercom principle is also used independently of the manufacturer, it can also be used with components from other intercom manufacturers.

Technical Data

• Frequency range: 80…. 8,000 Hz
• Total harmonic distortion factor: <1%
• Headphone level: 70 mW maximum
• Headphone impedance: 8…600 Ohm
• Operating voltage: +24…. 30 V=
• Power consumption: <15 mA idle, <100 mA max.
• Input impedance: 200 kOhm
• Connector Input: 3-pin XLR-F, output 3.5 mm 3-pin socket
• Dimensions(LxWxH): 89x34x33mm
