Beamzpro – BTF100Z

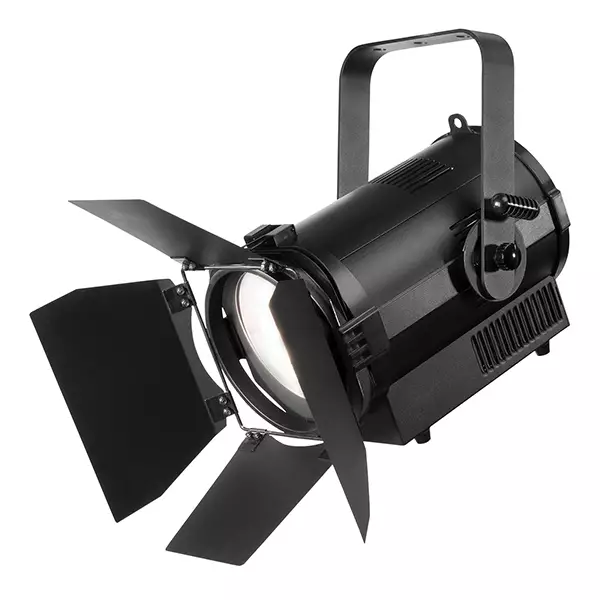

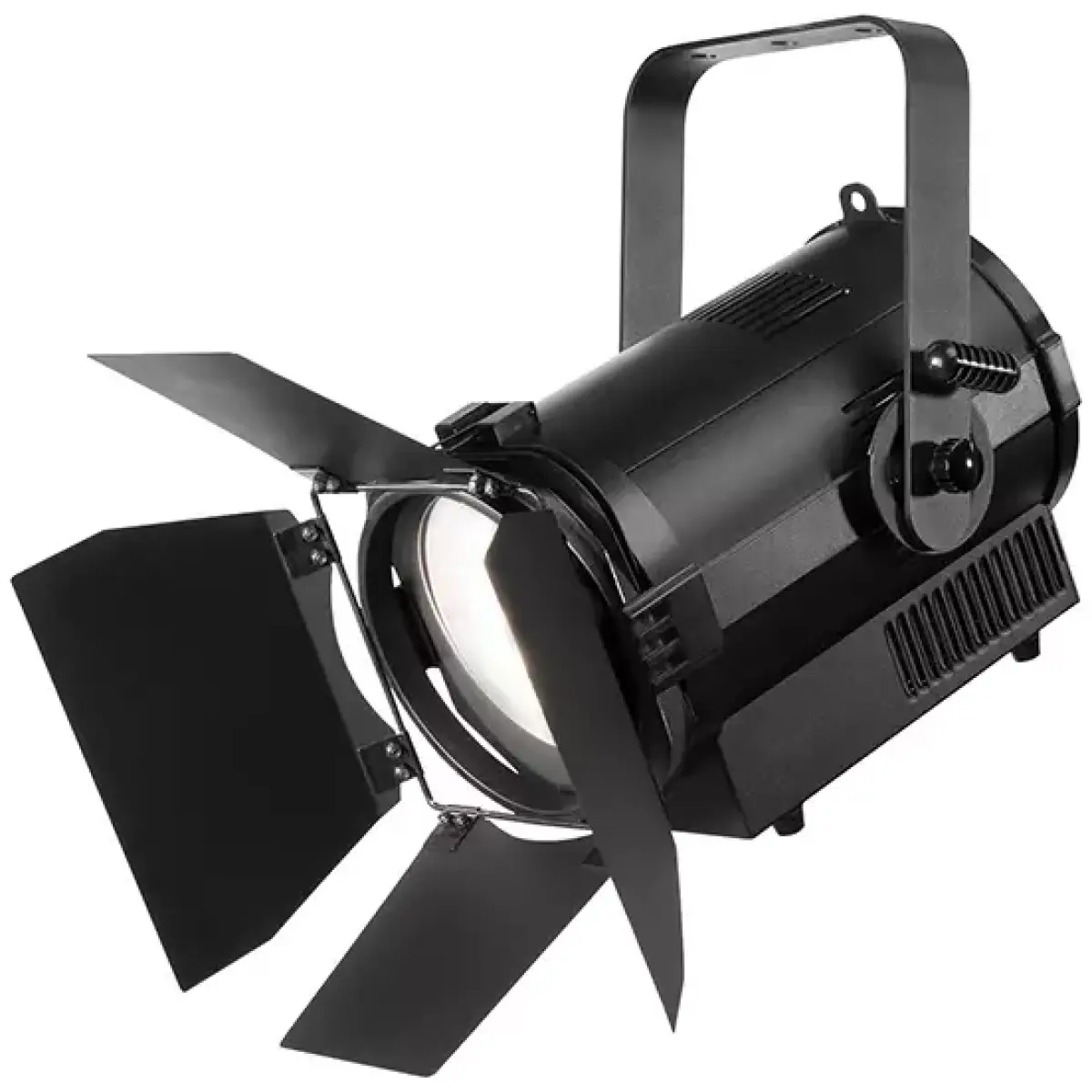

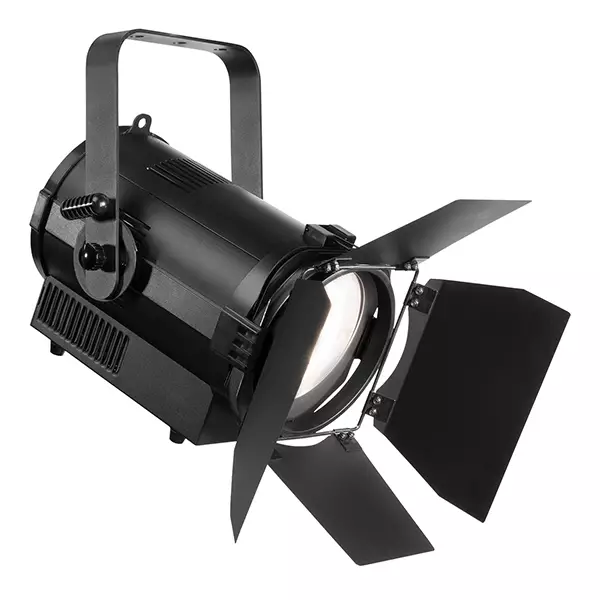

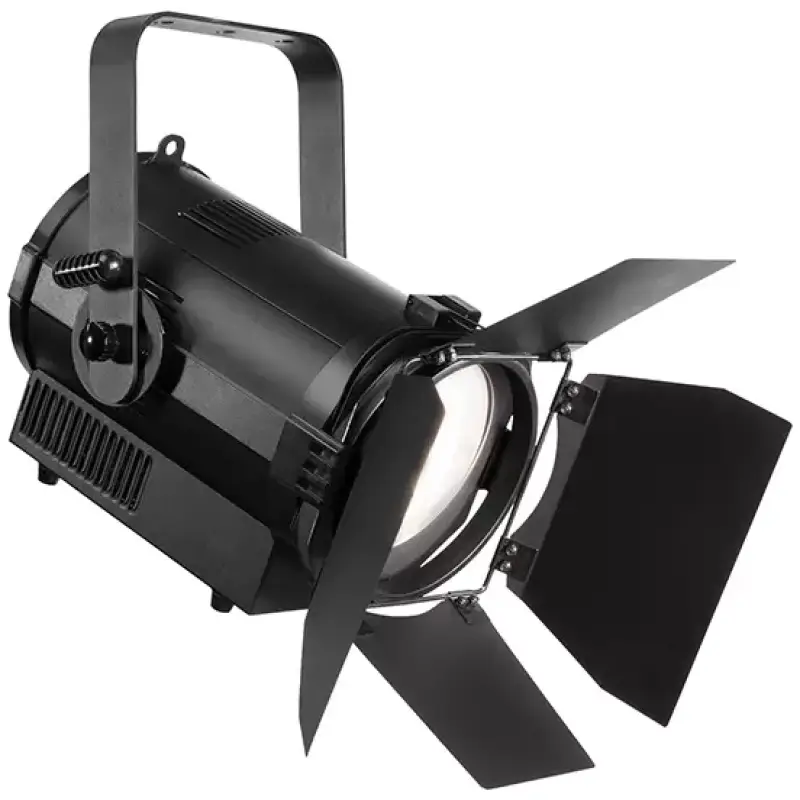

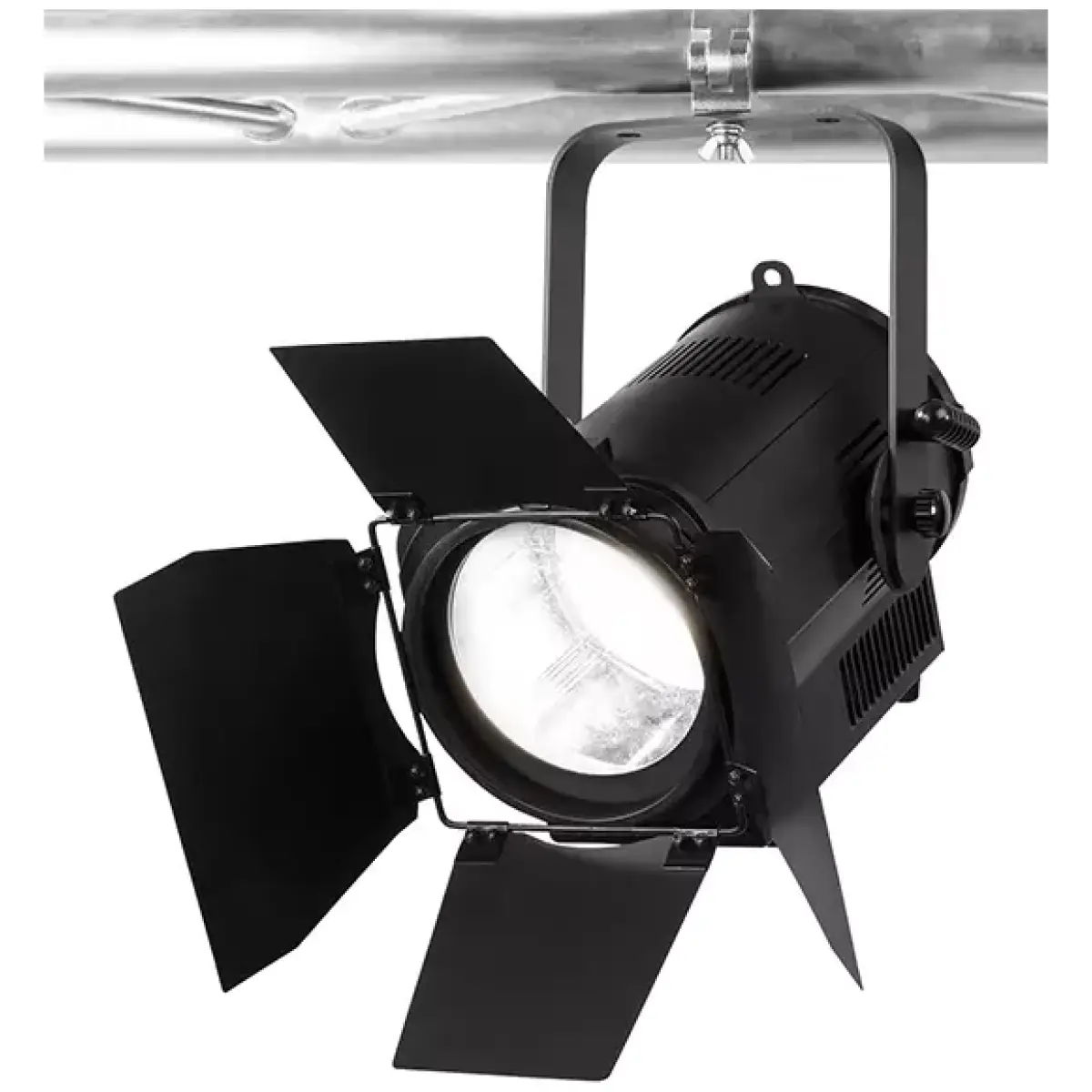

The BeamZ BTF100Z Fresnel Zoom uses a high power single source LED engine to provide a smooth and even field of warm white light, providing a modern replacement for traditional fresnels. The BTF100Z is equipped with high-quality optics, a motorized 25-65 degree zoom function and is both dimmable and able to be operated as a strobe up to 20 flashes per second. Ideal for use in theatres, studios or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Features Powerconnector in&out and DMX controllability. Supplied with barn doors for beam shaping and glare reduction, safety cord and colour frame.

Features:

• 100W Warm White COB LED
• Colour Temperature: 3200K
• Lifetime LED: 50.000 hours
• 25° to 65° Motorized zoom
• Compact and lightweight Aluminium body
• HQ optical system
• CRI 97 (Colour Rendering Index)
• 16 bit dimming via DMX
• Flicker free with selectable PWM

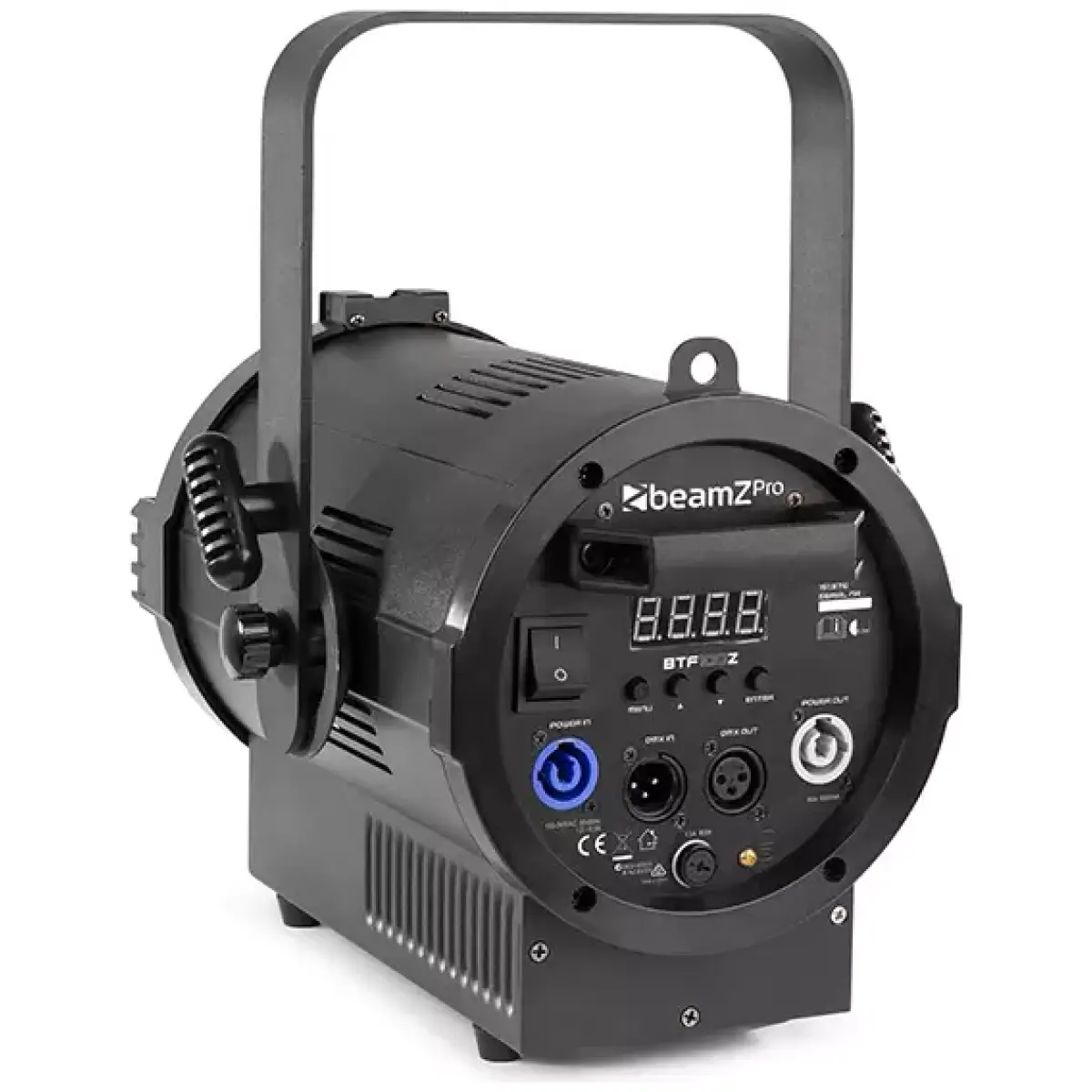

• LED Display
• DMX (3-pin), Manual and Master/Slave control options
• Intelligent temperature control for silent operation
• Power connector in & out
• Including barndoor, safety cord and colour frame

Specifications:

• Lightsource: Single colour LED
• LED Colours: Warm White
• LED Power: 100
• Colour temperature: 3200K
• Quantity of LEDs: 1
• Beam angle:min (degrees): 25
• Beam angle:max (degrees): 65
• Illuminance: 34300
• Flash rate per second: 1 – 19Hz
• DMX Channels: 2, 3, 4, 5
• DMX Connector: 3-pin XLR
• Modes: DMX
• IP rating: IP20
• Power Plug: Power-connector
• Power consumption: 1.18 – 0.55A
• Power Supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 330 x 210 x 245mm
• Weight: 7.1kg
• Accessories: Mounting bracket, Power Cable, Safety cord
