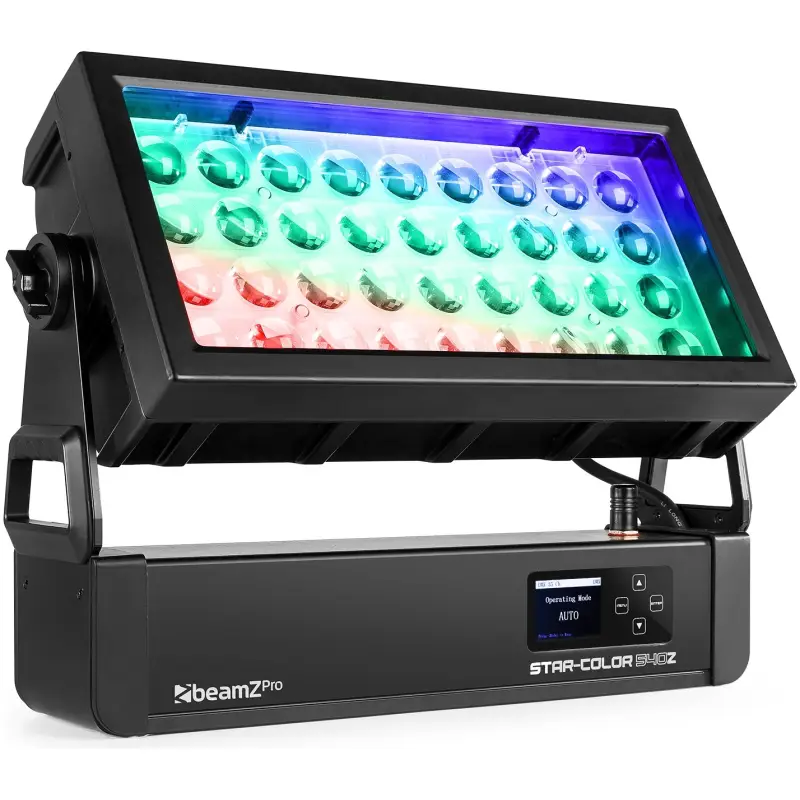

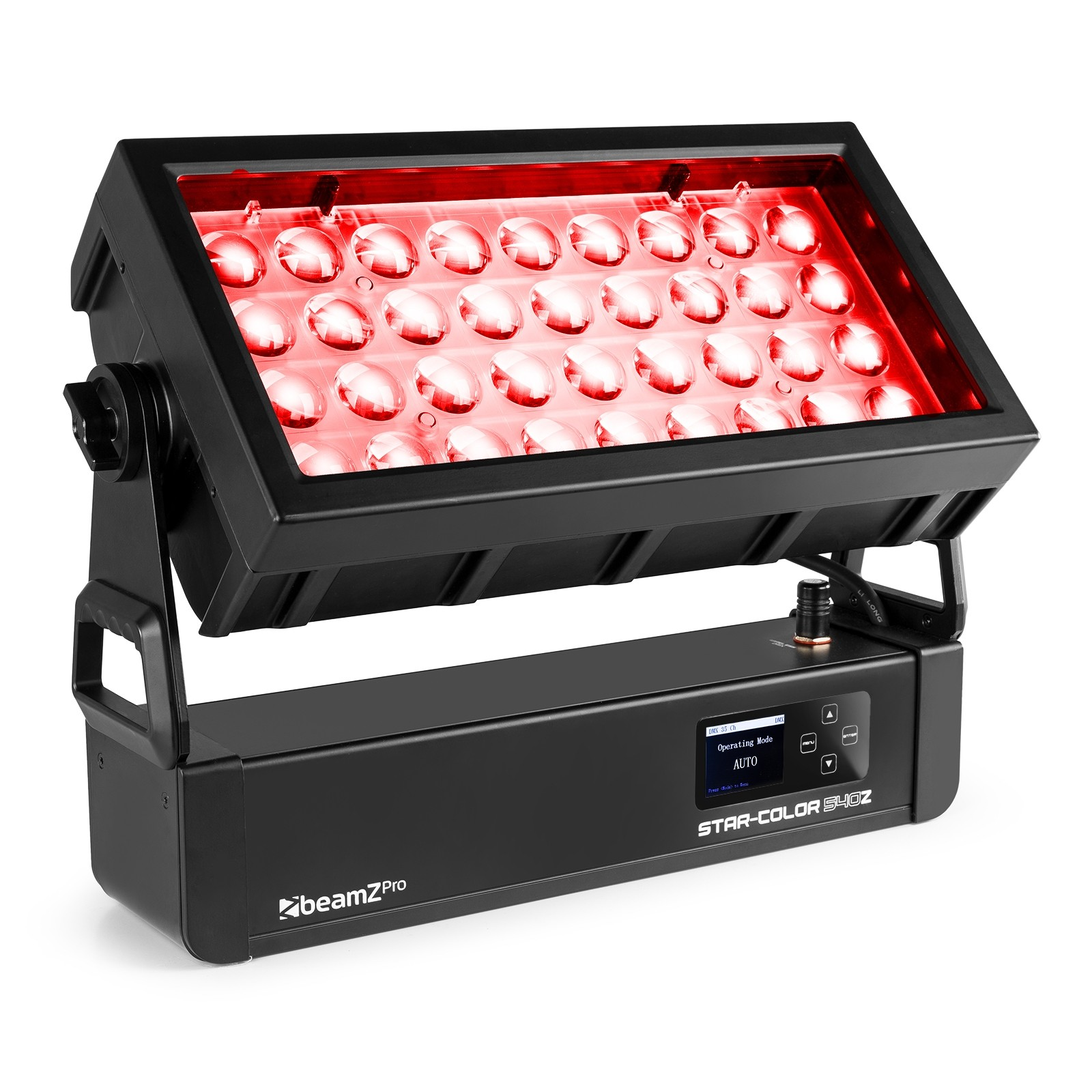

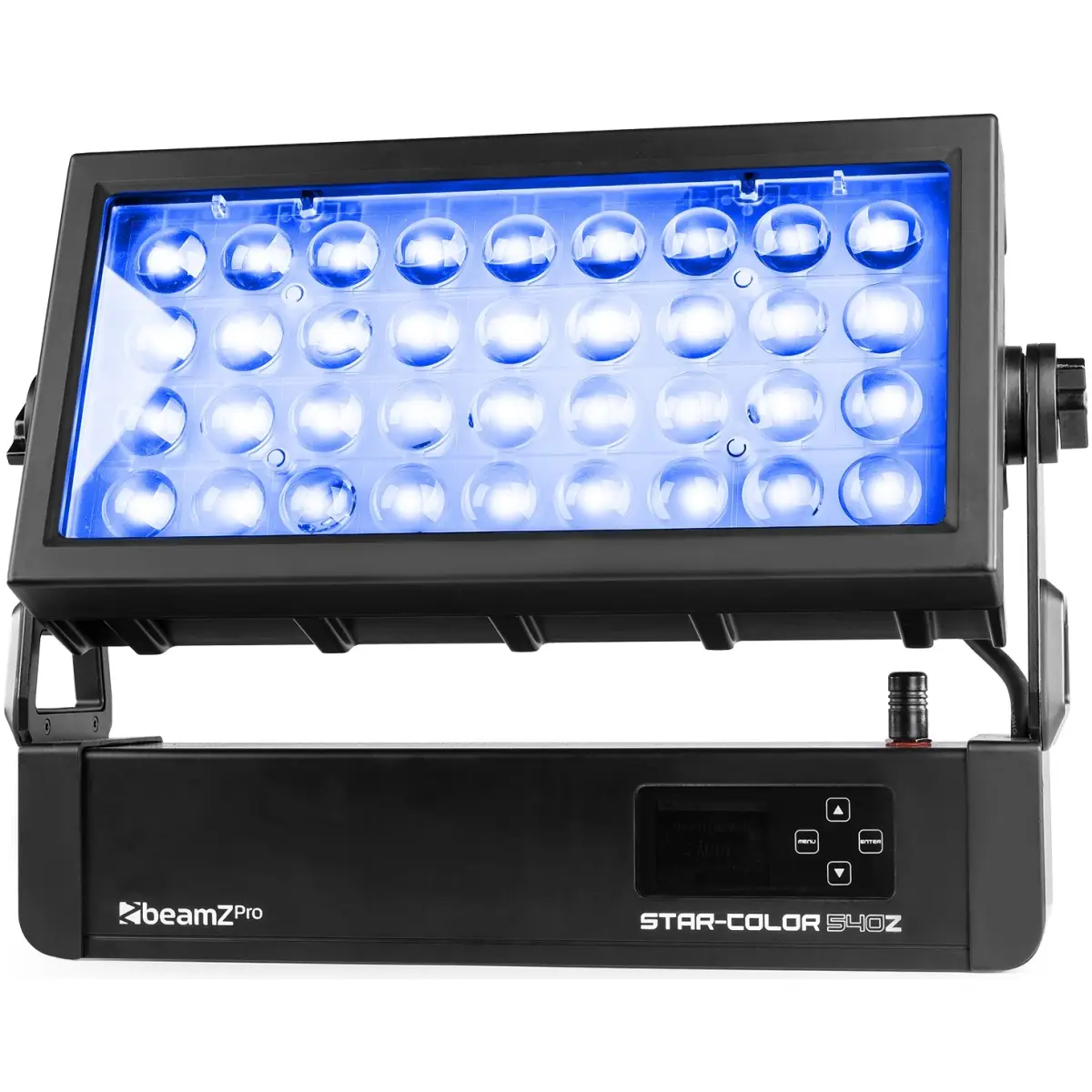

Beamzpro – STARCOLOR540Z

The StarColor540 Wall Washes are powerful architectural LED projectors, specially designed for refined wall-washing. These IP65 classified Wash flood lights are ideal for use at all kinds of events and are also suitable for architectural settings, both indoors and outdoors. They are also suitable for filling rooms with light and illuminating buildings, gardens, restaurants and even stage groups. Fully enclosed in a stylish and robust housing, the fixtures meet specifications for use in wet rooms, being dustproof, weatherproof and water resistant. The StarColor540 can communicate in a variety of ways, with DMX and wireless DMX. A barndoor, base and ready-made flightcases are optionally available!

Features:

• Professional Wall Wash with zoom
• 36x 15W 4-in-1 LEDs (controlled per row)
• RGBW colour mixing
• Motorized Zoom-function 7° – 58°
• 72x 0.2W RGB LEDs backlight
• IP65 rated waterproof design
• Tempered glass lens and watertight internal gaskets

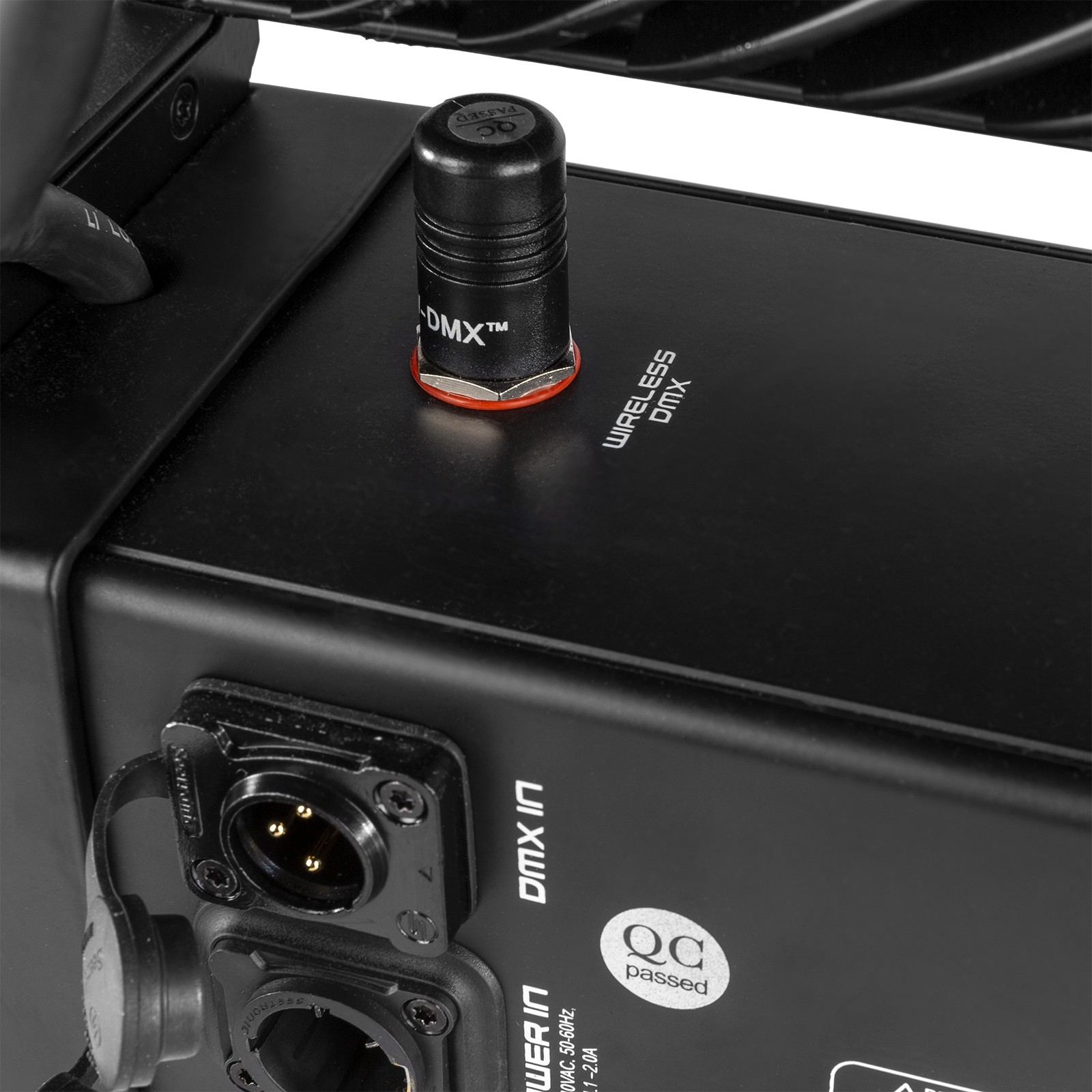

• DMX512 and Wireless Solution WDMX
• Stand alone and Master/slave Mode
• 16 Bit dimmer
• PWM: 600/1200/2400/4800Hz
• Control panel with full-colour 2.4” TFT display
• DMX in/output via 3-pin XLR
• Power connector (P-Con) TR1 in/output
• Multiple built-in colour pre-sets and auto programs
• Quick lock omega clamp included

Specifications:

• Light source: 4-in-1 LED
• Colours: Red, Green, Blue, White
• LED power: 15W
• Quantity of LEDs: 36
• LED power: Backlight: 0.2W
• Quantity of backlight LEDs: 72
• Beam angle: 7° – 58°
• Illuminance: 76.689 lx @ 1m
• Flash rate per second: 0 – 20Hz
• DMX channels: 8, 16, 19, 21, 29, 35, 38
• DMX connection: 3-pin XLR, Wireless DMX
• Wireless DMX protocol: WDMX
• Modes: Automatic programs, DMX, Manual, Master/Slave
• IP rating: IP65
• Cooling: Temperature controlled fan
• Display: LCD
• Power plug: P-Con TR1
• Power consumption: 4.12 – 1.96A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 510 x 120 x 370mm
• Weight (kg): 14.35
• Included accessories: Mounting bracket, Power cable
