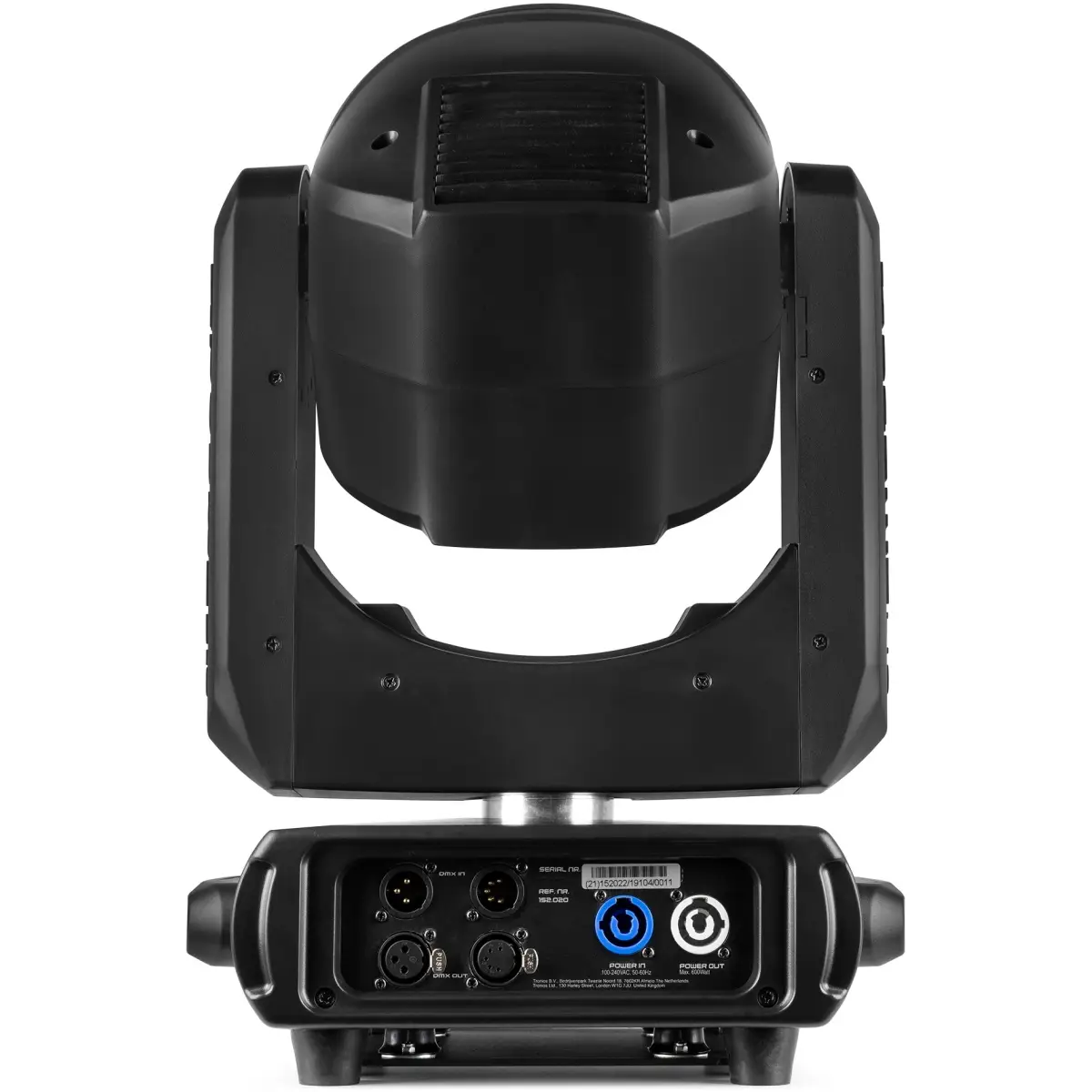

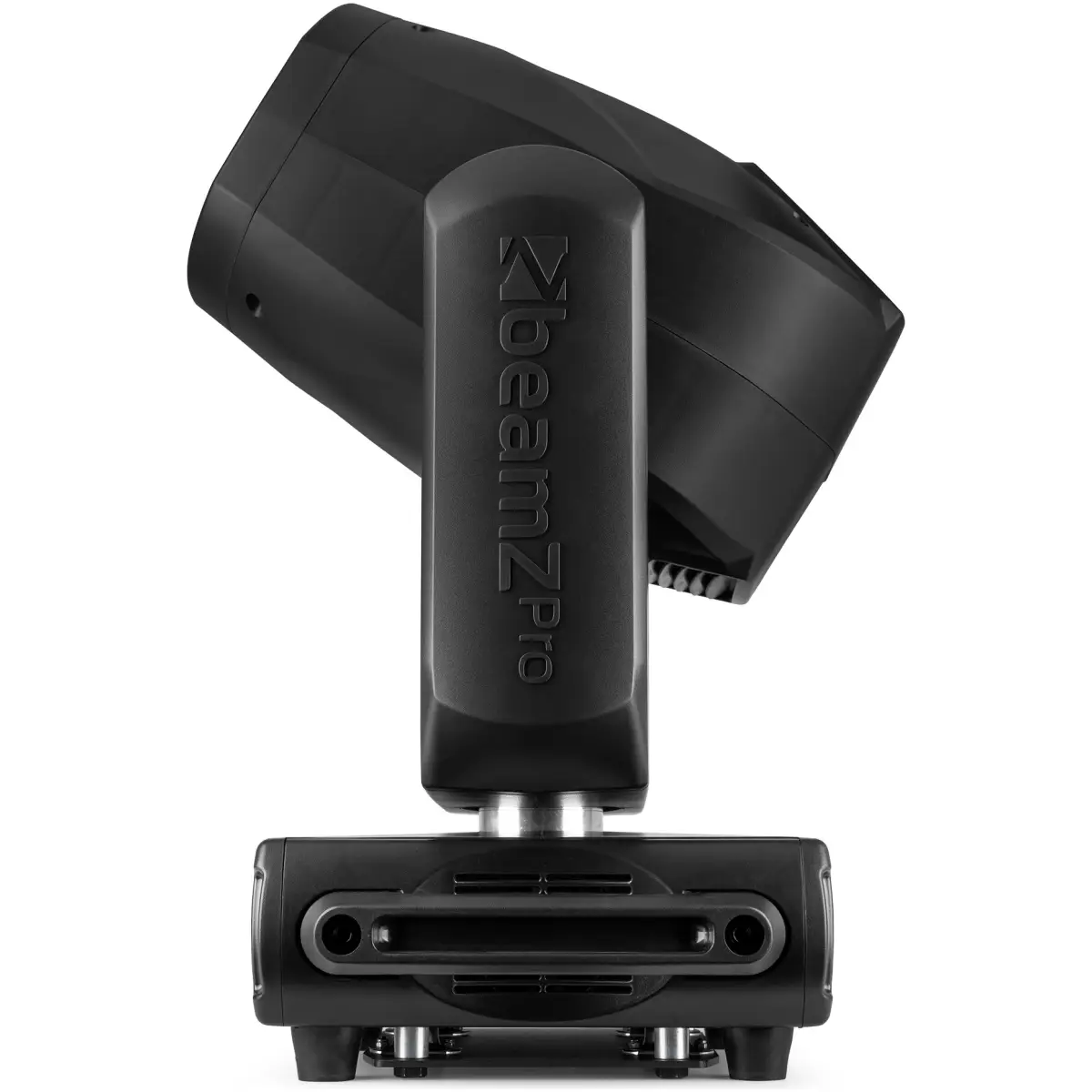

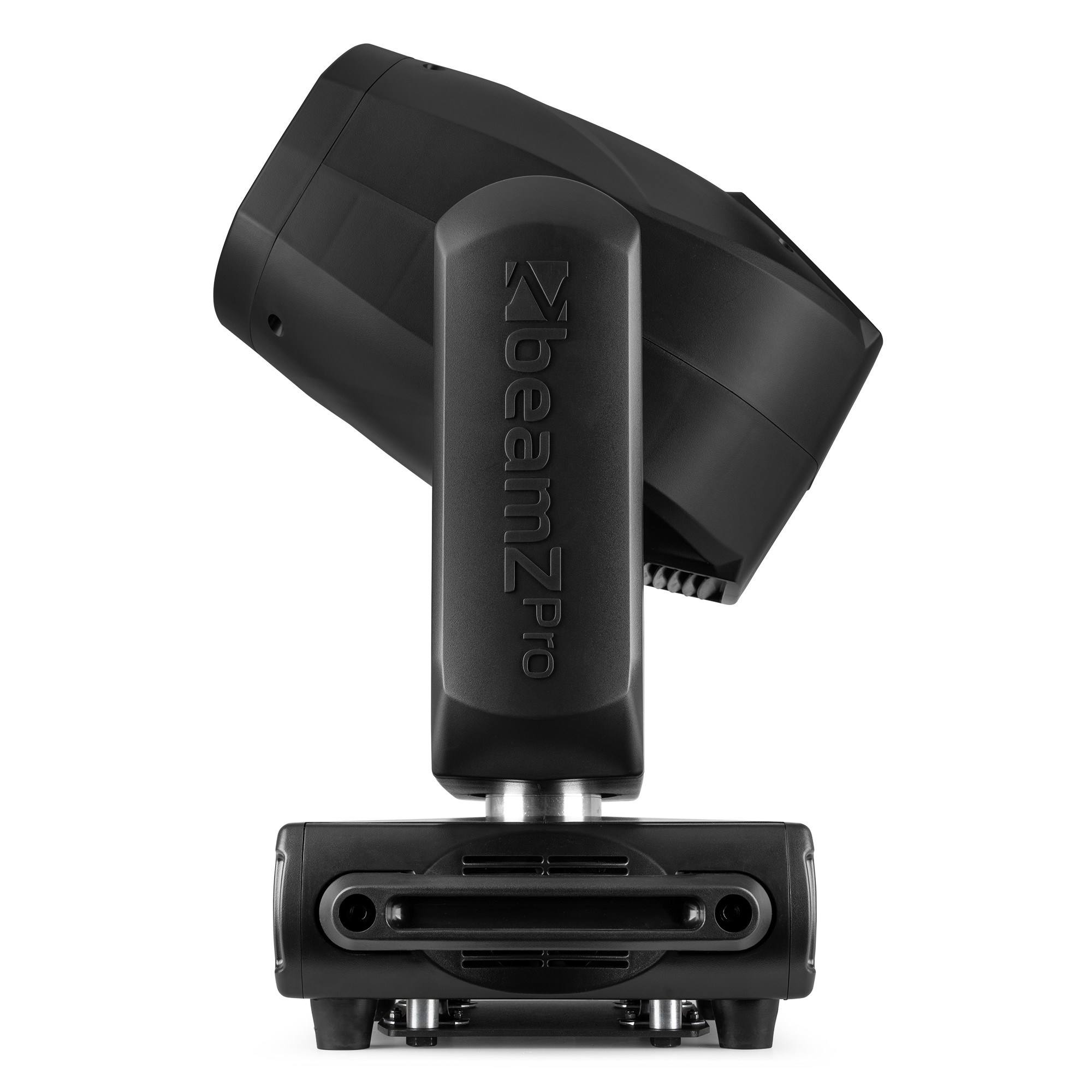

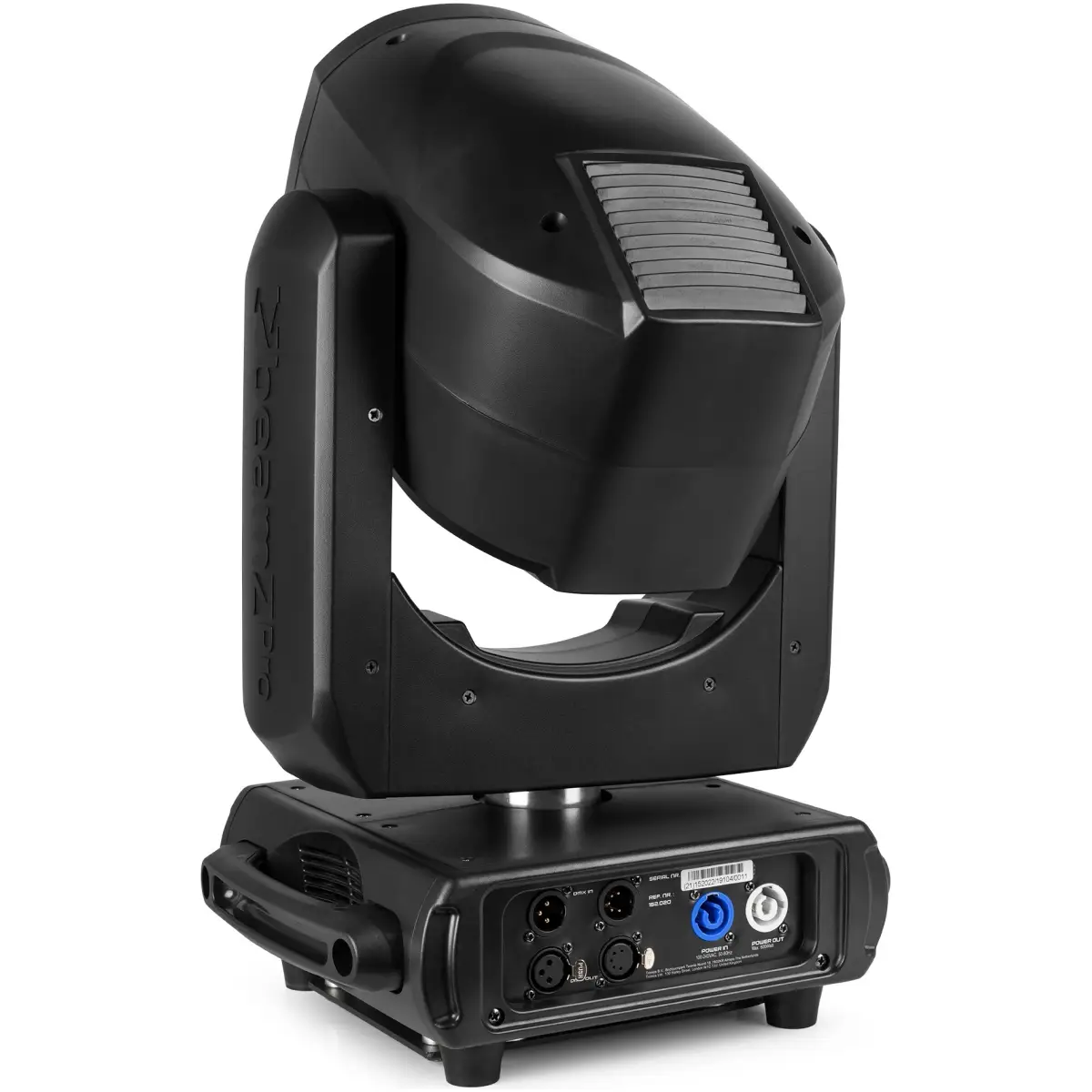

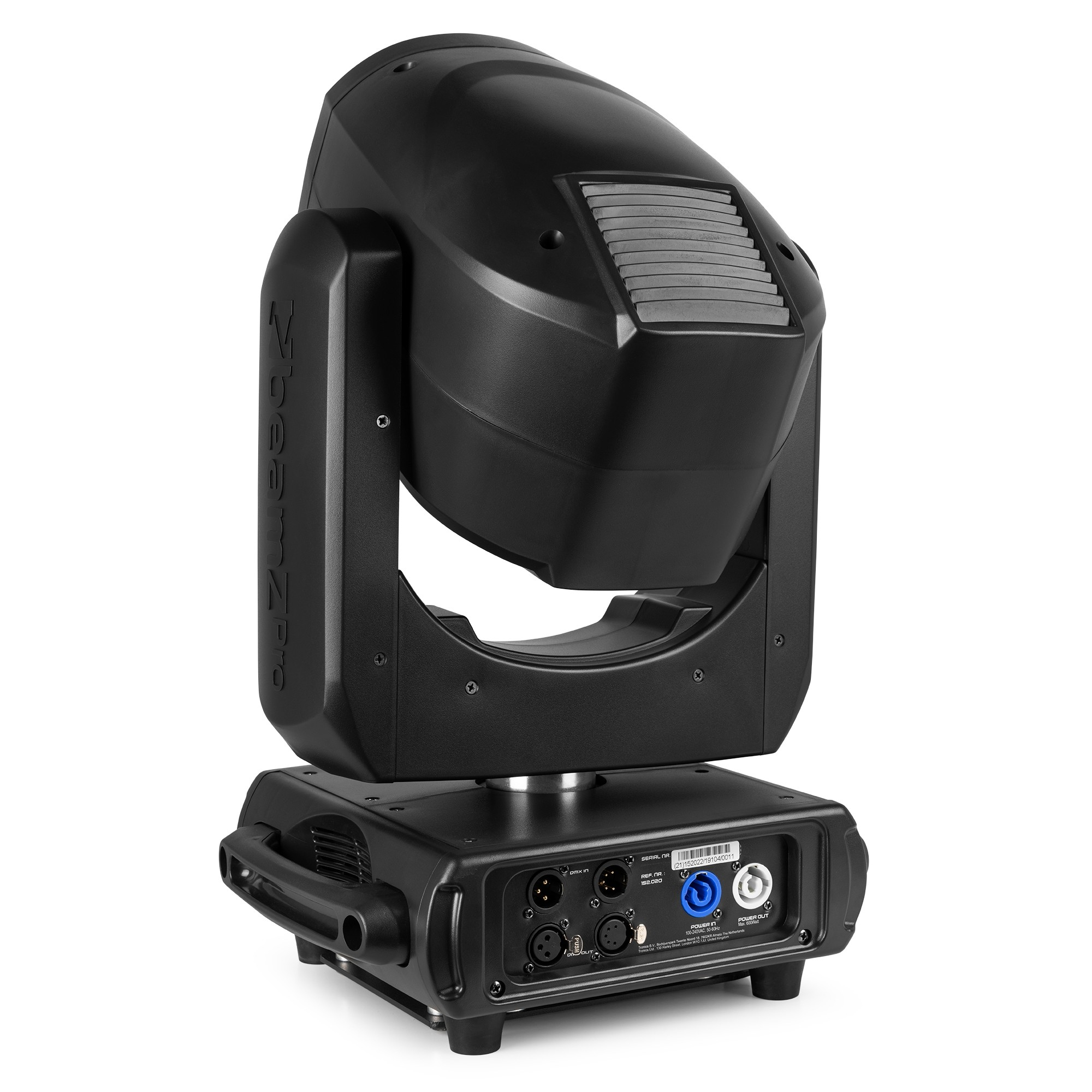

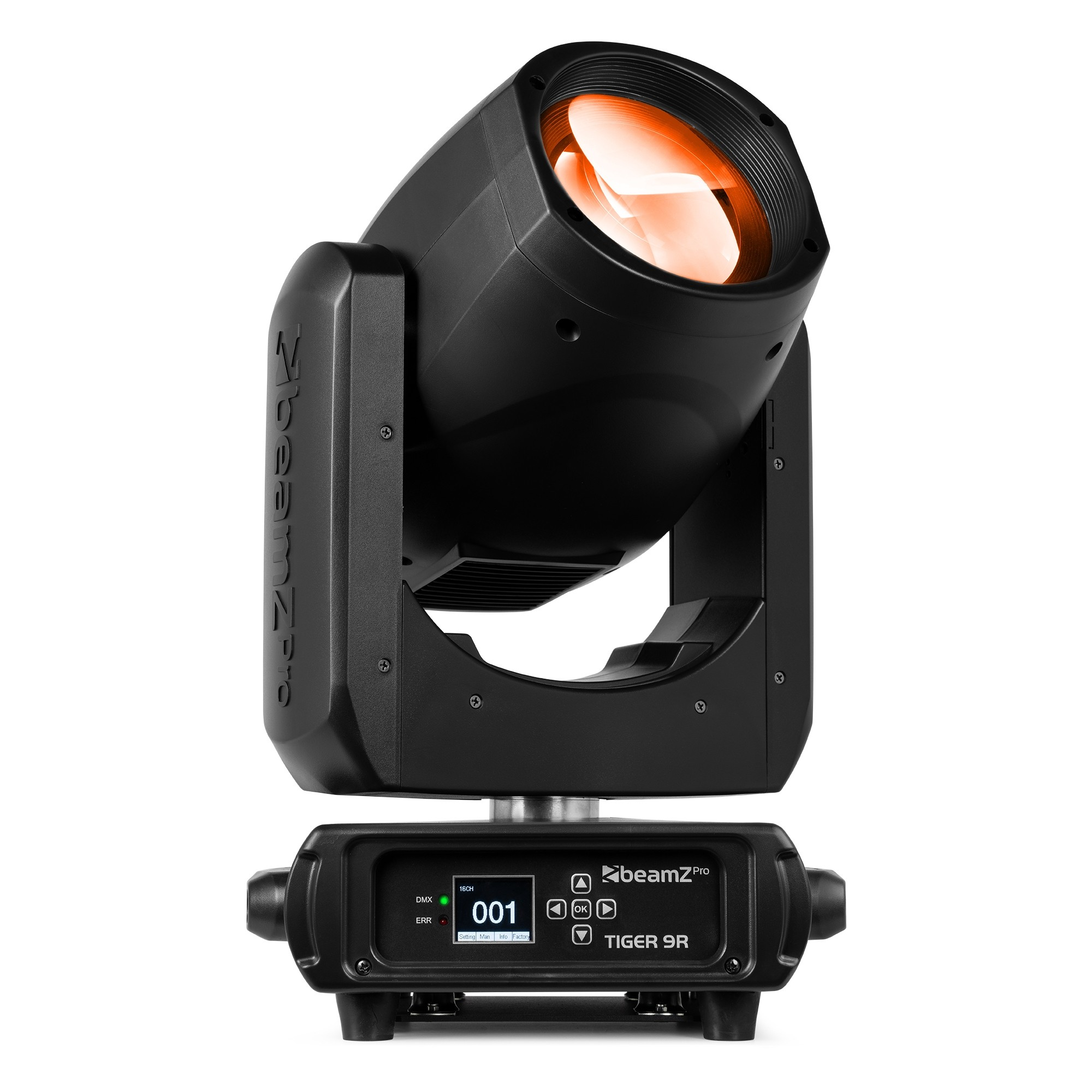

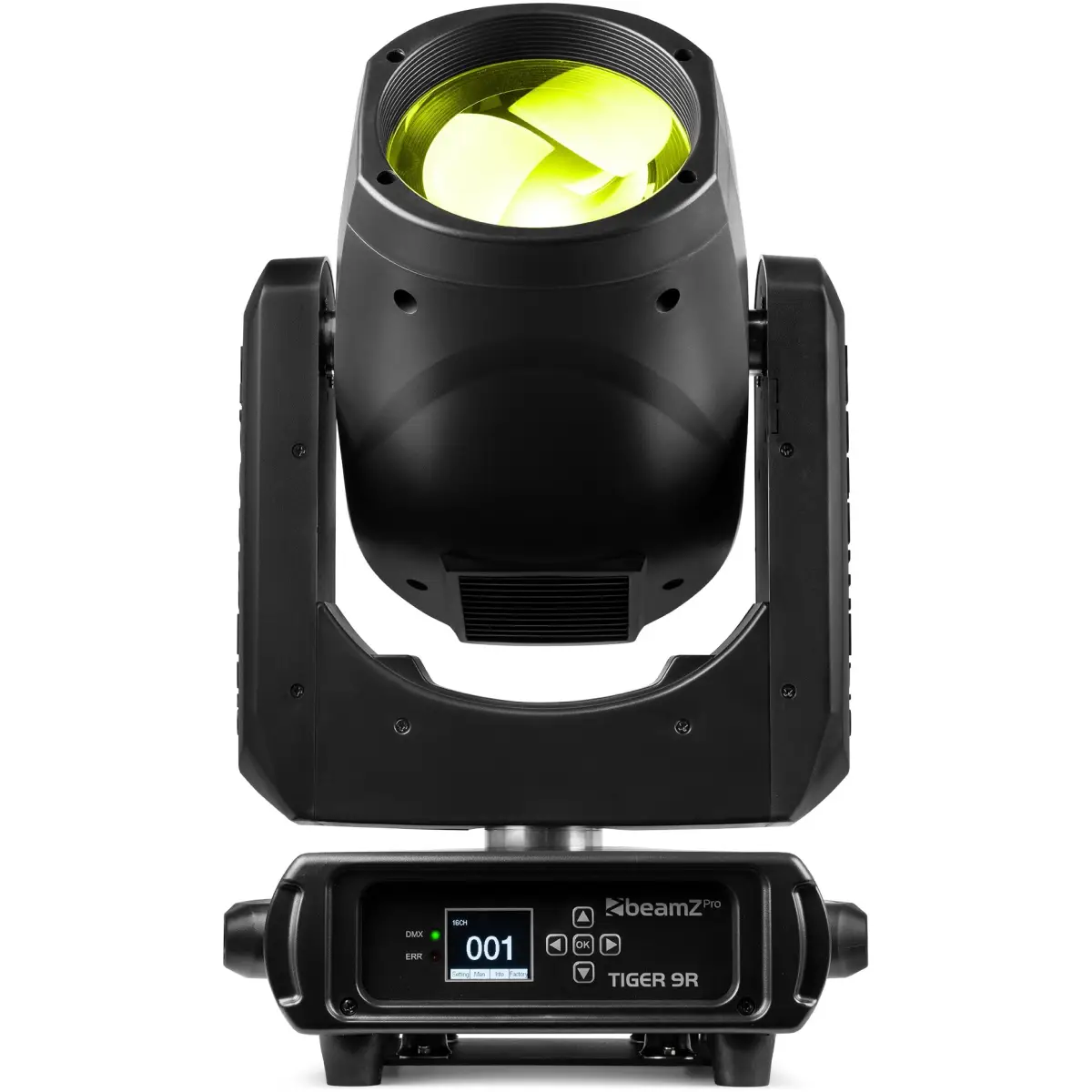

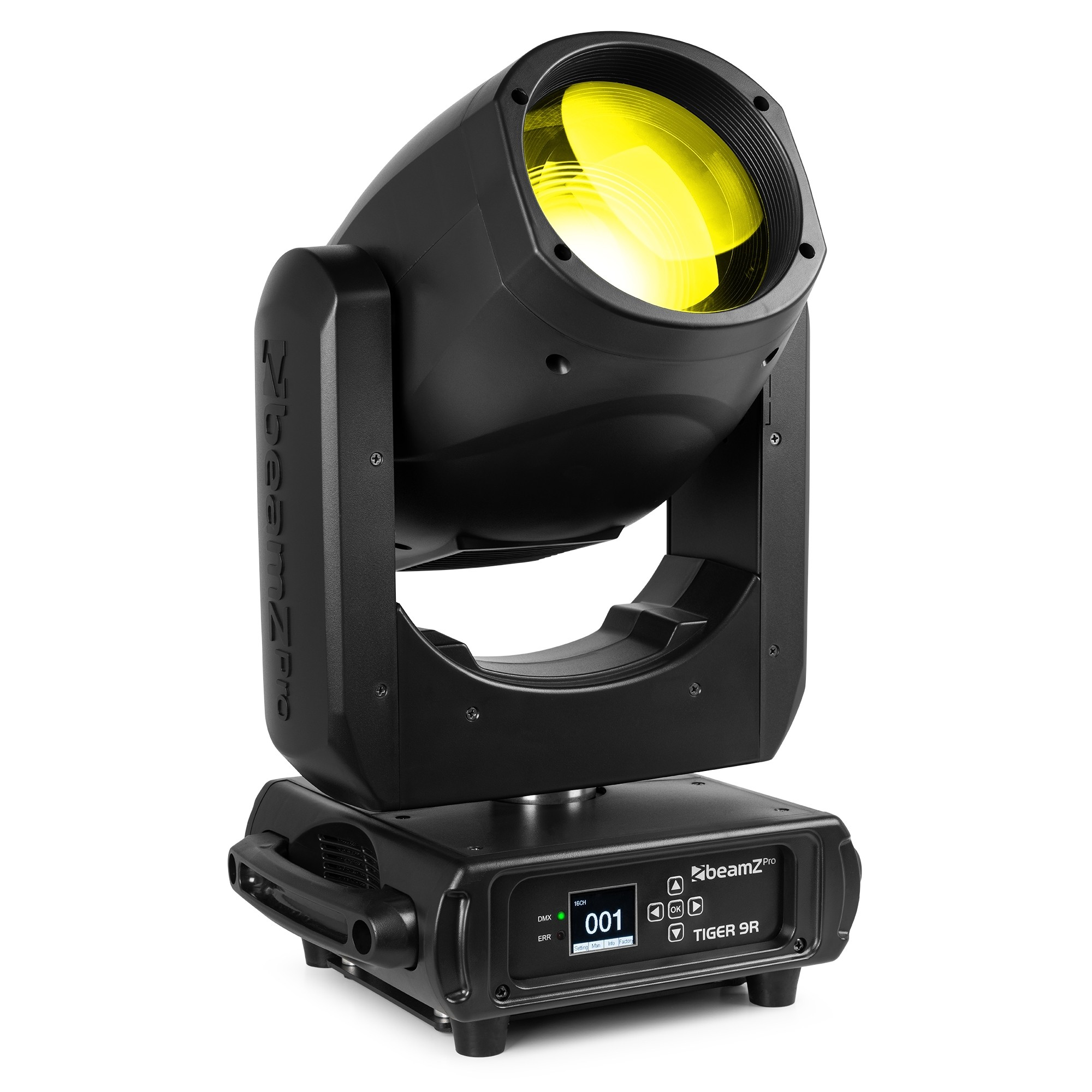

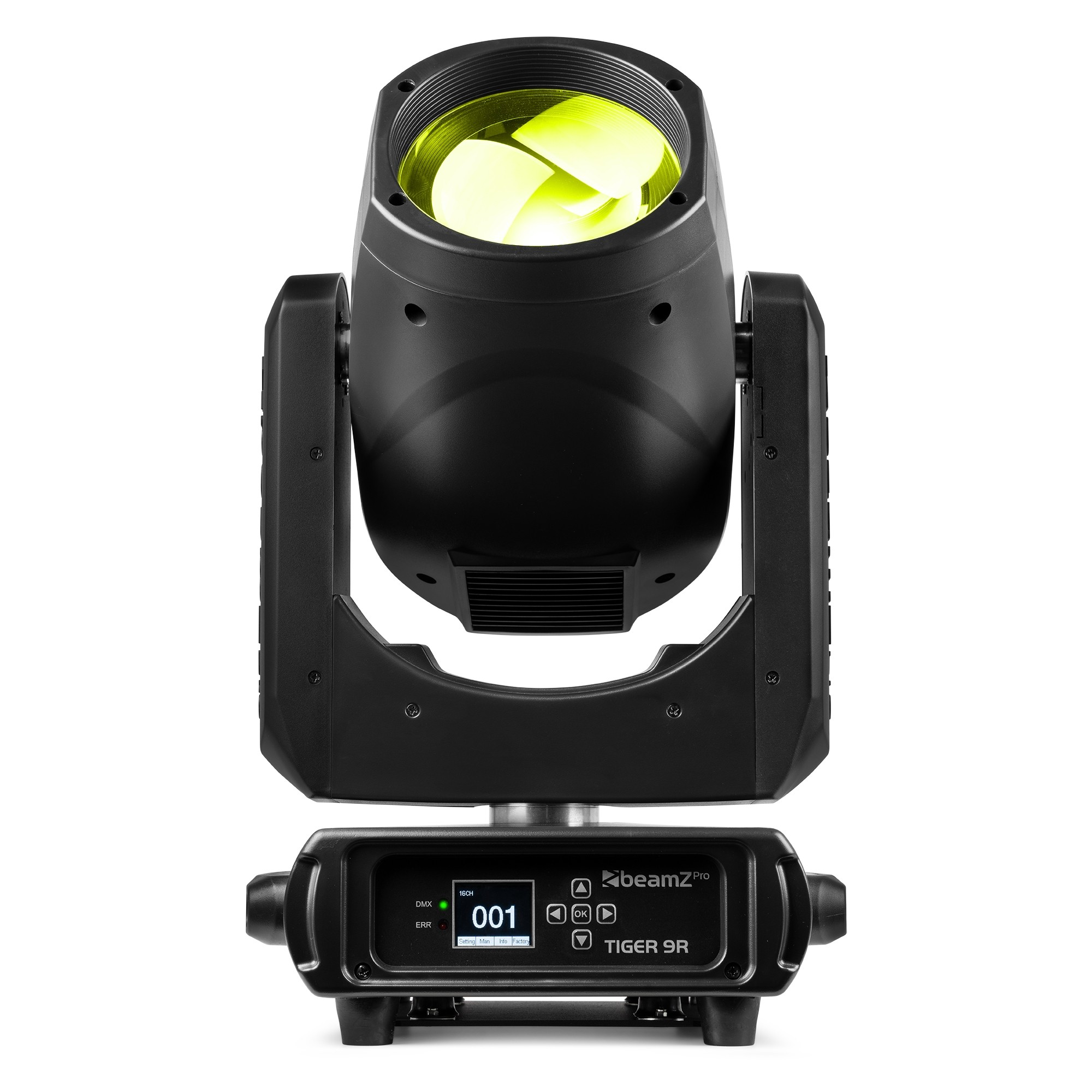

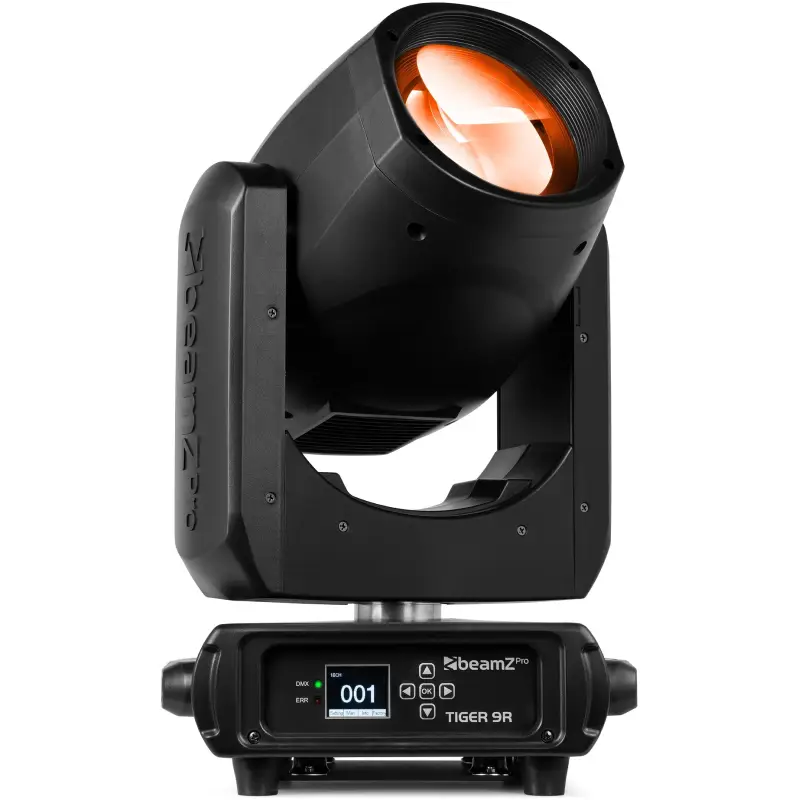

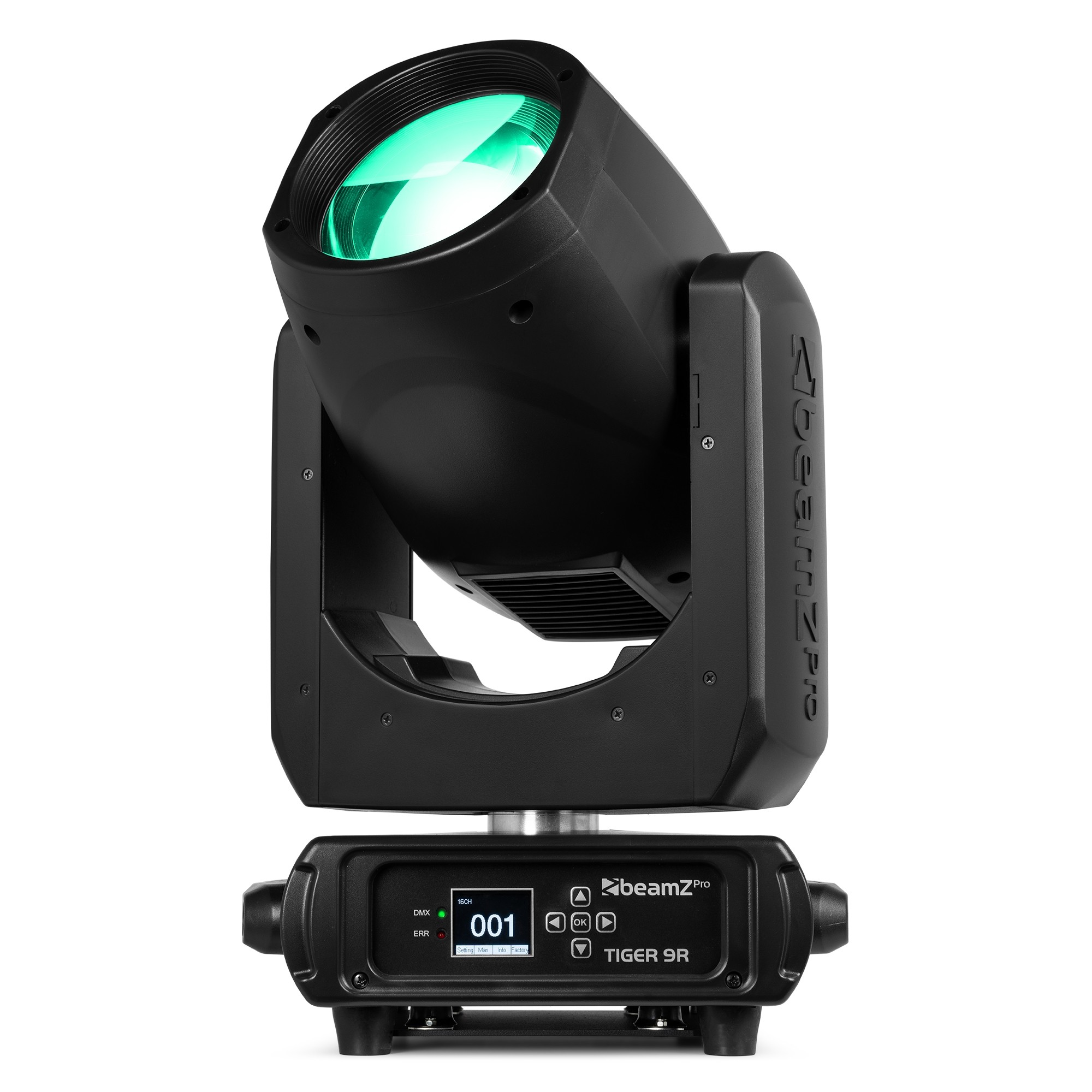

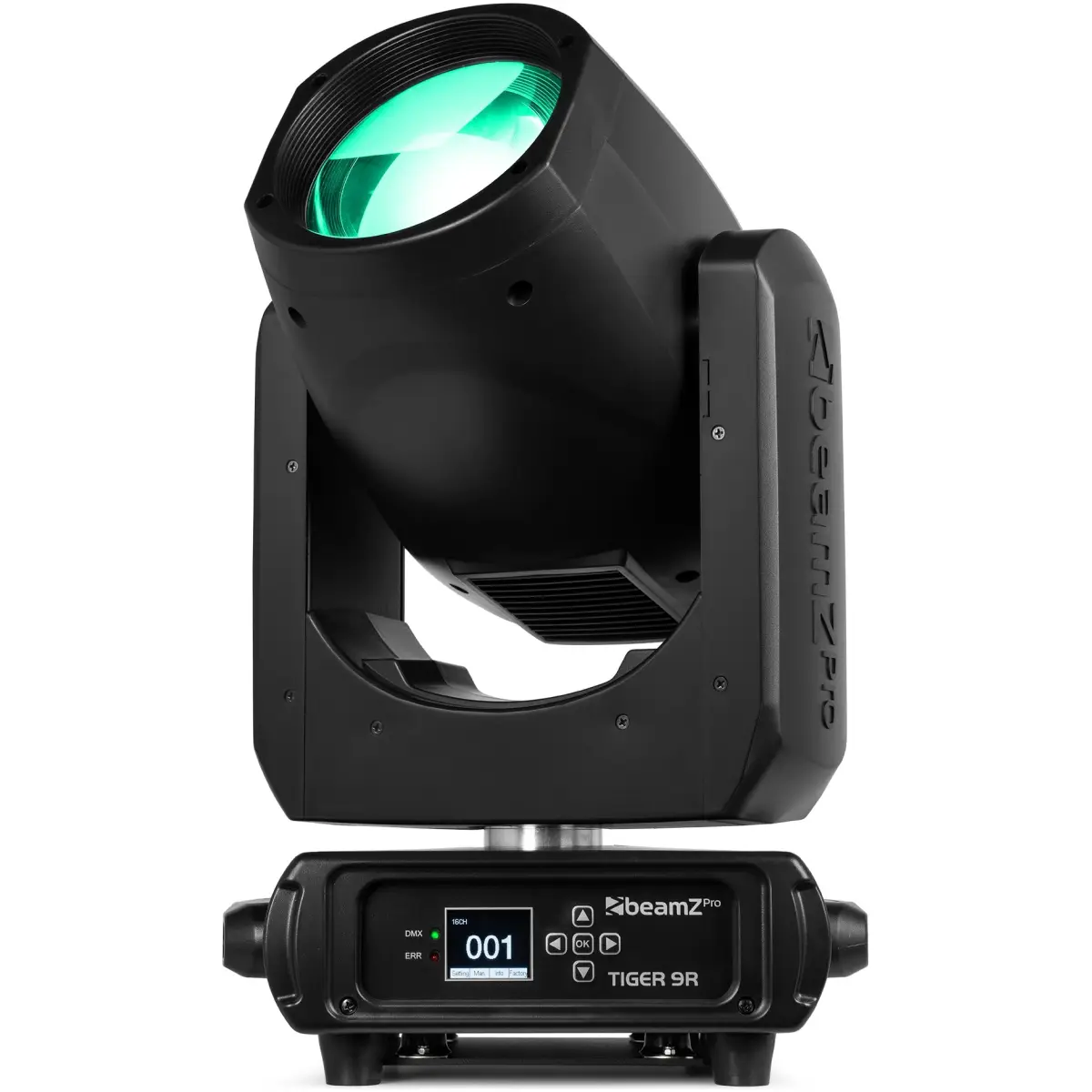

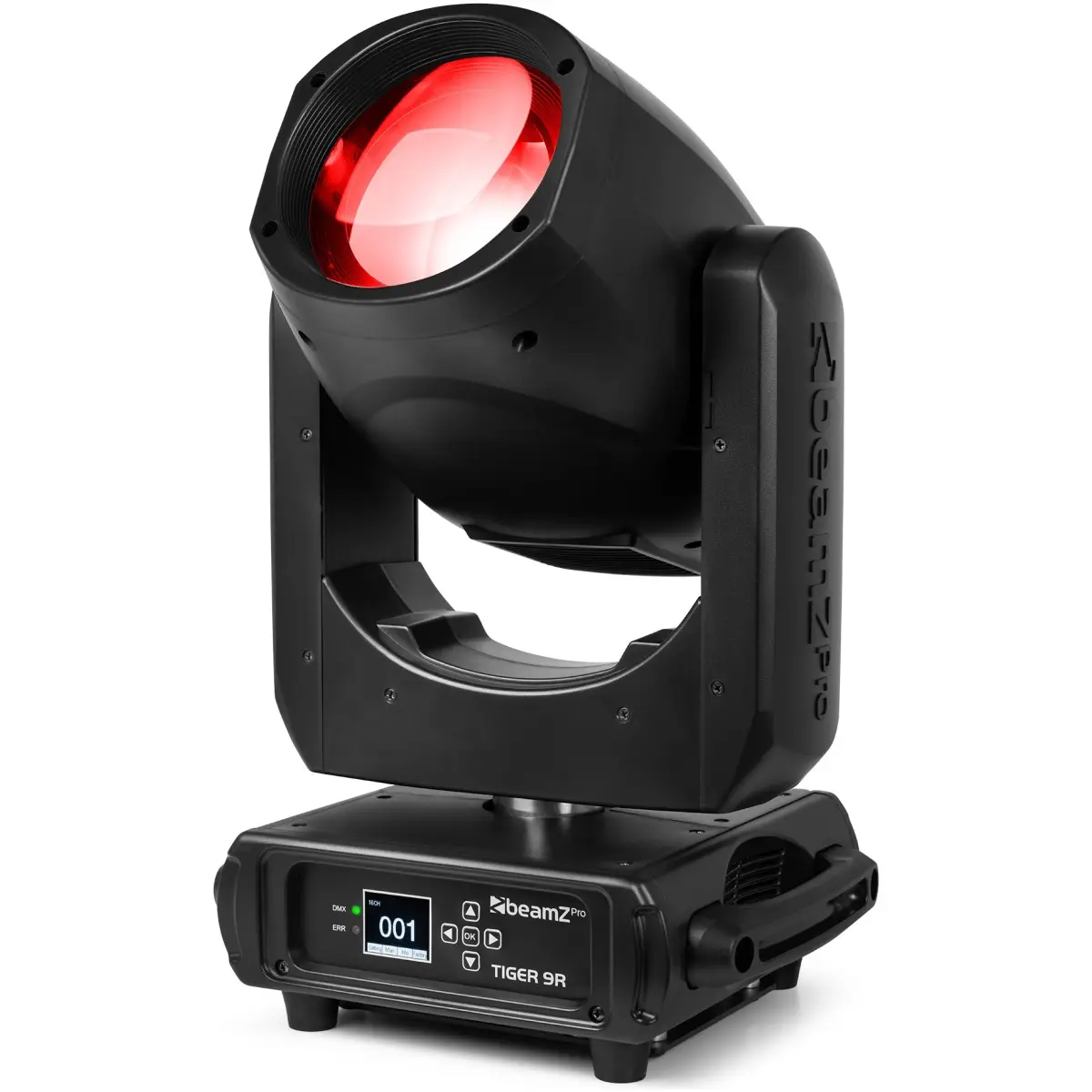

Beamzpro – Tiger 9R

The Tiger 9R is a powerful moving head that generates impressive light output with its 9R 260W high-intensity discharge lamp. This versatile moving head features a comprehensive range of effects, including colour mixing, a frost effect, various gobos and a prisms, giving users precise control over their lighting designs. The Tiger 9R includes a gobo wheel equipped with 14 patterns plus an open position and a colour wheel with 14 colours plus an open position, offering endless creative possibilities. The possibilities are further expanded by the motorized rotating prisms with 8 and 48 facets, allowing the creation of fascinating and dynamic light displays. Operating seamlessly in DMX or stand-alone mode, the Tiger 9R offers flexibility in set-up and operation. Designed for simplicity and ease of use!

Features:

• 260W 9R High Intensity discharge bulb
• 14 Gobos + open beam
• 14 Colours + open
• Gobo shake effect
• Frost effect lens
• Rotatable 7 facet prism
• Rotatable 48 facet prism
• Motorized focus
• Mechanical shutter and adjustable speed strobe effect
• Mechanical dimmer
• DMX and Stand-alone mode
• Automatic pan/tilt correction

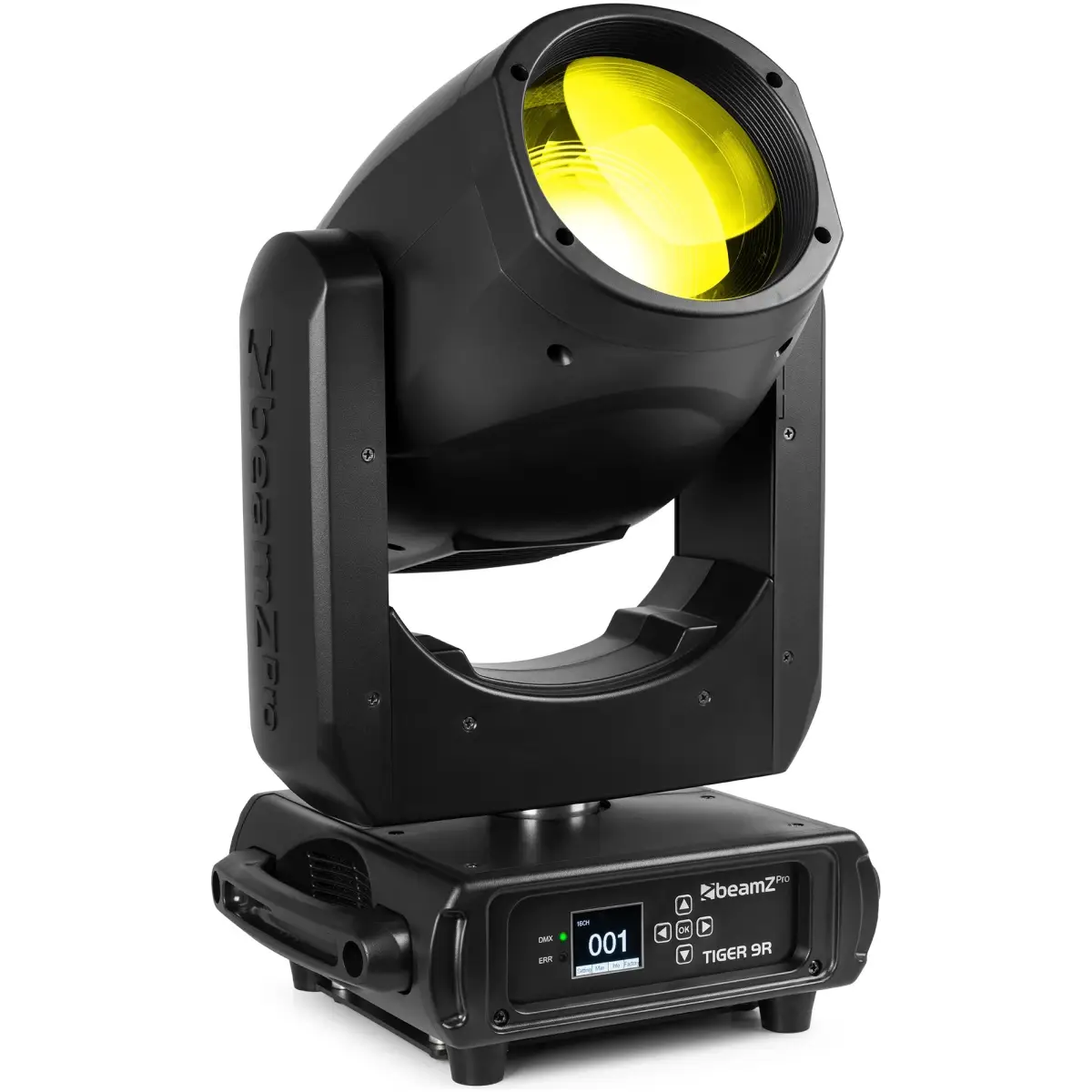

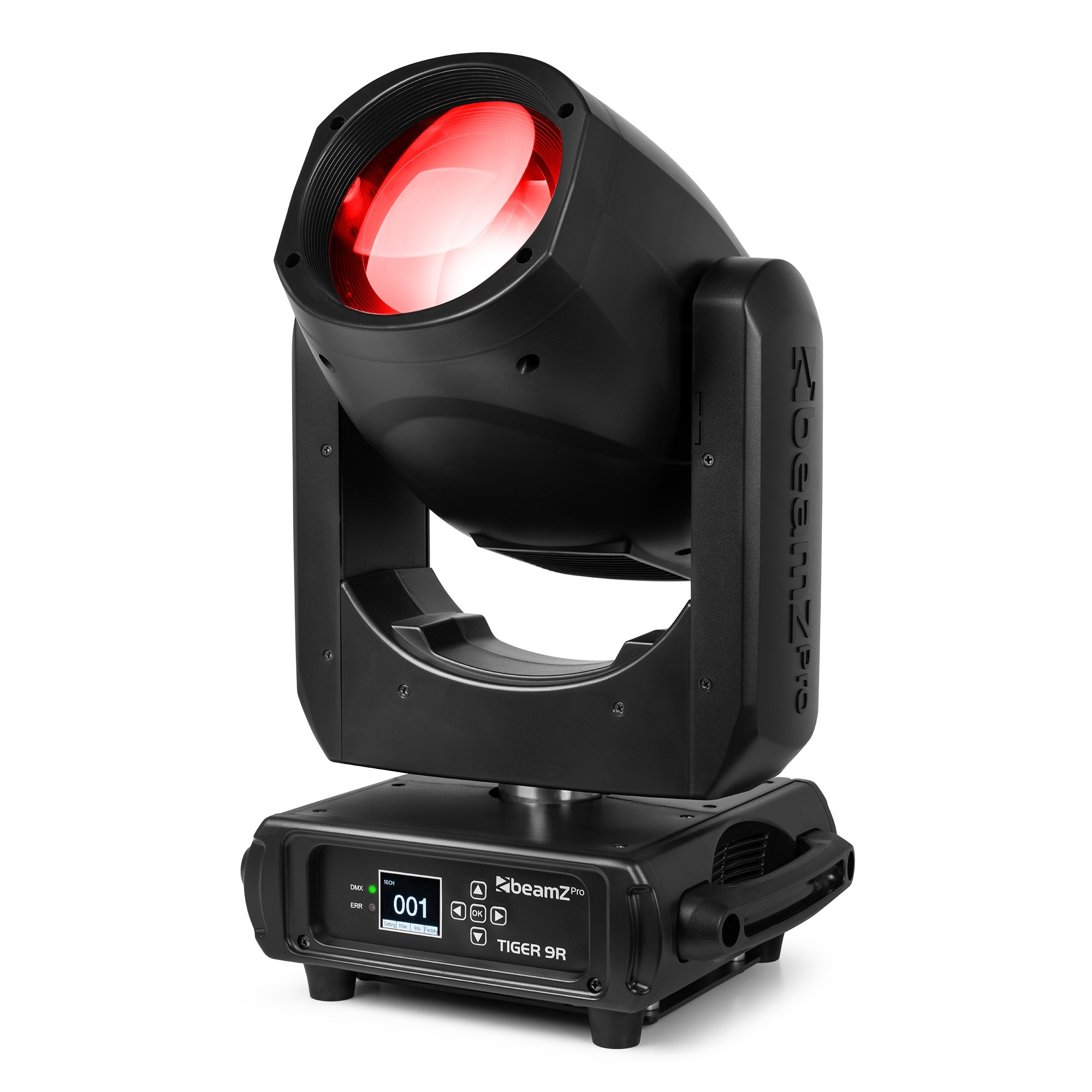

• Control panel with LCD display

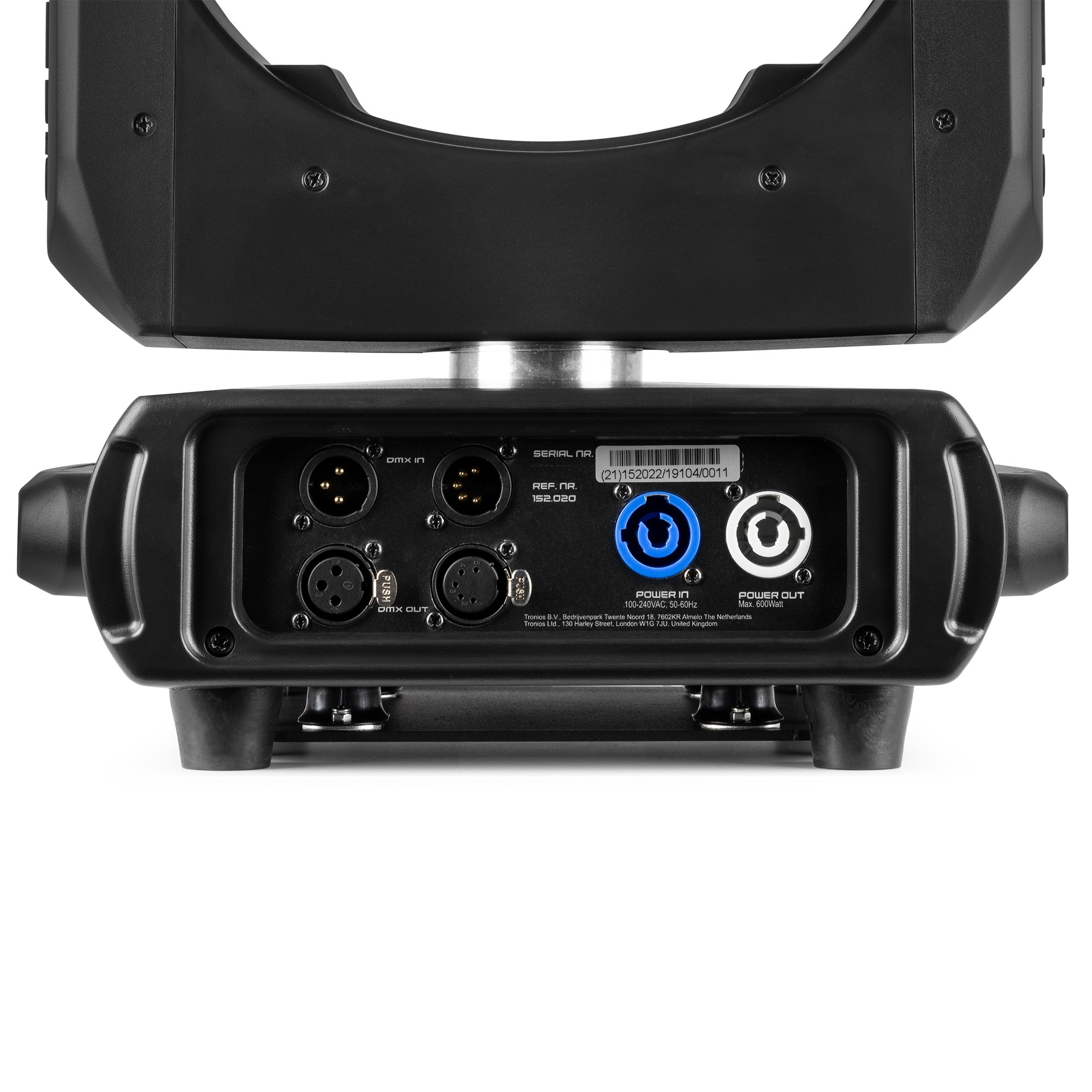

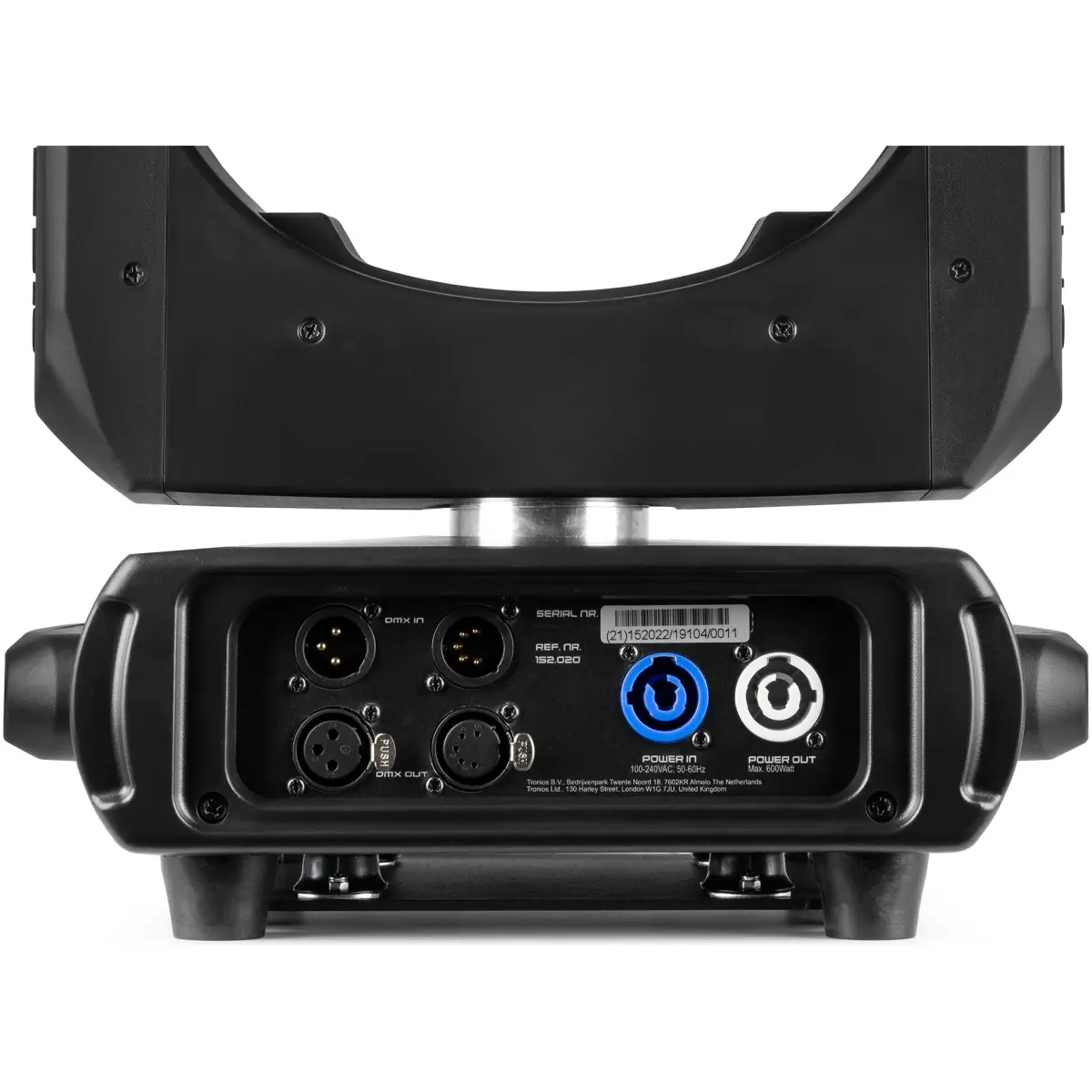

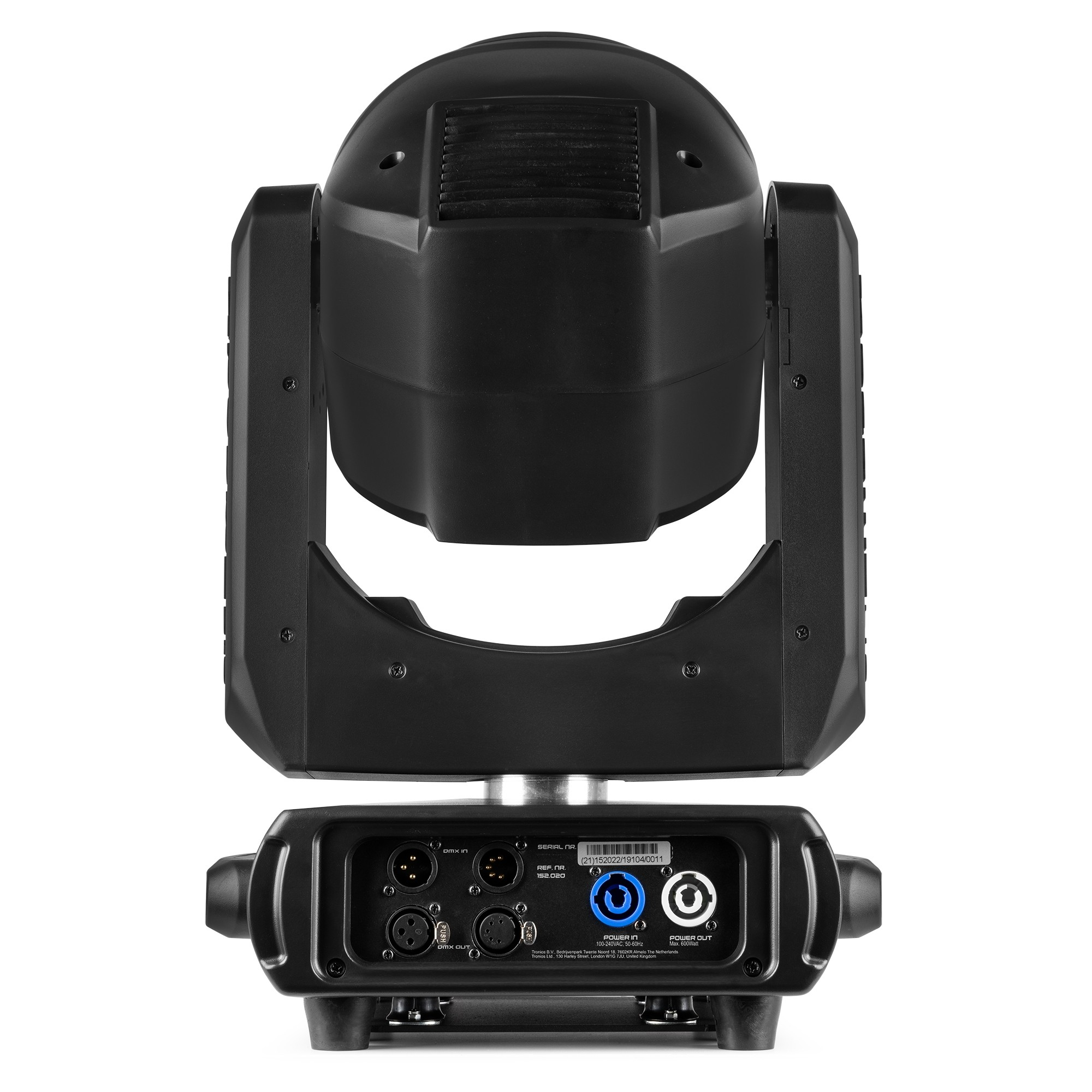

• DMX in/output via 3/5-pin XLR
• P-Con input/output (cable included)
• Quick lock omega clamp included

Specifications:

• Colour: temperature 8000K
• Light source: MSD 9R 260W bulb
• Colour wheel: 14 colours + open
• Beam angle: 1°
• Illuminance: 208.973 lx @ 7m
• Head movement: Pan: 540°
• Head movement: Tilt: 180°
• Static gobo: Quantity: 14
• Gobo shake: Yes
• Prisma: 1 8 Facet
• Prisma: 2 48 Facet
• Frost filter: Yes
• Flash rate per second: 0 – 10Hz
• Modes: Automatic programs, DMX, Manual, Master/Slave
• Sound to light mode: Yes
• DMX channels: 16, 20
• DMX connection: 3-pin XLR, 5-pin XLR
• Display: LCD
• IP rating: IP20
• Cooling: Temperature controlled fan
• Power plug: P-Con
• Power consumption: 3.150 – 1.628A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 310 x 250 x 510mm
• Weight (kg): 13.65
• Included accessories: Mounting bracket, Power cable
