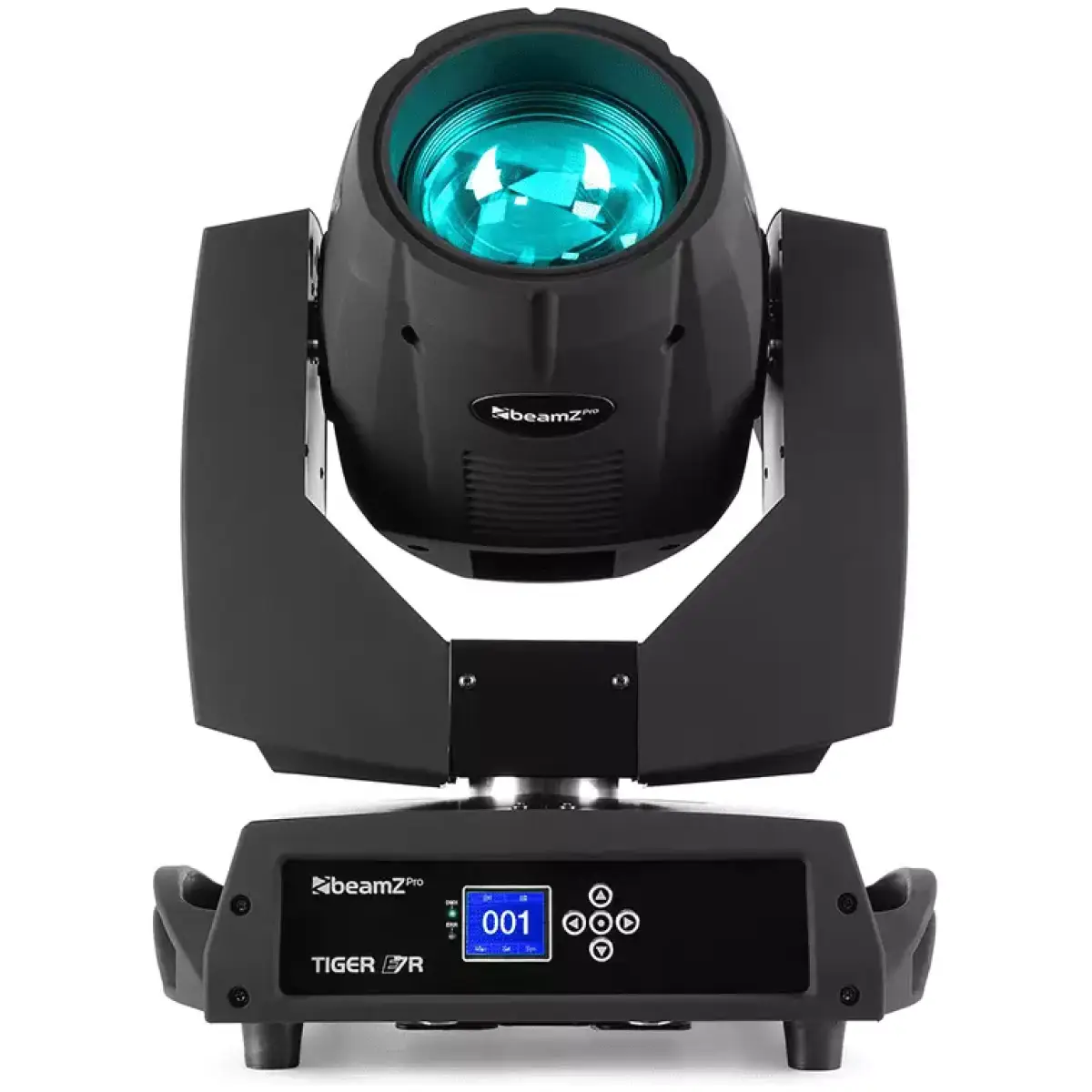

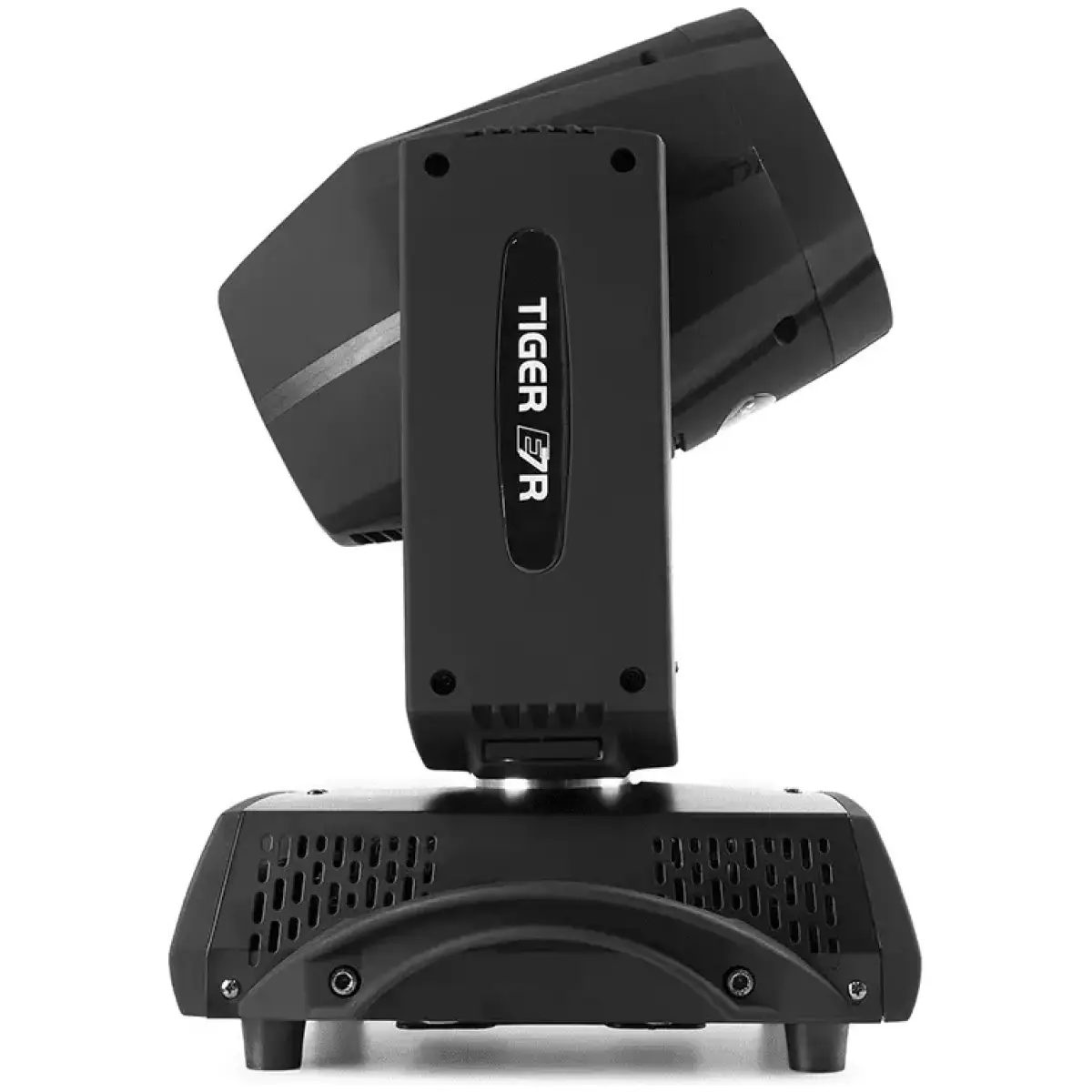

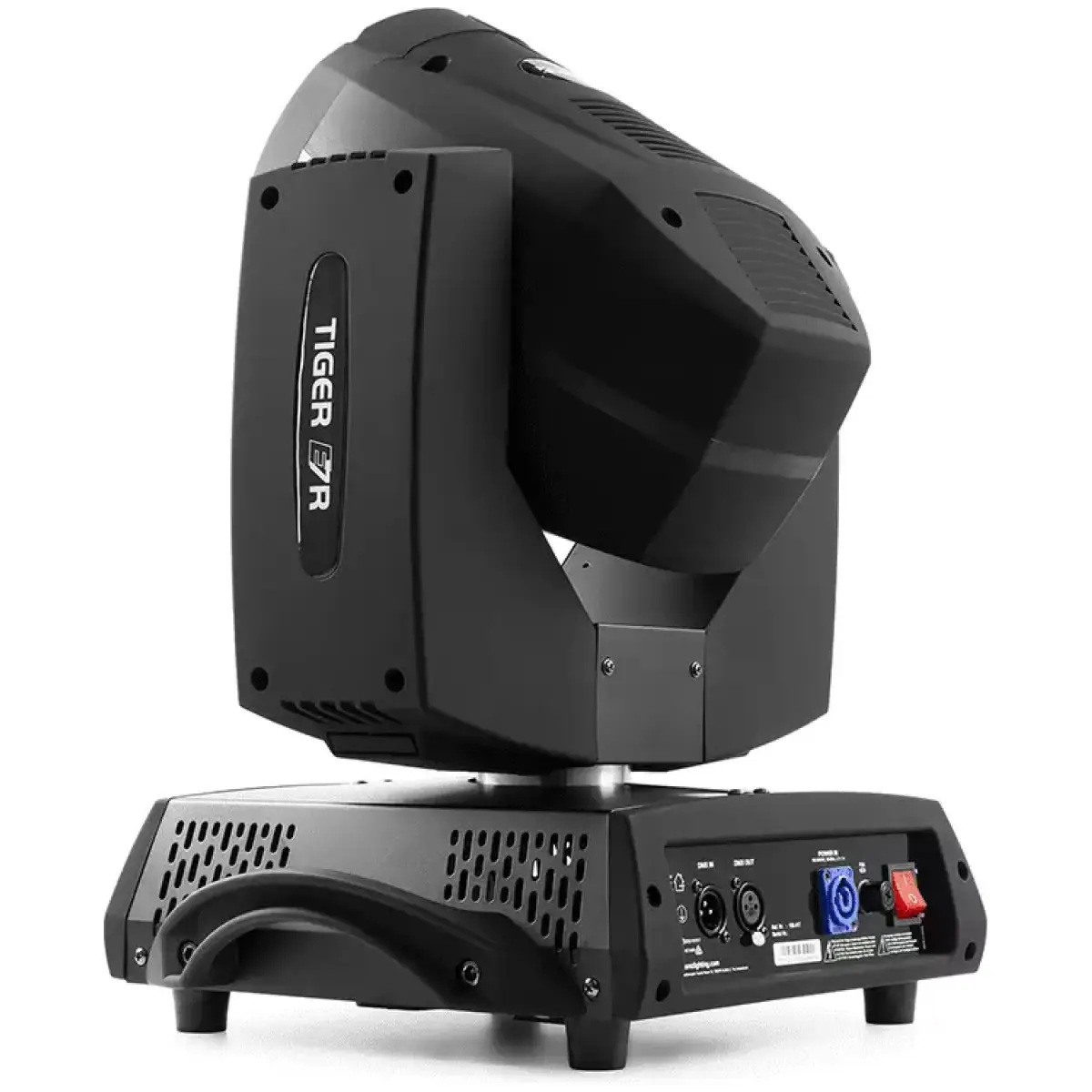

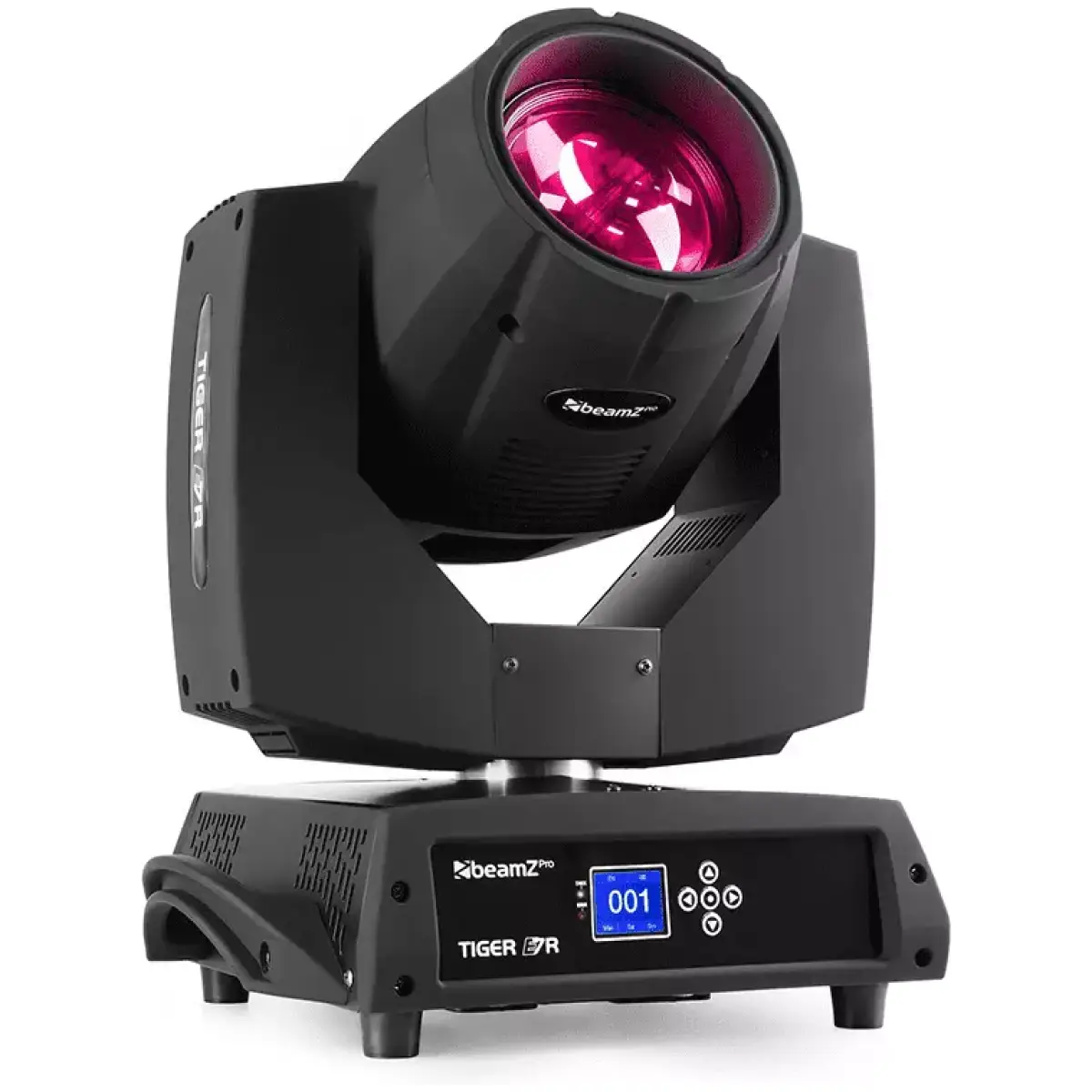

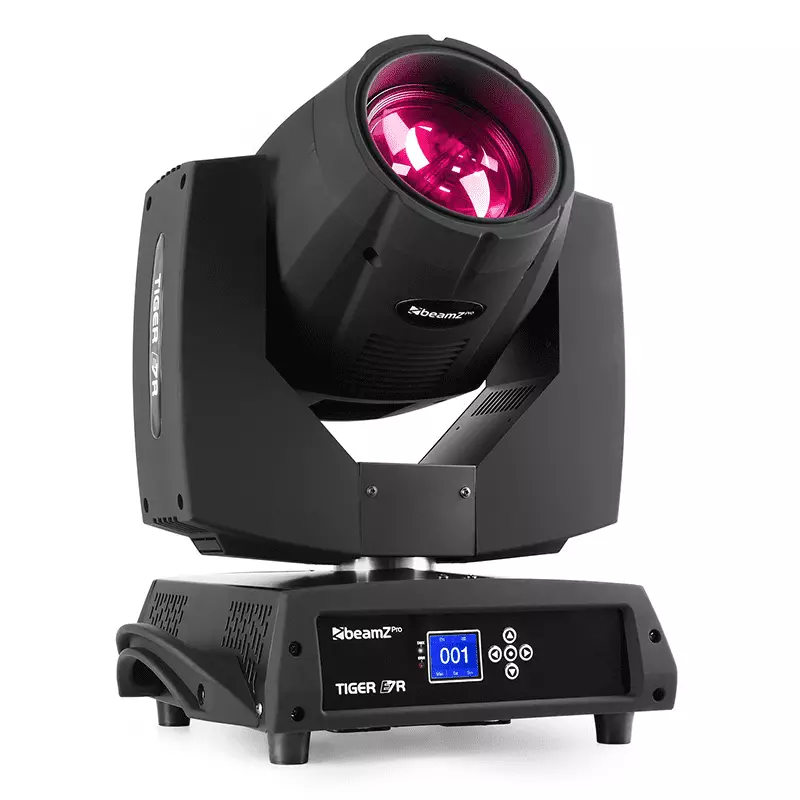

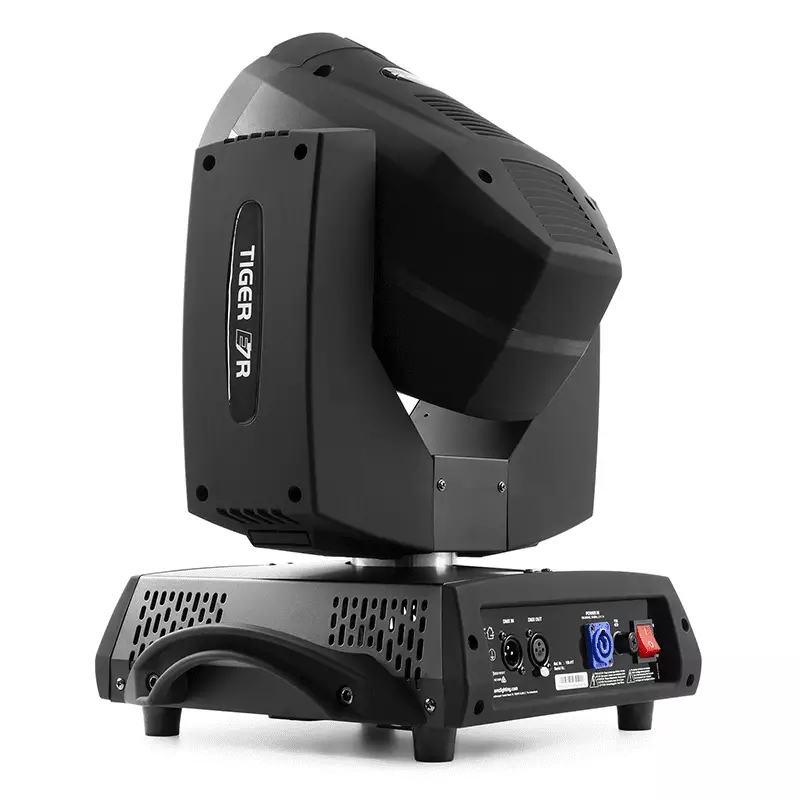

Beamzpro – Tiger E7R Mkiii

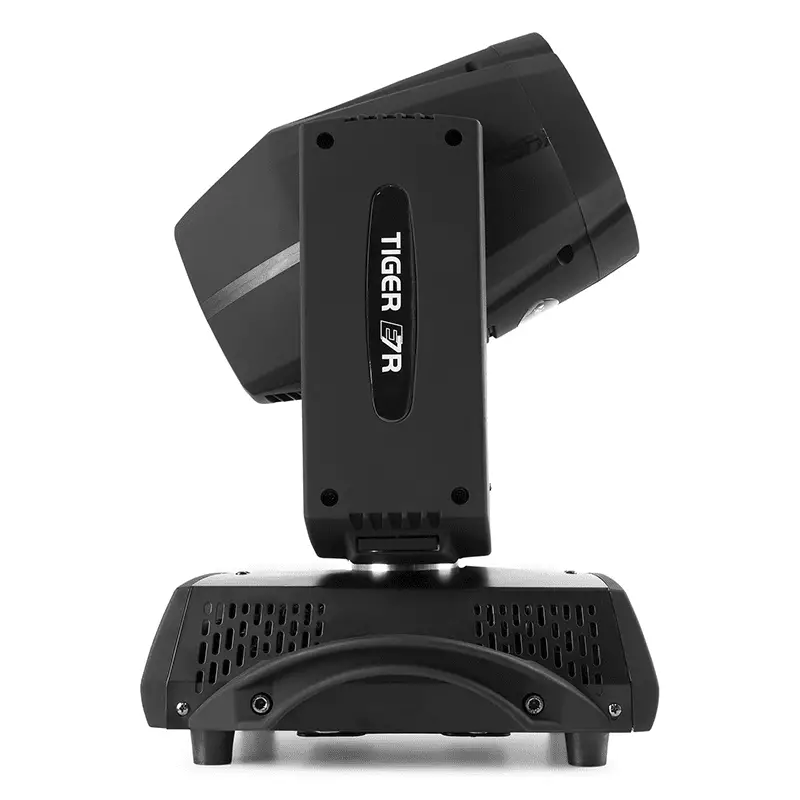

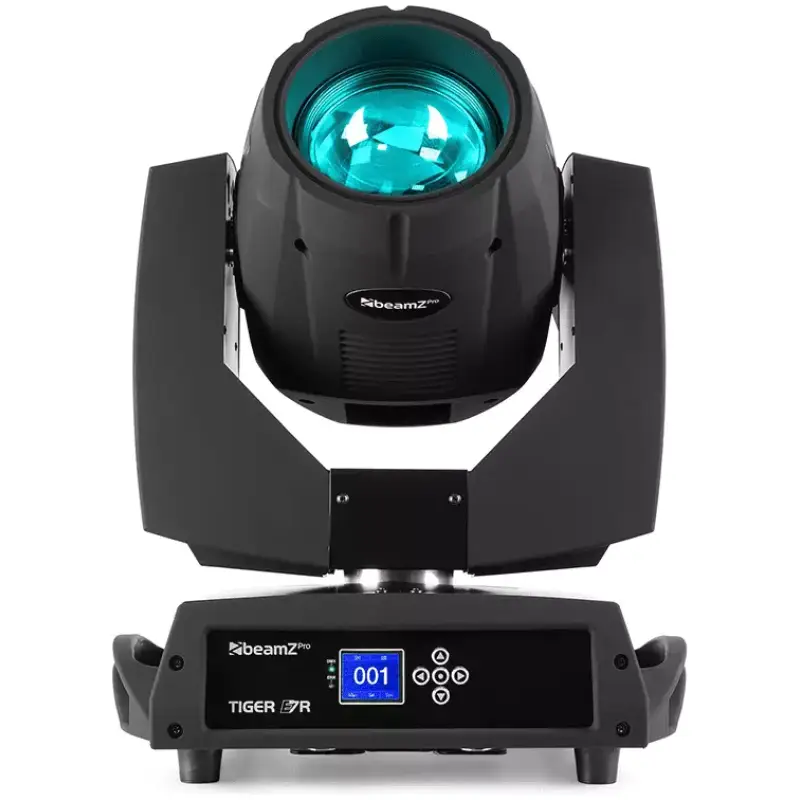

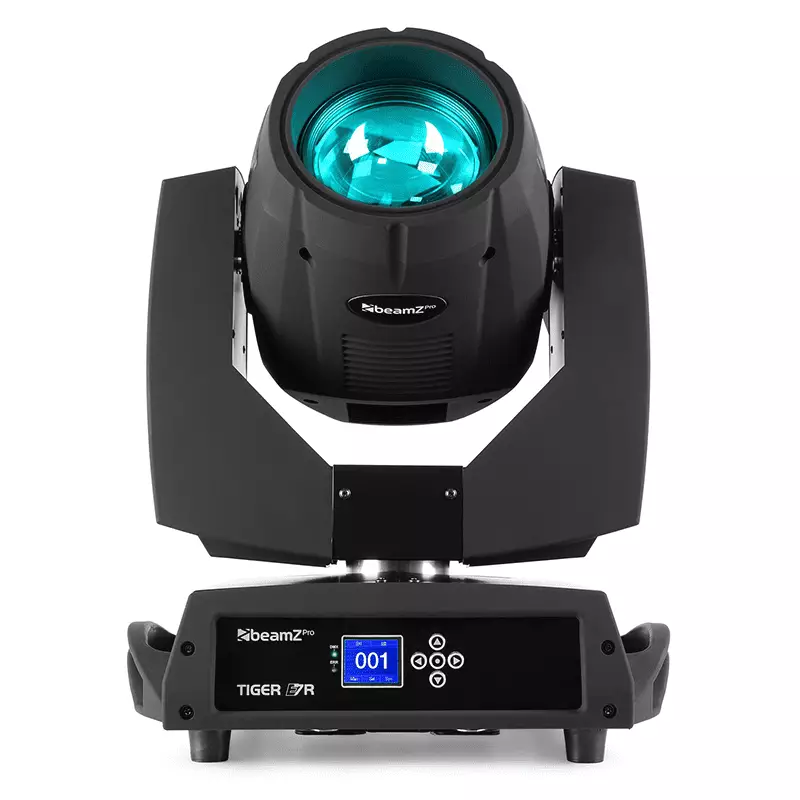

The Tiger E 7R moving head MKIII has a very bright output due to the use of the 7R 230W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 17 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized 16-facet rotating prism it can create a wide range of spectacular light effects. The Tiger E 7R moving head MKIII works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 15 or 19 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.

Features:

• 230W 7R High Intensity discharge bulb (included)
• Beam angle 1°
• 17 Gobos + open beam
• 14 Colours + open
• Gobo shake effect
• Frost effect lens
• Rotatable 16 facet prism
• Motorized focus
• Mechanical shutter and adjustable speed strobe effect
• Mechanical dimmer
• 15 or 19 DMX channels
• DMX and Stand-alone mode
• Automatic pan/tilt correction
• Reset function
• Control panel with LCD display

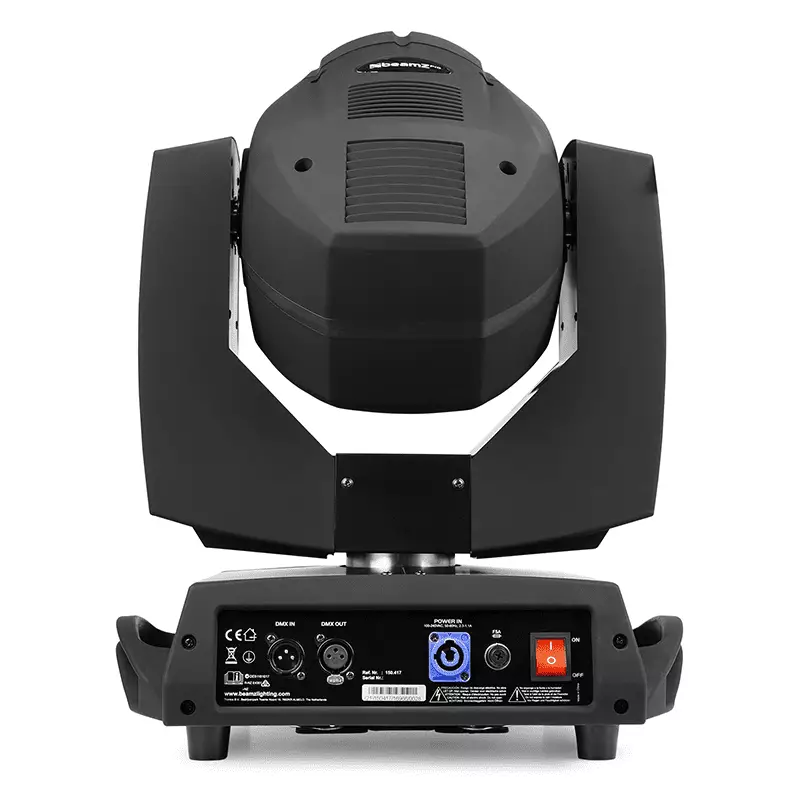

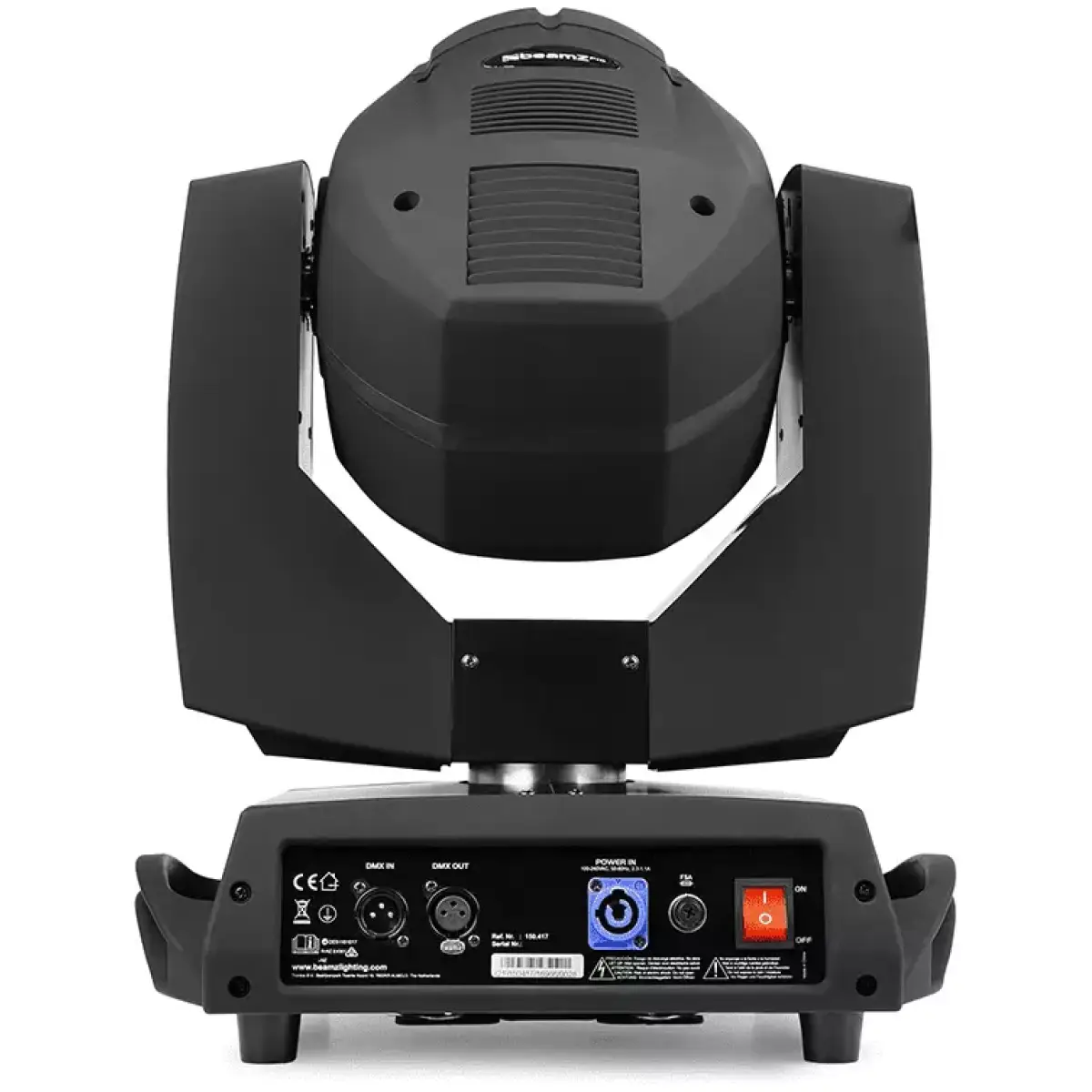

• DMX in/output via 3-pin XLR
• Powerconnector input

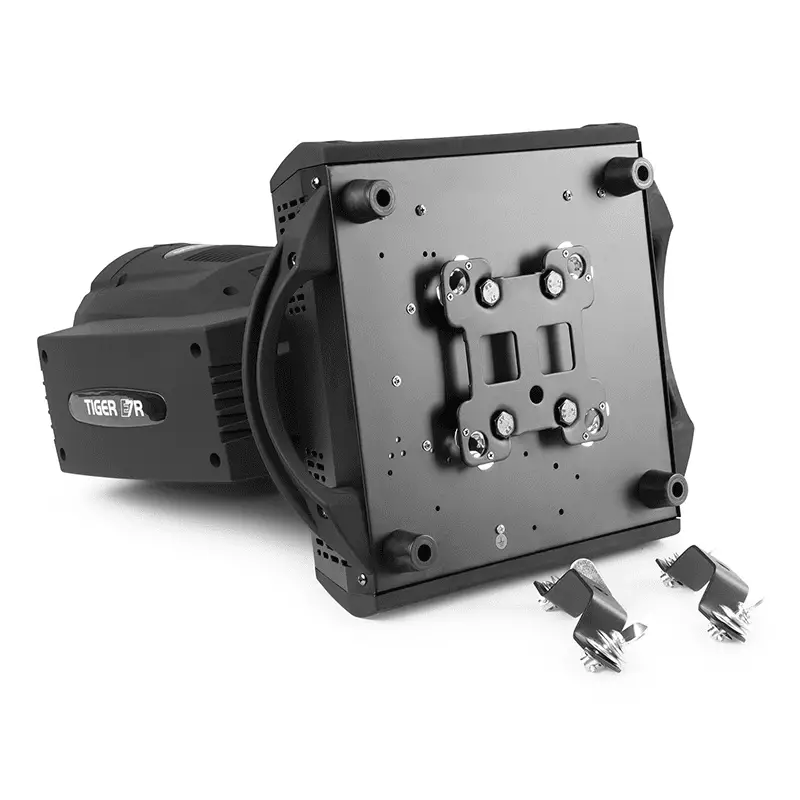

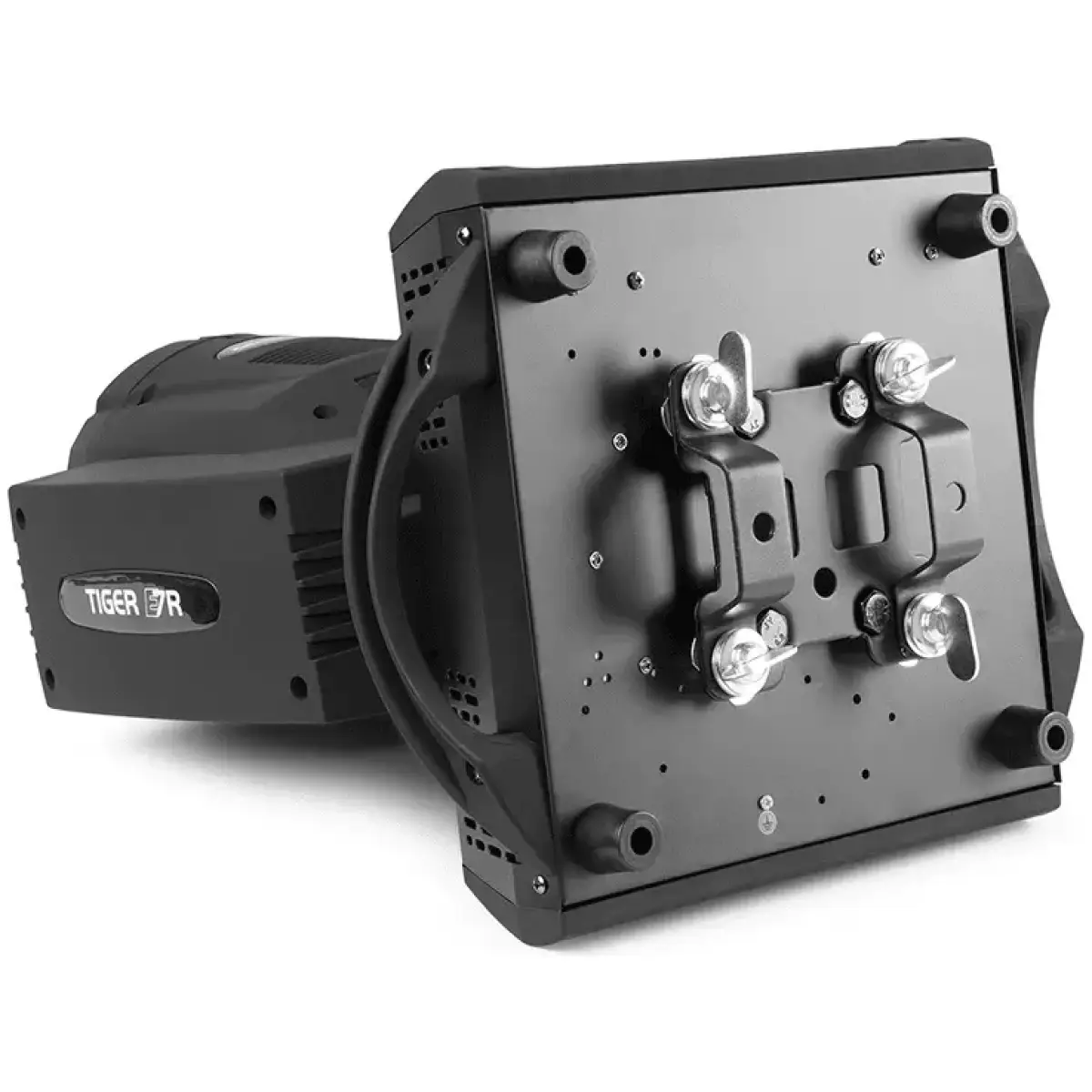

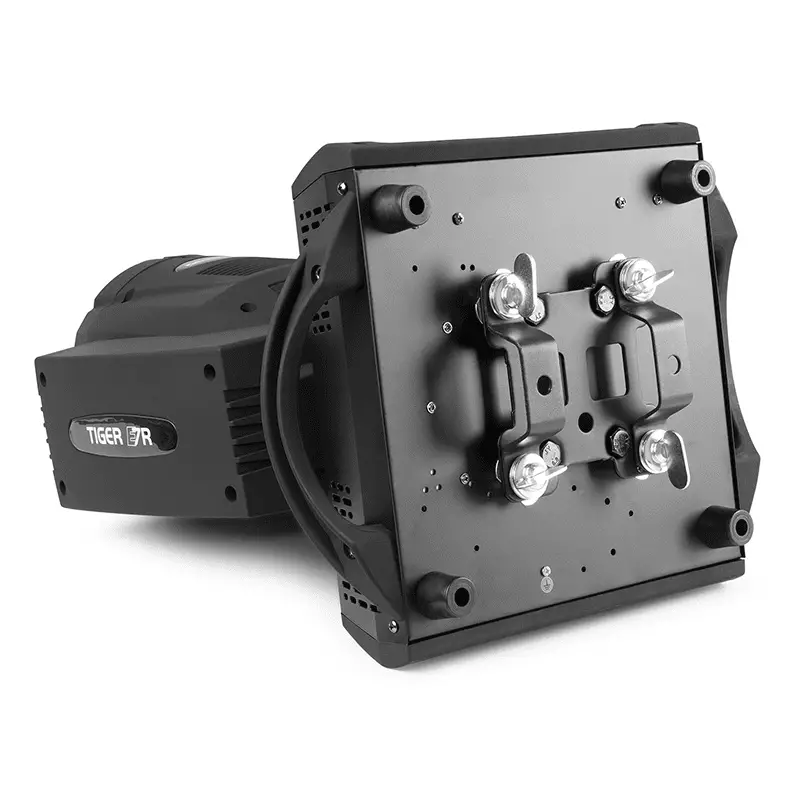

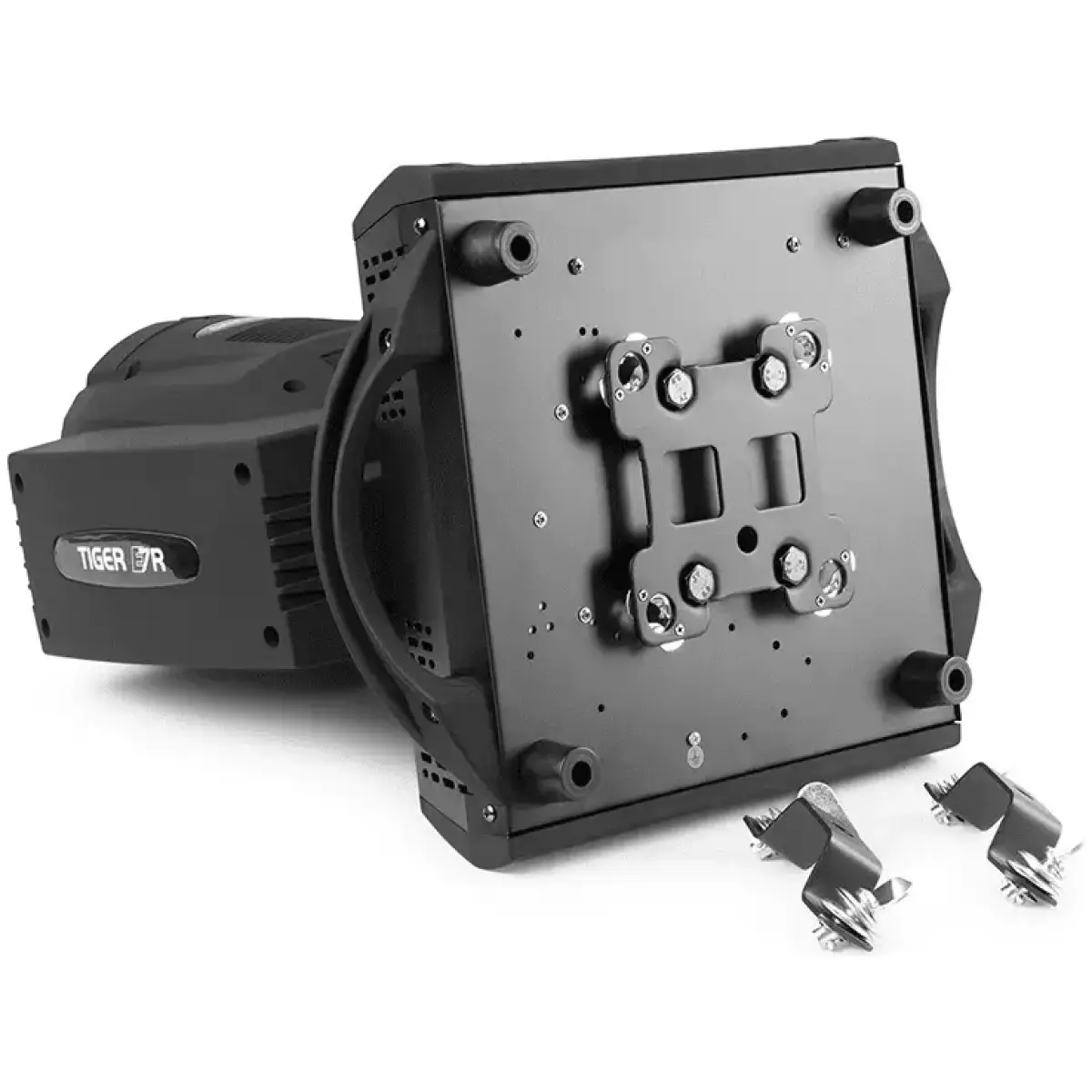

• Quick lock omega clamp included (2x)
• DMX cable included
• Powerconnector cable included

Specifications:

• Colour temperature: 8000K
• Light source: MSD 7R 230W bulb
• Colour wheel: 14 colours + open
• Beam angle: 1°
• Field angle: 3°
• Illuminance: 186.695 lx @ 7m
• Head movement: Pan 540
• Head movement: Tilt 180
• Static gobo: Quantity 17
• Gobo shake: Yes
• Prisma 1: 16 Facet
• Frost filter: Yes
• Flash rate per second 0 – 10Hz
• Modes: Automatic programs, DMX, Manual, Master/Slave
• Sound to light mode: Yes
• DMX channels: 15, 19
• DMX connection: 3-pin XLR
• Display: LCD
• IP rating: IP20
• Cooling: Temperature controlled fan
• Power plug: Power-connector
• Power consumption: 1.3 – 2.75A
• Power supply: 100-240VAC 50/60Hz
• Dimensions: (L x W x H) 325 x 395 x 515mm
• Weight (kg): 16.55

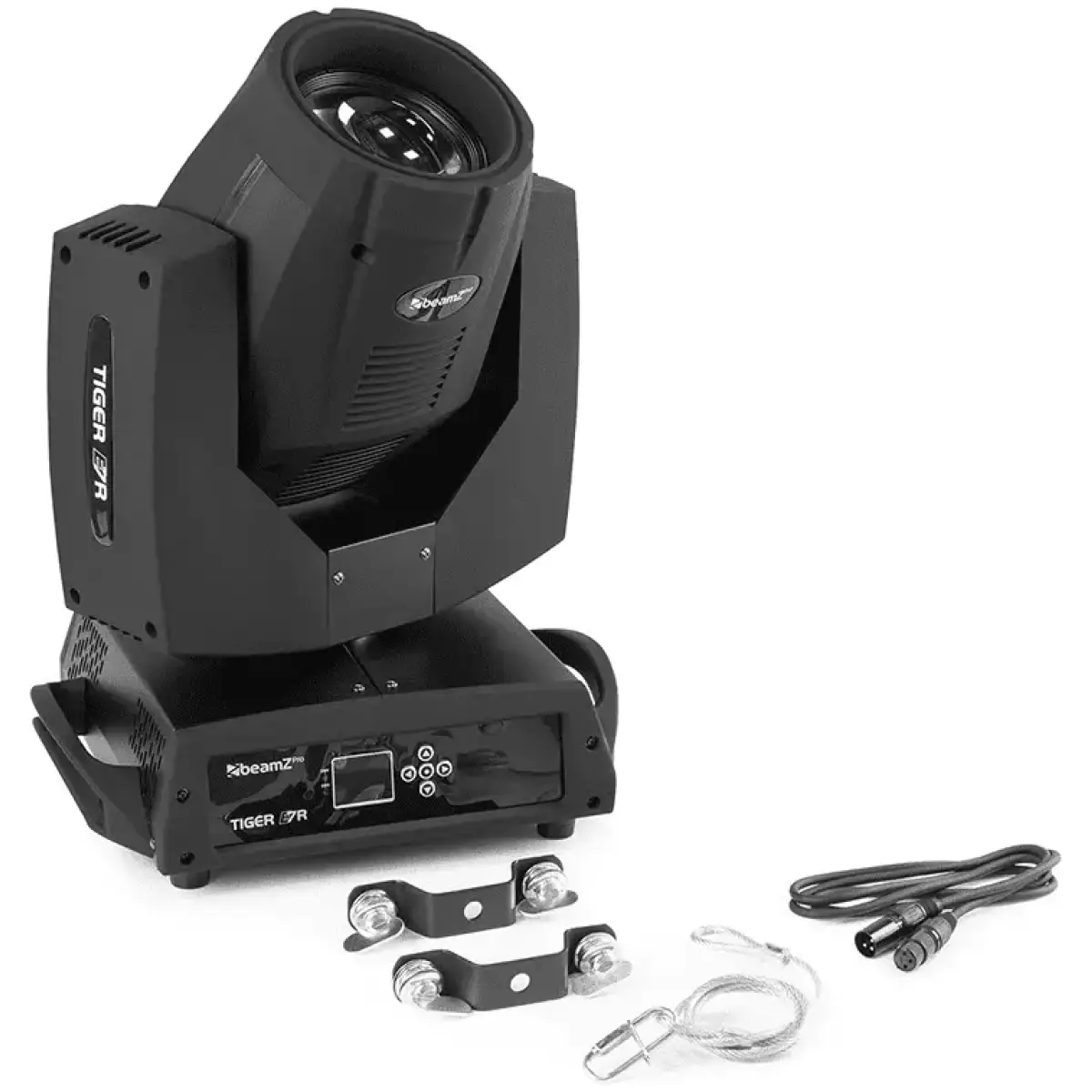

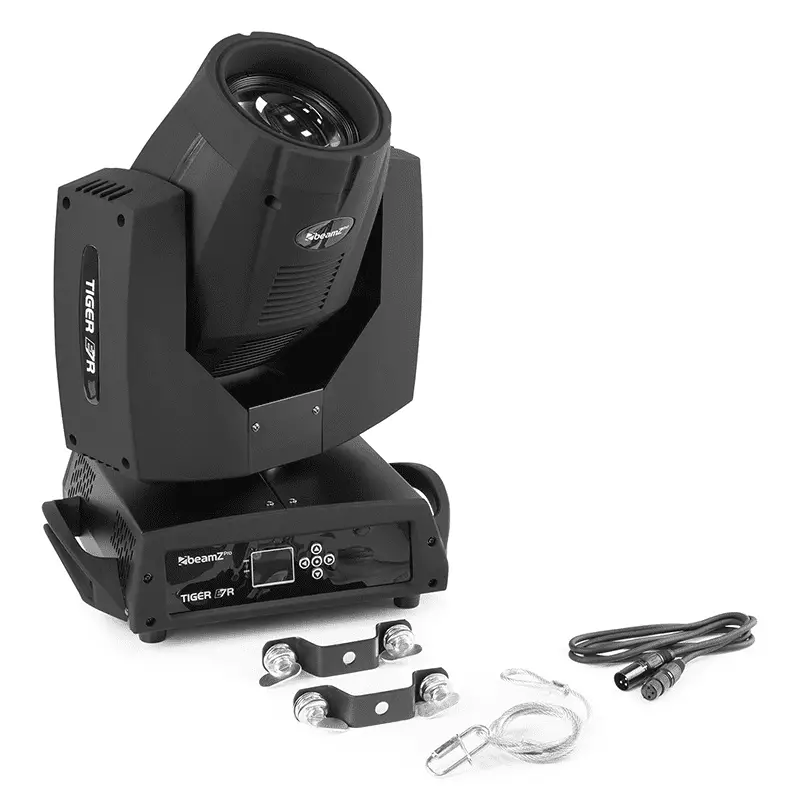

• Included accessories: Mounting bracket, Power cable, DMX cable
