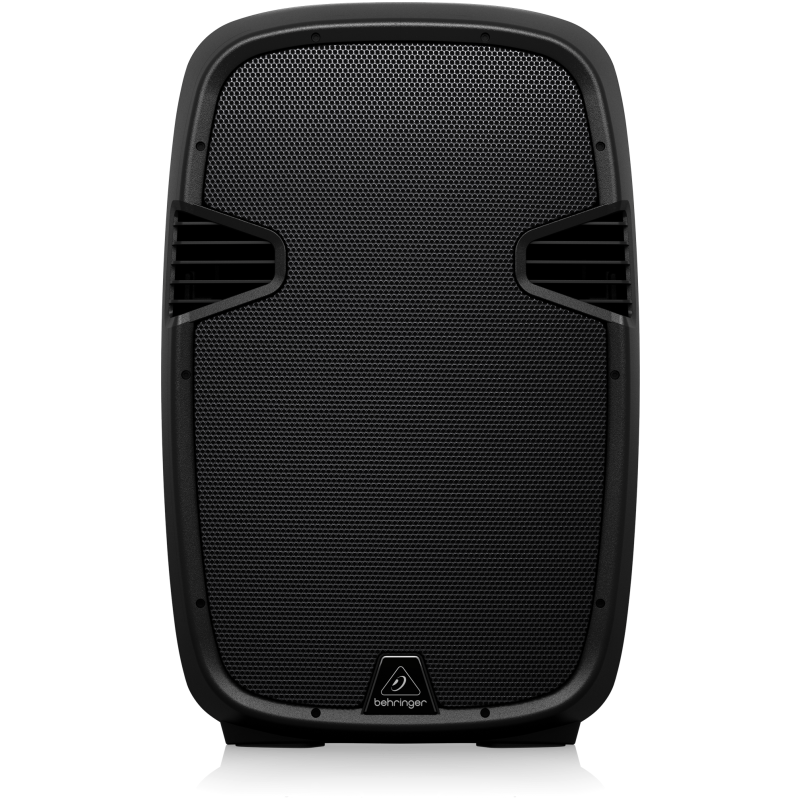

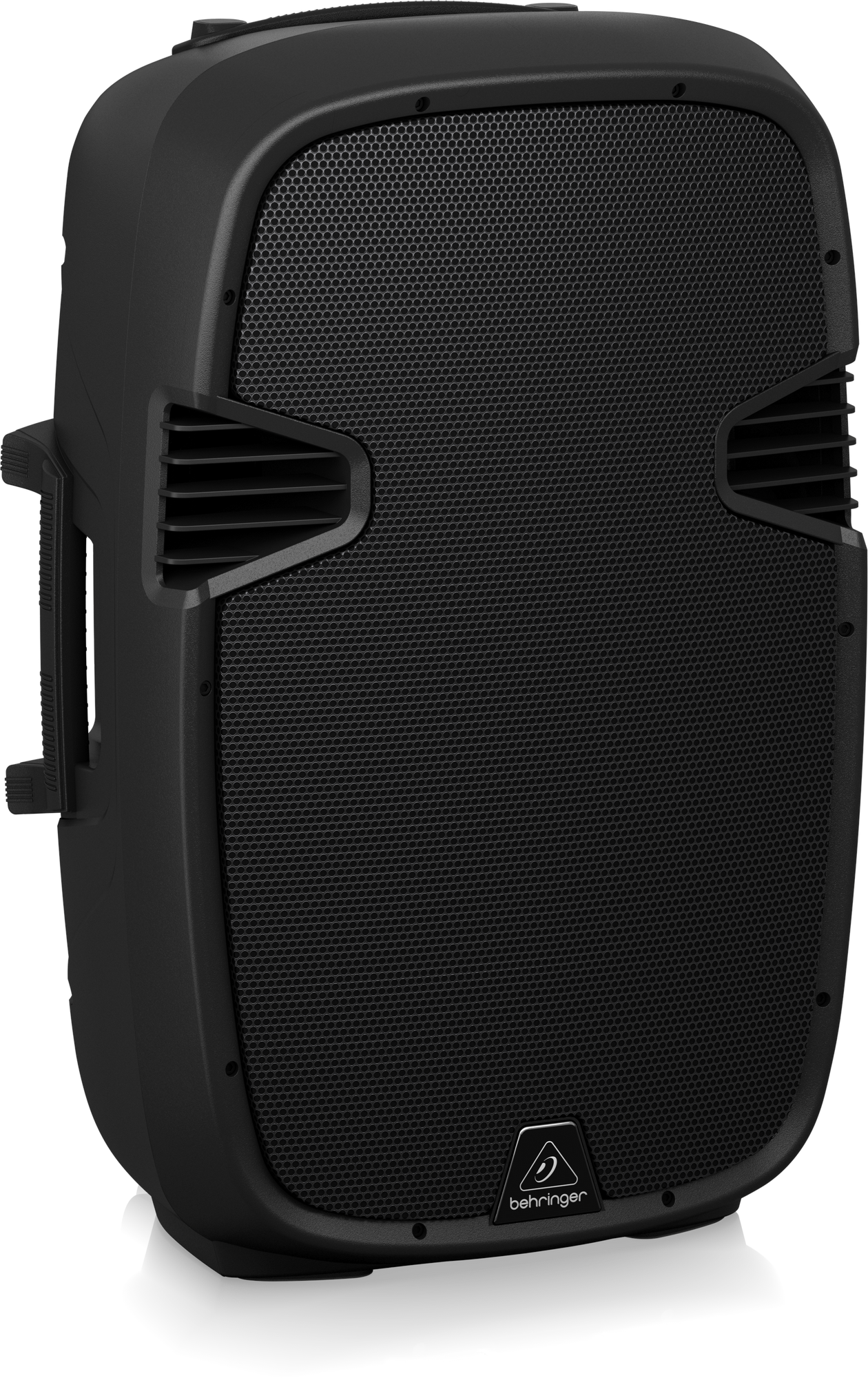

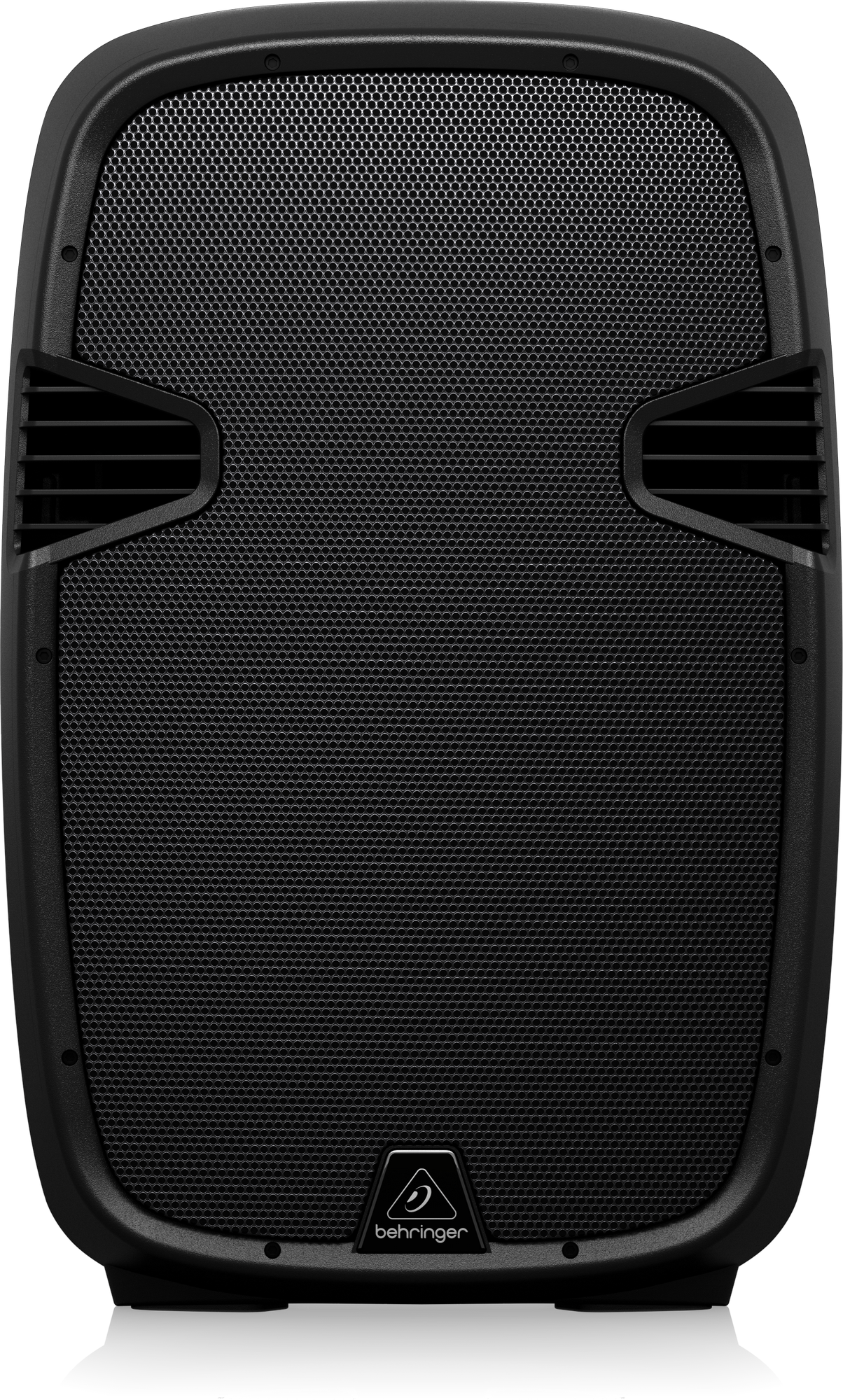

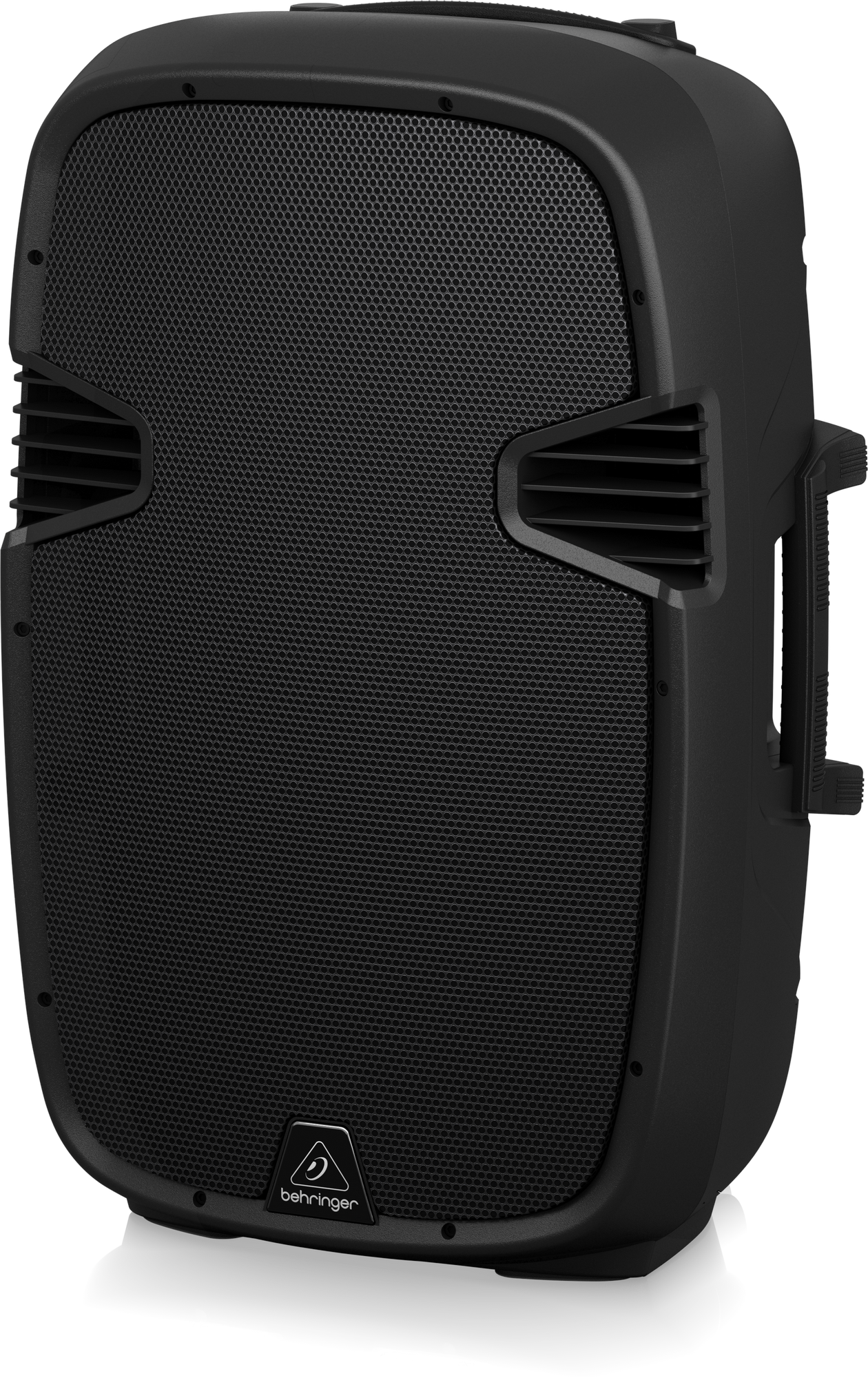

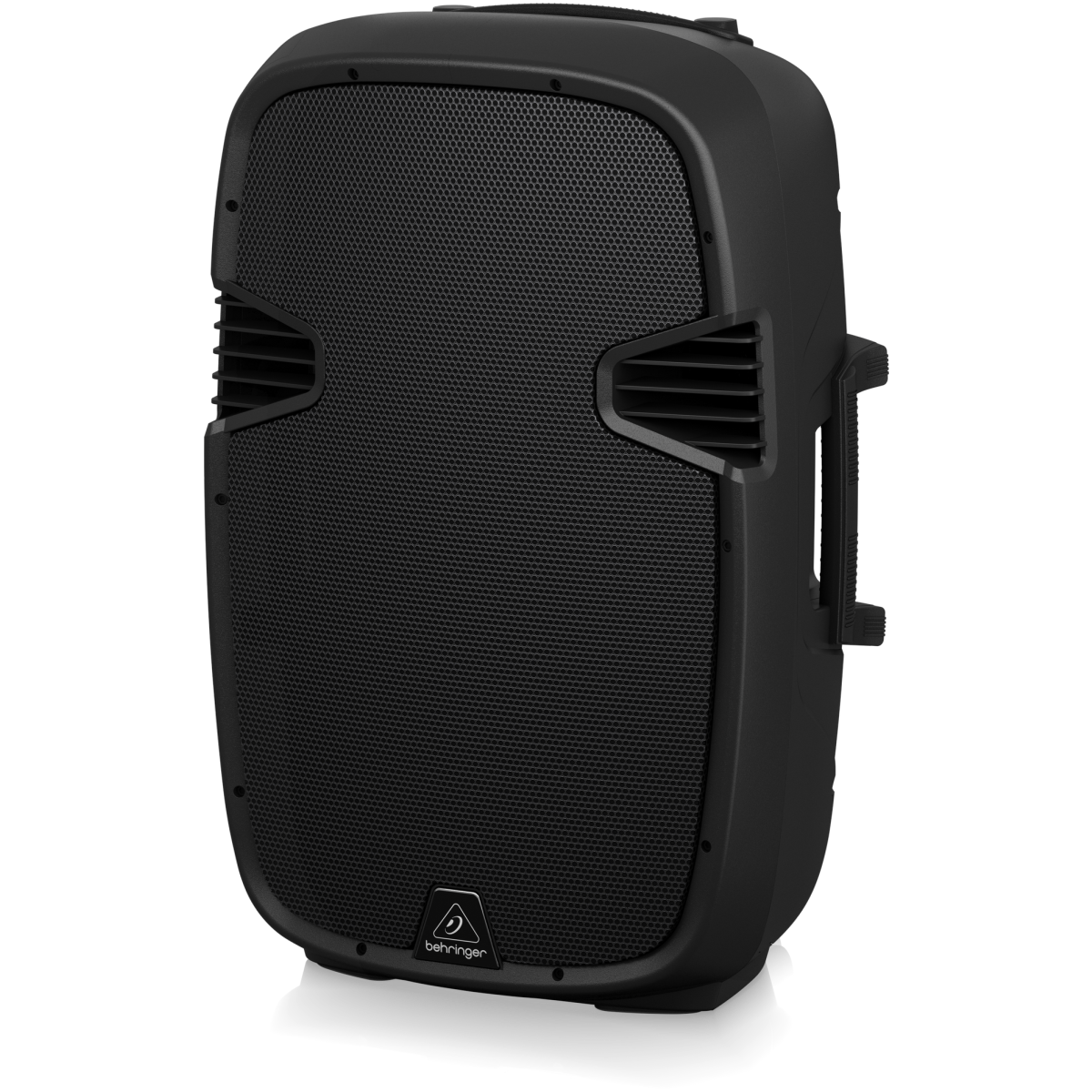

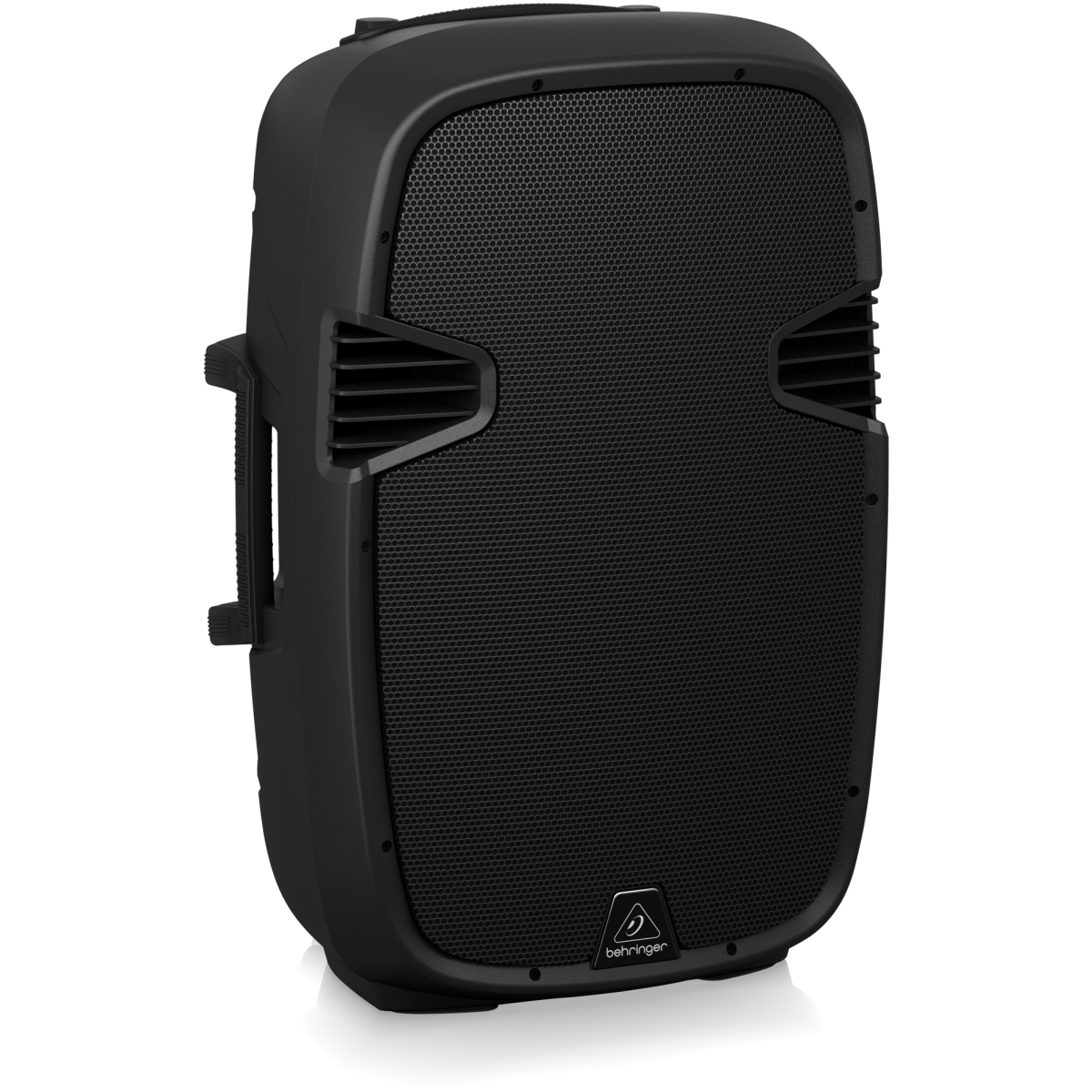

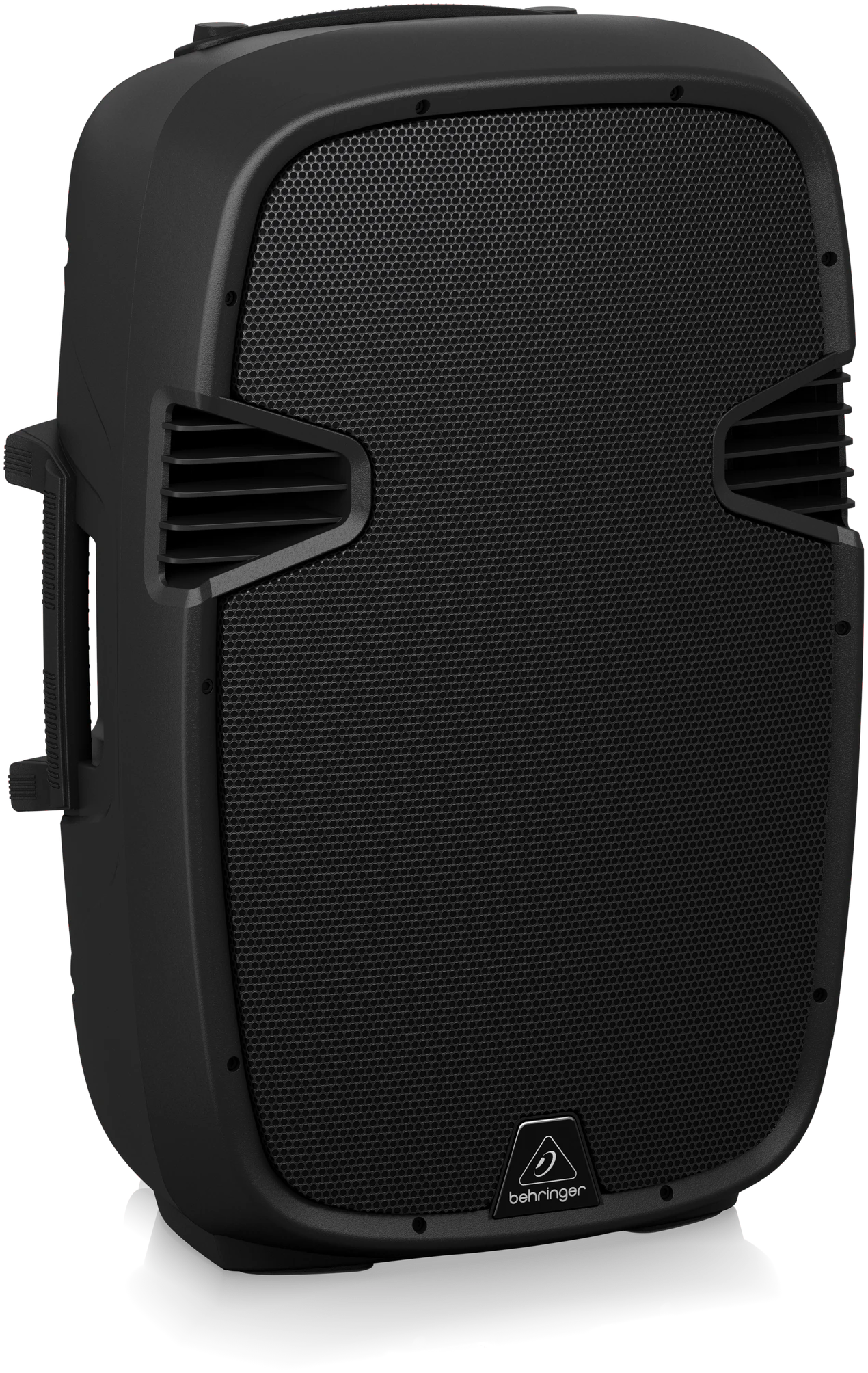

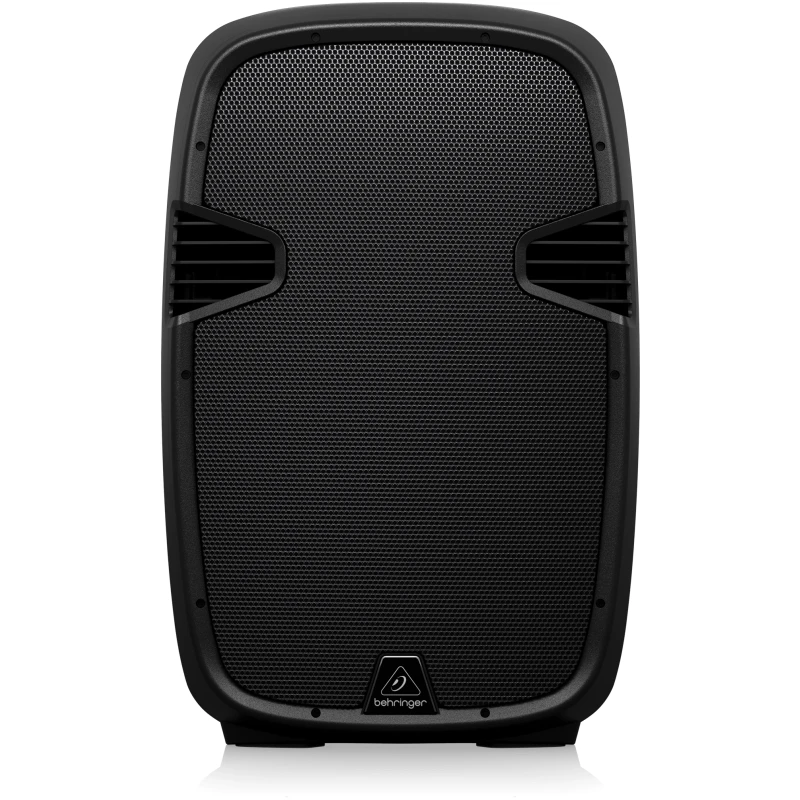

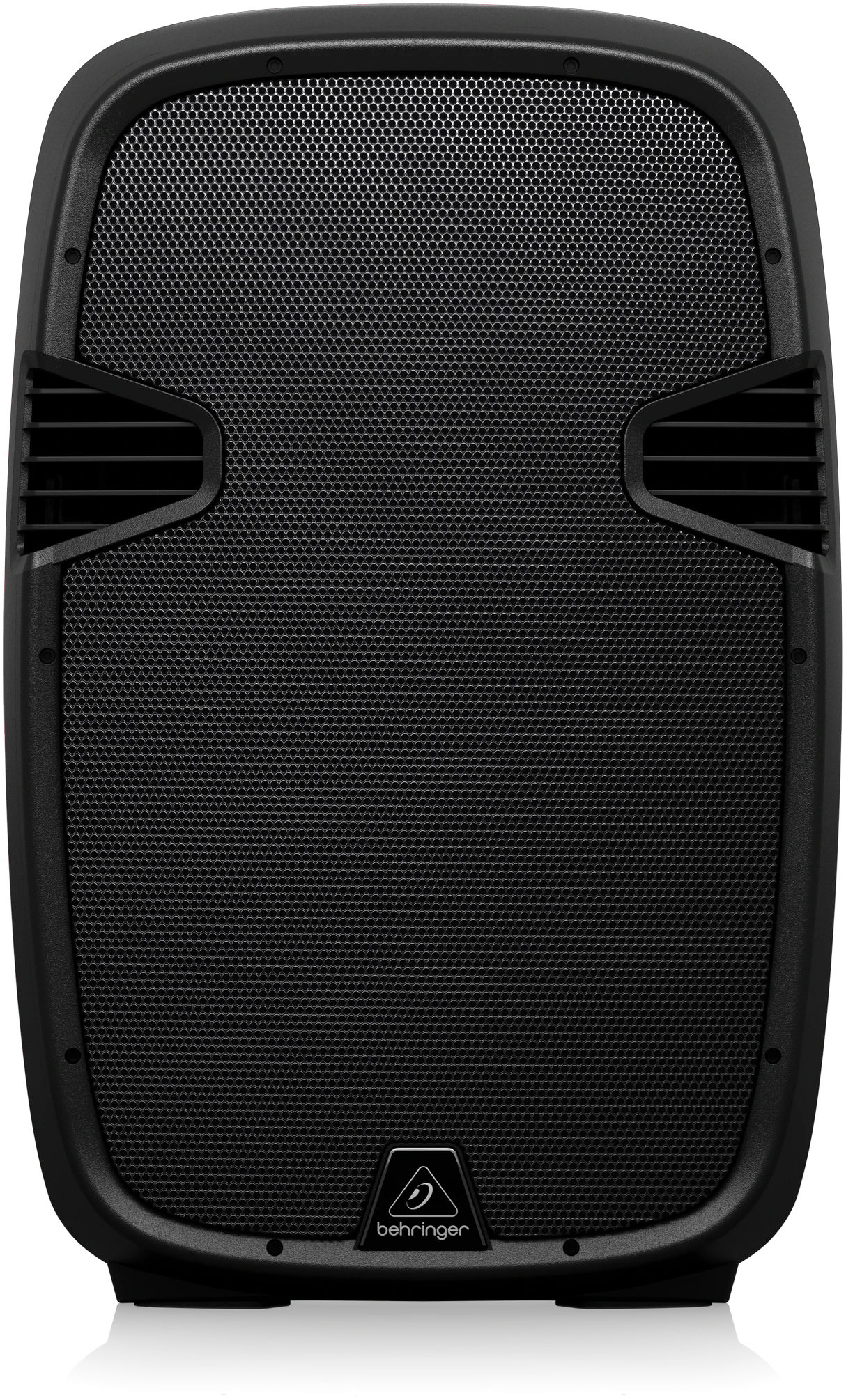

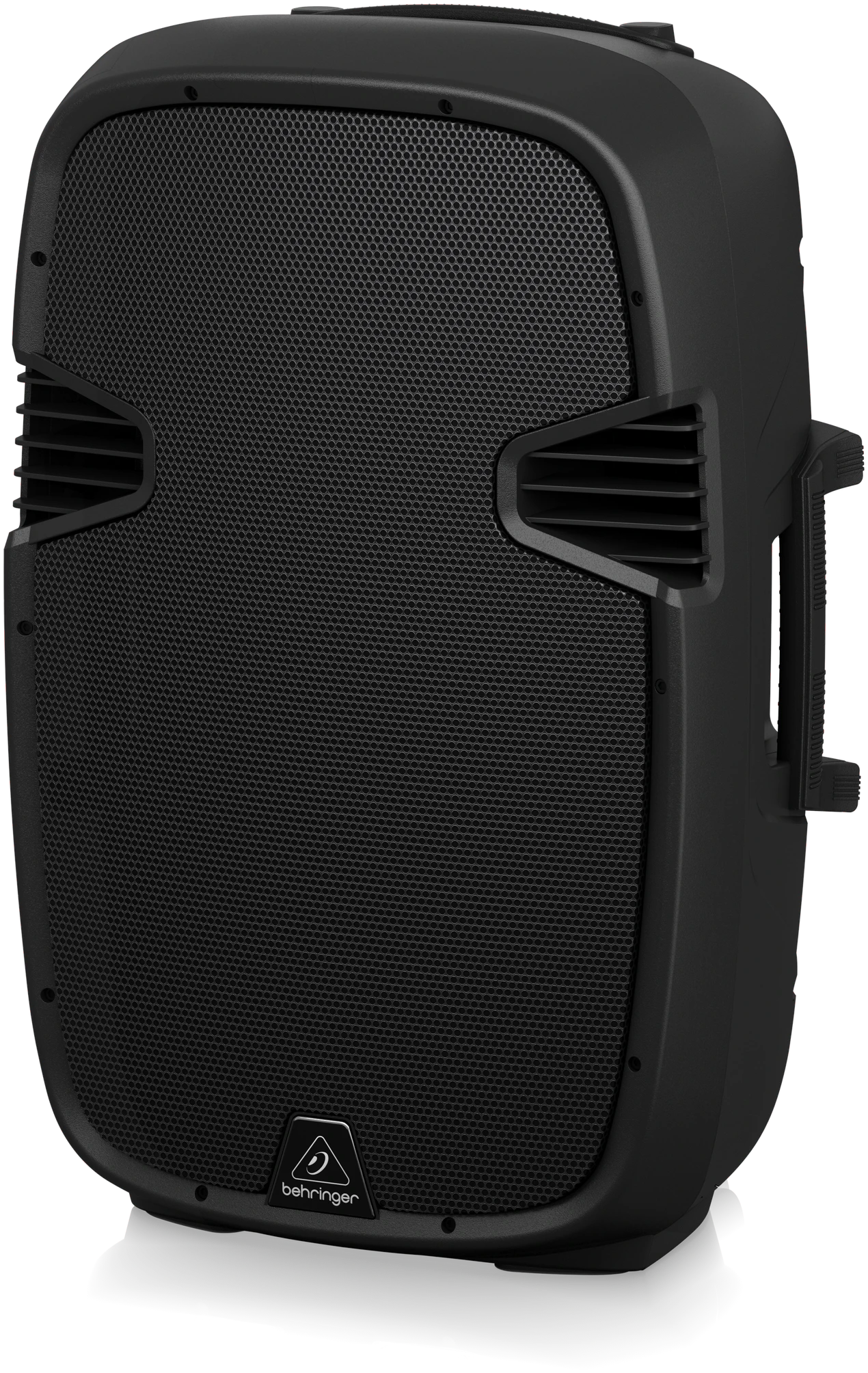

Active 800-Watt 15″ PA Speaker System with Built-in Media Player, Bluetooth Receiver and Integrated Mixer
- High-Power 800-Watt 2-way PA sound reinforcement speaker system for live and playback applications
- Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels

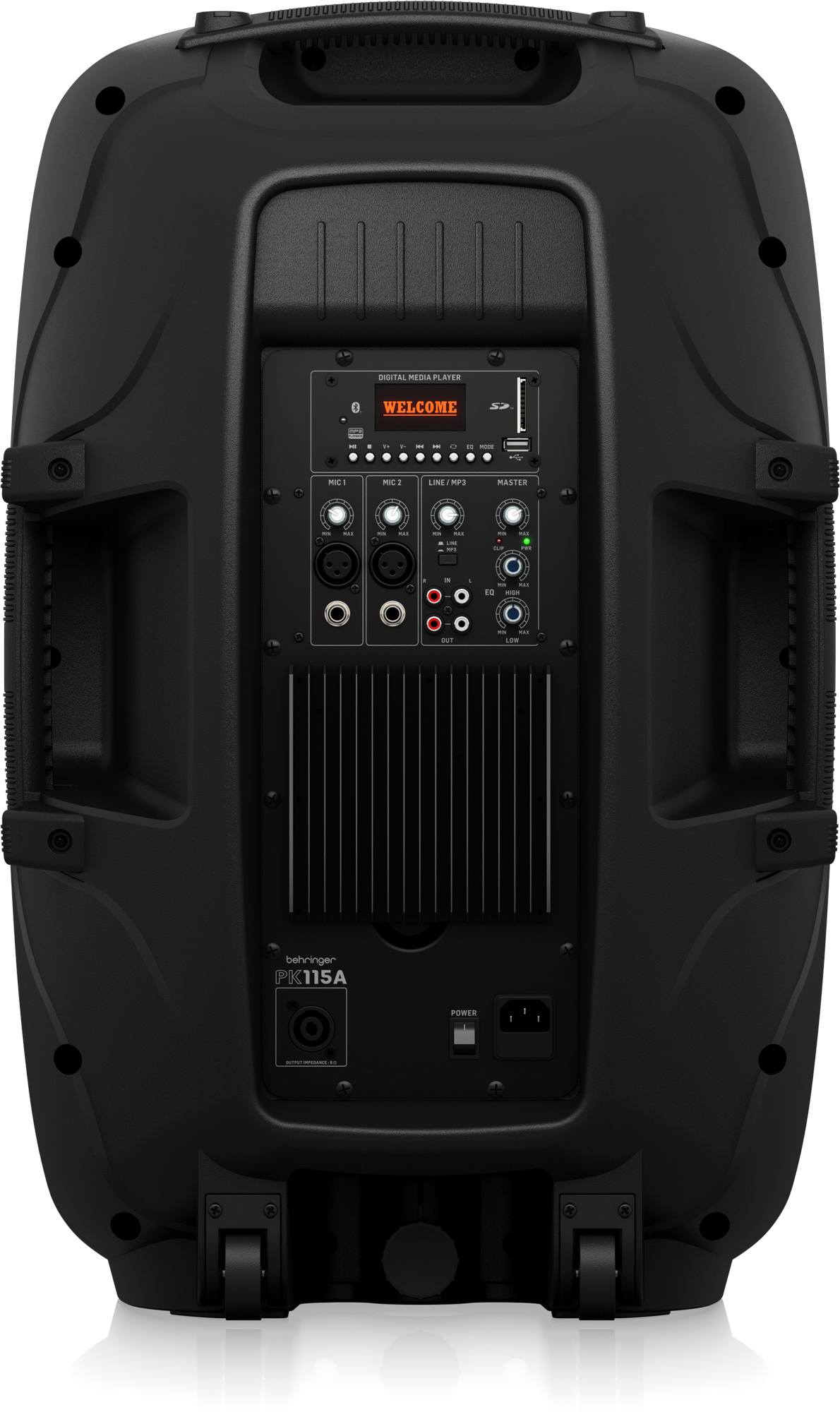

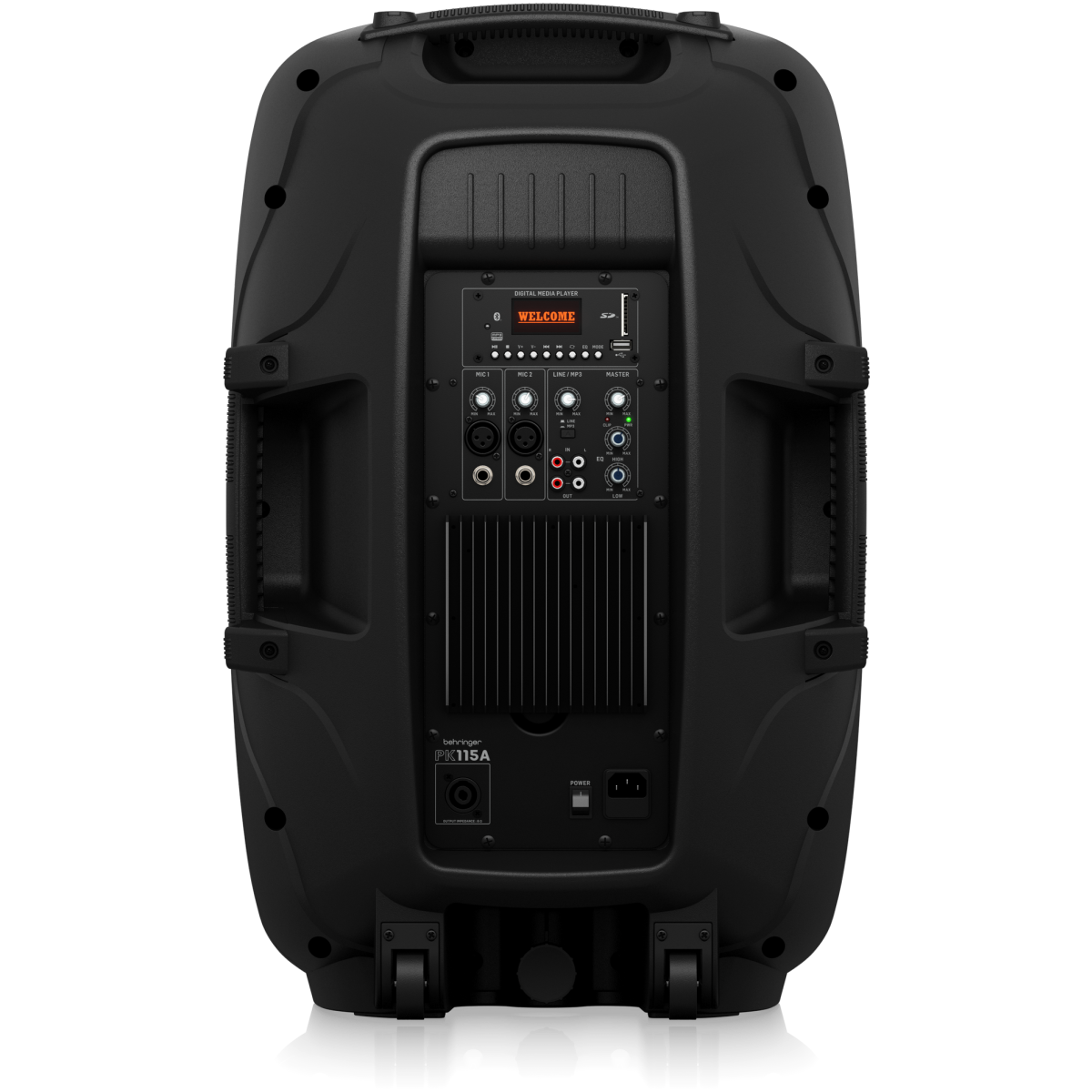

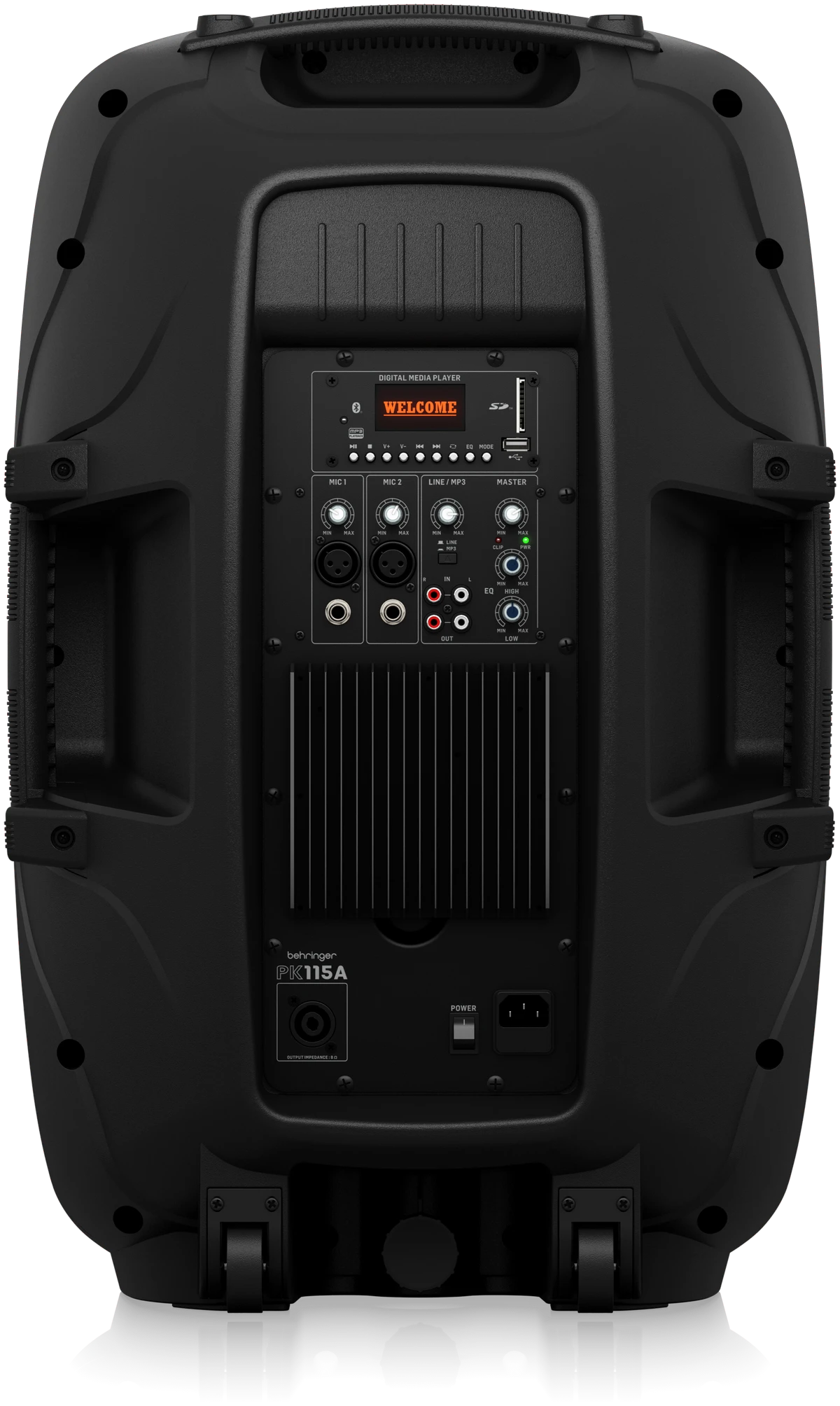

- Built-in media player with display, SD card slot, USB port and Bluetooth receiver
- 2-channel mixer with individual Mic/Line inputs, Volume controls and Clip LEDs
- Dedicated 2-band EQ plus integrated sound processor for ultimate system control and speaker protection
- Extremely powerful 15” long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1″ compression driver for exceptional high-frequency reproduction
- Ultra-wide dispersion, large-format exponential horn
- Additional Line output allows linking of additional speaker systems
- Convenient, built-in wheels make it amazingly easy to transport
- Ergonomically shaped handles for easy carrying and setup
- High-quality components and exceptionally rugged construction ensure long life
Specification
Amplifier
| Max output power | 800 W* |
| Type | Class-AB |
Loudspeaker System Data
| Woofer | 15″ (386 mm) LF driver |
| Tweeter | 1″ (25.5 mm) HF compression driver |
| Frequency response | 20 Hz to 20 kHz (-10 dB) |
| Sound pressure level (SPL) | Max. 95 dB |
Audio Connections
| MP3 Playback | USB / SD / TF |
| File system | FAT 16, FAT 32 |
| Format | MP3 / WMA / WAV / FLAC / APE |
| Bit rates | 32 – 800 kbps |
| Sample rates | 44.1 kHz |
| Input | 1 x XLR / 1/4″ TRS combo jack |
| Input impedance | 22 kΩ balanced |
| Line in | 1 x 1/8″ (3.5 mm) TRS, stereo |
| Input impedance | 8.3 kΩ |
| Aux in | 2 x RCA |
| Input impedance | 8.3 kΩ |
| Aux out | 2 x RCA |
| Output impedance | 100 kΩ, unbalanced |
| SD card slot | |
| Card memory | Up to 32 GB supported |
Bluetooth *
| Frequency range | 2402 MHz ~ 2480 MHz |
| Channel number | 79 |
| Version | Bluetooth spec 4.2 compliant |
| Compatibility | Supports A2DP 1.2 profile |
| Max. communication range | 15 m (without interference) |
| Max output power | 10 dBm |
Equalizer
| High | ±12 dB @ 10 kHz, shelving |
| Low | ±12 dB @ 100 Hz, shelving |
Power Supply, Voltage (Fuses)
| USA / Canada | 120 V~, 60 Hz (F 5 A L 250 V) |
| UK / Australia / Europe | 220-240 V~, 50/60 Hz (F 2.5 A L 250 V) |
| Korea / China | 220-240 V~, 50 Hz (F 2.5 A L 250 V) |
| Japan | 100 V~, 50/60 Hz (F 5 A L 250 V) |
| Power consumption | 220 W |
| Mains connection | Standard IEC receptacle |
Dimension / Weight
| Dimensions (H x W x D) | 400 x 485 x 740 mm (11.6 x 13.97 x 12.5″) |
| Weight | 17.7 kg (39 lbs |
