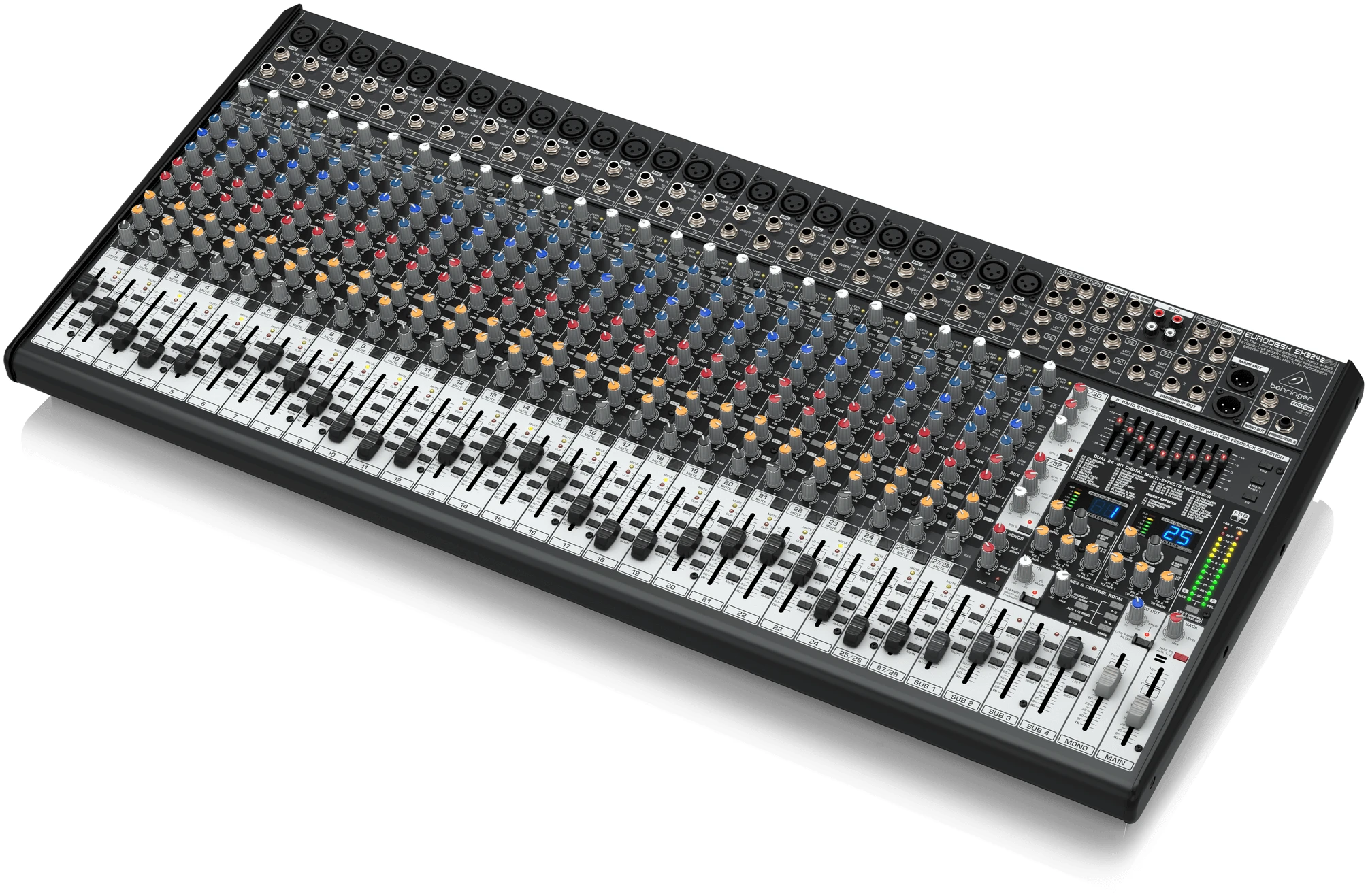

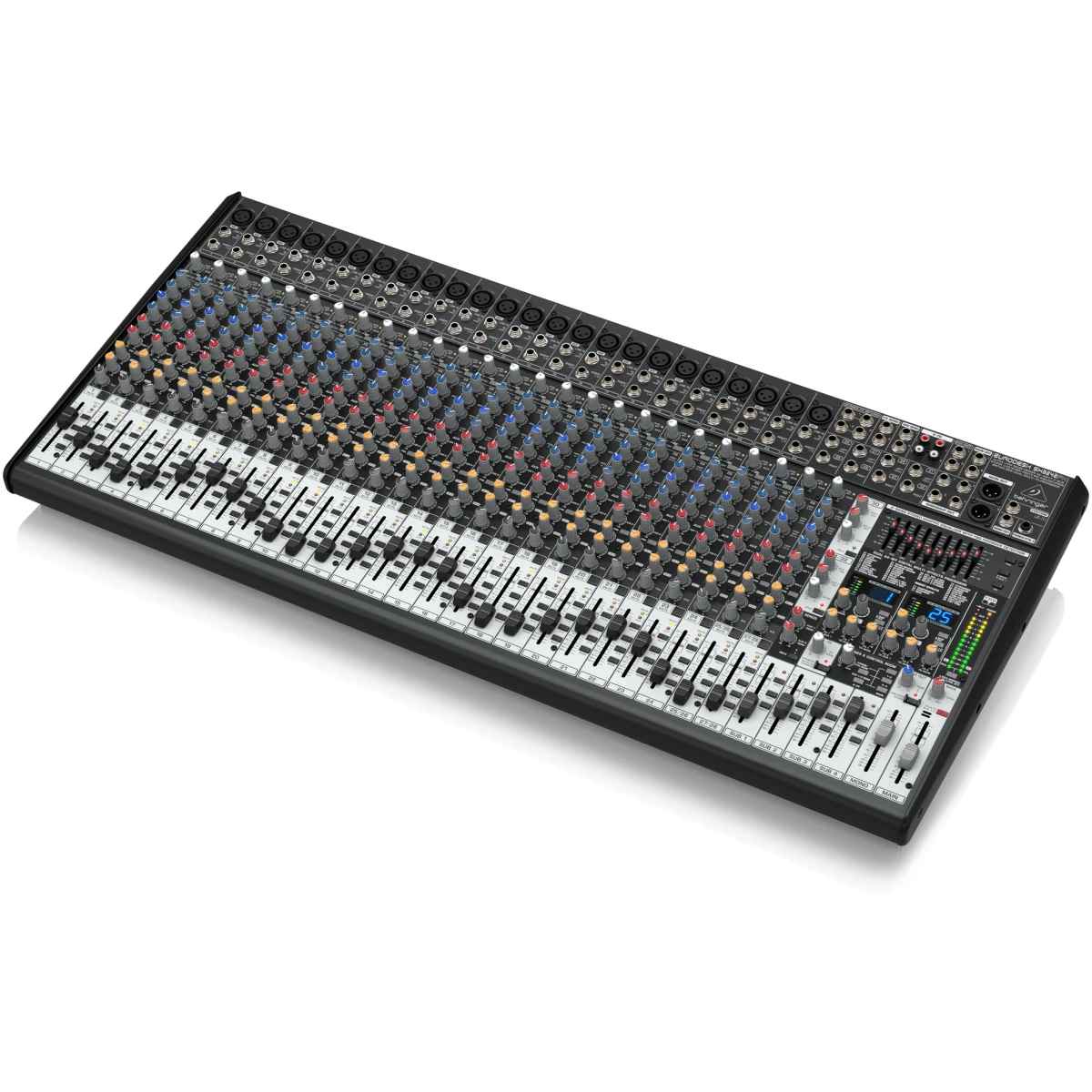

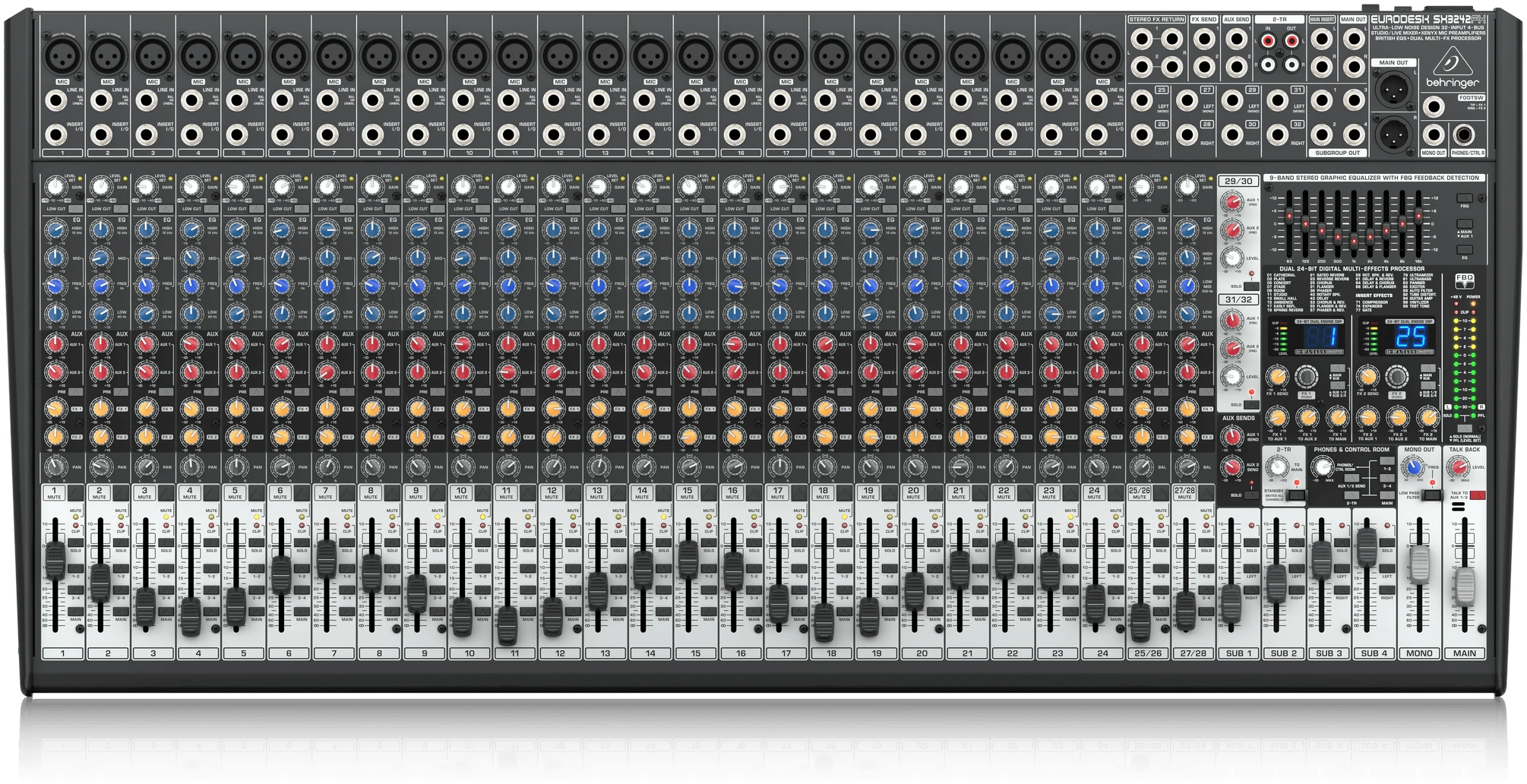

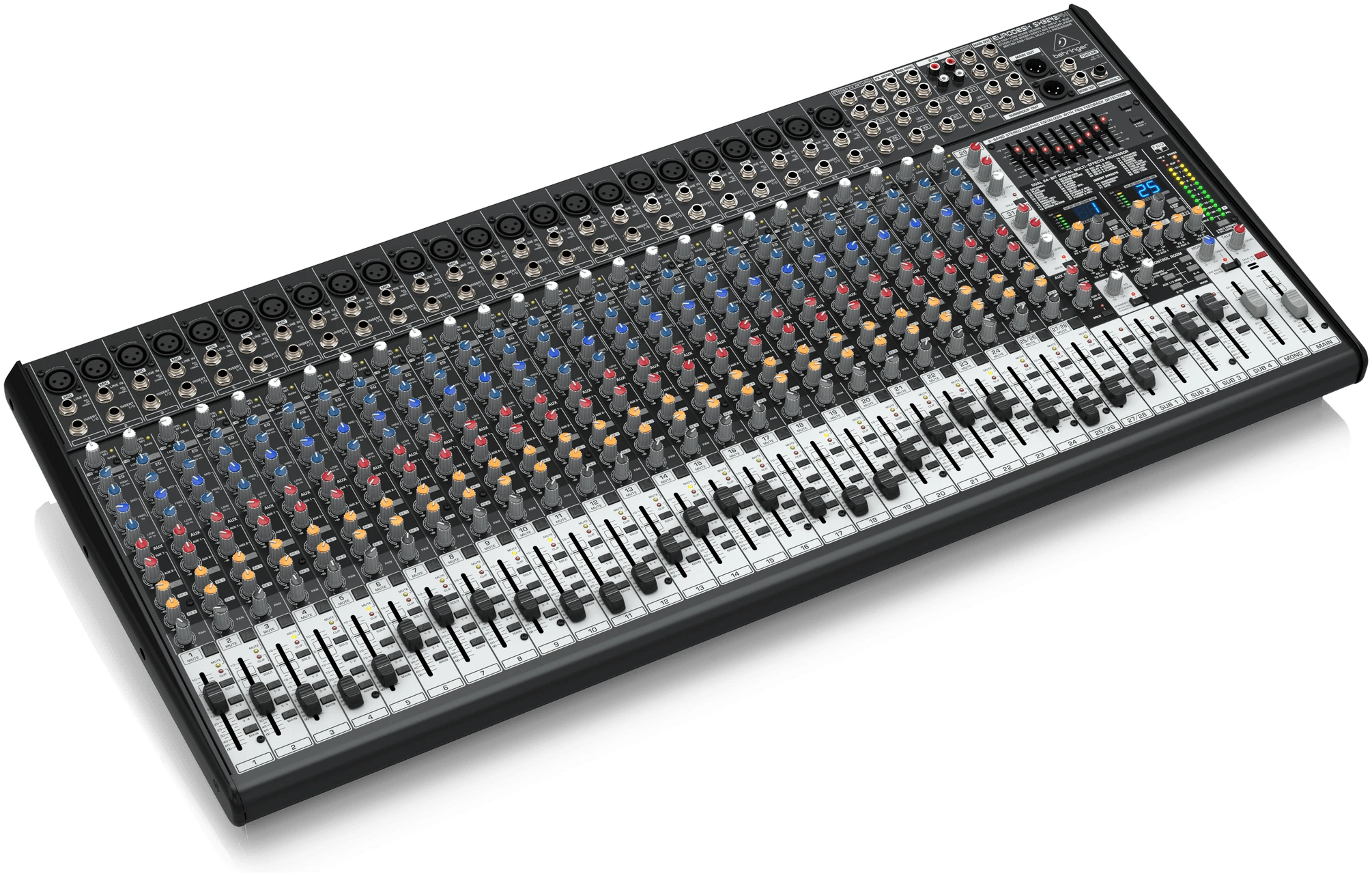

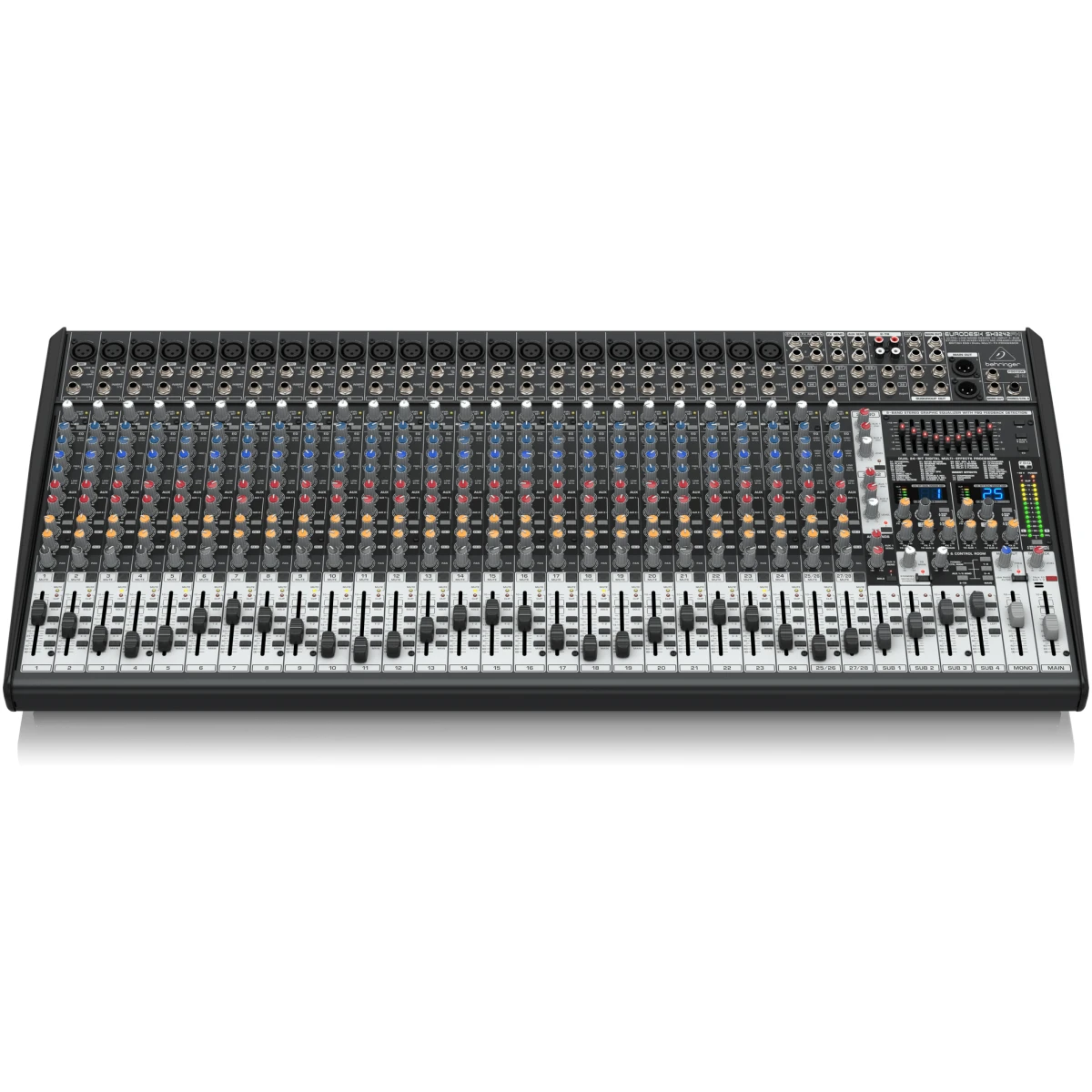

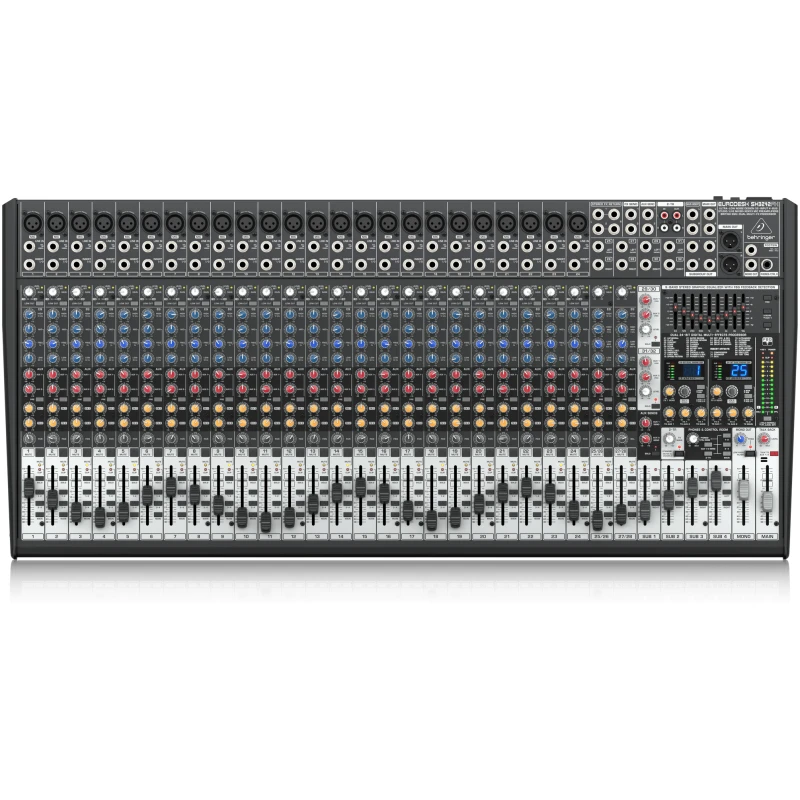

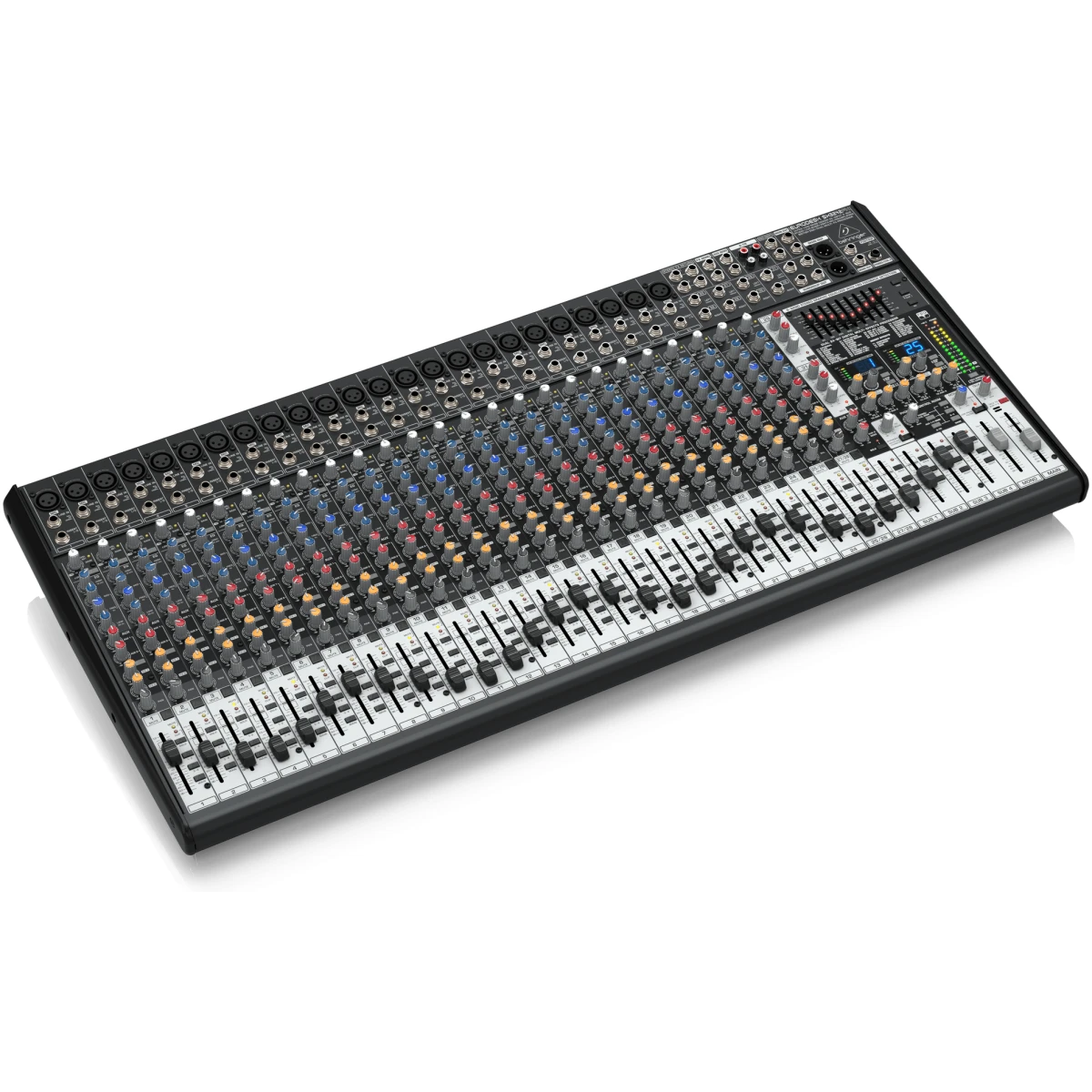

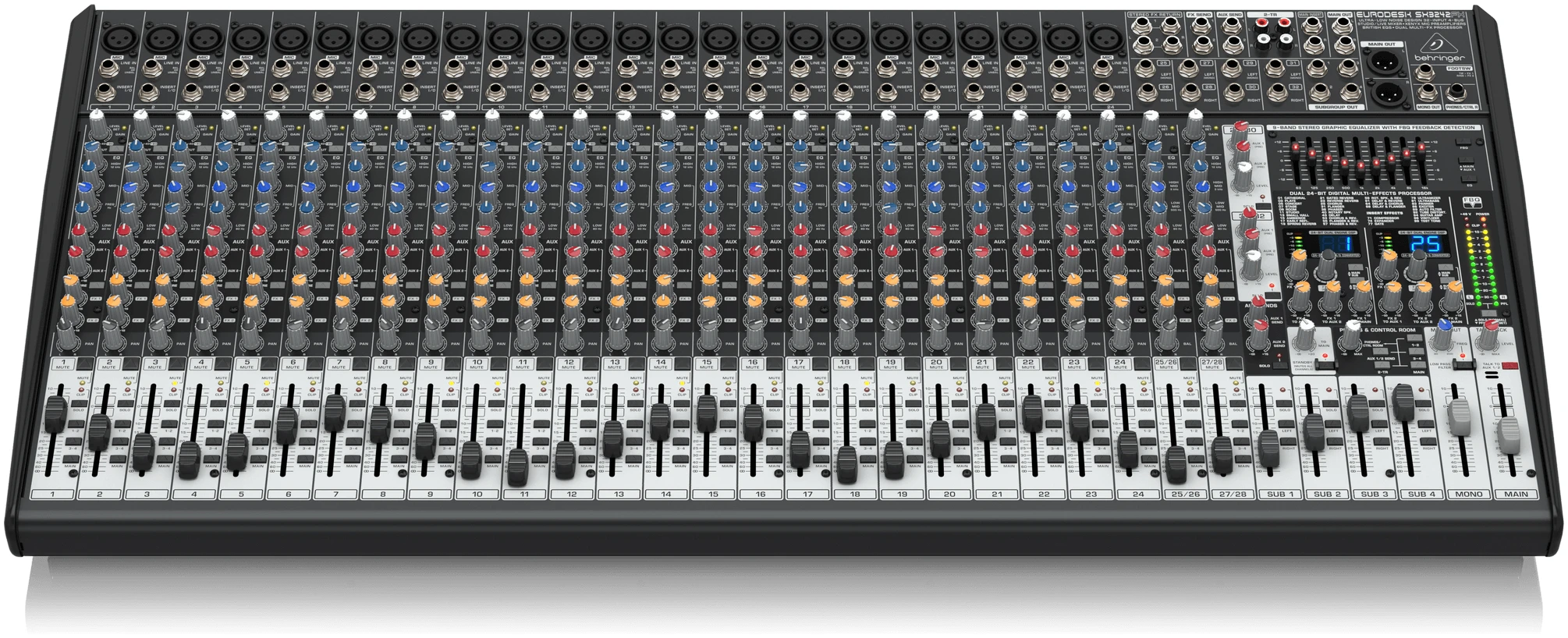

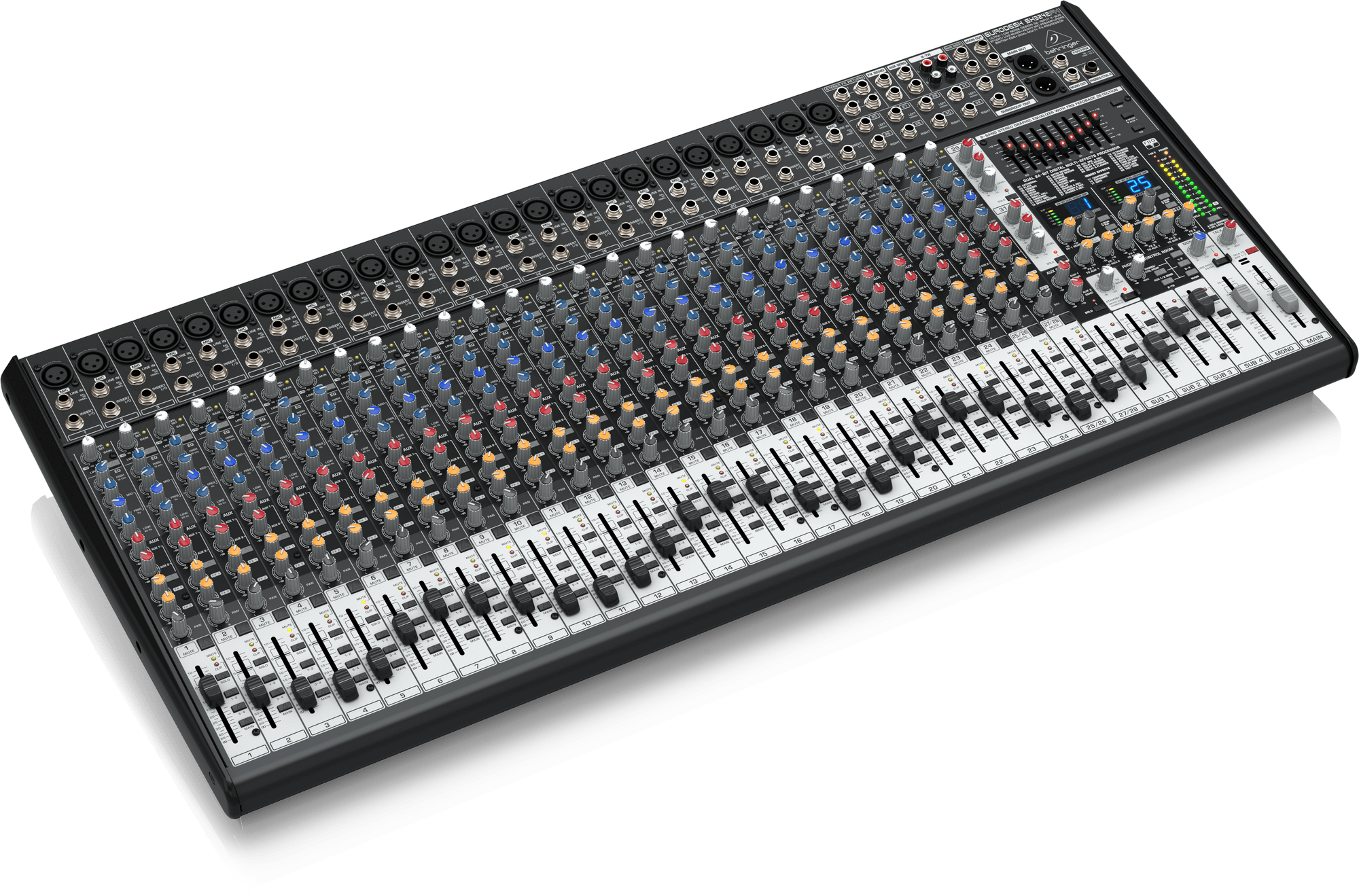

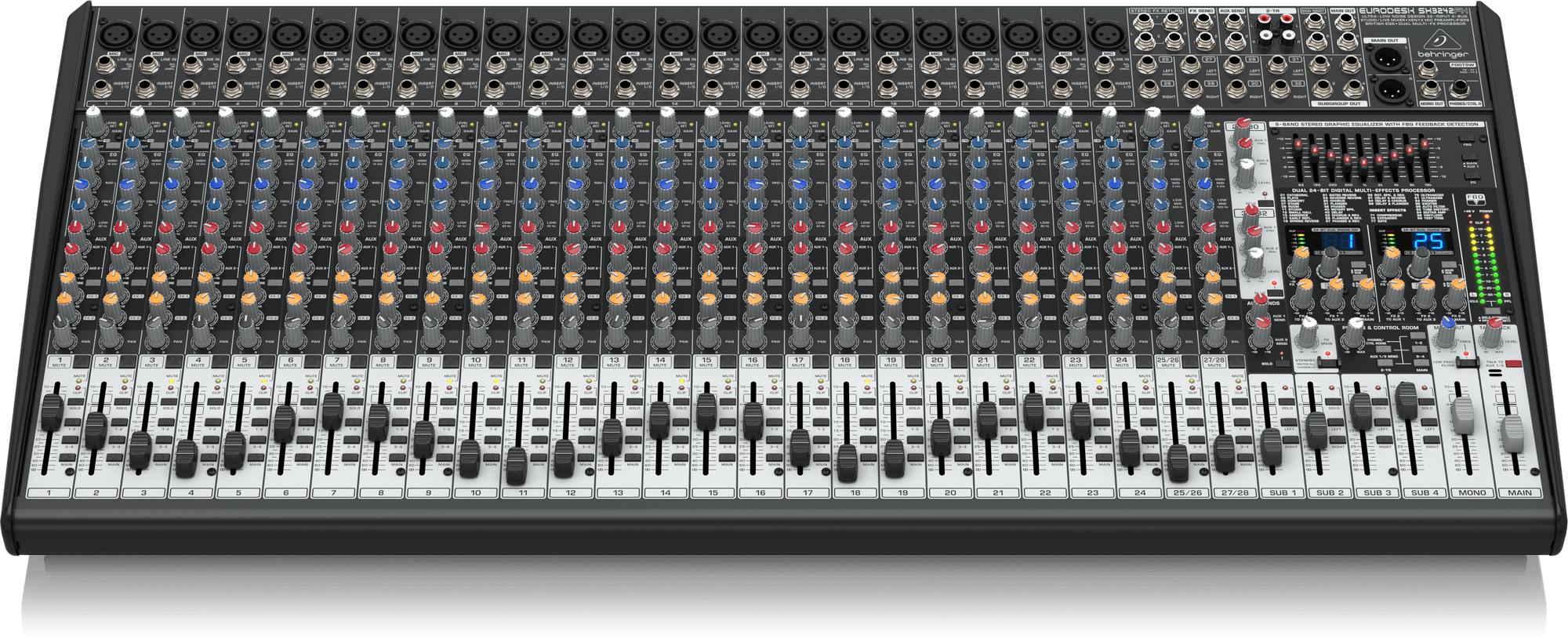

Product Features
- Premium ultra-low noise, high-headroom analog mixer
- 24 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic “British” 3-band EQs with semi-parametric mid band for warm and musical sound
- 2 independent studio-grade 24-bit stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- High-precision 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
- Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies
- Peak LEDs, Mute, Main mix and subgroup routing switches, Solo and PFL functions on all channels
- 2 fully featured stereo input channels with 4-band EQ plus 2 additional stereo input channels with Level and pre-fader Aux controls
- Inserts on each mono channel and main mix for flexible connection of outboard equipment
- 4 Subgroup outputs and additional Mono output with sweepable Low Pass filter for subwoofer application
- 4 Aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
- Balanced Main mix outputs with 1/4″ jack and gold-plated XLR connectors, separate Control room, Headphone and stereo Tape outputs
- Solo-In-Place and Pre-Fader-Listen functions plus full-featured Talkback section
- Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs
- Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls
- Internal autorange power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
Specification
Mono Inputs
| Microphone inputs (XENYX Mic preamp) | |
| Type | XLR connector, electronically balanced, discrete input circuit |
| Mic E.I.N. (20 Hz – 20 kHz) | |
| @ 0 Ω source resistance | -134 dB / 135.7 dB A-weighted |
| @ 50 Ω source resistance | -131 dB / 133.3 dB A-weighted |
| @ 150 Ω source resistance | -129 dB / 130.5 dB A-weighted |
Frequency Response
| <10 Hz – 160 kHz | -1 dB |
| <10 Hz – 200 kHz | -3 dB |
| Gain range | +10 dB to +60 dB |
| Max. input level | +12 dBu @ +10 dB GAIN |
| Impedance | approx. 2.6 kΩ balanced |
| Signal-to-noise ratio | 110 dB / 112 dB A-weighted (0 dBu In @ +22 dB GAIN) |
| Distortion (THD + N) | 0.005 % / 0.004 % A-weighted |
Line Input
| Type | ¼” TRS jack, electronically balanced |
| Impedance | approx. 20 kΩ balanced, approx. 10 kΩ unbalanced |
| Gain range | -10 dB to +40 dB |
| Max. input level | +22 dBu @ 0 dB GAIN |
| Fade-Out Attenuation (Crosstalk Attenuation) | |
| Main fader closed | 90 dB |
| Channel muted | 84 dB |
| Channel fader muted | 85 dB |
| Frequency response (Mic In ➝ Main Out) | |
| <10 Hz – 90 kHz | +0 dB / -1 dB |
| <10 Hz – 160 kHz | +0 dB / -3 dB |
Stereo Inputs
| Type | 2 x ¼” TRS jack, balanced |
| Impedance | approx. 20 kΩ balanced, approx. 10 kΩ unbalanced |
| Gain range | -20 dB to +20 dB |
| Max. input level | +22 dBu @ 0 dB GAIN |
CD/Tape In
| Type | RCA connector |
| Impedance | approx. 10 kΩ |
| Max. input level | +22 dBu |
Equalizer
| EQ Mono Channels | |
| LOW | 80 Hz / ±15 dB |
| MID | 100 Hz to 8 kHz / ±15 dB |
| HIGH | 12 kHz / ±15 dB |
| LOW CUT | 80 Hz, 18 dB/oct. |
| EQ Stereo Channels | |
| LOW | 80 Hz / ±15 dB |
| LOW MID | 500 Hz / ±15 dB |
| HIGH MID | 3 kHz / ±15 dB |
| HIGH | 12 kHz / ±15 dB |
Main Outputs (XLR)
| Type | XLR connector, electronically balanced |
| Impedance | approx. 240 Ω balanced, approx. 120 Ω unbalanced |
| Max. output level | +28 dBu |
Main Outputs (¼”)
| Type | ¼” TRS jack, electronically balanced |
| Impedance | approx. 240 Ω balanced, approx. 120 Ω unbalanced |
| Max. output level | +28 dBu |
Main Inserts
| Type | ¼” TRS jack, unbalanced |
| Max. input level | +22 dBu |
Mono Output
| Type | ¼” mono jack, unbalanced |
| Impedance | approx. 120 Ω |
| Max. output level | +22 dBu |
| Low pass | variable, 30 Hz to 200 Hz, 18 dB/oct. |
Phones/CTRL Room Output
| Type | ¼” TRS jack, unbalanced |
| Max. output level | +19 dBu / 150 Ω (+25 dBm) |
CD/Tape Out
| Type | RCA connector |
| Impedance | approx. 1 kΩ |
| Max. output level | +22 dBu |
DSP
| Type | Texas Instruments |
| Converter | 24-bit delta-sigma, 64/128-times oversampling |
| Sampling rate | 46 kHz |
Main Mix System Data (Noise)
| Main mix @ -∞, channel fader @ -∞ | -100 dB / -102.5 dB A-weighted |
| Main mix @ 0 dB, channel fader @ -∞ | -82 dB / -85 dB A-weighted |
| Main mix @ 0 dB, channel fader @ 0 dB | -72 dB / -75 dB A-weighted |

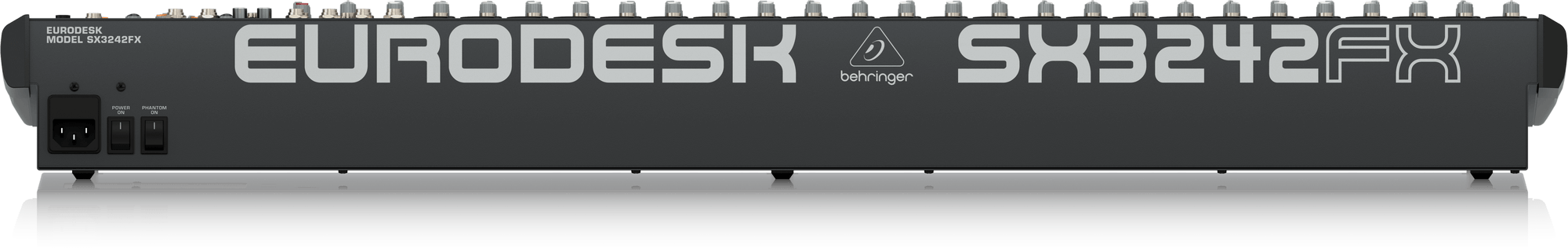

Power Supply
| Power consumption | 50 W |
| Fuse (100 – 240 V~, 50/60 Hz) | T 2,0 A H 250 V |
| Mains connector | Standard IEC receptacle |
Physical/Weight
| Dimensions (H x W x D) | 100 x 896 x 410 mm (3.9 x 35.3 x 16.1″) |
| Weight (net) | 11.0 kg (24.3 lbs) |
