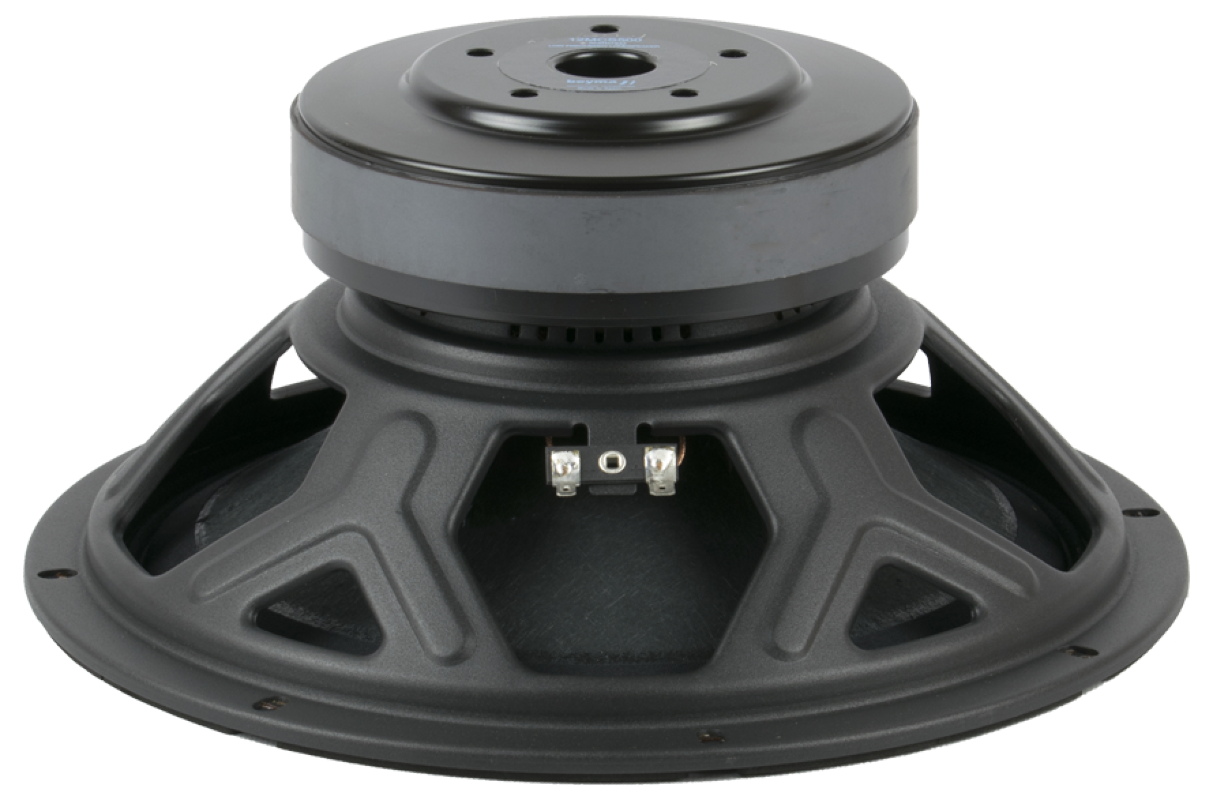

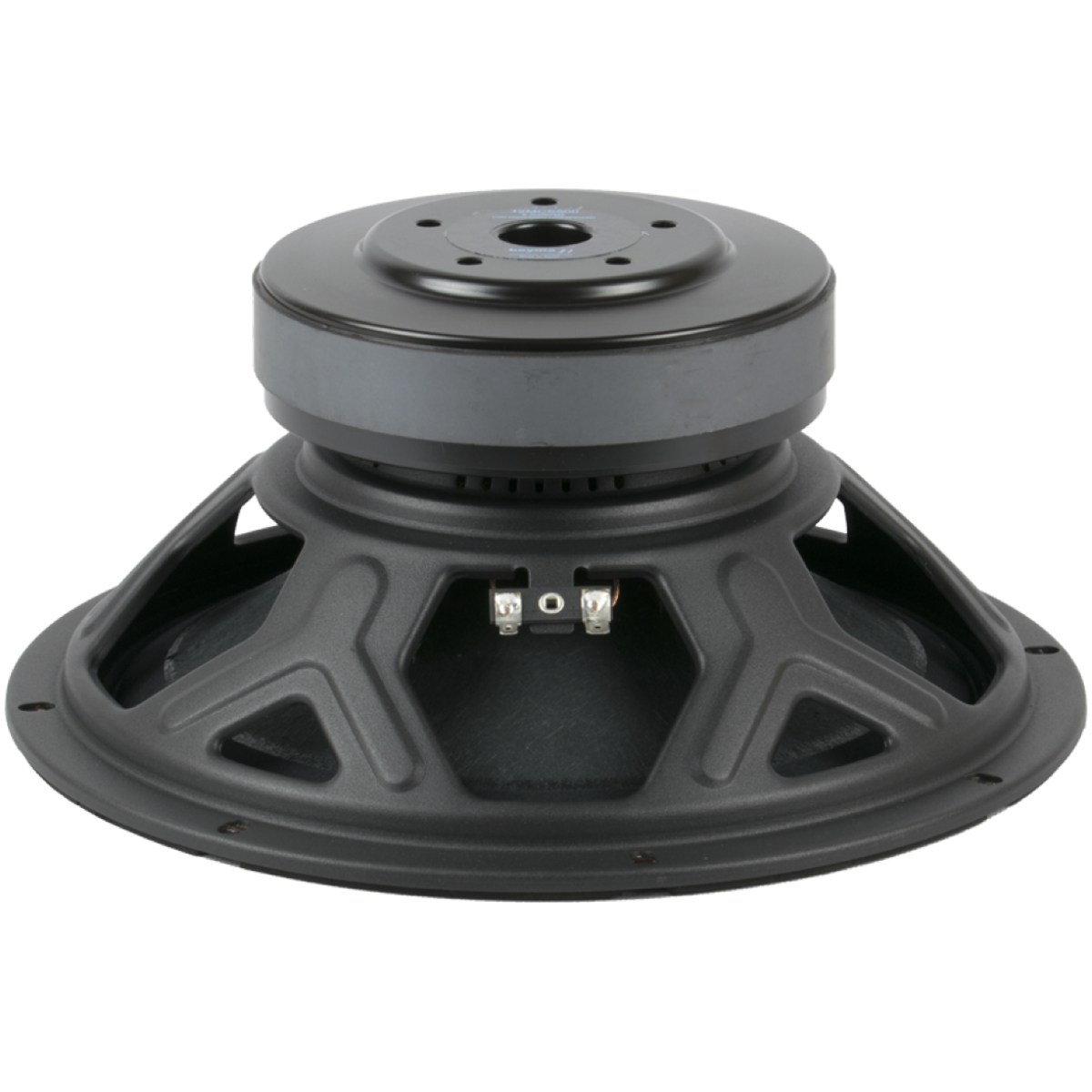

BEYMA 12MCS500 12″ Professional Midrange / Low Frequency Loudspeaker

The Beyma 12MCS500 is a high-efficiency 12″ loudspeaker designed for mid-bass and midrange reproduction in professional audio systems. With a robust 3″ copper voice coil, ferrite magnet assembly, and a reinforced cone structure, it provides excellent definition in the vocal and instrumental ranges while maintaining reliable power handling. This makes it suitable for compact 2-way enclosures, stage monitors, and line-array systems requiring clarity and punch.

Key Features

• Nominal Diameter: 12″ (300 mm)
• Voice Coil Diameter: 3″ (76 mm) copper voice coil
• Nominal Impedance: 8 Ω
• Power Handling (AES): 500 W AES (1000 W program)
• Sensitivity: 98 dB (1W/1m)
• Frequency Response: 55 Hz – 5.5 kHz
• Magnet Type: Ferrite
• Cone Material: Reinforced treated paper cone with double cloth surround
• Xmax (linear excursion): ±6.5 mm
• Recommended Enclosure: Vented / bass reflex designs for mid-bass and mid-high reinforcement

Applications

• Compact PA systems
• Stage monitors
• Mid-bass / midrange driver in 3-way systems
• Line array and installation systems
