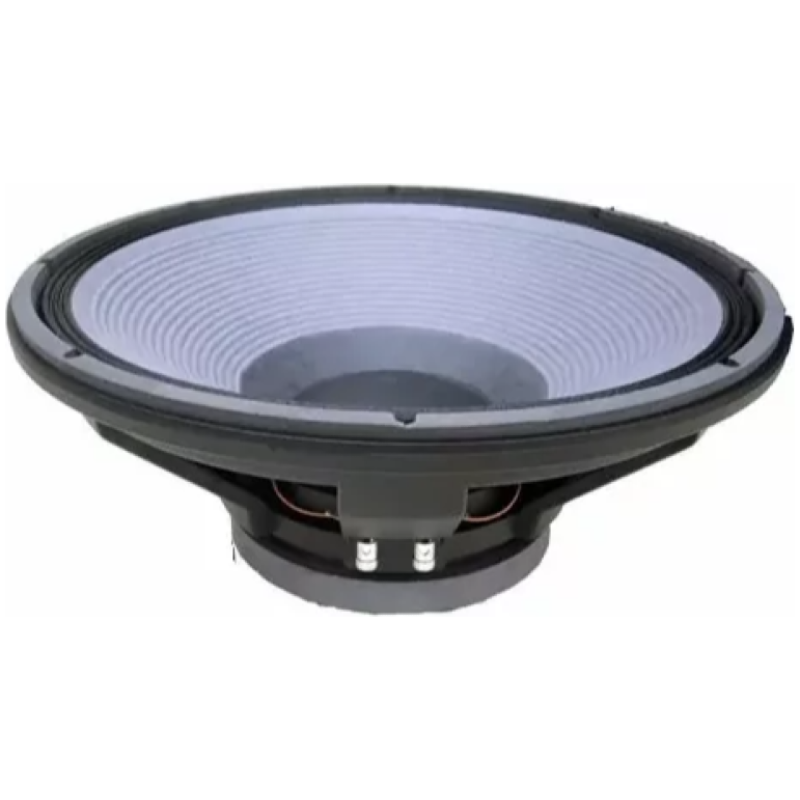

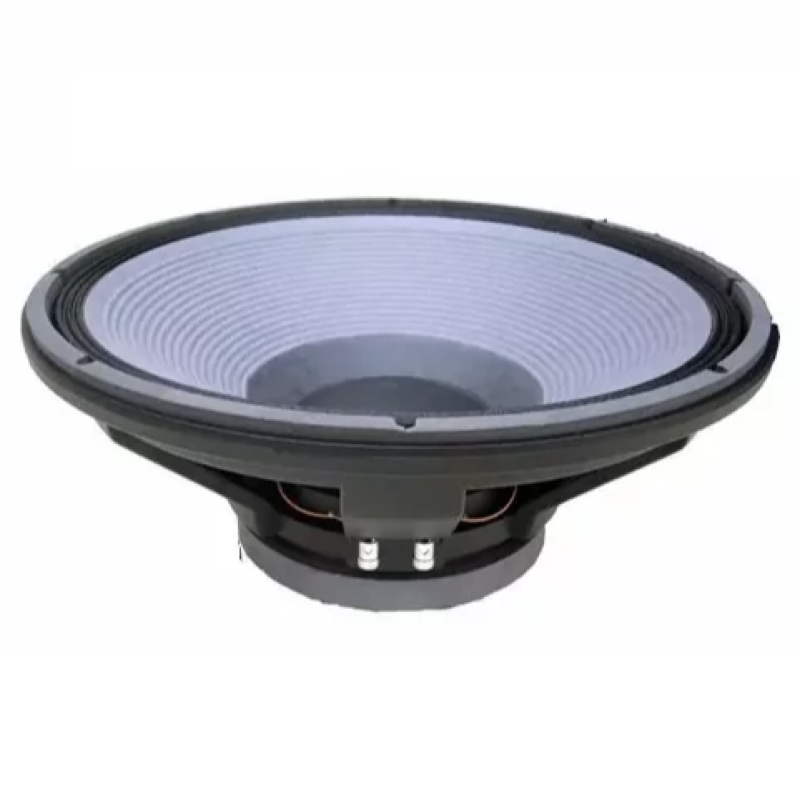

The Beyma 15LX60 V2 is an upgraded version of Beyma’s legendary 15LX60, engineered for deep bass and mid-bass applications. With a powerful ferrite magnet system, a 4″ copper voice coil, and optimized suspension, this woofer delivers high power handling with very low distortion. Designed for compact and medium subwoofers, it provides strong, clean bass with high excursion capability, making it ideal for professional PA and club sound systems.
Key Features
- Nominal Diameter: 15″ (380 mm)
- Voice Coil Diameter: 4″ (100 mm) copper voice coil
- Nominal Impedance: 8 Ω
- Power Handling (AES): 800 W AES (1600 W program)
- Sensitivity: 95 dB (1W/1m)
- Frequency Response: 25 Hz – 1.5 kHz
- Magnet Type: Ferrite
- Cone Material: Reinforced treated paper cone with impregnated cloth surround
- Xmax (linear excursion): ±9 mm
- Recommended Enclosure Volume: 80 – 150 L (bass reflex)
Applications
- Compact and medium subwoofers
- Portable PA systems
- Club and live sound reinforcement
- Multi-way professional enclosures (dedicated bass section)
