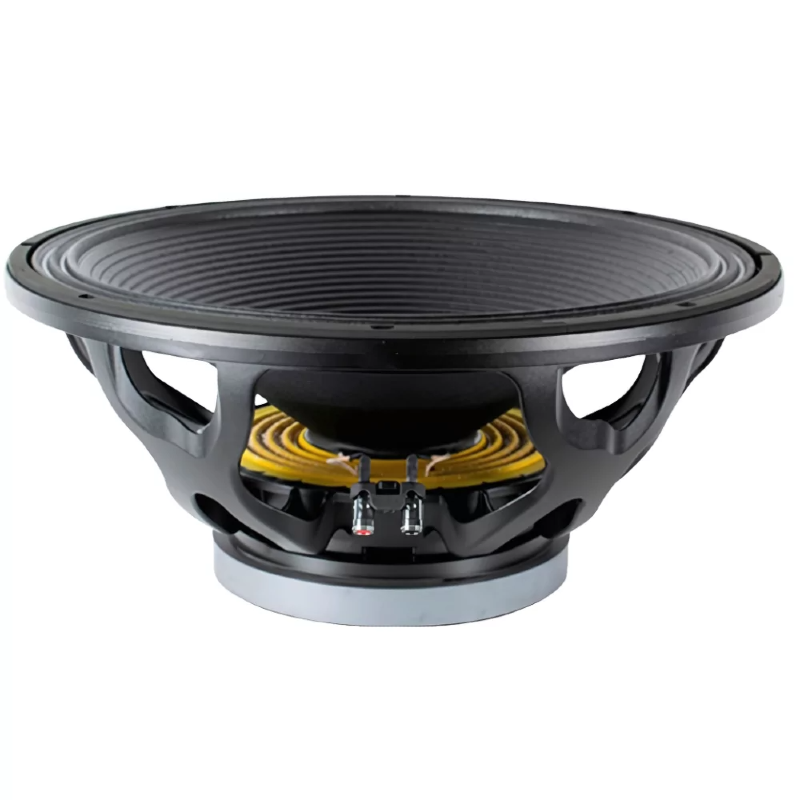

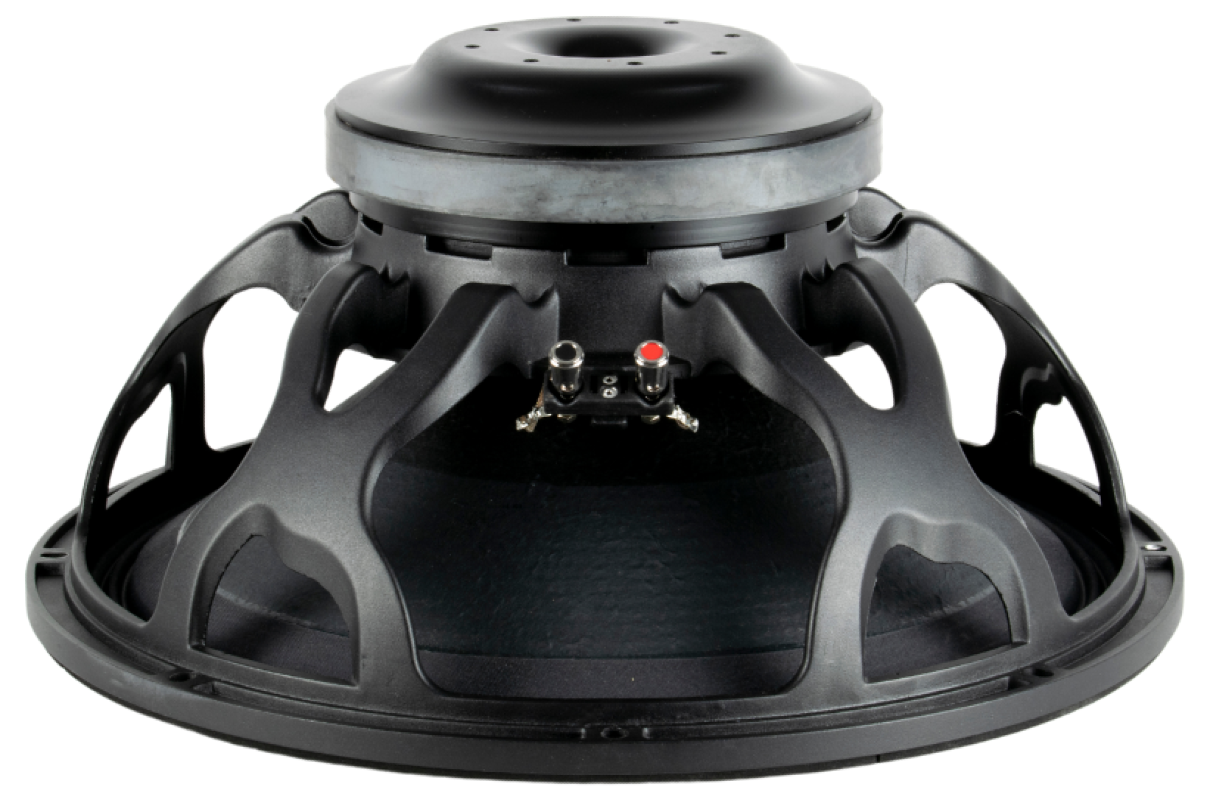

BEYMA 18LEX1200Fe 18” High-Power Low Frequency Loudspeaker

The Beyma 18LEX1200Fe is a premium 18-inch woofer designed for high-power subwoofer applications. With its ferrite magnet system and robust 4.5″ copper voice coil, it delivers deep, controlled bass with high efficiency and power handling. Suitable for both touring and fixed installations, this driver is engineered for bass reflex and horn-loaded enclosures, delivering reliability and superior sound performance.

Key Specifications:

• Nominal Diameter: 18″ (460 mm)
• Voice Coil: 4.5″ (116 mm) copper, edge-wound
• Power Handling (AES): 1200 W AES
• Program Power: 2400 W
• Peak Power: 4800 W
• Nominal Impedance: 8 Ω
• Sensitivity: 96 dB (1W/1m)
• Frequency Response: 25 Hz – 1.0 kHz
• Magnet Type: Ferrite
• Xmax (linear excursion): ±9 mm
• Efficiency: ~2.4 %

Recommended Applications:

• High-power subwoofers (bass reflex, horn-loaded, or band-pass designs)
• Touring sound reinforcement systems
• Professional club and cinema subwoofer systems
