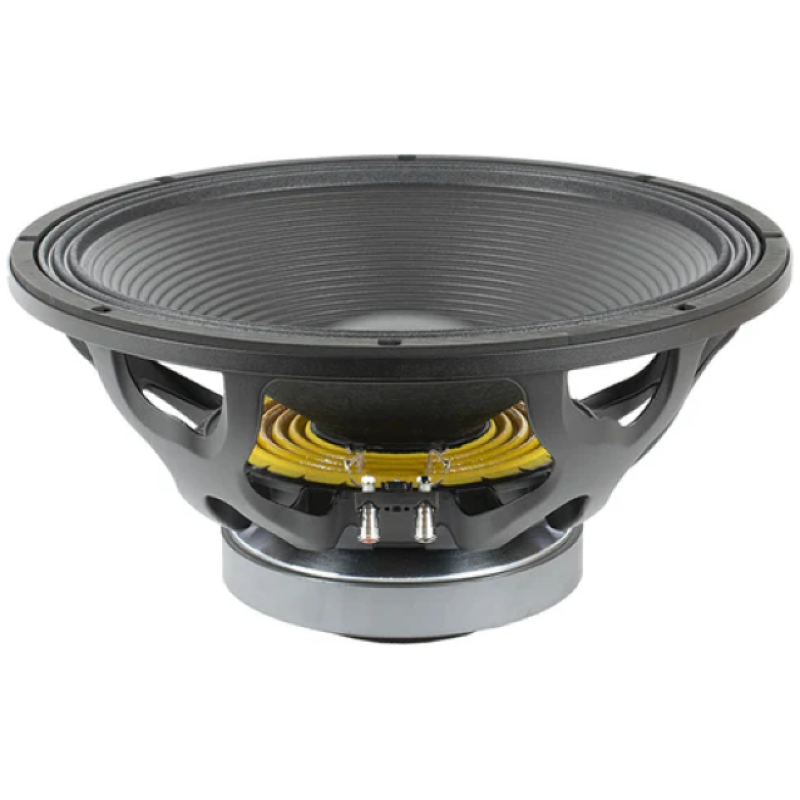

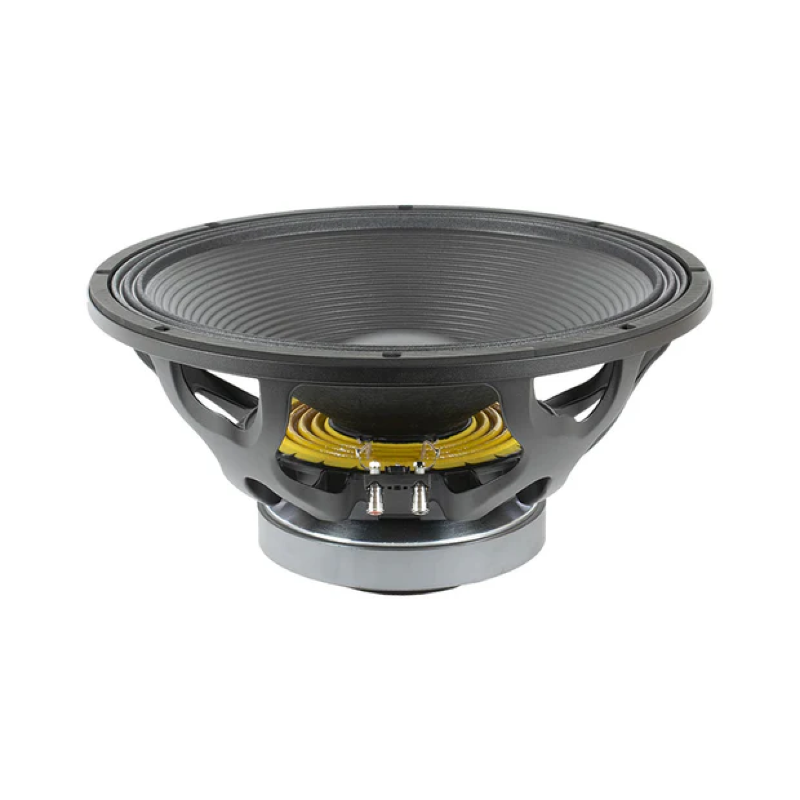

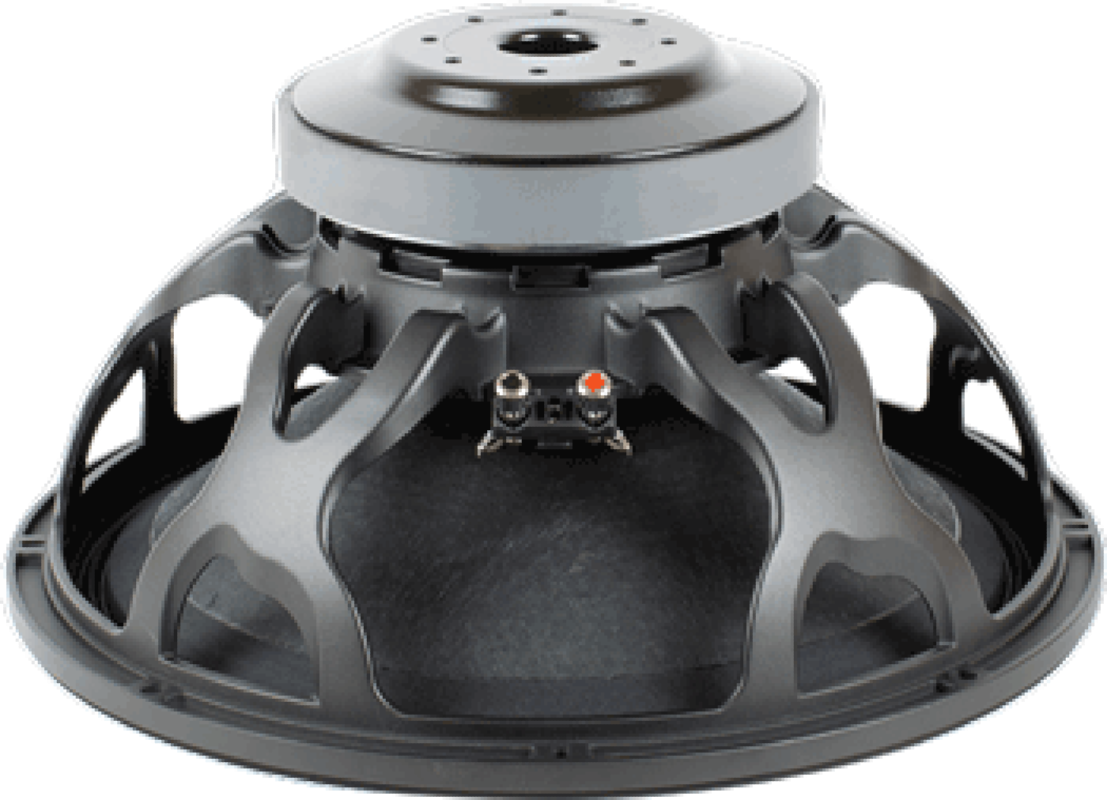

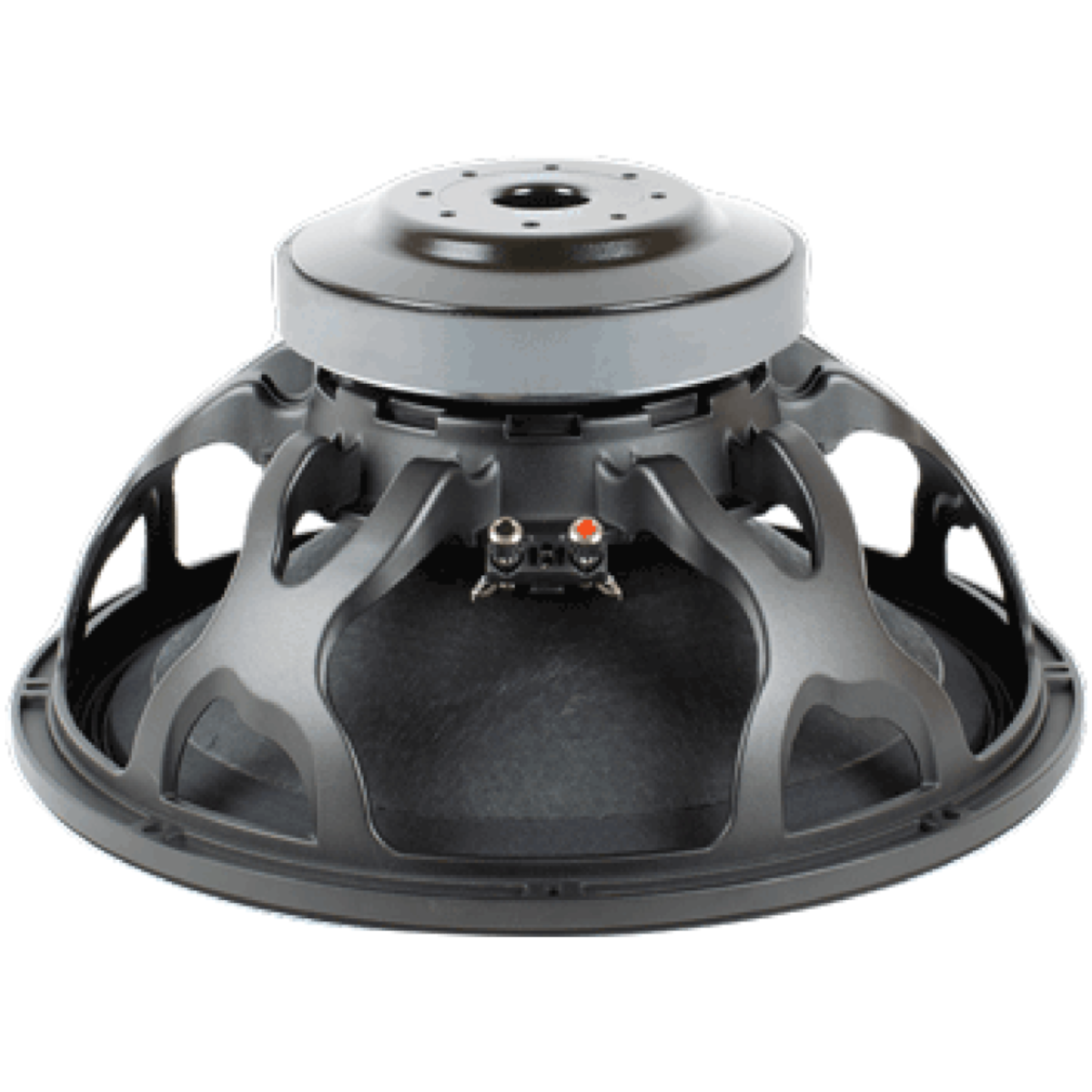

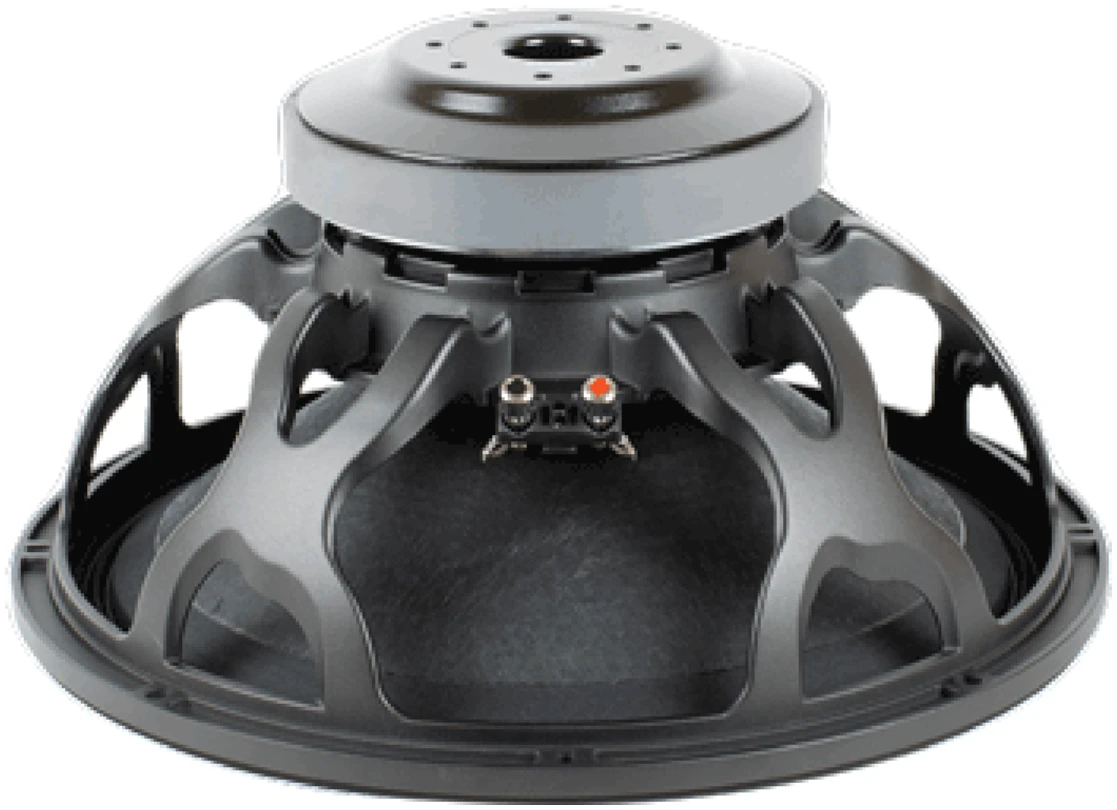

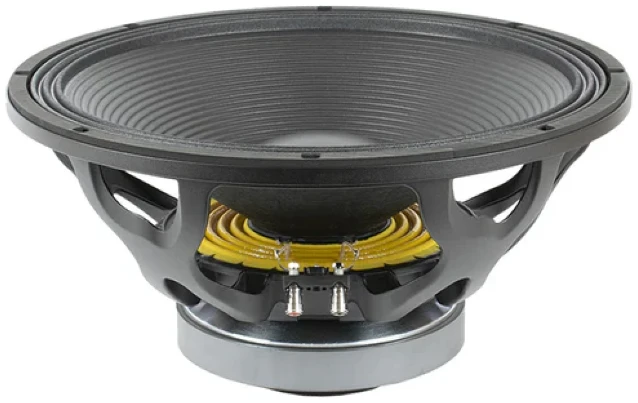

The Beyma 18LEX1600Fe is a flagship 18-inch low-frequency transducer built for ultra high-power subwoofer applications. Featuring a reinforced ferrite magnet structure and a massive 4.5″ edge-wound copper voice coil, it delivers extended low-frequency response, high SPL capability, and outstanding durability. Designed for professional touring systems, large venues, and demanding subwoofer designs, this driver ensures maximum performance under extreme working conditions.
Key Specifications:
- Nominal Diameter: 18″ (460 mm)
- Voice Coil: 4.5″ (116 mm) copper, edge-wound
- Power Handling (AES): 1600 W AES
- Program Power: 3200 W
- Peak Power: 6400 W
- Nominal Impedance: 8 Ω
- Sensitivity: 97 dB (1W/1m)
- Frequency Response: 25 Hz – 1.0 kHz
- Magnet Type: Ferrite
- Xmax (linear excursion): ±10 mm
- Efficiency: ~2.5 %
Recommended Applications:
- High-output touring subwoofers
- Large-format PA and club systems
- Horn-loaded and bass reflex enclosures
- Demanding cinema and theatre sub-bass reinforcement
