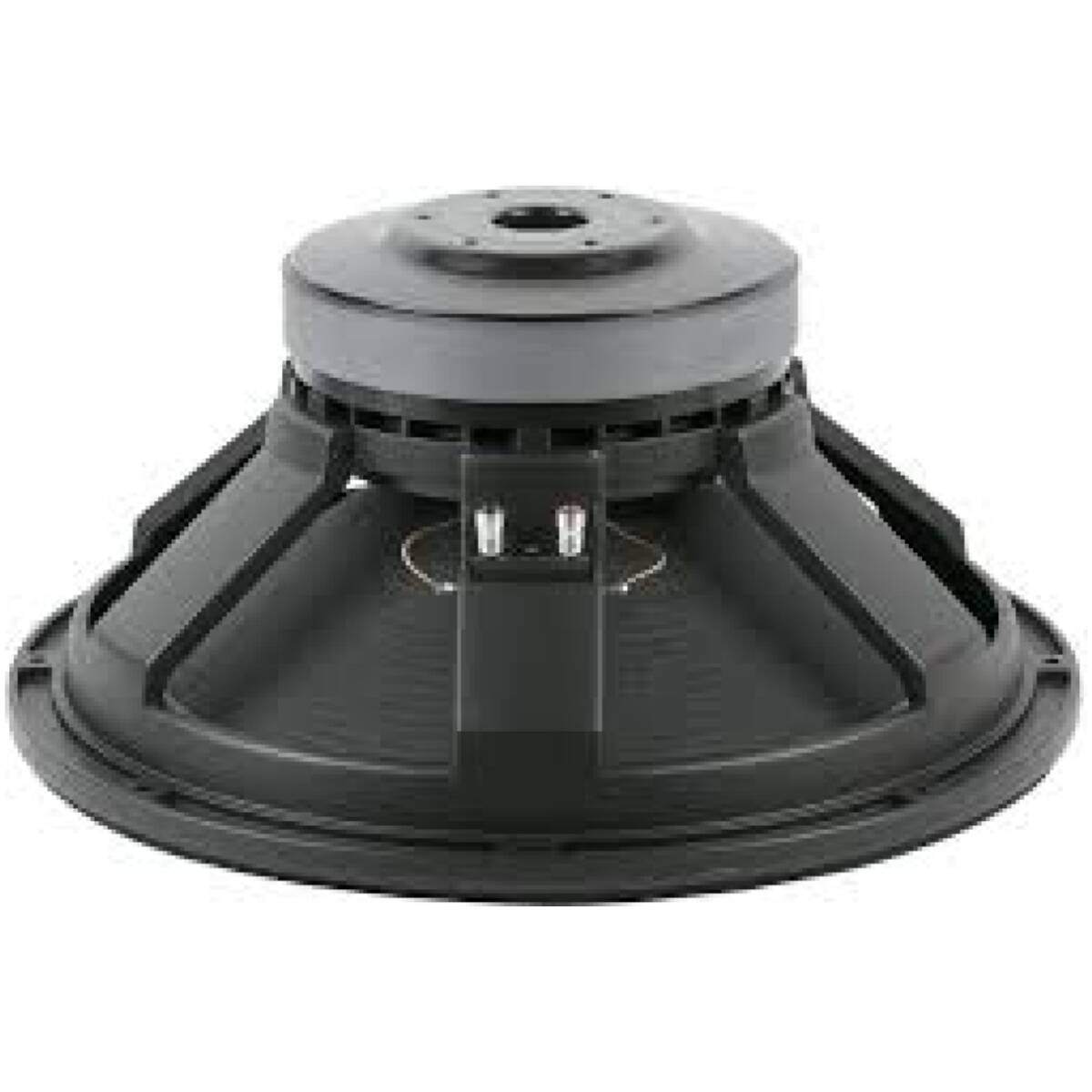

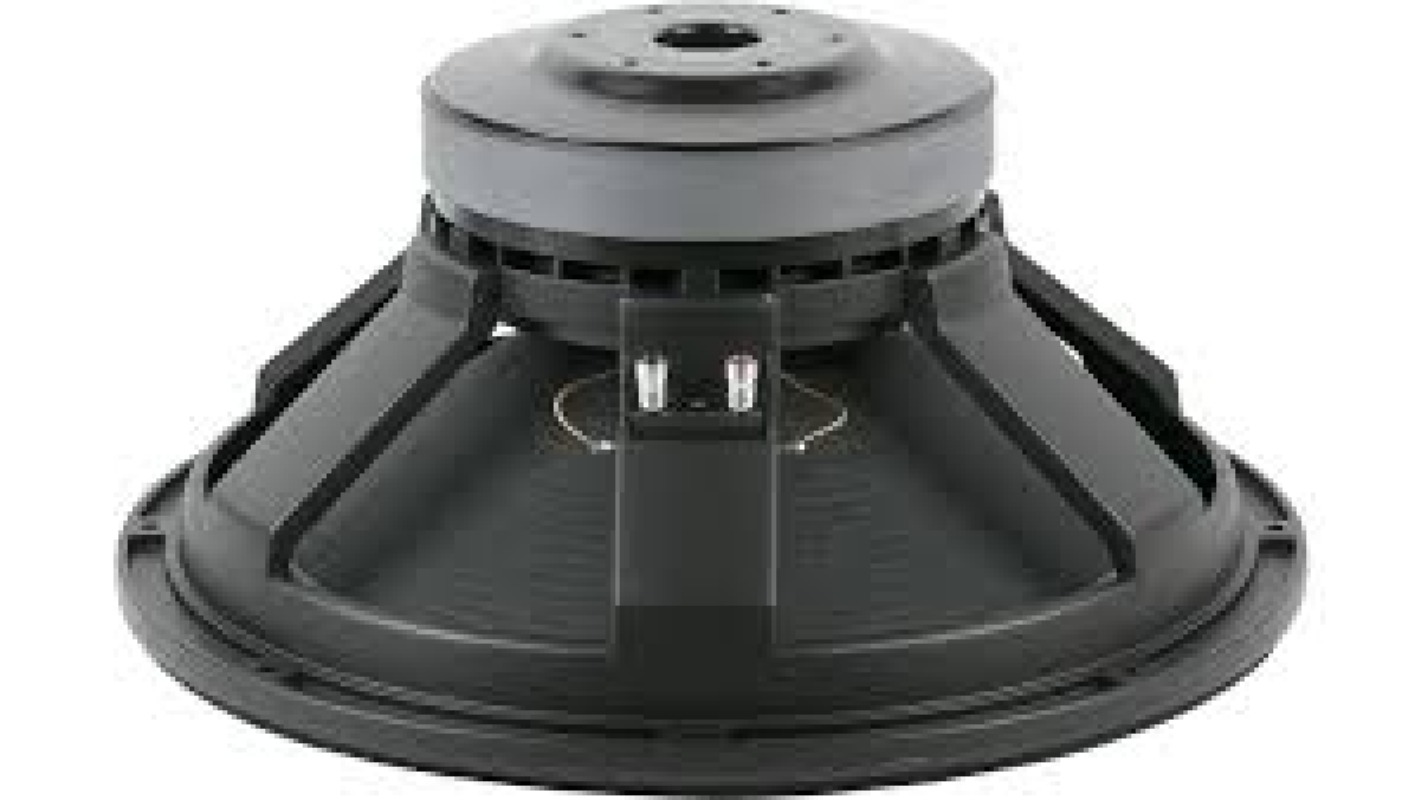

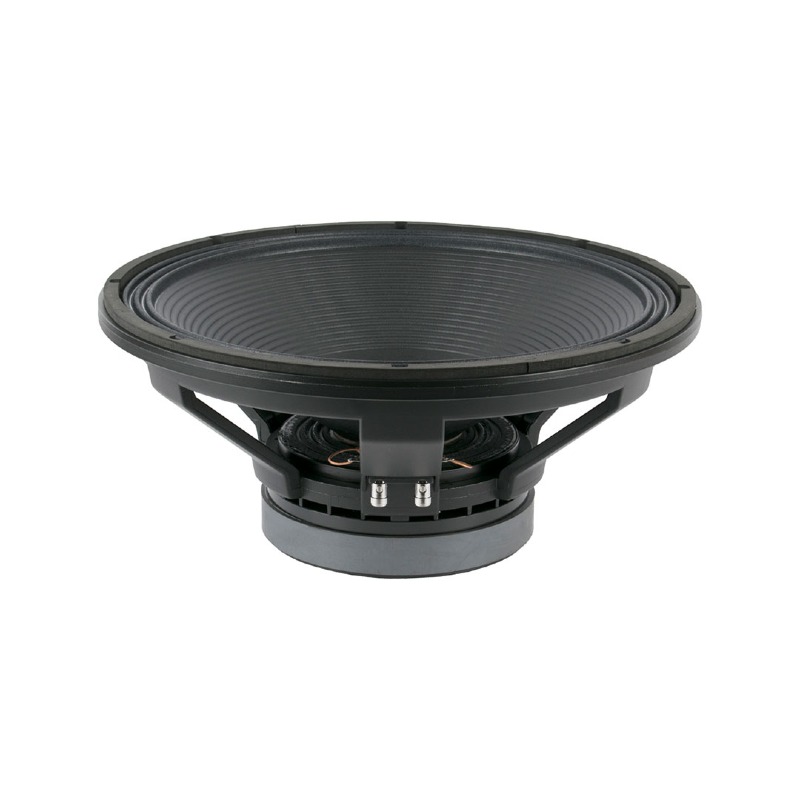

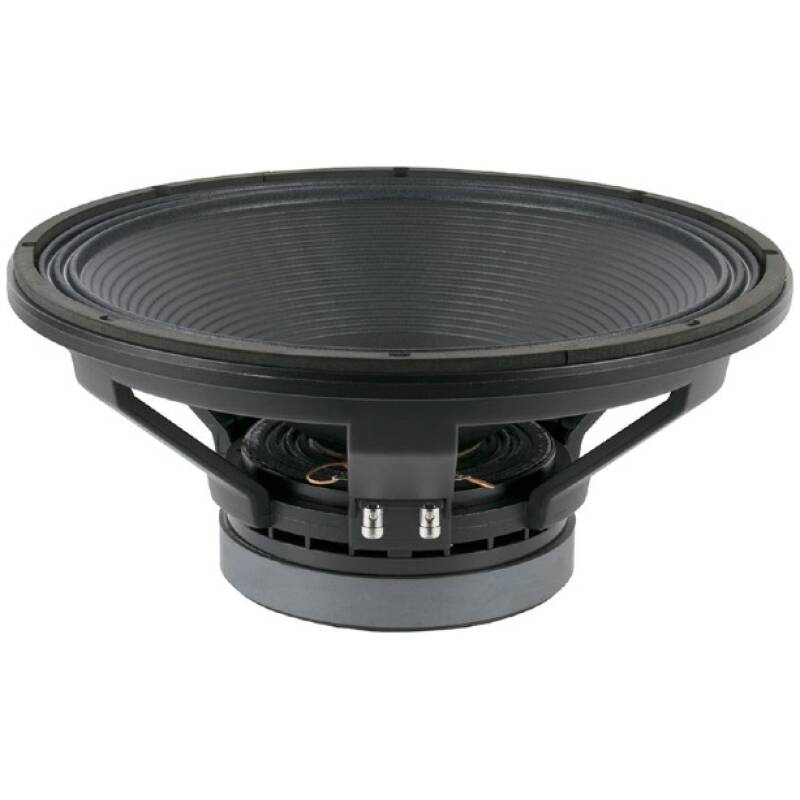

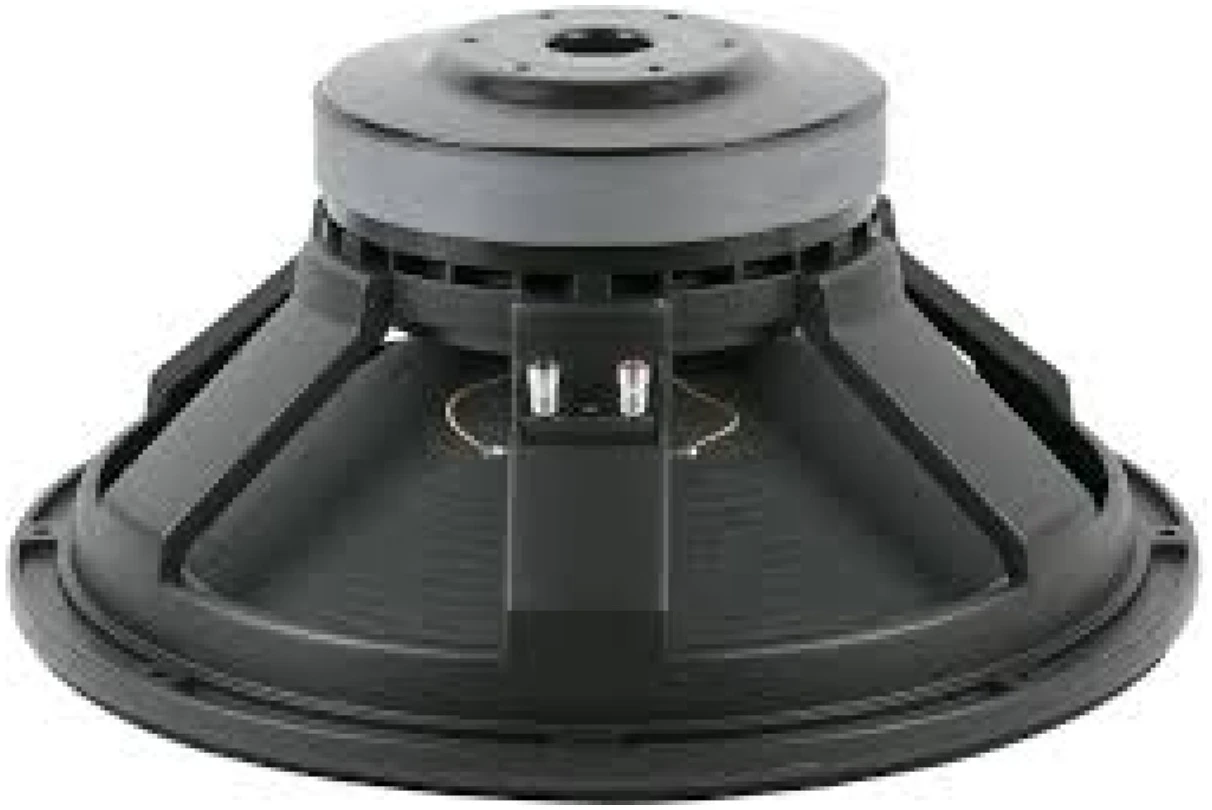

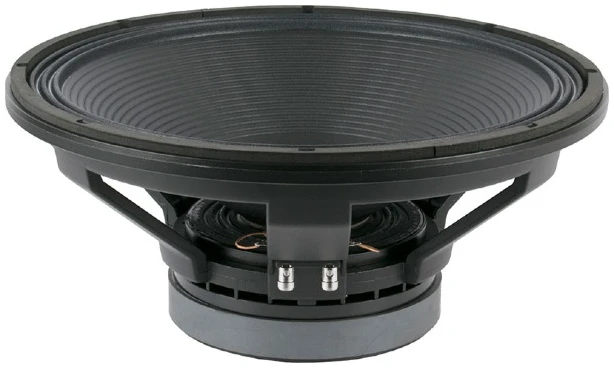

The Beyma 18P1000Fe/V2 is an upgraded version of the popular 18P1000Fe, engineered for professional subwoofer and bass reinforcement applications. With its ferrite magnet structure and a 4″ edge-wound copper voice coil, it delivers powerful low frequencies with excellent control, making it suitable for bass reflex, band-pass, and horn-loaded designs. Its improved design provides greater power handling, higher excursion, and enhanced thermal performance compared to the previous version.
Key Specifications:
- Nominal Diameter: 18″ (460 mm)
- Voice Coil: 4″ (100 mm) copper, edge-wound
- Power Handling (AES): 1000 W AES
- Program Power: 2000 W
- Peak Power: 4000 W
- Nominal Impedance: 8 Ω
- Sensitivity: 96 dB (1W/1m)
- Frequency Response: 30 Hz – 1.5 kHz
- Magnet Type: Ferrite
- Xmax (linear excursion): ±9 mm
- Efficiency: ~2.3 %
Recommended Applications:
- Subwoofers (bass reflex, band-pass, horn-loaded)
- Professional PA and touring systems
- Club and theatre sound reinforcement
