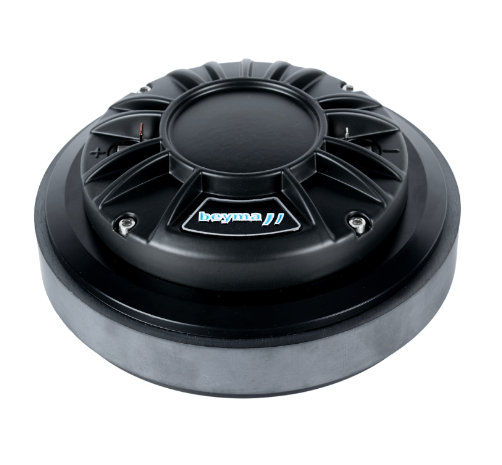

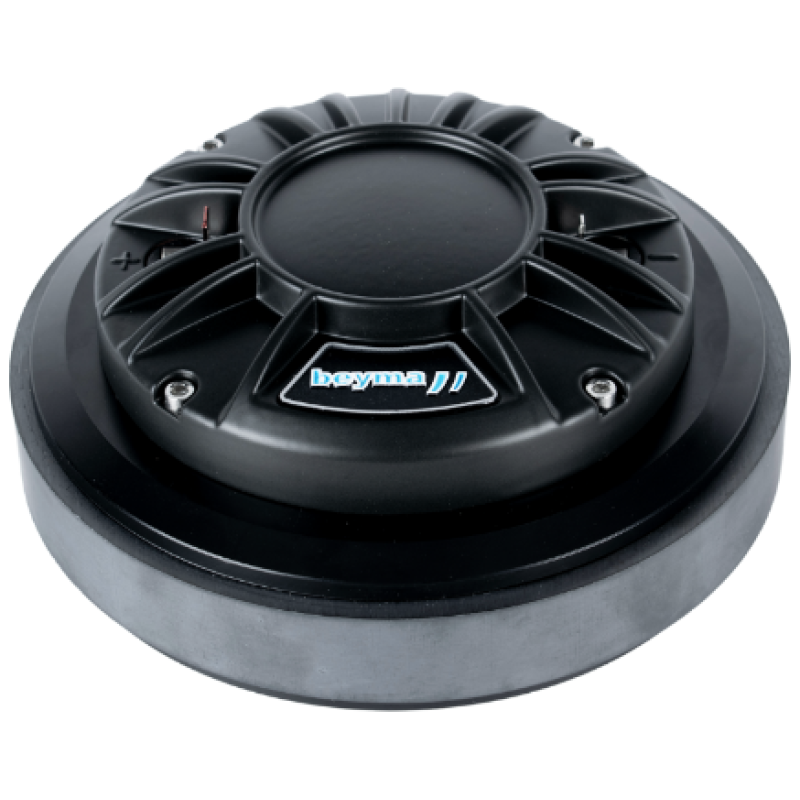

Beyma CD-2514Fe/Ti (8 Ω) Compression Driver

Technical Specifications

• Throat Diameter: 36 mm (1.4 in)

• Rated Impedance: 8 Ω

• Minimum Impedance: 6.3 Ω

• DC Resistance: 4.4 Ω

• AES Power Capacity:

  • 80 W above 0.8 kHz

  • 100 W above 1.2 kHz

• Program Power:

  • 160 W above 0.8 kHz

  • 200 W above 1.2 kHz

• Sensitivity: 108 dB (1W/1m, 1–7 kHz range, with TD-385 horn)

• Frequency Range: 0.6 – 20 kHz

• Recommended Crossover: 0.8 kHz or higher (12 dB/oct min.)

• Voice Coil Diameter: 63.5 mm (2.5 in)

• Flux Density: 1.6 T

• Bl Factor: 6.3 N/A

Dimensions & Mounting

• Overall Diameter: 145 mm (5.71 in)

• Depth: 62.7 mm (2.47 in)

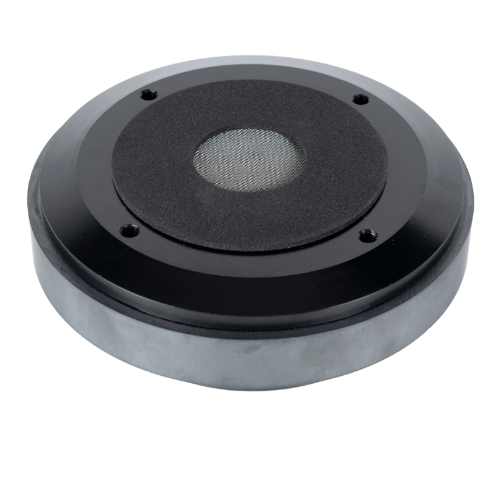

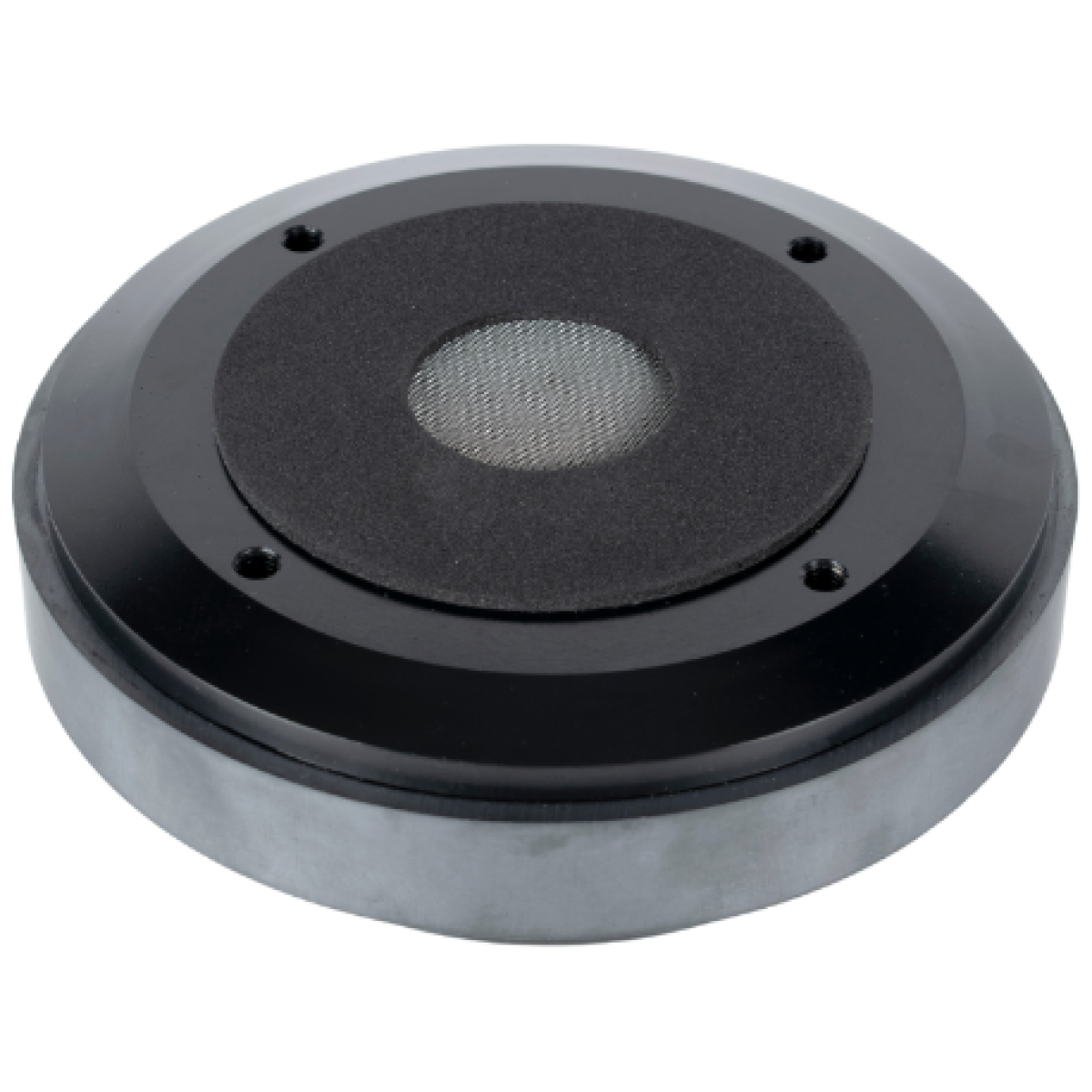

• Mounting: 4 × M6 threaded holes, 90° apart, on 101.6 mm (4 in) bolt circle

• Net Weight: 3.5 kg (7.7 lb)

• Shipping Weight: 3.7 kg (8.1 lb)
